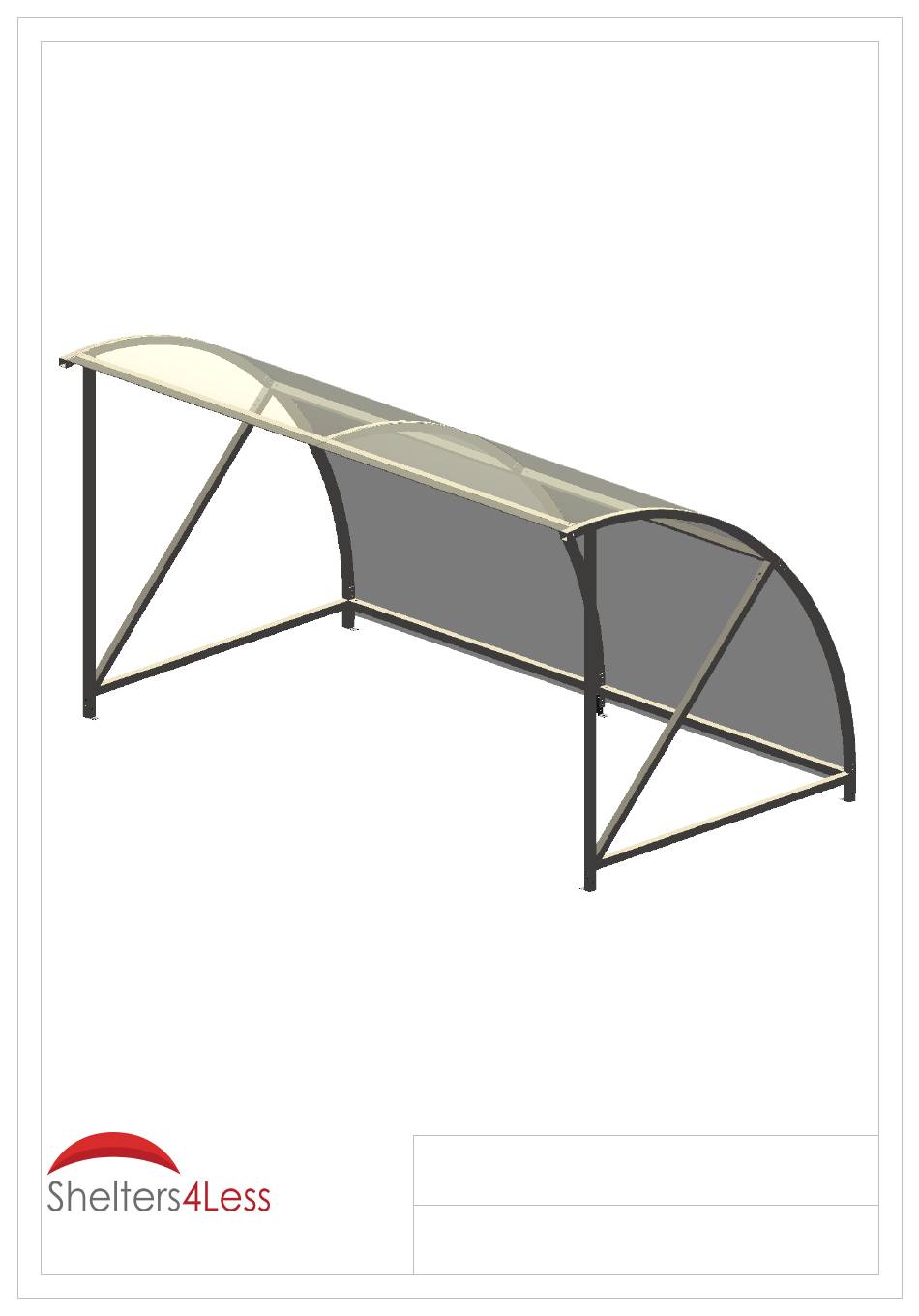

- Page 1 Assembly Instructions Shelter type: SR1636 www.shelters4less.co.uk SR1636-01-260216 sales@shelters4less.co.uk 0800 160 1002...
-
Page 2: Exploded View
EXPLODED VIEW Tools required: (Not supplied) Drill/Screwdriver Socket set 8mm Allen key... - Page 3 PARTS LIST & FITTINGS ITEM DIMENSION PART NO. DESCRIPTION IMAGE QTY. (mm) Side Frame SF1.1 Part 1 of 2 2200 x 1700 (split side frame version) Side Frame SF1.2 Part 2 of 2 2050 x 2000 (split side frame version) B3900 3900 Beam 3900...
- Page 4 If you have recived the "Split End" version (If not go straight to Step 1) Join the SF1.1 frame and the SF1.2 frame to make the Complete Side Frame SF1.1 SF1.1 SF1.2 SF1.2 Step 1 Use the 3900 long Bar (B3900) to join the Side frames. B3900 Side frame Side frame...
- Page 5 Step 2 Attach the CB1 center curved upright then attach two BB1 Cross beams at the bottom and two in the middle.
- Page 6 Step 3 Insert the FB1 Foot brackets, then move the shelter to its final position and secure it to the ground. Make sure the shelter is square and level.Then fix the RS1 Roof Sheets using the tech screws. Always Clean off swarf when fitting the Roof sheets to avoid rust stains.
- Page 7 Notes:...
-
Page 8: Maintenance
Touch up any exposed metal should it get scratched CONTACT DETAILS: Email : sales@shelters4less.co.uk Web : www.shelters4less.co.uk Tel : 0800 160 1002 Shelters4less, Unit 3, 2 Lansdowne Crescent, Bournemouth, BH1 1SA All Parts and Fixings checked by: Print Name: Signature:...
