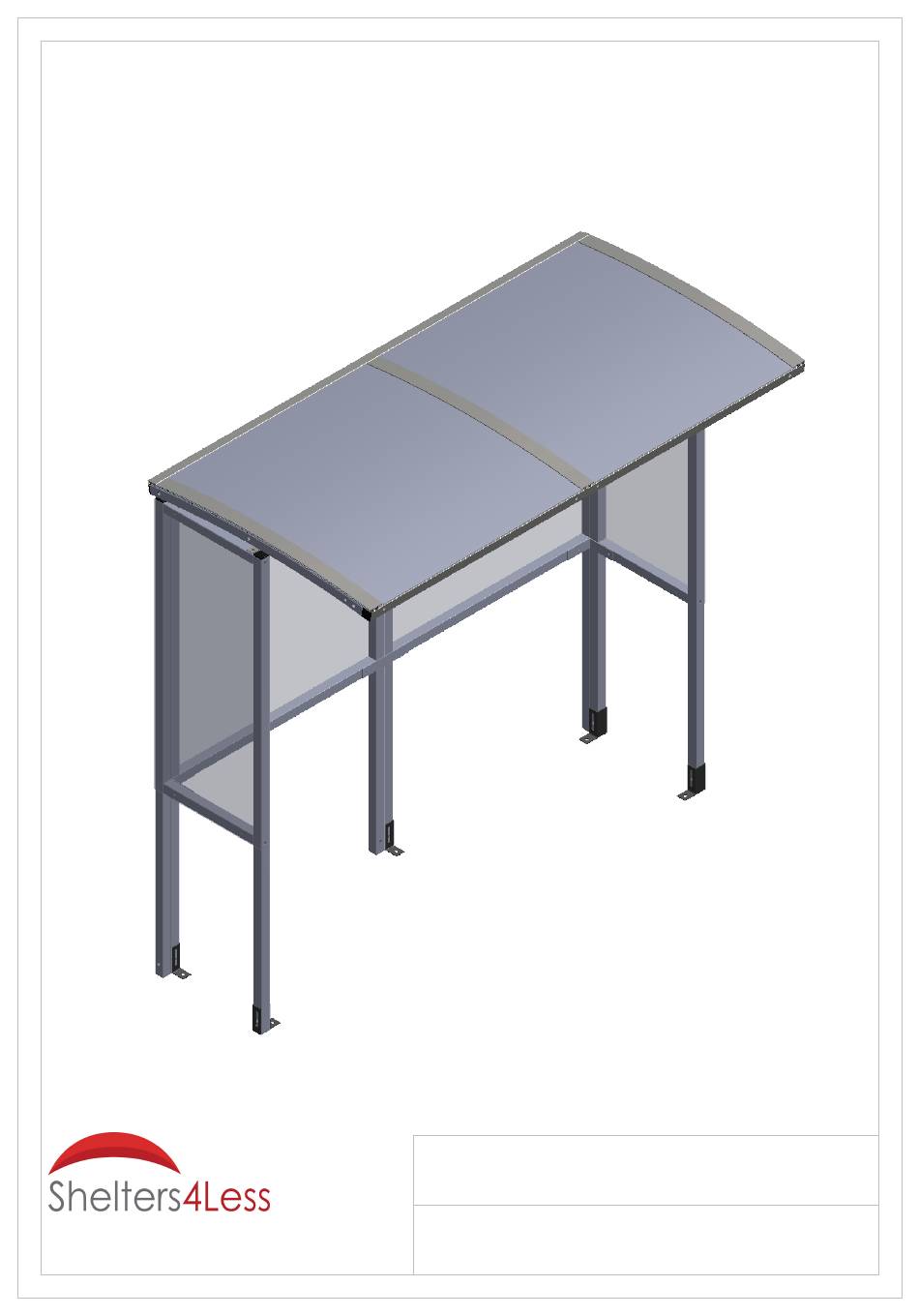

- Page 1 Assembly Instructions Product Code: SR1583 www.shelters4less.co.uk Doc. No.: SR1583-01-250117-S4L sales@shelters4less.co.uk 0800 160 1002...
-
Page 2: Exploded View
EXPLODED VIEW 9 9 9 Tools required: Drill/Screwdriver Spanners Mallet Torx bit Hack saw... - Page 3 PARTS LIST ITEM PART DESCRIPTION DIMENSIONS (mm) IMAGE QTY. S3(M3) 2000 X 517 Frame 2000 X 1035 Frame 110 x 110 x 40 Bracket 220 x 40 Bracket S3(4) 2000 X 517 Frame 95 X 45 L3 Bracket 110 X 45 Bracket 1030 Rafter...
- Page 4 Step 1 Assemble all the Frames (S1 & S3) to make up the main structure using CB1 Brackets in the corners and JF1 Brackets in the center. Push in the Plastic End Caps only where indicated below (not along the back of the shelter) General Note: The 50mm Tech Screws are for fixing roof strips only...
- Page 5 Step 2 Attach the outer Rafters (R3) using RB2 Brackets at the rear and L3 Brackets in the middle of the rafters.
- Page 6 Step 3 Attach four L1 Brackets to the B2 Beam. Then attach it to the front of the Rafters. L1 L1...
- Page 7 Step 4 Fix the central Rafter (R3) to the front first then use RB2 Brackets to secure it at the back. Attach the FT1 Brackets to the bottom of the shelter, then move the structure to its final position and make sure everything is square before bolting it to the ground.
- Page 8 Step 5 Stick two Sealing Strips (SS) to each Rafter Leaving a gap between them for the Tech screws (As shown in Detail X below). Place the ACE3 Roof Sheets on top and screw them into place. Stick six more pieces of Sealing Strips (SS) on top of the roof sheets leaving the same gap.
- Page 9 Step 6 Line up the Roof Strips (RC3) on top of the sealing strips and secure them using 50mm tech screws. Attach the Angel (A1) to the back of the shelter and push plastic caps on any exposed nuts and bolts to complete the installation.
- Page 10 PLAN VIEW OVERALL DIMENSIONS AND GROUND FIXING POSITIONS Suggested size for concrete base: 200mm oversized on all four sides 1081...
- Page 11 NOTES:...
-
Page 12: Maintenance
Touch up any exposed metal should it get scratched CONTACT DETAILS: Email : Sales@shelters4less.co.uk Web : www.shelters4less.co.uk Tel : 0800 160 1002 Shelters4Less, Unit 3, 2 Lansdowne Crescent, Bournemouth, BH1 1SA All Parts and Fixings checked by: Print Name: Signature:...
