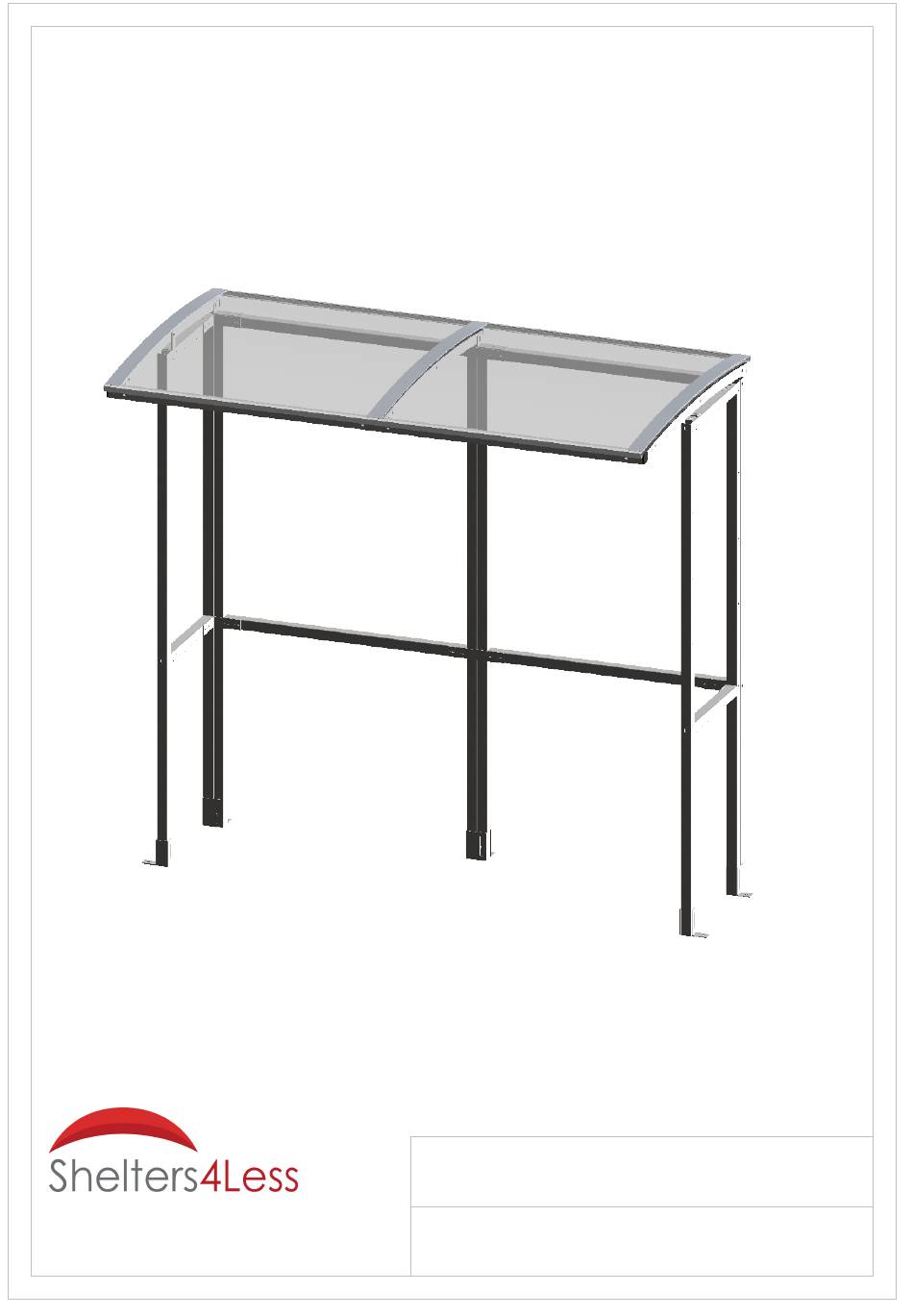

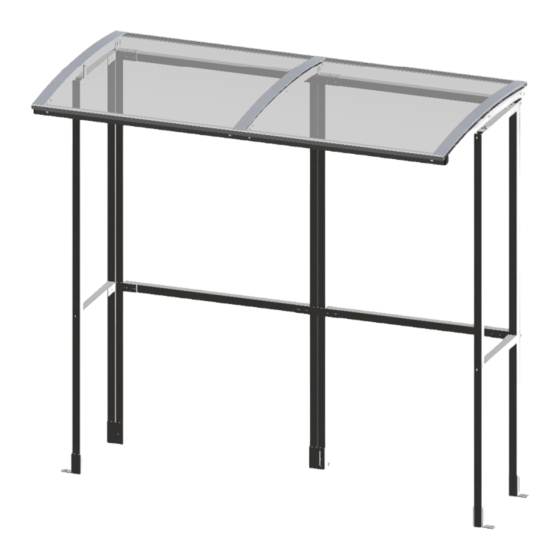

- Page 1 Assembly Instructions Shelter Type: SR1601 Email : Sales@shelters4less.co.uk SR1601-06-151118-S4L Web : www.shelters4less.co.uk Tel : 0800 160 1002...
-
Page 2: Exploded View
EXPLODED VIEW Tools required: Drill/Screwdriver Spanner Mallet Torx bit Hack saw... -
Page 3: Parts List
PARTS LIST ITEM NO. PART NO. DESCRIPTION DIMENSION IMAGE QTY. FRAME 2000x1035 FRAME 2000x517 BRACKET 220x40 BRACKET 110x110 BRACKET 110x46 RAFTER 1130 BRACKET 73x38 BRACKET 95x45 BEAM 2100 Sealing Strip TRIM TO 1075 1 ROLL PCE1 ROOF PANEL 1150x1050 ROOF STRIP 1130 ROOF EDGE TRIM TO SUIT... - Page 4 Step 1 Assemble main frame using S1 and S3 welded Frames. Join the frames using CB1 brackets in the corners and JF1 brackets for the flat joints. Then move the shelter to its final position, attach FT1 foot brackets and use the concrete bolts to secure it to the ground.
- Page 5 Step 2 Attach R3 rafters using RB1 brackets at rear and L3 brackets in the centre.
- Page 6 Step 3 Attach L1 brackets to R3 rafters. Then attach B2 tie bar. L1 L1 L1 L1...
- Page 7 Step 4 Apply sealing strips to R3 rafters then put the PCE1 Panels on top, apply more sealing strips on top of the panels and secure down with RC1 strips, screwed into the rafters with 50mm Tech screws. Then attach the 2MD edge trim. PCE1 NOTE: Sealing Strip to be attached to...
-
Page 8: Plan View
PLAN VIEW Suggested size for concrete base: 200mm oversized on all four sides 34.7 1139... - Page 9 Notes:...
- Page 10 Notes:...
- Page 11 Notes:...
-
Page 12: Maintenance
Ensure all fittings are tight (for example after a big storm) • Touch up any exposed metal should it get scratched CONTACT DETAILS: Email : Sales@shelters4less.co.uk Web : www.shelters4less.co.uk Tel : 0800 160 1002 Unit 3, 2 Lansdowne Crescent, Bournemouth, BH1 1SA...
