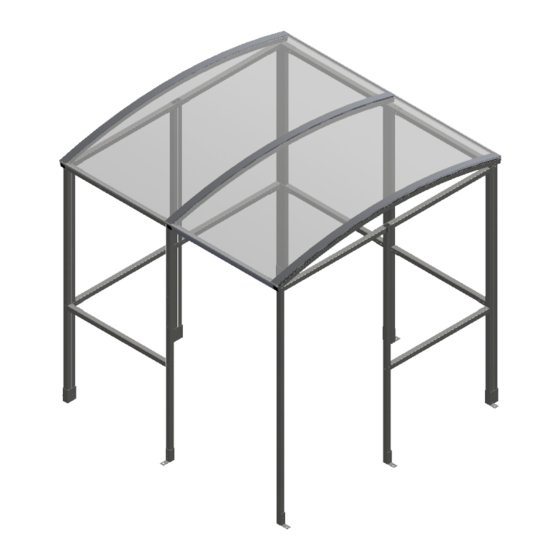

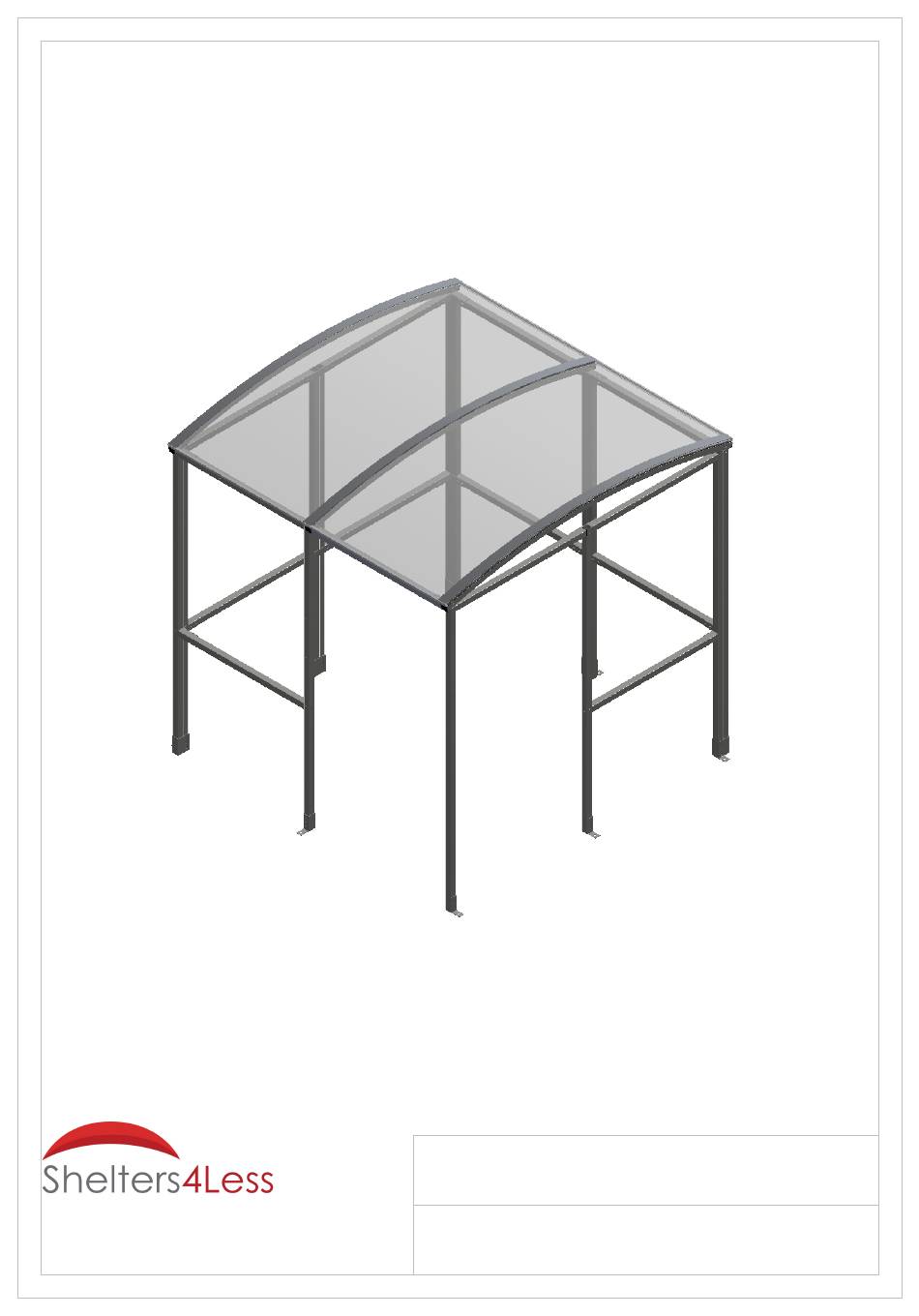

- Page 1 Assembly Instructions Shelter type: SR1554 Email : Sales@shelters4less.co.uk SR1554-03-260916-UK Web : www.shelters4less.co.uk Tel : 0800 160 1002...
- Page 2 EXPLODED VIEW AND TOOLS Tools required: Tools included: Drill/Screwdriver Spanner Mallet Hack saw Torx bit...
-
Page 3: Parts List
PARTS LIST ITEM PART DESCRIPTION DIMENSION IMAGE QTY. Frame 2000x1035 Post 106x110x40 Roof Tie Trim To 2195 Bracket 2000x1035 Bracket 110x110x40 Foot Bracket 109x100x40 Foot Bracket 109x100x80 Bracket 110x46 Rafter 2200x40x40 Sealing Strip 110x46 2 ROLLS PCE2 Roof Panel 2205x1050 Roof Strip 2060x40x40 Roof Edge... - Page 4 Step 1 Assemble S1 frames to make up the main structure using CB1 brackets in the corners and JF1 brackets on straight joints. Then attach P1 Post using one JF1 bracket. Then attach ST1 Tie bar using a JF1 bracket and one CB1 bracket. GENERAL NOTE: THE 50 mm TECH SCREWS ARE...
-
Page 5: Front View
Step 2 Move shelter in to its final position, make sure everything is square and secure to the floor using FT1 and FT3 foot brackets. Attach R2 roof rafters using RB1 brackets. 1035 1035 FRONT VIEW... - Page 6 Step 3 Apply SS sealing strips to the rafters (two for cental rafter) and line up the PCE2 roof panels to the outside of the shelter, leaving a gap between them. Apply more sealing strips to the top of the roof panel directly above the first strips. PCE2 PCE2...
- Page 7 Step 4 Apply RC2 strips on top of the panels and use 50mm Tech screws to secure them in place. Then clip on the 2MD edge trim to the bottom of the roof panels. Then fit the Black plastic caps on exposed nuts and bolts.
- Page 8 Ground anchor positions and overall size Suggested concrete base size: 200mm oversized on all four sides Scale 1:15 2181 1044.50 1136.50 1035 1044.50...
- Page 9 NOTES...
- Page 10 NOTES...
- Page 11 NOTES...
-
Page 12: Maintenance
Touch up any exposed metal should it get scratched CONTACT DETAILS: Email : Sales@shelter4less.co.uk Web : www.shelters4less.co.uk Tel : 0800 160 1002 Shelters4Less, Unit 3, 2 Landsdowne Crescent, Bournemouth, BH1 1SA All Parts and Fixings checked by: Print Name: Signature:...
