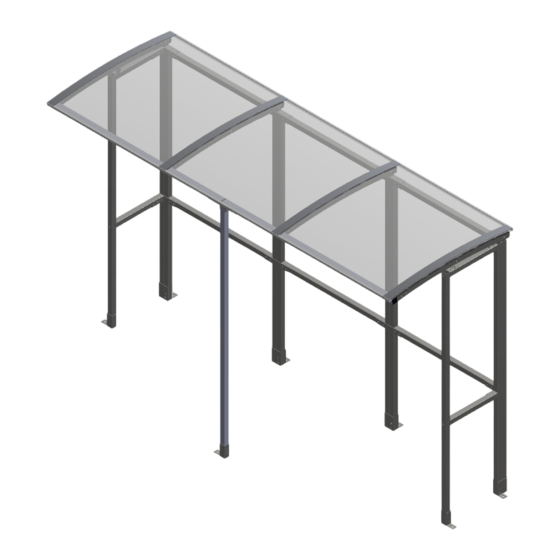

Summary of Contents for Shelters4Less SR1602

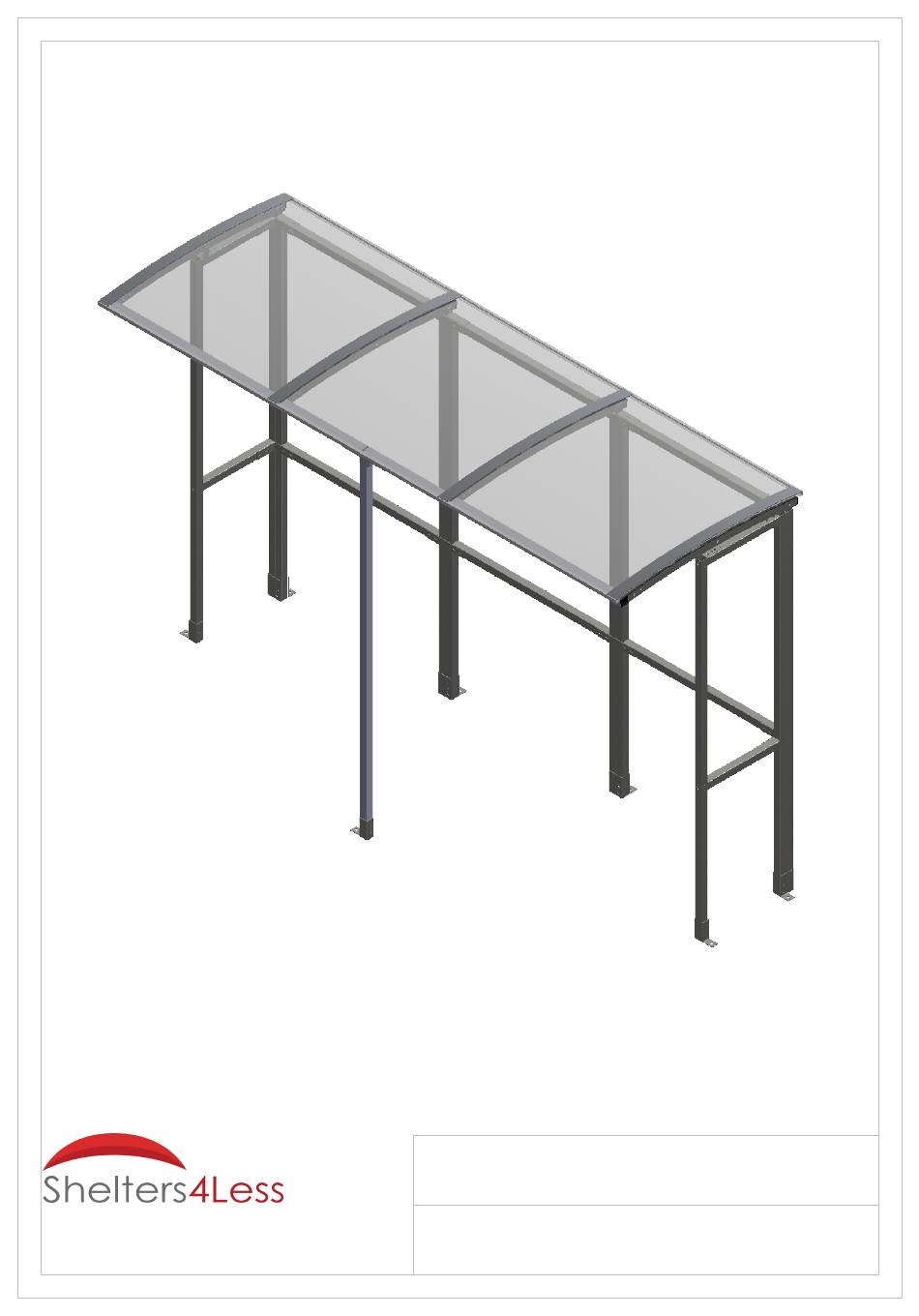

- Page 1 Assembly Instructions Shelter type: SR1602 Email : Sales@shelters4less.co.uk SR1602-03-260916-UK Web : www.shelters4less.co.uk Tel : 0800 160 1002...
-
Page 2: Exploded View
EXPLODED VIEW Tools required: Tools included: Drill/Screwdriver Spanner Mallet Torx bit Hack saw... -
Page 3: Parts List
PARTS LIST PART ITEM DESCRIPTION SIZE IMAGE QTY. FRAME 2000 x 1035 FRAME 2000 x 517 PLATE / BRACKET 220 x 40 BRACKET 110 x 110 x 40 FOOT BRACKET 109 x 100 x 40 FOOT BRACKET 109 x 100 x 80 BRACKET 110 x 46 BRACKET... - Page 4 Step 1 Assemble S1 frames to make up the main structure using CB1 brackets in the corners and JF1 brackets on the straight joints. GENERAL NOTE: THE 50mm TECH SCREWS ARE FOR FIXING ROOF STRIPS (RC) ONLY USE DIMENSIONS TO CHECK ALIGNMENT OF THE SHELTER Ensure correct alignment on corners...
- Page 5 Step 2 Attach R3 rafters using RB1 brackets on the back of the shelter and L3 brackets in the middle.
- Page 6 Step 3 Assemble the B3's and P1 using the JF1 and RB1 brackets as Attach front beams (B3) and centre post (P3) to the shown below. rafters using the L1 brackets. DETAIL A SCALE 1 : 5 DETAIL B SCALE 1 : 4...
- Page 7 Step 4 Attach the FT1 and FT3 foot brackets, Move the Shelter into its final position and make sure its square. Then use concrete anchor bolts to secure it to the the ground.
- Page 8 Step 5 Apply the sealing strips (SS) to the top of the R3 rafters as shown. Attach PCE1 and the PCC1 roof panels with a small gap between them. Apply more sealing strips to the top of the roof panels directly above the first sealing strips.
- Page 9 Step 6 Attach the RC1 roof strips, screwing directly into the rafters using 50mm Tech Screws. Push on the 2MD edge trim. Then fit the Black plastic caps on exposed nuts and bolts. Fit the square end caps (EC40) to any open ends of box sections. GENERAL NOTE: THE 50mm TECH SCREWS ARE FOR FIXING ROOF STRIPS...
- Page 10 PLAN VIEW OVERALL DIMENSIONS AND GROUND FIXING POSITIONS 478.88 526.50 1139 Suggested size for concrete base: 200mm oversized on all four sides.
- Page 11 NOTES...
-
Page 12: Maintenance
Ensure all fittings are tight (for example after a big storm) • Touch up any exposed metal should it get scratched CONTACT DETAILS: Email : Sales@shelters4less.co.uk Web : www.shelters4less.co.uk Tel : 0800 160 1002 Unit 3, 2 Lansdowne Crescent, Bournemouth, BH1 1SA...
