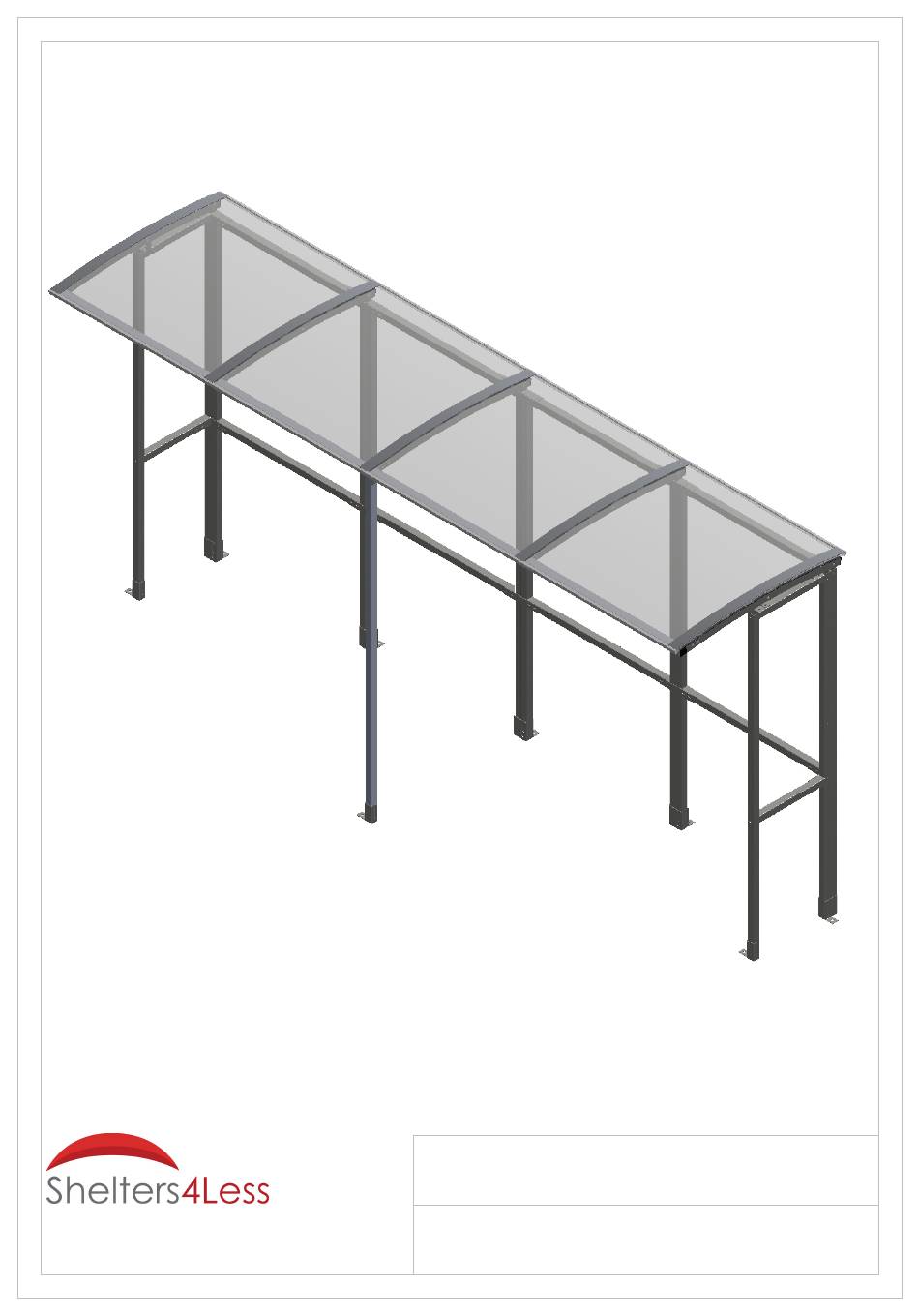

- Page 1 Assembly Instructions Shelter Type: SR1603 Email : Sales@shelters4less.co.uk SR1603-02-260916-UK Web : www.shelters4less.co.uk Tel : 0800 160 1002...
-
Page 2: Exploded View
EXPLODED VIEW Fittings Bolt set M10 AB1210 Black Washer 25mm 50mm M10 X 100mmC3 M10 x 60mm Tech Tech Concrete Bolt screw screw Pack A+B Required Spare Image... -
Page 3: Parts List
PARTS LIST PART ITEM DESCRIPTION SIZE IMAGE QTY. FRAME 2000 x 1035 FRAME 2000 x 517 PLATE / BRACKET 220 x 40 BRACKET 110 x 110 x 40 FOOT BRACKET 109 x 100 x 40 FOOT BRACKET 109 x 100 x 80 BRACKET 110 x 46 BRACKET... - Page 4 Step 1 Assemble S1 and S3 frames to make up the main structure using CB1 brackets for the corners and JF1 brackets for the straight joints. Please note 50mm Tec Screws are for roof panels only Use measurements to ensure correct alignment Make sure corners are correctly aligned.
- Page 5 Step 2 Attach the R3 end rafters using L3 brackets at the front and RB1 brackets for the rear. DETAIL A SCALE 1 : 4...
- Page 6 Step 3 Assemble the T - section by attaching the B4 ties to the P3 post using RB2 and JF3 brackets. T - section DETAIL B SCALE 1 : 3...
- Page 7 Step 4 Attach T-section using L1 brackets. DETAIL C SCALE 1 : 6...
- Page 8 Step 5 Move the shelter to its final position and make sure it is square and level. Then attach the FT1 and FT3 foot brackets and use anchor bolts to secure the structure to the ground.
- Page 9 Step 6 Apply Sealing strips (SS) to the rafters and line up the PCE1 roof panels with the outside of the shelter and equally space the PCC1 panels between the outer panels. Appy more sealing strips to the top of the roof panels, directly above the first sealing strip.
- Page 10 Step 7 Screw down the RC1 strips using the 50mm Tech screws to secure the roof panels in place. Then push the 2MD edge trim on to the bottom edge of the roof panels. Fit Black plastic caps on exposed nuts and bolts and fit the square plastic end caps to any open ends of box section.
-
Page 11: Plan View
PLAN VIEW OVERALL DIMENSIONS AND GROUND FIXING POSITIONS Suggested size for concrete base: 200mm oversized on all four sides. 1146 478.90 526.50... -
Page 12: Maintenance
Ensure all fittings are tight (for example after a big storm) • Touch up any exposed metal should it get scratched CONTACT DETAILS: Email : Sales@shelters4less.co.uk Web : www.shelters4less.co.uk Tel : 0800 160 1002 Unit 3, 2 Lansdowne Crescent, Bournemouth, BH1 1SA...
