Page 1

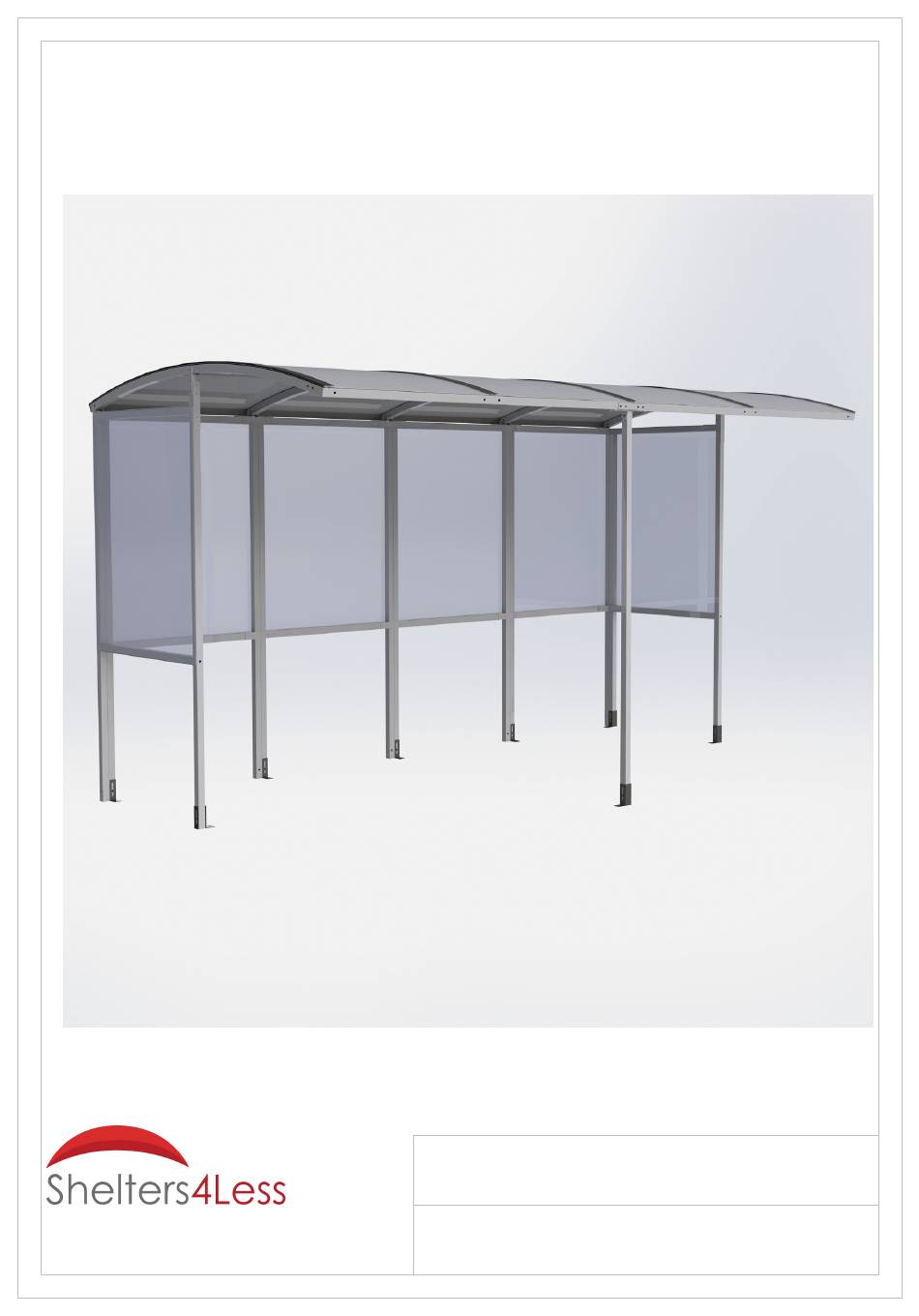

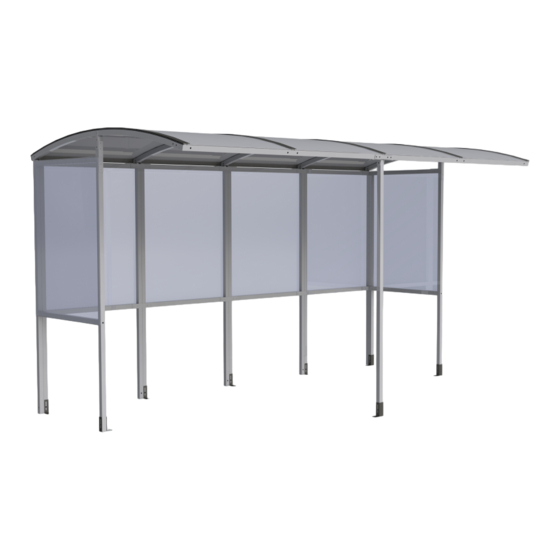

Assembly Instructions Shelter type: SR1588 Email : Sales@shelters4less.co.uk SR1588-01-15022017-UK Web : www.shelters4less.co.uk Tel : 0800 160 1002...
Page 2
Exploded View Tools required: Drill/Screwdriver 17 mm Spanners Mallet T5 Torx bit Hack saw...
Page 3
PARTS LIST ITEM NO. PART NO. DIMENSION IMAGE DESCRIPTION QTY. 2000 x 1035 Frame Bracket 110 x 110 x 40 Bracket 220 x 40 145 x 40 x 40 Stub 130 x 30 x 3 Bracket Bracket 110 x 46 Rafter 2159 x 40 x 40 95 x 45 x3...
Page 4
Step 1 Assemble S1 frames to make up the main structure using CB1 brackets in the corners and JF1 brackets on the straight joints. Check the dimension of the shelter to ensure correct alignment ENSURE CORRECT ALIGNMENT ON BOTH SIDES TOP VIEW...
Page 5
Step 2 Attach the ST1 Stub as shown below. Then attach the R4 and R5 rafters using RB2 brackets on the back of the shelter and ST1 stubs in the middle. Bolt one L1 bracket to each rafter. ST1 Stub Detailed view Identifying Rafters:...
Page 6
Step 3 Assemble the T-frame using two ST4 tie bars and a P4 post. Join the two ST4 tie bars together first, using a JF3 bracket and two L1 brackets on the other side. Then attach the P4 post using two RB2 brackets. Bolt on four aditional L1 brackets to the holes in the center of the ST4 bar.
Page 7
Step 4 Use the L1 brackets to attach the T-bar to the front of the shelter and install the R4 rafters using RB2 brackets on the rear and L1 brackets at the front. Attach the FT1 brackets and move the shelter in to its final position. Make sure everything is square before using anchor bolts to secure it to the ground.
Page 8
Step 5 Stick two sealing strips (SS) to each rafter and align the ACE2 panels to the outside of the end rafters then centralise the ACC2 panels with even gaps. ACE2 ACC2 ACC2 ACE2...
Page 9
Step 6 Use Tech screws to screw down the RC2 strips to secure the roof panels and attach the A3 angle using the same screws. Then fit the Black plastic caps on exposed nuts and bolts. Fit the square end caps to any open ends of box sections. DETAIL X SEALING STRIPS AND FIXING DETAIL (SCALE 1 : 1)
Page 11
PLAN VIEW OVERALL DIMENSIONS AND GROUND FIXING POSITIONS Suggested size for concrete base: 200mm oversized on all sides 2184...
Page 12
Touch up any exposed metal should it get scratched CONTACT DETAILS: Email : Sales@shelters4less.co.uk Web : www.shelters4less.co.uk Tel : 0800 160 1002 Shelters4Less, Unit 3, 2 Lansdowne Crescent, Bournemouth, BH1 1SA All Parts and Fixings checked by: Print Name: Signature:...
