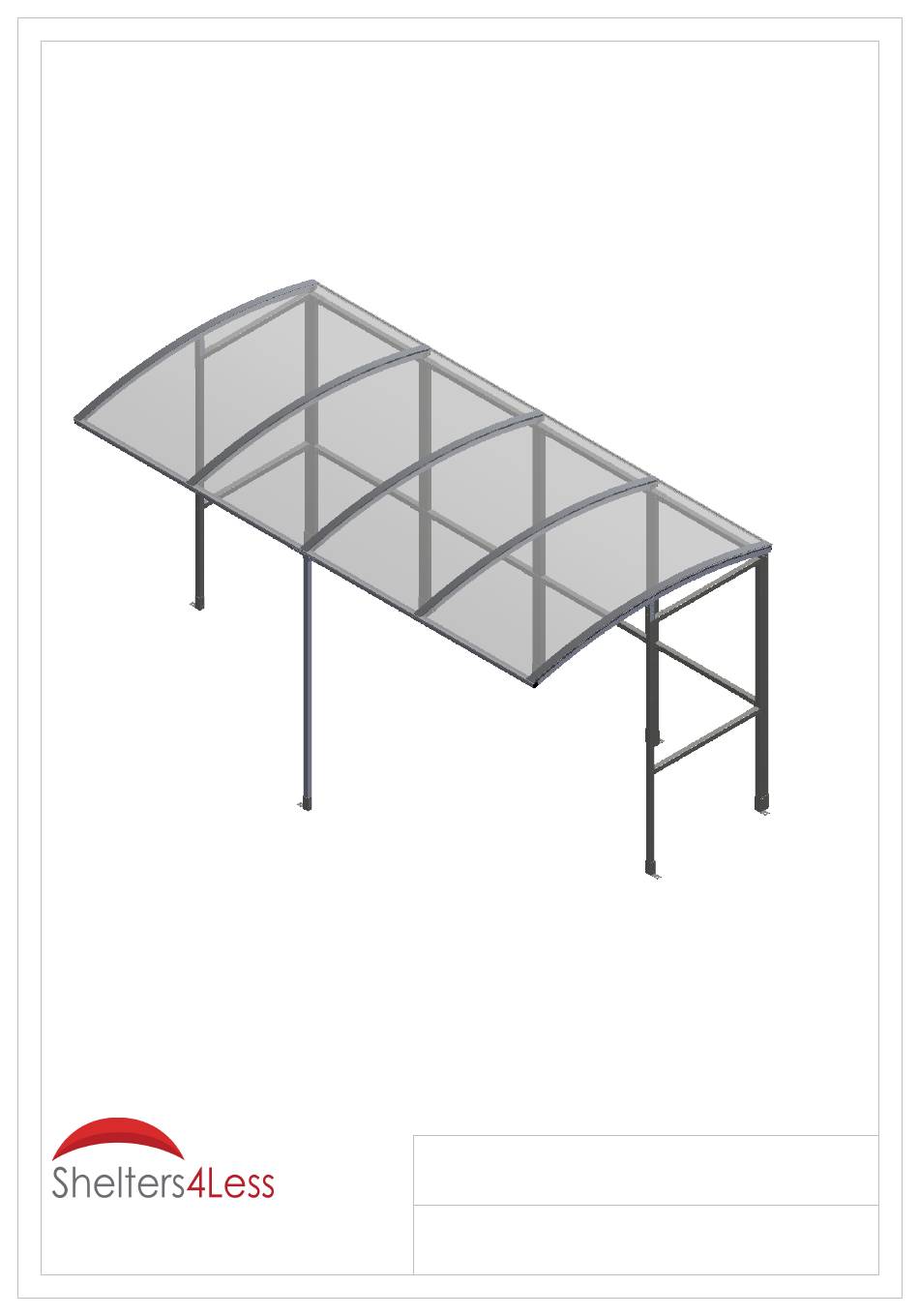

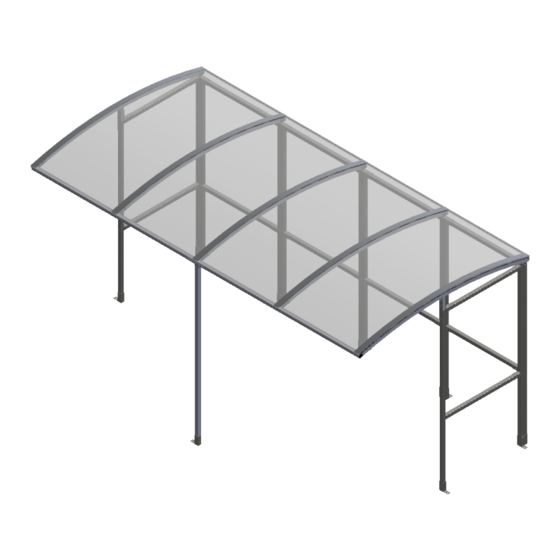

- Page 1 Assembly Instructions Shelter type: SR1606 Email : Sales@shelters4less.co.uk SR1606-01-270116-UK Web : www.shelters4less.co.uk Tel : 0800 160 1002...
-
Page 2: Exploded View
EXPLODED VIEW Fittings Bolt set M10 AB1210 Black Washer 25mm 50mm M10 x 100mm M10 x 60 mm Tech Tech Concrete Bolt screw screw Pack A+B Required Spare Image... -
Page 3: Parts List
PARTS LIST IMAGE ITEM NO. DESCRIPTION DIMENSION QTY. PART NO. FRAME 2000 x 1035 BRACKET 110 x 110 x 40 BRACKET 220 x 40 BRACKET 110 x 50 x 40 STUB 140 x 40 x 40 S1 STUB BRACKET 130 x 30 RAFTER 2160 x 40 x 40 RAFTER... - Page 4 Step 1 Assemble S1 frames to make up the main structure using CB1 brackets for the corners and JF1 brackets for the straight joints. Please note 50mm Tec Screws are for roof panels only CHECK DIMENSIONS TO ENSURE CORRECT ALIGNMENT Ensure correct alignment on corners...
- Page 5 Step 2 Attach the S1 stubs to the front of the frame using CB1, JF1 and JF3 brackets, then bolt the R4 and R5 rafters into place using the RB1 brackets and the stubs S1 STUB DETAIL A SCALE 1 : 9 S1 STUB DETAIL B SCALE 1 : 6...
- Page 6 Step 3 Assemble the T-section by joining the two ST4 tie bars using a JF3 bracket then join the P4 post using two RB1 brackets and attach a L1 bracket to each end. JF3 ON FRONT RB1 BELOW DETAIL C SCALE 1 : 4...
- Page 7 Step 4 Attach the T-section to the shelter, then fix the R4 rafters in place using more RB1 brackets on the rear and L1 brackets on the front. Bolt the FT1 and F3 brackets to the shelter and move it to its final position before using anchor bolts to secure it to the ground.
- Page 8 Step 5 Stick the sealing strips (SS) to the rafters and line up the PCE2 panels with the outside of the shelter then equally space the PCC2 panels in the gap. Apply more sealing strips on the top of the roof panels directly above the strips on the rafters.
- Page 9 Step 6 Screw down the RC2 strips into the rafter with the 50mm tech screws to secure the roof panels and push the 2MD end caps on the bottom of the panels.
-
Page 10: Plan View
PLAN VIEW OVERALL DIMENSIONS AND GROUND FIXING POSITIONS Suggested size for concrete base: 200mm oversized on all four sides. 2187 1048.40 1088.40 1044.50... - Page 11 Notes:...
-
Page 12: Maintenance
Touch up any exposed metal should it get scratched CONTACT DETAILS: Email : Sales@shelters4less.co.uk Web : www.shelters4less.co.uk Tel : 0800 160 1002 Shelters4Less, Unit 3, 2 Lansdowne Crescent, Bournemouth, BH1 1SA All Parts and Fixings checked by: Print Name: Signature:...
