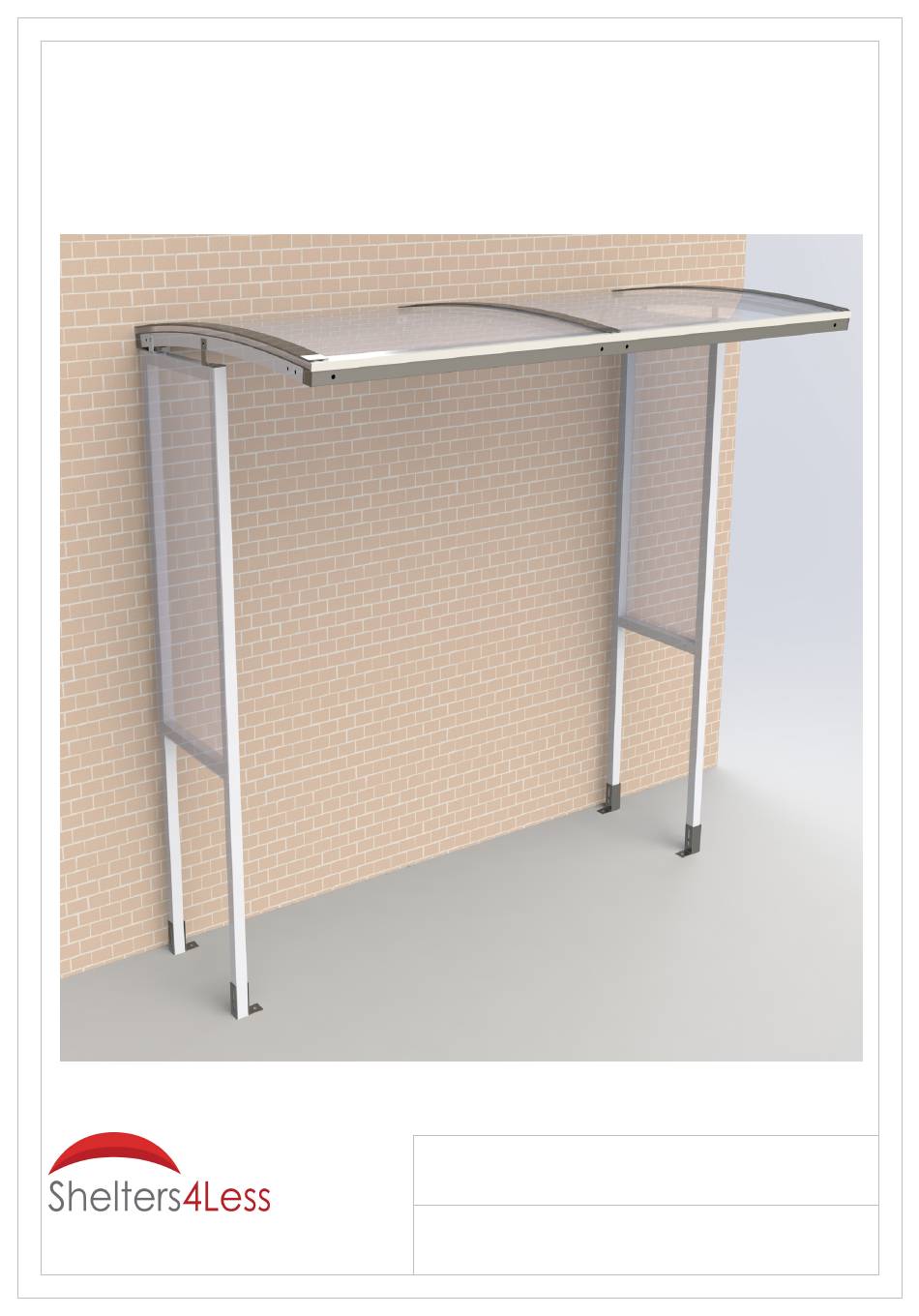

- Page 1 Assembly Instructions SR 1595 Product Code: WALL ATTACHED www.shelters4less.co.uk Doc. No.: SR1595-01-030117-S4L sales@shelters4less.co.uk 0800 160 1002...
-
Page 2: Exploded View
EXPLODED VIEW Tools required: Drill/Screwdriver Spanners Mallet Torx bit Hack saw... - Page 3 PARTS LIST PART ITEM DESCRIPTION DIMENSION IMAGE QTY. 2100 Beam 45 x 45 x 30 Bracket 95 x 45 x3 Bracket 1035 Rafter 73 x 38 x 3 Bracket 52 x 38 x 30 Bracket 2000 x 500 Frame 2100 Beam 2x 10m Trim to 1110...
- Page 4 Step 1 ttach the WB1 brackets to the wall at the correct distance First a as shown below. Then bolt the L1 brackets to the B1 Beam before fixing the beam to the wall. L1 L1 WALL DETAIL X GROUND WALL FIXING LEVEL BOLTS ARE NOT...
- Page 5 Step 2 Fix the two R6 end rafters to the L1 Brackets, then attach the S3 frame using L2 brackets at the rear and L3 brackets at the front of the frames. L1 Brackets...
- Page 6 Step 3 Use two L1 brackets to secure the front beam (B2). Also attach the Central rafter (R6) using four more L1 brackets.
- Page 7 Step 4 Make sure the shelter is square before attaching the FT1 floor fixing brackets.
- Page 8 Step 5 Apply two lengths of SS Sealing strips on each rafter. Attach the 2MD roof strips the the roof sheets first, then use the 50mm Tec screws to fix the roof sheets into place. PCE1 PCE 1...
- Page 9 Step 6 Apply six more SS sealing strips to the top of the roof sheet and line them up with the ones underneath. Then align the RC3 roof strips and use 50mm Tec screws to secure them.
- Page 10 PLAN VIEW OVERALL DIMENSIONS AND GROUND FIXING POSITIONS 1122...
- Page 11 NOTES:...
-
Page 12: Maintenance
Touch up any exposed metal should it get scratched CONTACT DETAILS: Email : Sales@shelters4less.co.uk Web : www.shelters4less.co.uk Tel : 0800 160 1002 Shelters4Less, Unit 3, 2 Lansdowne Crescent, Bournemouth, BH1 1SA All Parts and Fixings checked by: Print Name: Signature:...
