Summary of Contents for Shelters4Less SR1586

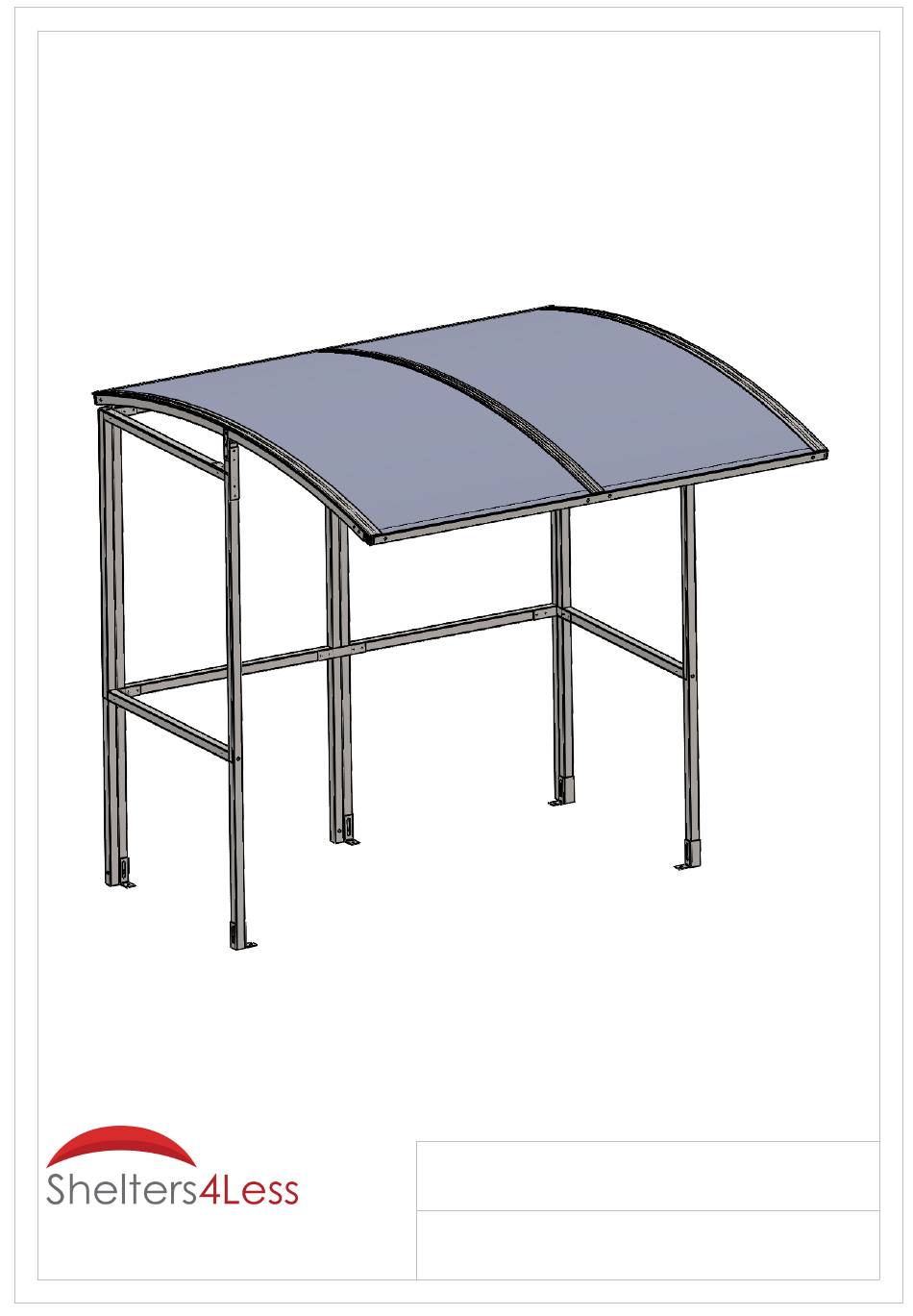

- Page 1 Assembly Instructions Shelter Type: SR1586 Email : Sales@shelters4less.com SR1586-01-180717-UK Web : www.shelters4less.com Tel : 0800 160 1002...
-
Page 2: Exploded View
EXPLODED VIEW... - Page 3 PARTS LIST AND FIXINGS PART NO. Description DIMENSION IMAGE QTY. ITEM NO. FRAME 2000 x 1035 BRACKET 110 x 110 BRACKET 220 x 40 Bracket BRACKET 110 x 46 NBBS S1 STUB 145 x 40 x 40 BRACKET 130 x 30 x 3 CURVED 2159 x 40 x 40 RAFTER...
- Page 4 Step 1 Assemble S1 frames to make up the main structure using CB1 brackets in the corners and JF1 brackets for the straight joints. Please note 50mm Tec Screws are for roof panels only check shelter dimensions to ensure correct alignment Ensure correct alignment on both sides...
- Page 5 Step 2 Attach JF2 brackets to SB1 Stubs. Using CB1 and JF1 brackets secure SB1 to frame. Now fix the RB2 brackets to the rear of the frame, attach R4 & R5 rafters. Use L1 brackets to attach ST8 tie bar. Move the shelter in to its final position, make sure its square and attach FT1 foot brackets.
- Page 6 Step 3 Apply sealing strips to rafters. Align the two ACE2 roof panels with the outer edges of the shelter, leaving a gap in between the panels. ACE2 SEALING STRIP ACE2 SEALING STRIP ACE2...
- Page 7 Step 4 Apply sealing strips to the top of the panel and use RC2 strips to cover the gap in the centre and the edges. Finish of the shelter by attaching the A1 angle trim. Sealing Strip Sealing Strip Finally fit the Black plastic caps on exposed nuts and bolts, and fit the square end caps to any...
- Page 8 Plan View Suggested size for concrete base: 200mm oversized on all four sides 2119 1095...
- Page 9 Notes...
- Page 10 Notes...
- Page 11 Notes...
-
Page 12: Maintenance
Ensure all fittings are tight (for example after a big storm) • Touch up any exposed metal should it get scratched CONTACT DETAILS: Email : Sales@shelters4less.co.uk Web : www.shelters4less.co.uk Tel : 0800 160 1002 Unit 3, 2 Lansdowne Crescent, Bournemouth, BH1 1SA All Parts and Fixings checked by:...
