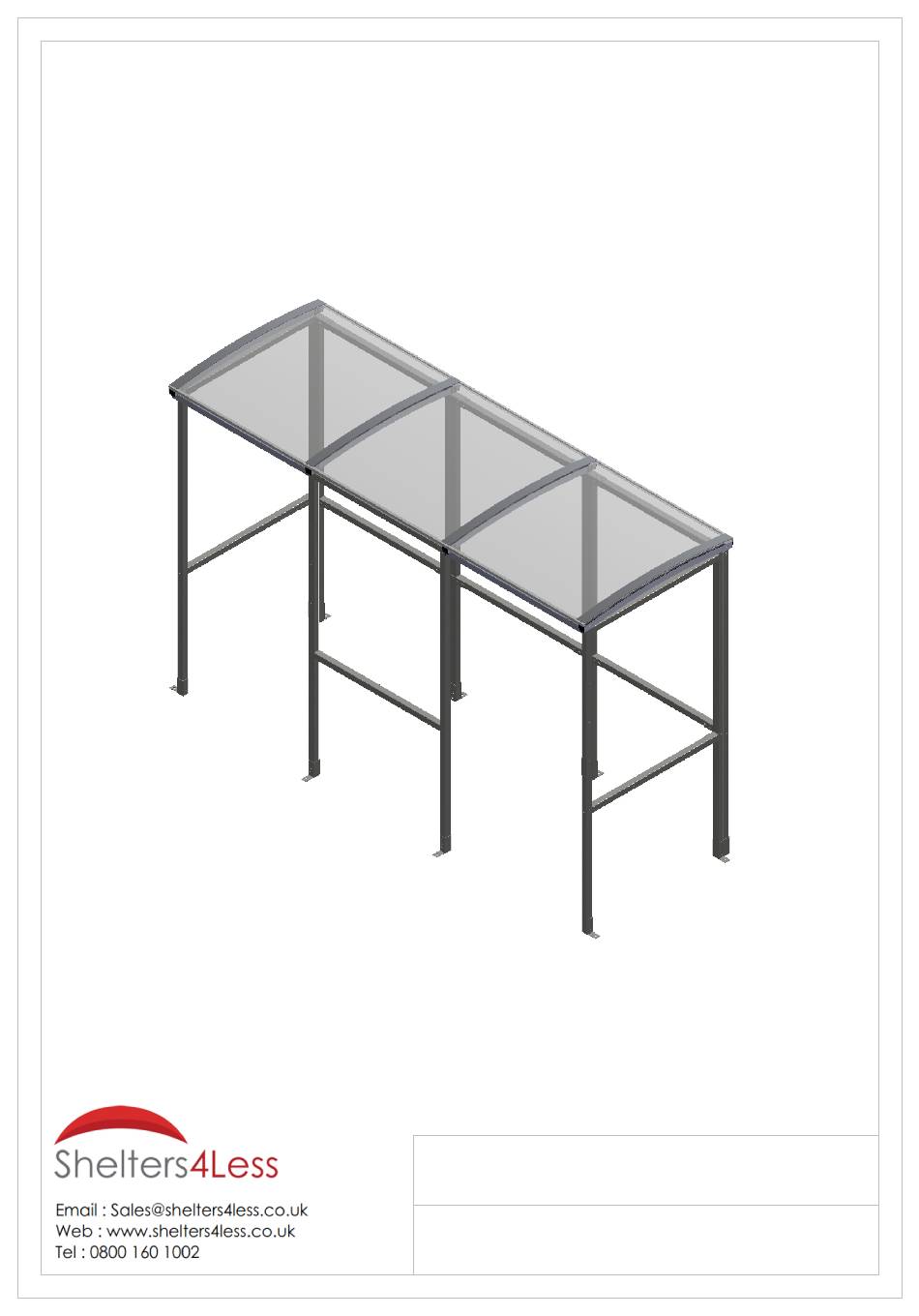

- Page 1 Assembly Instructions Product Code: SR1552 Doc. No.: SR152-02-240317-UK...
- Page 2 Exploded View Tools required: Drill/Screwdriver Spanner Mallet Torx bit Hack saw...
- Page 3 PARTS LIST ITEM PART NO. DESCRIPTION DIMENSION IMAGE QTY. FRAME 2000x1035 BRACKET 110x110 BRACKET 106x110x40 ROOF TIE 1025x40x40 FOOT 109x100x40 FOOT 109x100x40 ROOF RAFTER 1130x40x40 BRACKET 110x46 SEALING STRIP TRIM TO 1130 2 ROLLS ROOF PANEL 1130x1050 PCE1 ROOF PANEL 1130x1030 PCC1 ROOF STRIP...
- Page 4 Step 1 Assemble main structure (S1 Frames) using CB1 and JF1 Brackets. Please note 50mm Tec Screws are for the roof panels only Check overall dimensions to ensure correct alignment CB1 BRACKET CB1 BRACKET ENSURE CORRECT ALIGNMENT ON BOTH SIDES...
- Page 5 Step 2 Attach ST1 Roof Tie and Final S1 to the structure using CB1 and JF1 Brackets...
- Page 6 Step 3 FT1and FT3 Foot Brackets to the bottom of the frames Bolt the and secure in desired position using ground anchor bolts.
- Page 7 Step 4 Screw RB1 Brackets to the top of the frame and bolt R1 Rafters to framework. 1035 1075 1035 FRONT VIEW...
- Page 8 Step 5 Attach two Sealing strips to the top of each rafter then place PCE1 and PCC2 Panels on top of the strips leaving a small gap between each. Apply more sealing strips to the top of the roof panels, directly above the first strips. PCE1 PCC1 PCE1...
- Page 9 Step 6 Secure panels in place using an RC1 Strip and 50mm Tech screws, then attach the 2MD Edge Trim to the outer edges of the panels. Then fit the black plastic caps on exposed nuts and bolts. Fit the square plastic end caps to any open ends of box sections.
- Page 10 Ground anchor positions and overall size Suggested size for concrete base: 200mm oversizes (on all four sides) Scale 1:15 1139 1044.50...
- Page 11 NOTES:...
-
Page 12: Maintenance
Touch up any exposed metal should it get scratched CONTACT DETAILS: Email : Sales@shelters4less.co.uk Web : www.shelters4less.co.uk Tel : 0800 160 1002 Shelters4Less, Unit 3, 2 Landsdowne Crescent, Bournemouth, BH1 1SA All Parts and Fixing checked by: Print Name: Signature...
