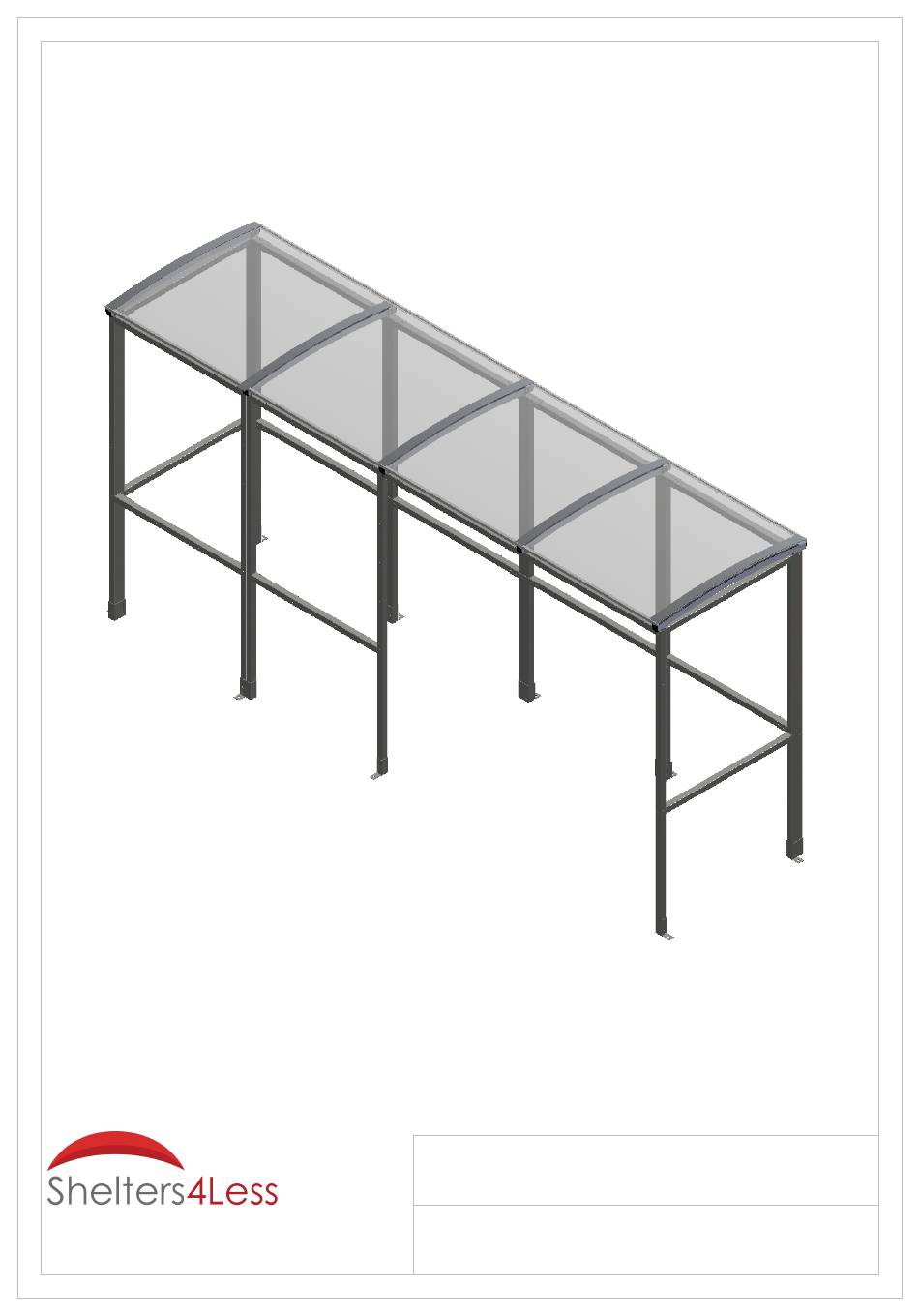

- Page 1 Assembly Instructions Product code: SR1553 Email : Sales@shelters4less.co.uk Doc. No.: SR1553-02-260916-UK Web : www.shelters4less.co.uk Tel : 0800 160 1002...
- Page 2 EXPLODED VIEW AND TOOLS Tools required: Tools included: Drill/Screwdriver Spanner Mallet Torx bit Hack saw...
- Page 3 PARTS LIST AND FITTINGS PART ITEM DESCRIPTION DIMENSION IMAGE QTY. Frame 2000x1035 Bracket 110x110 Bracket 220x40 Bracket 109x100x40 Bracket 109x100x80 Bracket 106x110x40 Rafter 2000x1035 Sealing Strip 110x110x40 2 ROLLS PCE1 Roof Panel 110x46 PCC1 Roof Panel 1030X1135 Roof Strip 2060x40x40 Roof Tie 2060x40x40 Roof Edge...
- Page 4 Step 1 Assemble S1 frames to make up the main structure using CB1 brackets for the corners and JF1 brackets for straight joints. Also use CB1 and JF1 brackets to secure the ST3 tie bar. Please note 50 mm Tec Screws are for roof panels only Check overall dimensions to ensure correct alignment...
- Page 5 Step 2 Move the Shelter to its final position and attach all FT1and FT3 foot brackets. ttach R1 roof rafters using RB1 brackets. Then a 1035 1035 1041 1029 FRONT VIEW...
- Page 6 Step 3 Apply sealing strips (SS) to the top of the rafters then arange the roof panels by lining up the end panels(PCE1) flush with the rafters and leaving a gap between the middle pieces(PCC1). Apply more sealing strips to the top of the roof panels directly aboe the strips on the rafters.
- Page 7 Step 4 Secure the roof panels in place by drilling the RC1 strips directly into the frame of the shelter using the Tech 50 screws. Then apply the 2MD edge trim along the bottom edges of the roof. fit the Black plastic caps on exposed nuts and bolts. Push Use a mallet to fit the square plastic end caps to any open ends of box sections.
- Page 8 GROUND ANCHOR POSITIONS AND OVERALL SIZE SUGESTED SIZE FOR BASE: 200mm OVERSIZES ON ALL 4 SIDES Scale 1:20 1135.59 1044.50...
- Page 9 Notes:...
- Page 10 Notes:...
- Page 11 Notes:...
-
Page 12: Maintenance
Touch up any exposed metal should it get scratched CONTACT DETAILS: Email : Sales@shelter4less.co.uk Web : www.shelters4less.co.uk Tel : 0800 160 1002 Shelters4Less, Unit 3, 2 Lansdowne Crescent, Bournemouth, BH1 1SA All Parts and Fixing checked by: Print Name: Signature...
