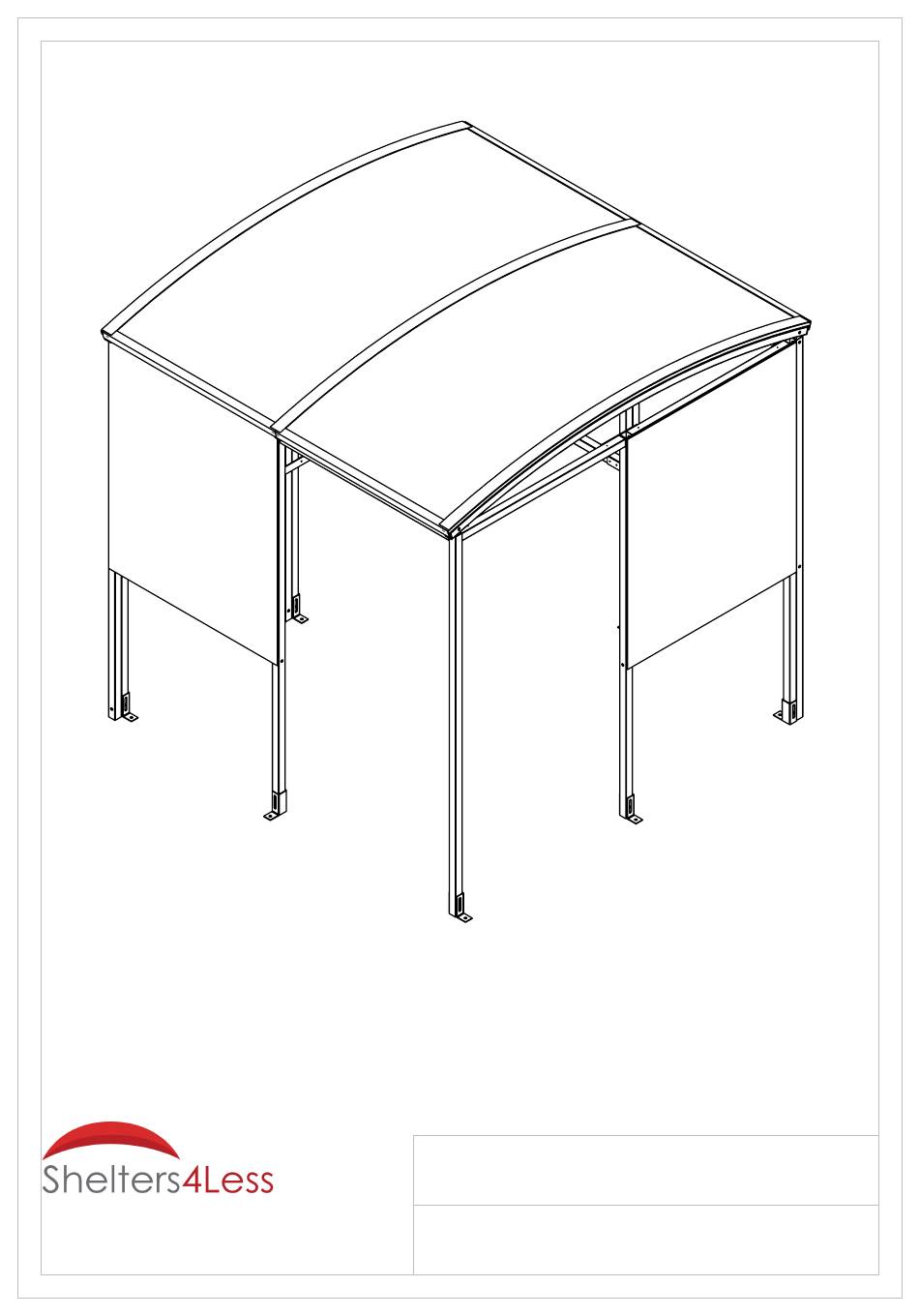

- Page 1 Assembly Instructions Shelter type: SR1561 Email : Sales@shelters4less.co.uk SR1561-01-310717-UK Web : www.shelters4less.co.uk Tel : 0800 160 1002...
- Page 2 EXPLODED VIEW AND TOOLS Tools required: Drill/Screwdriver Spanner Mallet Hack saw Torx bit...
-
Page 3: Parts List
PARTS LIST PART ITEM DESCRIPTION DIMENSION IMAGE QTY. Frame 2000 x 1035 Post 2000 Roof Tie 1025 Bracket 110 x 110 x 40 Bracket 220 x 40 Bracket 110 x 46 Rafter 2199 Sealing Strip 2220 ACE2 Roof Panel 2220 x 1050 Roof Strip 2180 Roof Angle... - Page 4 Step 1 Assemble S1 frames to make up the main structure using CB1 brackets in the corners and JF1 brackets on straight joints. Then attach P1 Post using one JF1 bracket. Then attach ST1 Tie bar using a JF1 bracket and one CB1 bracket. GENERAL NOTE: THE 50 mm TECH SCREWS ARE...
- Page 5 Step 2 Move shelter in to its final position, make sure everything is square and secure to the floor using FT1 foot brackets. Attach R2 roof rafters using RB2 brackets. 1035 1035...
- Page 6 Step 3 Apply SS sealing strips to the rafters (two per rafter) and line up the ACE2 roof panels to the outside of the shelter, leaving a gap between them. ACE2 ACE2 SS SS SS SS SS SS...
- Page 7 Step 4 Apply RC2 strips on top of the panels and use screws to secure them in place. Then clip on the A1 angle trim to the bottom of the roof panels. Then fit the Black plastic caps on exposed nuts and bolts. Fit the square plastic end caps to any open ends of box sections.
- Page 8 Ground anchor positions and overall size Suggested concrete base size: 200mm oversized on all four sides Scale 1:15 1129 1013 2110...
- Page 9 NOTES...
- Page 10 NOTES...
- Page 11 NOTES...
-
Page 12: Maintenance
Touch up any exposed metal should it get scratched CONTACT DETAILS: Email : Sales@shelter4less.co.uk Web : www.shelters4less.co.uk Tel : 0800 160 1002 Shelters4Less, Unit 3, 2 Landsdowne Crescent, Bournemouth, BH1 1SA All Parts and Fixings checked by: Print Name: Signature:...
