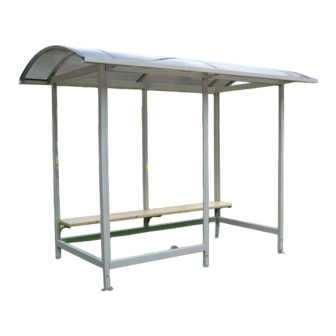

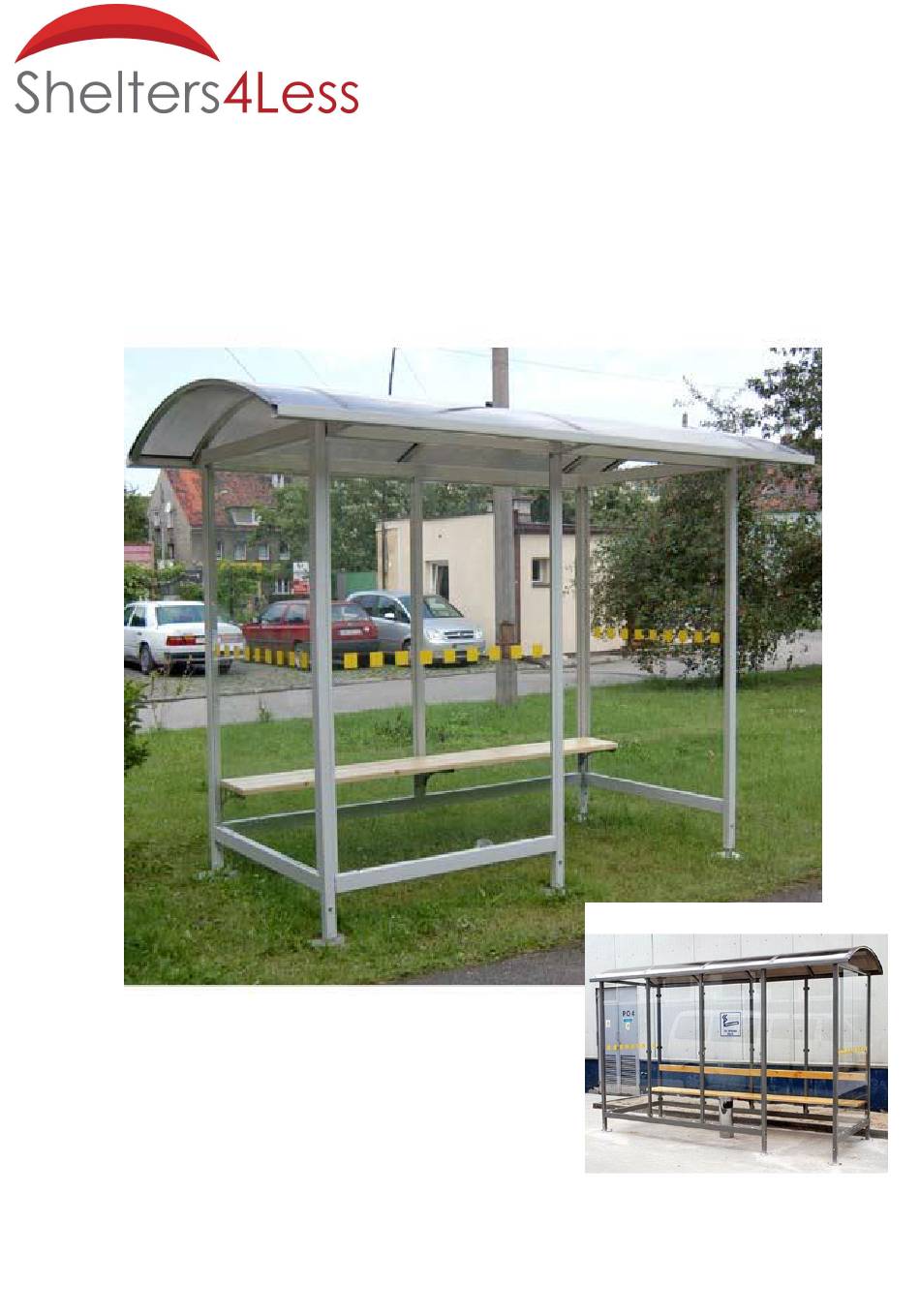

- Page 1 Installation Manual WAITING SHELTER ALMER General Arrangement Drawing Product Code: SR1696 SR1697 SR1698 Doc. no.: AWS-01-181016...
- Page 2 1.Start montage with installing the bottom beam (Nr. 2 on General Arrangement Drawing) to the side walls (Nr. 1 and 3 on General Arrangement Drawing): - Use screw IMBO M10x25 screws (2 pcs on one side wall) - After screwing bolts into the holes we put plastic caps fi20 Screw M10x25 Page 2 of total 20...
- Page 3 Plastic cap Fi 20 Page 3 of total 20...
- Page 4 2.After fixing the bottom back beam (Nr. 2 on General Arrangement Drawing) start fixing the upper back and front beams (Nr. 4 on General Arrangement Drawing), using M12x25 bolts. Screw M10x25 Page 4 of total 20...
- Page 5 3. Fix the steel construction of FRONT WALL (Nr. 5 on General Arrangement Drawing) with side wall (Nr. 1 on General Arrangement Drawing) and with the front wall post (Nr. 7 on General Arrangement Drawing) using screw M10x25 Nr. 5 On General Arrangement Screw M10x25 Drawing) Page 5 of total 20...
- Page 6 4. Fix the middle posts (Nr. 6 on General Arrangement Drawing) as with screws M10x25 On top use screw IMBO M10x25 NOTE: please make sure the M8 holes are from inside of the shelter in the bottom of the post. M8 holes from inside in the bottom Page 6 of total 20...
- Page 7 ScrewIMBO M10x25 in the bottom Fixing of middle posts in the BOTTOM Page 7 of total 20...
- Page 8 5.Next install the arched roof beams (Nr. 8 on General Arrangement Drawing). From the front and the back use each side 5,5 x 16screw. Screw 5,5x16 Screw 5,5x16 Screw 5,5x16 Page 8 of total 20...
- Page 9 6.Fix the roof tapes on two middle roof beams (Nr. 8 on General Arrangement Drawing) using screw 5,5x16. Fix the roof tapes on two middle roof beams using screw 5,5x16 Page 9 of total 20...
- Page 10 C ( 1 : 6 ) B ( 1 : 4 ) NUMBER QUANTITY PARTS A ( 1 : 8 ) Nefryt - left sidewall Nefryt - bottom beam 205 Nefryt - right sidewall Nefryt - roof beam 205 Nefryt - bottom beam 203 Nefryt - middle pillar Nefryt - pillar of the smoking shelter Nefryt - bow-shaped handle...
- Page 11 7.Fix the polycarbonate with self drilling screw 6,3X25 Selfdrilling screw 6,3X25 Page 11 of total 20...
- Page 12 8.INSTALL THE ANGLE FROM THE BACK SIDE AND FRONT OF SHELTER AND FIX WITH SELF-DRILLING SCREW 6.3 X25 angle Hole for SELF-DRILLING SCREW 6.3 X25 Page 12 of total 20...
- Page 13 9.FURTHER PROCEED AS BY A TYPICAL SHELTER, install: - SEAT (BRACKETS + WOODEN DECKS) -BACK SEAT SUPPORT Page 13 of total 20...
- Page 14 Page 14 of total 20...
- Page 15 10.Install the toughened glass retaining brackets with Rivet nut 4,8 x10 Page 15 of total 20...
- Page 16 11.Install the toughened glass Toughened glass Rivet nut 4,8x10 Rivet nut 4,8x10 Rivet nut 4,8x10 Seal for glass Page 16 of total 20...
- Page 17 Page 17 of total 20...
- Page 18 Layout: Page 18 of total 20...
- Page 19 NOTES Page 19 of total 20...
-
Page 20: Maintenance
Touch up any exposed metal should it get scratched CONTACT DETAILS: Email : Sales@shelter4less.co.uk Web : www.shelters4less.co.uk Tel : 0800 160 1002 Shelters4Less, Unit 3, 2 Landsdowne Crescent, Bournemouth, BH1 1SA All Parts and Fixings checked by: Print Name: Signature: Page 20 of total 20...
