For how to connect the Ethernet cable, refer to the "Connecting an Ethernet cable for the 2GE module"
section in Chapter 4 "Installing the U200 Series Device."

NSQ1GT2UA0 Module

Introduction
The NSQ1GT2UA0 module is a MIM high-speed Layer 3 Gigabit Ethernet interface module. The
module provides two RJ-45 electrical interfaces that support the Layer-3 routing function. Each
interface on the NSQ1GT2UA0 module is available with a link LED and an activity LED for monitoring
the link status and data transmission status. The NSQ1GT2UA0 module is connected to the processor
through a PCIE high-speed bus to provide all functions of a Layer-3 Ethernet interface with high
performance.
Front view

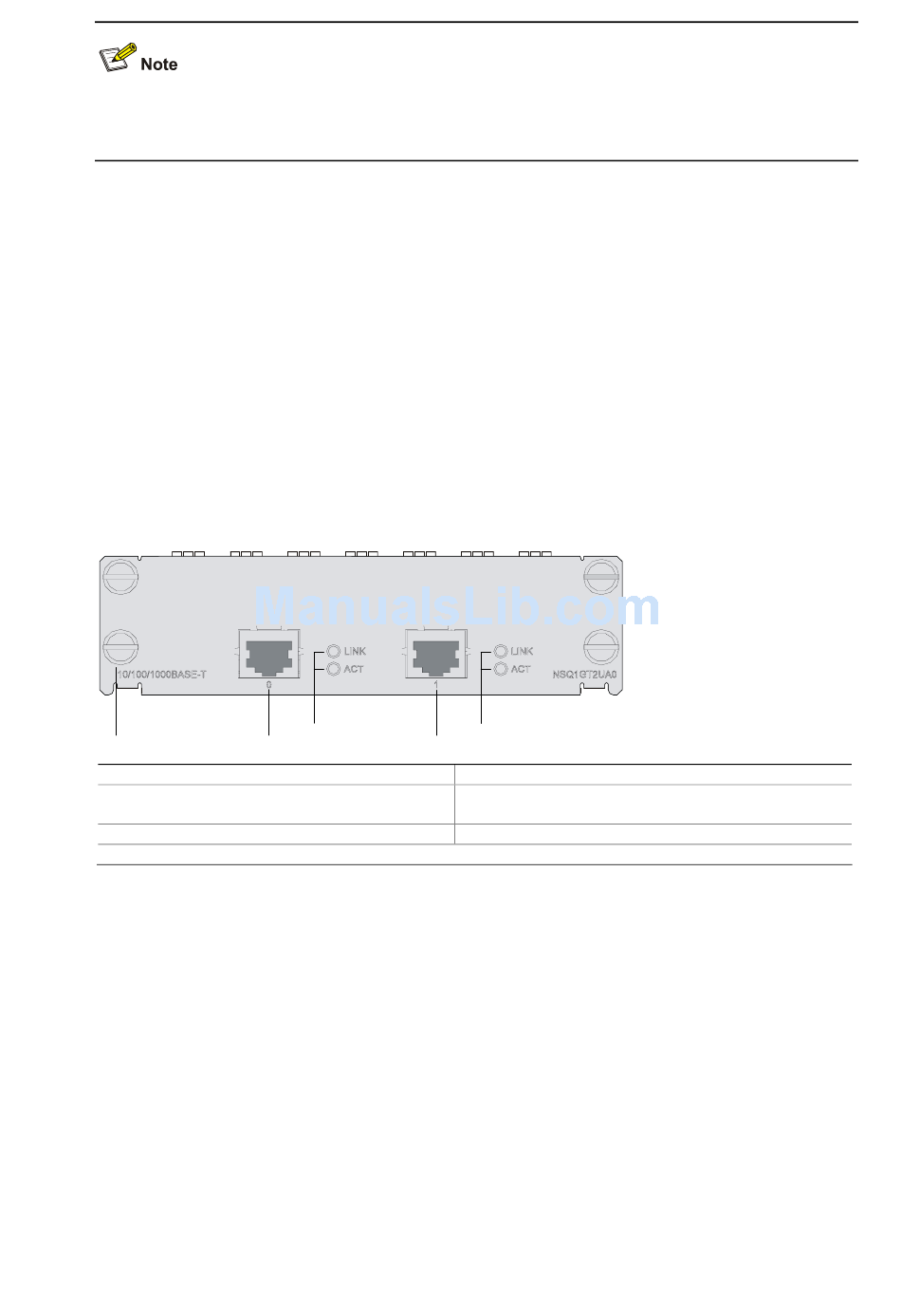

Figure 2-3 NSQ1GT2UA0 front view
(1)
(1) Captive screw
(3) Link LED (LINK) of GE interface 0
(5) GE interface 1
(7) Data transmit/receive activity LED (ACT) of GE interface 1
LEDs
See Table 2-1.
Interface specifications
See Table 2-2.
Interface cable
See Figure 2-2.
(3)
(2) (4) (5)
(6)
(7)
(2) GE interface 0
(4) Data transmit/receive activity LED (ACT) of GE
interface 0
(6) Link LED (LINK) of GE interface 1
2-3
