WAGO 750 Series, 750-461 Manual

I/O Modules

Analog Input Modules

Overview Analog Input Modules for RTD's 750-461 (/xxx-xxx)

I/O Module 750-461 750-461/ 000-002 750-461/ 000-003 750-461/ 000-004 750-461/ 000-005 750-461/ 000-006
Function PT100/ RTD Resistance
Measuring
10R-1k2
PT1000/
RTD
Ni 100/
RTD
Ni 1000/
RTD,
TK6180
PT100/ RTD/ high precision
Channels 2 2 2 2 2 2
Measuring range -200°C...
+850°C
10 ...
1,2 k
-200°C...
+850°C
-60°C...
+250°C
-60°C...
+250°C
-200°C...
+850°C
Counter depth 2 x 16 bits
Data
2 x 8 bits
Control/
Status
(option)
2 x 16 bits
Data
2 x 8 bits
Control/
Status
(option)
2 x 16 bits
Data
2 x 8 bits
Control/
Status
(option)
2 x 16 bits
Data
2 x 8 bits
Control/
Status
(option)
2 x 16 bits
Data
2 x 8 bits
Control/
Status
(option)
2 x 16 bits
Data
2 x 8 bits
Control/
Status
(option)
I/O Module 750-461/ 000-007 750-461/ 000-009 750-461/ 000-200 750-461/ 003-000 750-461/ 020-000 750-461/ 025-006
Function Resistance
Measuring
10R-5k0
Ni 1000/
RTD,
TK5000
PT100/ RTD/ with
status informatio ns
PT100/ RTD/
adjustable
NTC
20kOhm
PT100/ RTD/ high precision
Channels 2 2 2 2 2 2
Measuring range 10 ...
5,0 k
-30°C...
+122°C
-200°C...
+850°C,
-200°C...
+850°C
-30°C...
+130°C
-200°C...
+850°C
Counter depth 2 x 16 bits
Data
2 x 8 bits
Control/
Status
(option)
2 x 16 bits
Data
2 x 8 bits
Control/
Status
(option)
2 x 16 bits
Data
2 x 8 bits
Control/
Status
(option)
2 x 16 bits Data 2 x 8 bits
Control/
Status
(option)
2 x 16 bits
Data
2 x 8 bits
Control/
Status
(option)
2 x 16 bits
Data
2 x 8 bits
Control/
Status
(option)

750-461, (/xxx-xxx) [2 AI Pt100/ RTD]
2-Channel Analog Input Module for RTDs
2- or 3-wire connection

Variations

Item-No. Designation Description
Pt resistance sensors
750-461 2 AI PT100/RTD 2-Channel Analog Input Module, Pt 100 Measuring range: -200°C... +850°C
750-461/000-003 2 AI PT1000/RTD 2-Channel Analog Input Module, Pt 1000 Measuring range: -200°C... +850°C
750-461/000-006 2 AI PT100/RTD/ high precision 2-Channel Analog Input Module, Pt 100
Measuring range: -200°C... +850°C
750-461/000-200 2 AI PT100/RTD/ With status information 2-Channel Analog Input Module, Pt 100
Measuring range: -200°C... +850°C,
With status information for S5-FB250
750-461/025-000 2 AI PT100/RTD/T 2-Channel Analog Input Module, Pt 100 Measuring range: -200°C... +850°C, extended Temperature Range
Ni resistance sensors
750-461/000-004 2 AI Ni 100/RTD 2-Channel Analog Input Module, Ni 100 Measuring range: -60°C... +250°C
750-461/000-005 2 AI Ni 1000/RTD 2-Channel Analog Input Module, Ni 1000 Measuring range: -60°C... +250°C,
TK6180
750-461/000-009 2 AI Ni 1000/RTD/ TK5000 2-Channel Analog Input Module, Ni 1000
Measuring range: -30°C... +122°C,
TK5000
Resistance measuring
750-461/000-002 2 AI Resistance
Measuring, 10R-1k2
2-Channel Analog Input Module, Resistance measuring,
Measuring range: 10 ... 1,2 k
750-461/000-007 2 AI Resistance
Measuring, 10R-5k0
2-Channel Analog Input Module, Resistance measuring,
Measuring range: 10 ... 5,0 k
Operating mode configurable with WAGO-I/O-CHECK
750-461/003-000 2 AI PT100/RTD/ Adjustable 2-Channel Analog Input Module,
Adjustable; Factory preset: Pt 100
Measuring range: -200°C... +850°C
750-461/020-000 2AI NTC 20kOhm 2-Channel Input Module for RTDs, NTC 20kOhm

View

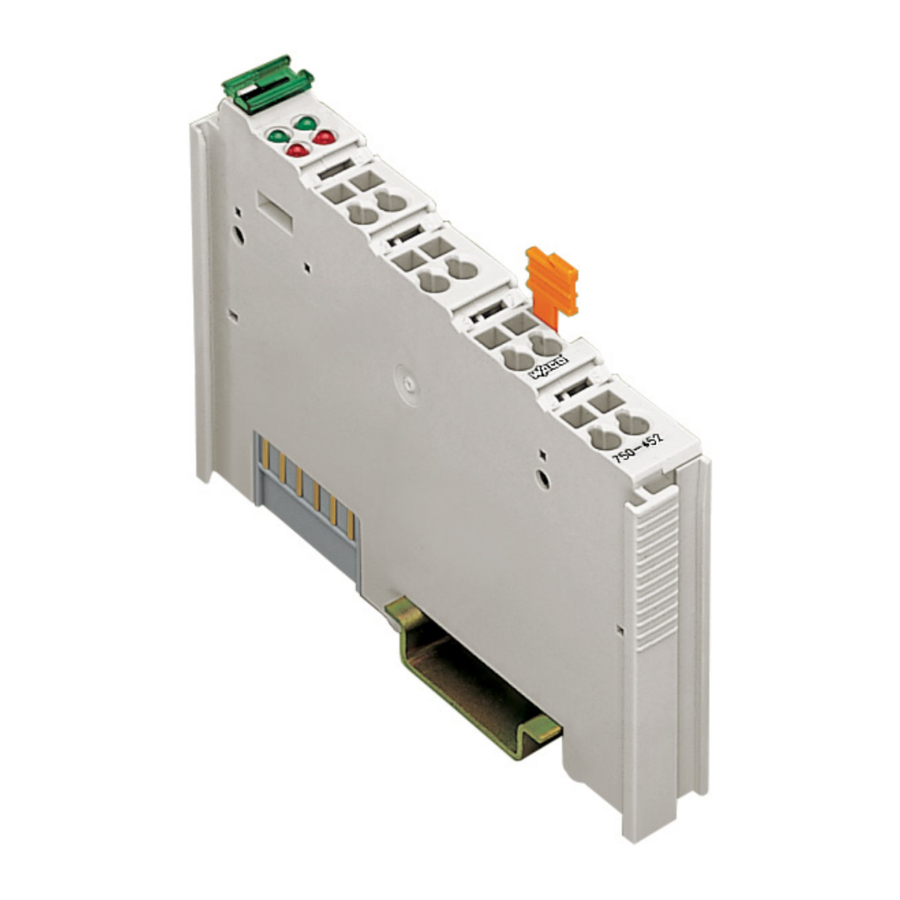

Fig. 2.1.2-1: View
View

Description
The 750-461 analog input module and its 750-461/xxx-xxx variations allow Pt or Ni Resistive Temperature Devices, RTDs, to be measured in the field. It can also be used to measure resistances in the field.
Depending on the operating mode, the resistance value is converted to a temperature or directly sent out by the module. A microprocessor within the module is used for converting and linearizing the measured resistance value into a numeric value proportional to the temperature of the selected resistance sensor.
The operating mode of the 750-461/003-000 variation can be set by using the WAGO-I/O-CHECK 2 start-up and diagnostic tool (Item No.: 759-302). The default setting is Pt 100. After setting the parameters, the module behaves like the version with the selected operating mode.
The operating mode of the 750-461 basic module described in this manual is for a Pt 100 resistance sensor.
The analog input module is a 2- to 3-conductor device and has 2 input channels. Two devices may be directly connected to the module.
For example, two 3-wire sensors can be connected either to +R1, RL1 and – R1 or to +R2, RL2 and –R2. For the connection of 2-wire sensors, putting of a bridge is necessary between +R1 and RL1 or +R2 and RL2.
The shield (screen) is directly connected to the DIN rail. A capacitive connection is made automatically when snapped onto the DIN rail.
An optocoupler is used for electrical isolation between the bus and the field side.
The operational readiness and trouble-free internal data bus communication of the channels are indicated via a green function LED. A broken wire, short-circuit or overrange are indicated by a red error LED per channel.
After the error has been corrected, the module needs up to 4 seconds to output a correct measured value, the module 750-461/000-006 needs up to 12 seconds. Any configuration of the input modules is possible when designing the fieldbus node. Grouping of module types is not necessary.
warningAttention
This module has no power contacts. For field supply to downstream I/O modules, a supply module will be needed.
The analog input module 750-461 and its variations can be used with all couplers/controllers of the WAGO-I/O-SYSTEM 750 (except for the economy types 750-320, -323, -324 and -327).

Display Elements
Display Elements

Schematic Diagram
Fig. 2.1.2-3: Schematic Diagram
Schematic Diagram

Technical Data

Module Specific Data
Number of inputs 2
Voltage supply via system voltage DC /DC
Current consumption max. (internal) 80 mA
Sensor types
(the free configurable variation supports all listed sensor types)
Pt 100 (factory preset),
optionally orderable variants for
Pt 1000,
Ni 100, Ni 120, Ni 1000 TK6180,
Ni 1000 TK5000, resistance measuring.
Sensor connection 3-wire (factory preset) or 2-wire
Temperature range -200°C... +850°C (Pt)
-60°C... +250°C (Ni100, Ni100TK6180)
-30°C... +122°C (Ni100TK5000)
Resolution 0,1°C
Conversion time 320 ms (per channel)
960 ms (per channel for 750-461/000-006)
Response delaymax.
(time from starting or connecting the sensor to the first proper measured value)
4 s
12 s (for 750-461/000-006)
Measuring error 25°C < 0.2% of full scale value
Temperature coefficient

< 0.01% /K of full scale value

< 0,001% /K of full scale value (for

750-461/000-006)

Isolation 500 V (System/Supply)
Measured current typ. 0.5 mA
Bit width 2 x 16 bits data
2 x 8 bits control/status (option)
Dimensions (mm) W x H x L 12 x 64* x 100
* from upper edge of 35 DIN rail
Weight ca. 55 g
Standards and Regulations (cf. Chapter 2.2 of the Coupler/Controller Manual)
EMC-Immunity to interference (CE) acc. to EN 61000-6-2: 2005
EMC-Emission of interference (CE) acc. to EN 61000-6-4: 2007
EMC-Immunity to interference
(Ship building)
acc. to Germanischer Lloyd (2003)
EMC-Emission of interference
(Ship building)
acc. to Germanischer Lloyd (2003)

Process Image
Some fieldbus systems can process input channel status information by means of a status byte.
This status byte can be displayed via the WAGO-I/O-CHECK 2 start-up and diagnostic tool. However, processing via the coupler / controller is optional, which means that accessing or parsing the status information depends on the fieldbus system.
warningAttention
The representation of the process data of some I/O modules or their variations in the process image depends on the fieldbus coupler/-controller used. Please take this information as well as the particular design of the respective control/status bytes from the section "Fieldbus Specific Design of the Process Data" included in the description concerning the process image of the corresponding coupler/controller.

I/O Modules for Pt Resistance Sensors

Pt resistance sensors (Measuring range: -200°C... +850°C)
750-461 Evaluation of Pt 100
750-461/000-003 Evaluation of Pt 1000
750-461/000-006 Evaluation of Pt 100, high precision (0.001%/K) (Conversion time 960ms)
750-461/000-200 Evaluation of Pt 100, with status information for S5-FB250

To evaluate the platinum resistance sensors (750-461, 750-461/000-003 and 750-461/000-006) the measured values of the resistance are converted and sent as temperature values.
All temperature values are represented in a standard numeric format. The possible numerical range matches the defined temperature range of the Pt sensors from -200°C to +850°C.
In the Pt 100 or Pt 1000 setting, the temperature values of the sensors are represented with a resolution of 1 digit per 0.1°C within a word (16 bits). Thus, 0°C corresponds to the numeric value 0x0000 and 100°C to 0x03E8 (dec. 1000).
Temperature values below 0°C are represented in two's complement binary form.
The measured values of the resistance are directly sent by the 750-461/000200 (Pt 100) module.

Pt 100
The analog input modules 750-461 and 750-461/000-006 transmit 16-bit measured values per channel as well as 8 optional status bits to the coupler/controller.
However, accessing the status byte depends on the fieldbus system being used.

750-461, /000-006 (Pt 100)
Temperature °C Resistance Ω Numerical value 1) Status- byte Hex. LED Error AI 1, 2
binary hex. dec.
<-200.0 10.00 '1000.0000.0000.0001' 0x8001 -32767 0x41 on
-200.0 18.49 '1111.1000.0011.0000' 0xF830 -2000 0x00 off
-100.0 60.25 '1111.1100.0001.1000' 0xFC18 -1000 0x00 off
0.0 100.00 '0000.0000.0000.0000' 0x0000 0 0x00 off
100.0 138.50 '0000.0011.1110.1000' 0x03E8 1000 0x00 off
200.0 175.84 '0000.0111.1101.0000' 0x07D0 2000 0x00 off
500.0 280.90 '0001.0011.1000.1000' 0x1388 5000 0x00 off
750.0 360.47 '0001.1101.0100.1100' 0x1D4C 7500 0x00 off
800.0 375.51 '0001.1111.0100.0000' 0x1F40 8000 0x00 off
850.0 390.26 '0010.0001.0011.0100' 0x2134 8500 0x00 off
>850.0 >390.26 '0010.0001.0011.0100' 0x2134 8500 0x42 on
Broken wire against RL '0010.0001.0011.0100' 0x2134 8500 0x42 on

1) Temperature values below 0°C are represented in two's complement binary form.
The measured value can exceed the range from decimal –2000 to 8500 until the limitation applies.

Pt 1000
The analog input modules 750-461/000-003 transmit 16-bit measured values per channel as well as 8 optional status bits to the coupler/controller.
However, accessing the status byte depends on the fieldbus system being used.

750-461/000-003 (Pt 1000)
Temperature °C Resistance Ω Numerical value 1) Status- byte Hex. LED Error AI 1, 2
binary hex. dec.
<-200.0 100.00 '1000.0000.0000.0001' 0x8001 -32767 0x41 on
-200.0 184.93 '1111.1000.0011.0000' 0xF830 -2000 0x00 off
-100.0 602.54 '1111.1100.0001.1000' 0xFC18 -1000 0x00 off
0.0 1000.00 '0000.0000.0000.0000' 0x0000 0 0x00 off
100.0 1385.00 '0000.0011.1110.1000' 0x03E8 1000 0x00 off
200.0 1758.40 '0000.0111.1101.0000' 0x07D0 2000 0x00 off
500.0 2808.96 '0001.0011.1000.1000' 0x1388 5000 0x00 off
750.0 3604.65 '0001.1101.0100.1100' 0x1D4C 7500 0x00 off
800.0 3755.09 '0001.1111.0100.0000' 0x1F40 8000 0x00 off
850.0 3902.62 '0010.0001.0011.0100' 0x2134 8500 0x00 off
>850.0 >3902.62 '0010.0001.0011.0100' 0x2134 8500 0x42 on
Broken wire against RL '0010.0001.0011.0100' 0x2134 8500 0x42 on

1) Temperature values below 0°C are represented in two's complement binary form.
The measured value can exceed the range from decimal –2000 to 8500 until the limitation applies.

Pt 100 with Status Information for S5-FB250 in Data Word
The analog input module 750-461/000-200 transmits 16-bit measured values per channel as well as 8 optional status bits to the coupler/controller.
When a S5 is used as higher-level control system, this data can be directly processed using the FB 250 function block.
However, accessing the status byte depends on the fieldbus system being used.
The status information is mapped to bits 0 to 2 and the digitized measured value to bits 3 to 14.

750-461/000-200
Temperature °C Resistance Ω Numerical value 2)
with status information 1)
Status- byte hex. LED Error AI 1,2
binary XFÜ 1) hex. dec.
10 '0000.0011.0011.0 000' 0x0330 819 0x00 off
-200.0 20 '0000.0110.0110.0 000' 0x0660 1638 0x00 off
-185.0 25 '0000.1000.0000.0 000' 0x0800 2048 0x00 off
-125.0 50 '0001.0000.0000.0 000' 0x1000 4096 0x00 off
0.0 100 '0010.0000.0000.0 000' 0x2000 8192 0x00 off
266.0 200 '0100.0000.0000.0 000' 0x4000 16384 0x00 off
560.0 300 '0110.0000.0000.0 000' 0x6000 24576 0x00 off
850.0 390 '0111.1100.1100.1 000' 0x7CC8 32949 0x00 off
800 '1111.1111.1111.1 000' 0xFFF8 65535 0x00 off
>800 undefined 0x00 off
>ca.1200 '0001.0000.0001.0 001' 0x1011 4113 0x42 on
  1. Status information: X: not used, F: short-circuit, broken wire, Ü: overrange
  2. Temperature values below 0°C are represented in two's complement binary form.
    Values marked with "ca." are not calibrated.

I/O Modules for Ni Resistance Sensors

Ni resistance sensors (Measuring range: -60°C... +250°C)
750-461/000-004 Evaluation of Ni 100
750-461/000-005 Evaluation of Ni 1000 TK6180
750-461/000-009 Auswertung Ni 1000 TK5000, Messbereich: -30°C... +122°C

To evaluate the nickel resistance sensors, the measured values of the resistance are converted and sent as temperature values.
All temperature values are represented in a standard numeric format. The possible numerical range matches the defined temperature range of the Ni sensors from -60°C to +250°C.

Ni 100
In the Ni 100 setting 750-461/000-004, the temperature values of the sensors are represented with a resolution of 1 digit per 0.1°C within a word (16 bits). Thus, 0°C corresponds to the numeric value 0x0000 and 100°C to 0x03E8 (dec. 1000).
Temperature values below 0°C are represented in two's complement binary form.
The analog input modules transmits 16-bit measured values per channel as well as 8 optional status bits to the coupler/controller.

750-461/000-004 (Ni 100)
Temperature °C Resistance Ω Numerical value [1]) Status- byte hex. LED Error AI 1,2
binary hex. dec.
<-60.0 < 69.16 '1000.0000.0000.0001' 0x8001 -32767 0x41 on
-60.0 69.16 '1111.1101.1010.1000' 0xFDA8 -600 0x00 off
-50.0 74.26 '1111.1110.0000.1100' 0xFE0C -500 0x00 off
0.0 100.00 '0000.0000.0000.0000' 0x0000 0 0x00 off
50.0 129.10 '0000.0001.1111.0100' 0x01F4 500 0x00 off
100.0 161.77 '0000.0011.1110.1000' 0x03E8 1000 0x00 off
150.0 198.62 '0000.0101.1101.1100' 0x05DC 1500 0x00 off
200.0 240.64 '0000.0111.1101.0000' 0x07D0 2000 0x00 off
250.0 289.13 '0000.1001.1100.0100' 0x09C4 2500 0x00 off
>250.0 >289.13 '0010.0001.0011.0100' 0x2134 8500 0x42 on
Broken wire against RL '0010.0001.0011.0100' 0x2134 8500 0x42 on

Ni 1000 TK6180
In the Ni 1000 setting 750-461/000-005, the temperature values of the sensors are represented with a resolution of 1 digit per 0.1°C within a word (16 bits). Thus, 0°C corresponds to the numeric value 0x0000 and 100°C to 0x03E8 (dec. 1000).
Temperature values below 0°C are represented in two's complement binary form.
The analog input modules transmits 16-bit measured values per channel as well as 8 optional status bits to the coupler/controller.

750-461/000-005 (Ni 1000 TK6180)
Temperature °C Resistance Ω Numerical value 1) Status- byte hex. LED Error AI 1,2
binary hex. dec.
<-60.0 < 691.60 '1000.0000.0000.0001' 0x8001 -32767 0x41 on
-60.0 691.60 '1111.1101.1010.1000' 0xFDA8 -600 0x00 off
-50.0 742.60 '1111.1110.0000.1100' 0xFE0C -500 0x00 off
0.0 1000.00 '0000.0000.0000.0000' 0x0000 0 0x00 off
50.0 1291.00 '0000.0001.1111.0100' 0x01F4 500 0x00 off
100.0 1617.96 '0000.0011.1110.1000' 0x03E8 1000 0x00 off
150.0 1986.20 '0000.0101.1101.1100' 0x05DC 1500 0x00 off
200.0 2406.40 '0000.0111.1101.0000' 0x07D0 2000 0x00 off
250.0 2891.31 '0000.1001.1100.0100' 0x09C4 2500 0x00 off
>250.0 >2891.31 '0010.0001.0011.0100' 0x2134 8500 0x42 on
Broken wire against RL '0010.0001.0011.0100' 0x2134 8500 0x42 on

1) Temperature values below 0°C are represented in two's complement binary form.
The measured value can exceed the range from decimal –600 to 2500 until the limitation applies.

I/O Modules for Resistance Measuring

Resistance measuring
750-461/000-002 Resistance measuring,
Measuring range: 10 ... 1.2 k
750-461/000-007 Resistance measuring,
Measuring range: 10 ... 5.0 k

The measured values are sent out directly when measuring the resistance. Using the 750-461/000-002 module with measuring range from 10 Ω to 1.2 kΩ, the resolution is 1 digit per 0.1 Ω.
Using the 750-461/000-007 module with measuring range from 10 Ω to 5.0 kΩ, the resolution is 1 digit per 0.5 Ω.
Resistance measurement is only possible in 2-wire connection technology.
The analog input module transmits 16-bit measured values per channel as well as 8 optional status bits to the coupler/controller.

750-461/000-002 (10 Ω... 1.2 kΩ)
Resistance Ω Numerical value Status- byte hex. LED Error AI 1,2
binary hex. dec.
0 '1110.1100.0000.0000' 0xEC00 -5120 0x00 off
10 '0000.0000.0110.0100' 0x0064 100 0x00 off
100 '0000.0011.1110.1000' 0x03E8 1000 0x00 off
200 '0000.0111.1101.0000' 0x07D0 2000 0x00 off
300 '0000.1011.1011.1000' 0x0BB8 3000 0x00 off
400 '0000.1111.1010.0000' 0x0FA0 4000 0x00 off
500 '0001.0011.1000.1000' 0x1388 5000 0x00 off
750 '0001.1101.0100.1100' 0x1D4C 7500 0x00 off
1000 '0010.0111.0001.0000' 0x2710 10000 0x00 off
1200 '0010.1110.1110.0000' 0x2EE0 12000 0x00 off
>ca.1200 '0010.0001.0011.0100' 0x2134 8500 0x42 on

Values marked with "ca." are not calibrated.

750-461/000-007 (10 Ω... 5.0 kΩ)
Resistance Ω Numerical value Status- byte hex. LED Error AI 1,2
binary 1) hex. dec.
0 '1110.1100.0000.0000' 0xEC00 -5120 0x00 off
10 '0000.0000.0001.0100' 0x0014 20 0x00 off
100 '0000.0000.1100.1000' 0x00C8 200 0x00 off
200 '0000.0001.1001.0000' 0x0190 400 0x00 off
300 '0000.0010.0101.1000' 0x0258 600 0x00 off
1000 '0000.0111.1101.0000' 0x07D0 2000 0x00 off
2000 '0000.1111.1010.0000' 0x0FA0 4000 0x00 off
3000 '0001.0111.0111.0000' 0x1770 6000 0x00 off
4000 '0001.1111.0100.0000' 0x1F40 8000 0x00 off
5000 '0010.0111.0001.0000' 0x2710 10000 0x00 off
>ca.5000 '0010.0111.0001.0000' 0x2710 10000 0x42 on

Values marked with "ca." are not calibrated.

Adjustable 750-461/003-000 Variation
The operating mode of the 750-461/003-000 variation can be parameterized using the WAGO-I/O-CHECK 2 start-up and diagnostic tool (Item No.: 759302).
The default setting is Pt 100. In this operating mode, the module has the same behavior and process values as the 750-461 basic module.
The parameter dialog box of WAGO-I/O-CHECK 2 contains select boxes that are used to set this module.

Select box Available settings
RTD Type Pt100 (-200°C – 850°C)* / Pt200 (-200°C – 850°C) / Pt500 (-200°C – 850°C) / Pt1000 (-200°C – 850°C) /
Ni120 (-80°C – 320°C) / Ni100 (-60°C – 250°C) /
Ni1000 TK6180 (-80°C – 320°C) /
Ohm ( 10.0 Ω – 1200.0 Ω) / Ohm (10.0 Ω – 5000.0 Ω)
Connection 2-wire Two-wire connection
3-wire* Three-wire connection
State-Bits OFF* State bits are not mapped
ON State bits are mapped to the lower three bits of the output value:
Bit 0:overrun. Bit is set if measuring value runs out of range.
Bit 1:error. Bit is set if the module detects an error in internal functions or a shortcut at the input.
Bit 2: 0
Watchdog Timer OFF Watchdog timer not active
ON* Watchdog timer active.
If no data are exchanged with the buscoupler for 100 ms, the green LEDs will turn off.
Amount Sign OFF* Two´s complement indication
ON Amount/Sign indication
Filter Constants 12.5 Hz – 500 ms / 25 Hz – 250 ms* / 50 Hz – 125 ms /
60 Hz – 110 ms / 100 Hz – 65 ms
Overrange Protection OFF The output value is not limited
ON* If the temperature exceeds 850°C, the status bits are set and the output value is limited to 850°C
User Scaling OFF* User scaling not active
ON User scaling active
WAGO Scaling OFF WAGO scaling not active
ON* WAGO scaling active

* default settings

Adjustable 750-461/003-000 Variation
In WAGO-I/O-CHECK 2, the following input boxes allow you to set the offset and gain values of the user and manufacturer scaling.

Input box ... Offset Gain
User Scaling ... 0x0000 0x0100
WAGO Scaling ... 0x0000 0x00A0

The following input boxes are available in WAGO-I/O-CHECK 2 for hardware calibration.

Input box Settings
Offset 0xECF0
Gain 0x2700
2-wire-offset 0x0180

informationFurther information
You can find detailed information on parameterizing this module in the WAGO-I/O-CHECK 2 manual or on the Internet at http://www.wago.com.

750-461/020-000 [2 AI NTC 20kOhm]
2 Channel Analog Input Module for NTC 20kOhm RTDs, 2-wire connection

View
Fig. 2.1.3-1: 2-2-Channel Analog Input Module 750-461/020-000

Description
The analog input module 750-461/020-000 evaluates NTC 20kOhm resistance Temperature Devices, RTDs.
The resistance value is converted to a temperature. A microprocessor within the module is used for converting and linearizing the measured resistance value into a numeric value proportional to the temperature of the selected resistance sensor.
The analog input module is a 2-conductor device and has 2 input channels.
Two devices may be directly connected to the module.
The shield (screen) is directly connected to the DIN rail. A capacitive connection is made automatically when snapped onto the DIN rail.
An optocoupler is used for electrical isolation between the bus and the field side.
The operational readiness and trouble-free internal data bus communication of the channels are indicated via a green function LED. A broken wire, shortcircuit or overrange are indicated by a red error LED per channel.
After the error has been corrected, the module needs up to 4 seconds to output a correct measured value.
Any configuration of the input modules is possible when designing the fieldbus node. Grouping of module types is not necessary.
warningAttention
This module has no power contacts. For field supply to downstream I/O modules, a supply module will be needed.
The analog input module can be used with all couplers/controllers of the WAGO-I/O-SYSTEM 750 (except for the economy types 750-320, -323, -324 and -327).

Display Elements
Display Elements

Schematic Diagram
Fig. 2.1.3-3: 2-Channel Analog Input Module 750-461/020-00
Schematic Diagram

Technical Data

Module Specific Data
Number of inputs 2
Voltage supply via system voltage DC /DC
Current consumption max. (internal) 65 mA
Sensor types NTC 20kOhm
Sensor connection 2-wire
Temperature range -30°C... +130°C
Resolution 0,1°C
Conversion time 320 ms (per channel)
Response delaymax.
(time from starting or connecting the sensor to the first proper measured value)
4 s
Measuring error
(The specified accurancys apply to a supply line resistance of RL < 1 Ohm)
< 1,0 K in the range of –30°C... +50°C
(< 0,5 K at 25°C)
< 2,0 K in the range of +50°C... +100°C
< 3,0 K in the range of +100°C... +130°C
Temperature coefficient < 0,002% /K of full scale value
Isolation 400 V (system/supply)
Measured current typ. 0,05 mA at 25°C
Bit width 2 x 16 bits data
2 x 8 bits Control/Status (option)
Dimensions (mm) W x H x L 12 x 64* x 100
* from upper edge of 35 DIN rail
Weight ca. 55 g
Standards and Regulations (cf. Chapter of the Coupler/Controller Manual)
EMC-Immunity to interference (CE) acc. to EN 61000-6-2 (01)
EMC-Emission of interference (CE) acc. to EN 61000-6-3 (01)

Process Image
Some fieldbus systems can process input channel status information by means of a status byte.
This status byte can be displayed via the WAGO-I/O-CHECK 2 start-up and diagnostic tool. However, processing via the coupler / controller is optional, which means that accessing or parsing the status information depends on the fieldbus system.
warningAttention
The representation of the process data of some I/O modules or their variations in the process image depends on the fieldbus coupler/-controller used. Please take this information as well as the particular design of the respective control/status bytes from the section "Fieldbus Specific Design of the Process Data" included in the description concerning the process image of the corresponding coupler/controller.
The analog input modules 750-461/020-000 transmit 16-bit measured values per channel as well as 8 optional status bits to the coupler/controller.
To evaluate the NTC 20kOhm resistance sensors the measured values of the resistance are converted and sent as temperature values.
All temperature values are represented in a standard numeric format. The possible numerical range matches the defined temperature range of the sensors from -30°C to +130°C.
In the NTC 20kOhm setting, the temperature values of the sensors are represented with a resolution of 1 digit per 0.1°C within a word (16 bits). Thus, 0°C corresponds to the numeric value 0x0000 and 100°C to 0x03E8 (dec. 1000).
Temperature values below 0°C are represented in two's complement binary form.

750-461/020-000
Temperature °C Resistance kΩ Numerical value 1) Statusbyte Hex. LED Error AI 1, 2
binary hex. dec.
<ca -30.0 >414.70 '0010.0001.0011.0100' 0x2134 8500 0x42 on
-30.0 414.70 '1111.1110.1101.0100' 0xFED4 -300 0x00 off
0.0 70.20 '0000.0000.0000.0000' 0x0000 0 0x00 off
25.0 20.00 '0000.0000.1111.1010' 0x00FA 250 0x00 off
50.0 6.72 '0000.0001.1111.0100' 0x01F4 500 0x00 off
100.0 1.12 '0000.0011.1110.1000' 0x03E8 1000 0x00 off
130.0 0.46 '0000.0101.0001.0100' 0x0514 1300 0x00 off
>ca 130.0 < 0.46 '1000.0000.0000.0001' 0x8001 -32767 0x41 on

1) Temperature values below 0°C are represented in two's complement binary form.
The measured value can exceed the range from decimal –300 to 1300 until the limitation applies.

Use in Hazardous Environments
The WAGO-I/O-SYSTEM 750 (electrical equipment) is designed for use in Zone 2 hazardous areas.
The following sections include both the general identification of components (devices) and the installation regulations to be observed. The individual subsections of the "Installation Regulations" section must be taken into account if the I/O module has the required approval or is subject to the range of application of the ATEX directive.

Identification

For Europe according to CENELEC and IEC
Fig. 2.2.1-1: Example for lateral labeling of bus modules (750-400, 2 channel digital input module 24 V DC)
Identification

Fig. 2.2.1-2: Printing on text detail in accordance with CENELEC and IEC

Tab. 0-1: Description of Printing on

Printing on Text Description
DEMKO 08 ATEX 142851 X
IECEx PTB 07.0064X
Approval body and/or number of the examination certificate
I M2 / II 3 GD Device group and Unit category
Ex nA Type of ignition and extended identification
IIC Device group
T4 Temperature class

Figure 1: Example of side marking of Ex i and IEC Ex i approved I/O modules

Figure 2: Inscription text detail acc. CENELEC and IEC

Table 1: Description of the inscription

Inscription text Description
TÜV 07 ATEX 554086 X
TUN 09.0001X
Approving authority or certificate numbers
Dust
II Device group: All except mining
3(1)D Device category: Zone 22 device (Zone 20 subunit)
Ex Explosion protection mark
tD Protection by enclosure
[iaD] Approved in accordance with "Dust intrinsic safety" standard
A22 Surface temperature determined according to Procedure A, use in Zone 22
IP6X Dust-tight (totally protected against dust)
T 135°C Max. surface temp. of the enclosure (no dust bin)
Mining
I Device group: Mining
(M2) Device category: High degree of safety
[Ex ia] Explosion protection: Mark with category of type of protection intrinsic safety: Even safe when two errors occur
I Device group: Mining
Gases
II Device group: All except mining
3(1)G Device category: Zone 2 device (Zone 0 subunit)
Ex Explosion protection mark
nA Type of protection: Non-sparking operating equipment
[ia] Category of type of protection intrinsic safety: Even safe when two errors occur
IIC Explosion Group
T4 Temperature class: Max. surface temperature 135°C

For America according to NEC 500
Fig. 2.2.2-3: Example for lateral labeling of bus modules (750-400, 2 channel digital input module 24 V DC)

Fig. 2.2.2-4: Printing on text detail in accordance with CENELEC and IEC

Tab. 0-2: Description of Printing on

Printing on Text Description
CL 1 Explosion protection group (condition of use category)
DIV 2 Area of application (zone)
Grp. ABCD Explosion group (gas group)
Op temp. code T4 Temperature class

Installation Regulations

In the Federal Republic of Germany, various national regulations for the installation in explosive areas must be taken into consideration. The basis for this forms the working reliability regulation, which is the national conversion of the European guideline 99/92/E6. They complemented by the installation regulation EN 60079-14. The following are excerpts from additional VDE regulations:

Tab. 0-3: VDE Installation Regulations in Germany

Standard Installation Regulations
DIN VDE 0100 Installation in power plants with rated voltages up to 1000 V
DIN VDE 0101 Installation in power plants with rated voltages above 1 kV
DIN VDE 0800 Installation and operation in telecommunication plants including information processing equipment
DIN VDE 0185 lightning protection systems

The USA and Canada have their own regulations. The following are excerpts from these regulations:

Tab. 0-4: Installation Regulations in USA and Canada

Standard Installation Regulations
NFPA 70 National Electrical Code Art. 500 Hazardous Locations
ANSI/ISA-RP 12.6-1987 Recommended Practice
C22.1 Canadian Electrical Code


When using the WAGO-I/O SYSTEM 750 (electrical operation) with Ex approval, the following points are mandatory:

Special Conditions for Safe Operation of the ATEX and IEC Ex (acc. DEMKO 08 ATEX 142851X and IECEx PTB 07.0064)
The fieldbus-independent I/O modules of the WAGO-I/O-SYSTEMs 750-.../...-... Must be installed in an environment with degree of pollution 2 or better. In the final application, the I/O modules must be mounted in an enclosure with IP 54 degree of protection at a minimum with the following exceptions:

  • I/O modules 750-440, 750-609 and 750-611 must be installed in an IP 64 minimum enclosure.
  • I/O module 750-540 must be installed in an IP 64 minimum enclosure for 230 V AC applications.
  • I/O module 750-440 may be used up to max. 120 V AC.

When used in the presence of combustible dust, all devices and the enclosure shall be fully tested and assessed in compliance with the requirements of IEC 61241-0:2004 and IEC 61241-1:2004.
I/O modules fieldbus plugs or fuses may only be installed, added, removed or replaced when the system and field supply is switched off or the area exhibits no explosive atmosphere.
DIP switches, coding switches and potentiometers that are connected to the I/O module may only be operated if an explosive atmosphere can be ruled out.
I/O module 750-642 may only be used in conjunction with antenna 758-910 with a max. cable length of 2.5 m.
To exceed the rated voltage no more than 40%, the supply connections must have transient protection.
The permissible ambient temperature range is 0°C to +55°C.

Special conditions for safe use (ATEX Certificate TÜV 07 ATEX 554086 X)

  1. For use as Gc- or Dc-apparatus (in zone 2 or 22) the fieldbus independent I/O modules WAGO-I/O-SYSTEM 750-*** shall be erected in an enclosure that fulfils the requirements of the applicable standards (see the marking) EN 60079-0, EN 60079-11, EN 60079-15, EN 61241-0 and EN 61241-1. For use as group I, electrical apparatus M2, the apparatus shall be erected in an enclosure that ensures a sufficient protection according to EN 60079-0 and EN 60079-1 and the degree of protection IP64. The compliance of these requirements and the correct installation into an enclosure or a control cabinet of the devices shall be certified by an ExNB.
  2. If the interface circuits are operated without the fieldbus coupler station type 750-3../...-... (DEMKO 08 ATEX 142851 X) measures must be taken outside of the device so that the rating voltage is not being exceeded of more than 40% because of transient disturbances.
  3. DIP-switches, binary-switches and potentiometers, connected to the module may only be actuated when explosive atmosphere can be excluded.
  4. The connecting and disconnecting of the non-intrinsically safe circuits is only permitted during installation, for maintenance or for repair purposes. The temporal coincidence of explosion hazardous atmosphere and installation, maintenance resp. repair purposes shall be excluded.
  5. For types 750-606, 750-625/000-001, 750-487/003-000, 750-484, the following must be taken into account: The interface circuits must be limited to overvoltage category I/II/III (electrical circuits without power supply/electrical circuits with power supply) as defined in EN 60664-1.
  6. For the type 750-601 the following shall be considered: Do not remove or replace the fuse when the apparatus is energized.
  7. The ambient temperature range is: 0°C ≤ Ta ≤ +55°C (for extended details please note certificate).

Special conditions for safe use (IEC-Ex Certificate TUN 09.0001 X)

  1. For use as Dc- or Gc-apparatus (in zone 2 or 22) the fieldbus independent I/O modules WAGO-I/O-SYSTEM 750-*** shall be erected in an enclosure that fulfils the requirements of the applicable standards (see the marking) IEC 60079-0, IEC 60079-11, IEC 60079-15, IEC 61241-0 and IEC 61241-1. For use as group I, electrical apparatus M2, the apparatus shall be erected in an enclosure that ensures a sufficient protection according to IEC 60079-0 and IEC 60079-1 and the degree of protection IP64. The compliance of these requirements and the correct installation into an enclosure or a control cabinet of the devices shall be certified by an ExCB.
  2. Measures have to be taken outside of the device that the rating voltage is not being exceeded of more than 40% because of transient disturbances.
  3. DIP-switches, binary-switches and potentiometers, connected to the modulemay only be actuated when explosive atmosphere can be excluded
  4. The connecting and disconnecting of the non-intrinsically safe circuits is only permitted during installation, for maintenance or for repair purposes. The temporal coincidence of explosion hazardous atmosphere and installation, maintenance resp. repair purposes shall be excluded.
  5. For the types 750-606, 750-625/000-001, 750-487/003-000, 750-484 the following shall be considered: The interface circuits shall be limited to overvoltage category I/II/III (non mains/mains circuits) as defined in IEC 60664-1.
  6. For the type 750-601 the following shall be considered: Do not remove or replace the fuse when the apparatus is energized.
  7. The ambient temperature range is: 0°C ≤ Ta ≤ +55°C (for extended details please note certificate).

ANSI/ISA 12.12.01
This equipment is suitable for use in Class I, Division 2, Groups A, B, C, D or non-hazardous locations only.

Explosion hazard - substitution of components may impair suitability for Class I, Div. 2.

Do not disconnect equipment unless power has been switched off or the area is known to be non-hazardous.
When a fuse is provided, the following marking shall be provided: "A switch suitable for the location where the equipment is installed shall be provided to remove the power from the fuse." The switch need not be integrated in the equipment.
For devices with Ethernet connectors:
"Only for use in LAN, not for connection to telecommunication circuits."

Use Module 750-642 only with antenna module 758-910.

Phone: 05 71/8 87 – 0
Fax: 05 71/8 87 – 1 69
E-Mail: info@wago.com
Internet: http://www.wago.com

Technical Support
Phone: +49 (0) 571/8 87 – 5 55
Fax: +49 (0) 571/8 87 – 85 55
E-Mail: support@wago.com
Every conceivable measure has been taken to ensure the correctness and completeness of this documentation. However, as errors can never be fully excluded, we would appreciate any information or ideas at any time.
E-Mail: documentation@wago.com
We wish to point out that the software and hardware terms as well as the trademarks of companies used and/or mentioned in the present manual are generally trademark or patent protected.

Important Notes

This section includes an overall summary of the most important safety requirements and notes that are mentioned in each individual section. To protect your health and prevent damage to devices as well, it is imperative to read and carefully follow the safety guidelines.

Legal Bases
Personnel Qualifications
The use of the product described in this Manual requires special personnel qualifications, as shown in the following table:

Activity Electrical specialist Instructed personnel*) Specialists**) having qualifications in PLC programming
Assembly X X
Commissioning X X
Programming X
Maintenance X X
Troubleshooting X
Disassembly X X

*) Instructed persons have been trained by qualified personnel or electrical specialists.
**) A specialist is a person, who – thanks to technical training – has the qualification, know ledge and expertise to meet the required specifications of this work and to identify any po tential hazardous situation in the above listed fields of activity.
All responsible persons have to familiarize themselves with the underlying legal standards to be applied. WAGO Kontakttechnik GmbH & Co. KG does not assume any liability whatsoever resulting from improper handling and damage incurred to both WAGO´s own and third-party products by disregarding detailed information in this Manual.

Use of the 750 Series in Compliance with Underlying Provisions
Couplers, controllers and I/O modules found in the modular WAGO-I/OSYSTEM 750 receive digital and analog signals from sensors and transmit them to the actuators or higher-level control systems. Using programmable controllers, the signals can also be (pre-)processed.
The components have been developed for use in an environment that meets the IP20 protection class criteria. Protection against finger injury and solid impurities up to 12.5 mm diameter is assured; protection against water damage is not ensured. Unless otherwise specified, operation of the components in wet and dusty environments is prohibited.

Technical Condition of Specified Devices
The components to be supplied Ex Works, are equipped with hardware and software configurations, which meet the individual application requirements. Changes in hardware, software and firmware are permitted exclusively within the framework of the various alternatives that are documented in the specific manuals. WAGO Kontakttechnik GmbH & Co. KG will be exempted from any liability in case of changes in hardware or software as well as to noncompliant usage of components.
Please send your request for modified and new hardware or software configurations directly to WAGO Kontakttechnik GmbH & Co. KG.

Standards and Guidelines for Operating the 750 Series

Please adhere to the standards and guidelines required for the use of your system:

  • The data and power lines shall be connected and installed in compliance with the standards required to avoid failures on your system and to substantially minimize any imminently hazardous situations resulting in personal injury.
  • For assembly, start-up, maintenance and troubleshooting, adhere to the specific accident prevention provisions which apply to your system (e.g. BGV A 3, "Electrical Installations and Equipment").
  • Emergency stop functions and equipment shall not be made ineffective. See relevant standards (e.g. DIN EN 418).
  • The equipment of your system shall be conform to EMC guidelines so that any electromagnetic interferences will be eliminated.
  • Operating 750 Series components in home applications without further measures is permitted only if they meet the emission limits (emissions of interference) in compliance with EN 61000-6-3. You will find the detailed information in section "WAGO-I/O-SYSTEM 750"→ "System Description" → "Technical Data".
  • Please observe the safety precautions against electrostatic discharge in accordance with DIN EN 61340-5-1/-3. When handling the modules, please ensure that environmental factors (persons, working place and packaging) are well grounded.
  • The valid standards and guidelines applicable for the installation of switch cabinets shall be adhered to.

Symbols

Always observe this information to protect persons from injury.
Always observe this information to prevent damage to the device.
warningAttention Marginal conditions that must always be observed to ensure smooth and efficient operation.
ESD (Electrostatic Discharge)
Warning of damage to the components through electrostatic discharge. Observe the precautionary measure for handling components at risk of electrostatic discharge.
Note Make important notes that are to be complied with so that a trouble-free and efficient device operation can be guaranteed.
information Additional Information References to additional literature, manuals, data sheets and internet pages.

Safety Information

When connecting the device to your installation and during operation, the following safety notes must be observed:

The WAGO-I/O-SYSTEM 750 and its components are an open system. It must only be assembled in housings, cabinets or in electrical operation rooms. Access is only permitted via a key or tool to authorized qualified personnel.

All power sources to the device must always be switched off before carrying out any installation, repair or maintenance work.

Replace defective or damaged device/module (e.g. in the event of deformed contacts), as the functionality of field bus station in question can no longer be ensured on a long-term basis.

The components are not resistant against materials having seeping and insulating properties. Belonging to this group of materials is: e.g. aerosols, silicones, triglycerides (found in some hand creams). If it cannot be ruled out that these materials appear in the component environment, then the components must be installed in an enclosure that is resistant against the above mentioned materials. Clean tools and materials are generally required to operate the device/module.

Soiled contacts must be cleaned using oil-free compressed air or with ethyl alcohol and leather cloths.

Do not use contact sprays, which could possibly impair the functioning of the contact area.

Avoid reverse polarity of data and power lines, as this may damage the devices.
ESD (Electrostatic Discharge)

The devices are equipped with electronic components that may be destroyed by electrostatic discharge when touched.

For components with ETHERNET/RJ-45 connectors:
Only for use in LAN, not for connection to telecommunication circuits.

Font Conventions

italic Names of paths and data files are marked in italic-type. e.g.: C:\Programs\WAGO-IO-CHECK
italic Menu items are marked in italic-type, bold letters. e.g.: Save
\ A backslash between two names characterizes the selection of a menu point from a menu. e.g.: File \ New
END Pushbuttons are marked as bold with small capitals e.g.: ENTER
< > Keys are marked bold within angle brackets e.g.: <F5>
Courier The print font for program codes is Courier.
e.g.: END_VAR

Number Notation

Number code Example Note
Decimal 100 Normal notation
Hexadecimal 0x64 C notation
Binary '100' '0110.0100' In quotation marks, nibble separated with dots (.)

Scope

This manual describes the Analog Input Modules 750-461 (/xxx-xxx)
Analog Input Modules for RTD's of the modular WAGO-I/O-SYSTEM 750.
Handling, assembly and start-up are described in the manual of the Fieldbus Coupler. Therefore this documentation is valid only in the connection with the appropriate manual.

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download WAGO 750 Series, 750-461 Manual

Advertisement

Need help?

Need help?

Do you have a question about the 750 Series and is the answer not in the manual?

Questions and answers

Table of Contents
