A.6.4 Installation

LED Light bar on UTC-115/120/124 Short side
(Rear bottom I/O cover)

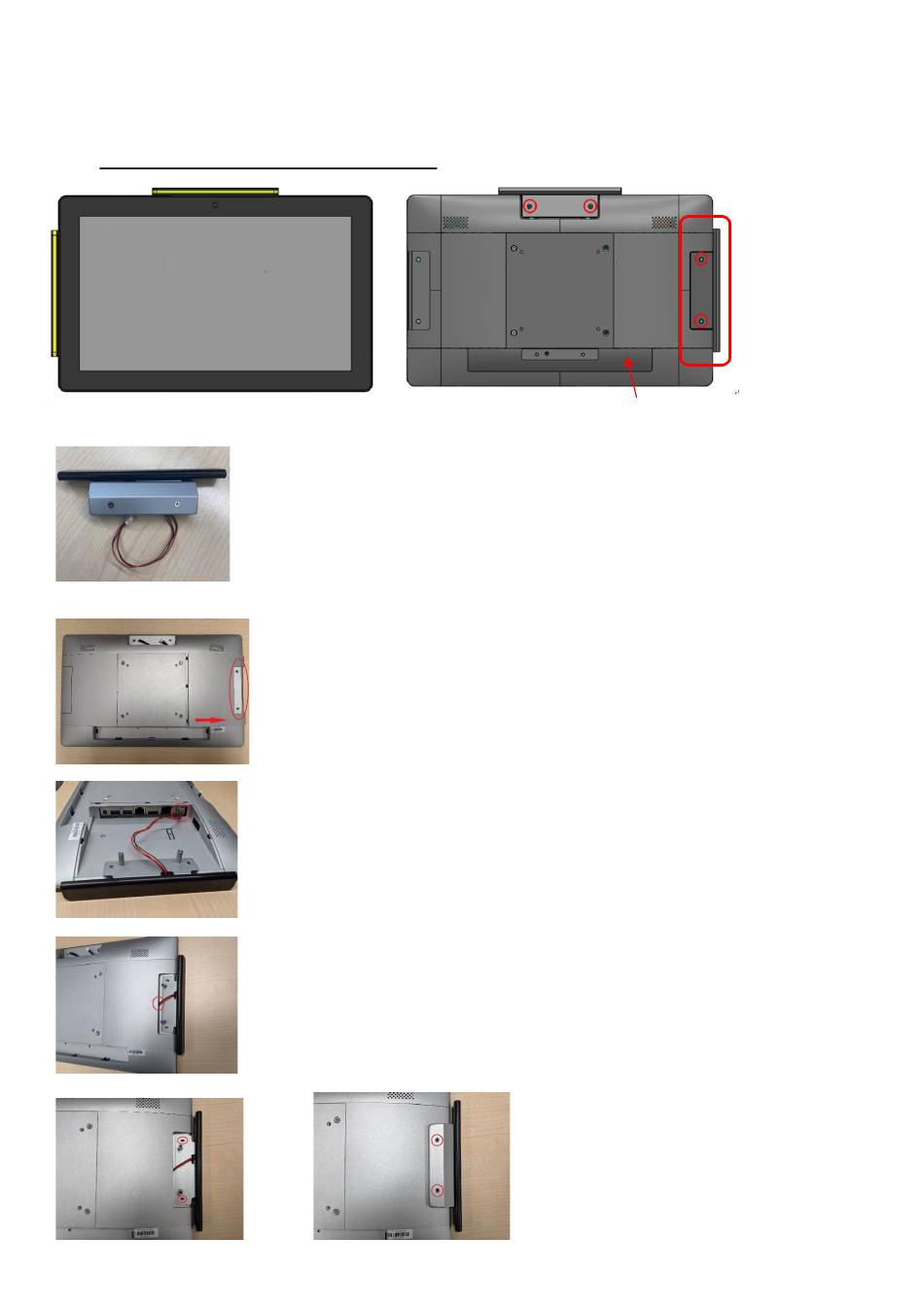

1.Take out the contents from the peripheral package. Remove two screws from peripheral cover.
2.Remove rear bottom I/O cover first
3.Remove the side cover of UTC-115 or UTC-120., and open the small side door on the side cover.
4.Connect cable to the connector on the UTC.
5.Put side cover back, and notice the cable needs to be came out through the hole on the side cover.
6.Lock the bracket with two screws. 7.Lock the cover bracket with two screws.
