Smart card module on UTC-115/120/124 Long (Top) side

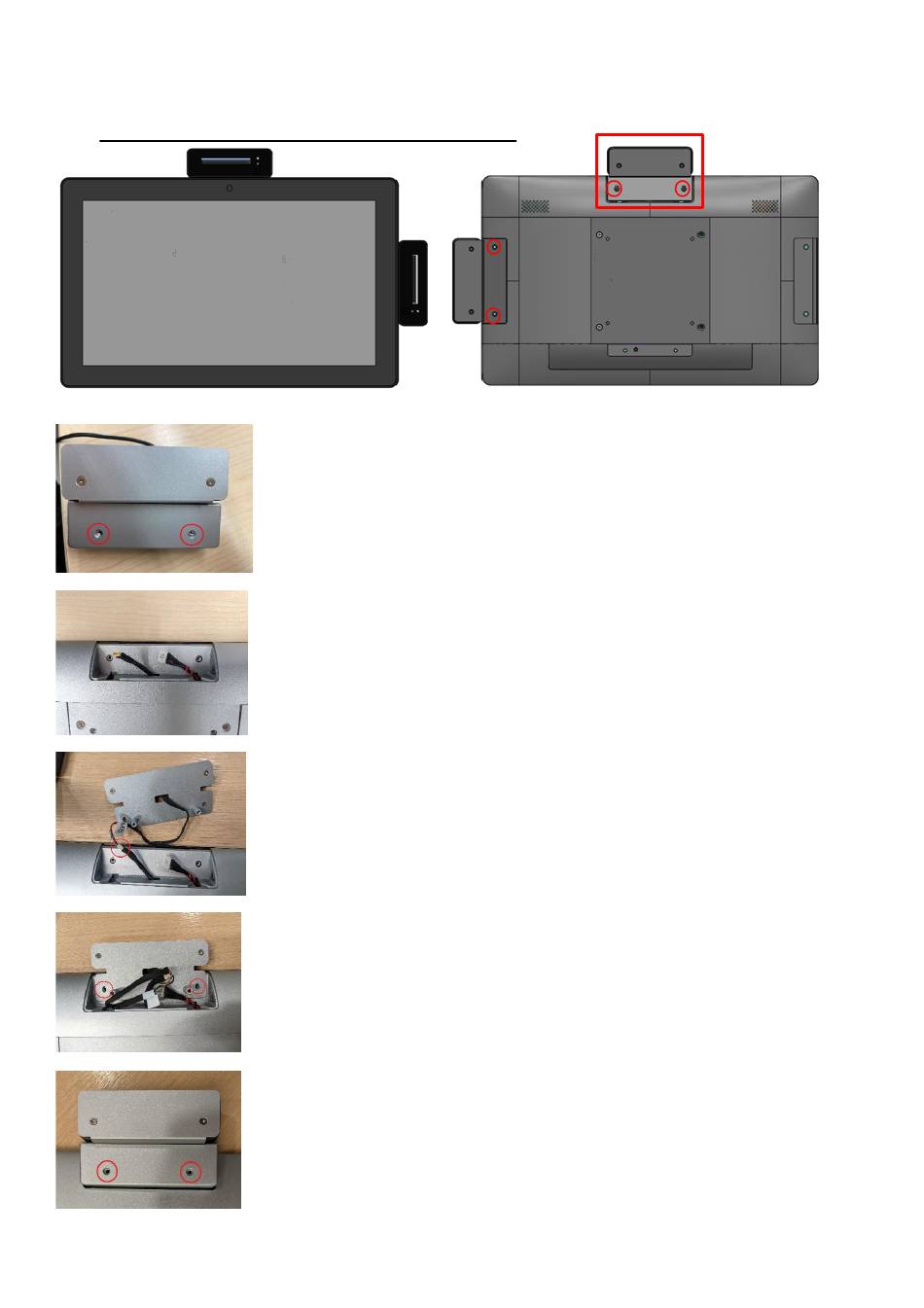

1.Take out the module from the package, and remove the two screws on the peripheral cover.
2.Remove the top cover on the UTC.
3.Connect module to small 5 pin cable. (the circled connector)
4.Lock bracket with two screws on the UTC. (the circled connector)
5. Lock the cover with two screws.
