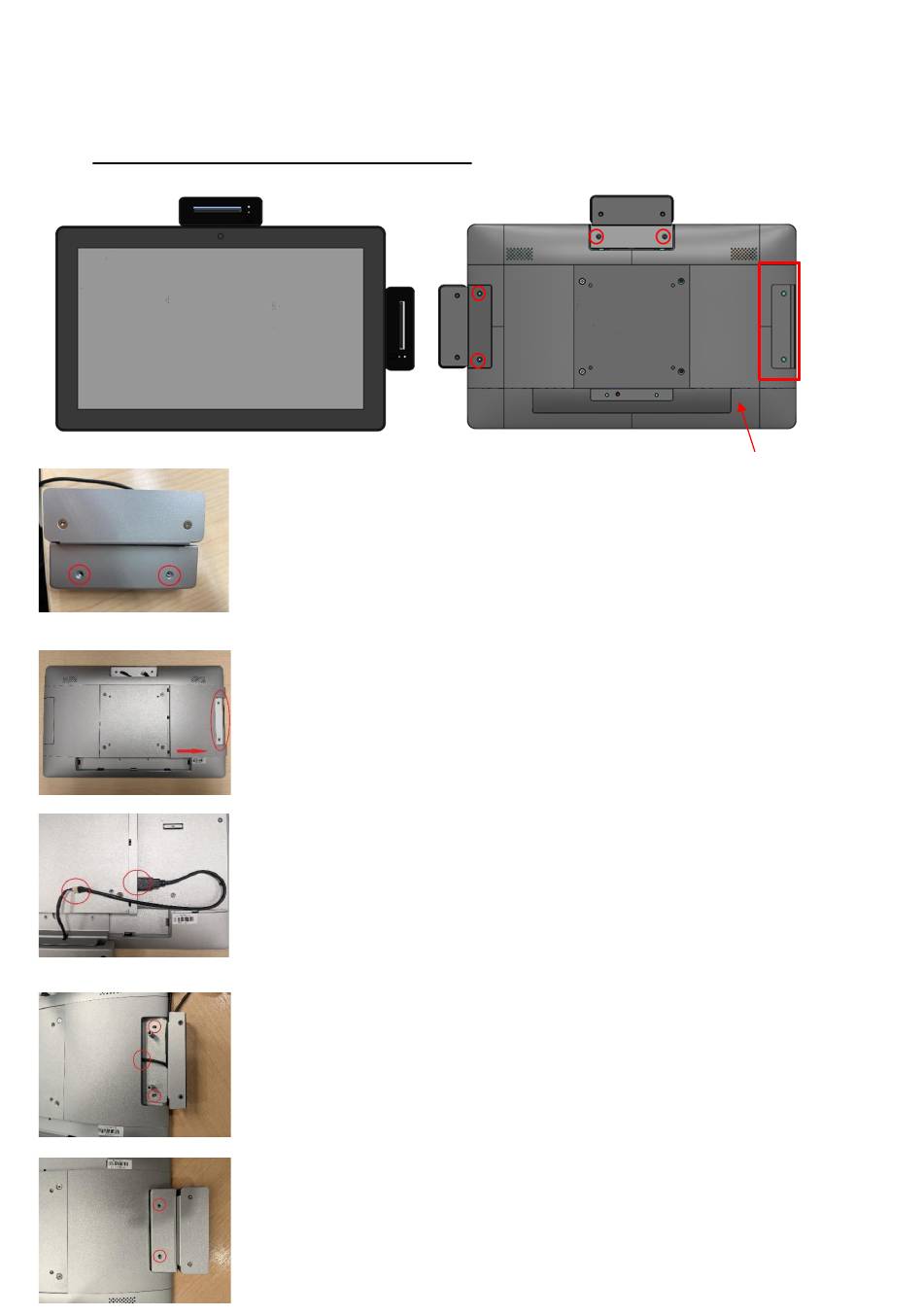

A.5.4 Installation

Smart card module on UTC-115/120/124 Short side
1.Take out the module from the package. Remove two screws on the peripheral cover.
2. Remove rear bottom I/O cover first
3. Remove the side cover, and open the small side door on the side cover.
4. Connect module to adapter cable, and connect USB to UTC.
5.Put side cover back, and notice the cable needs to be came out through the hole on the side cover. Tighten the
peripheral with 2 screws.
6.Lock the cover with two screws.
27
(Rear bottom I/O cover)
