A.1 UTC-100P-B11E (2D Barcode Scanner)
A.1.1 Specifications
Interface
Scanning
Performance
Typical Reading
Distances
Standard
OS Support
Dimensions
Operating
Temperature
A.1.2 Packing List
Description

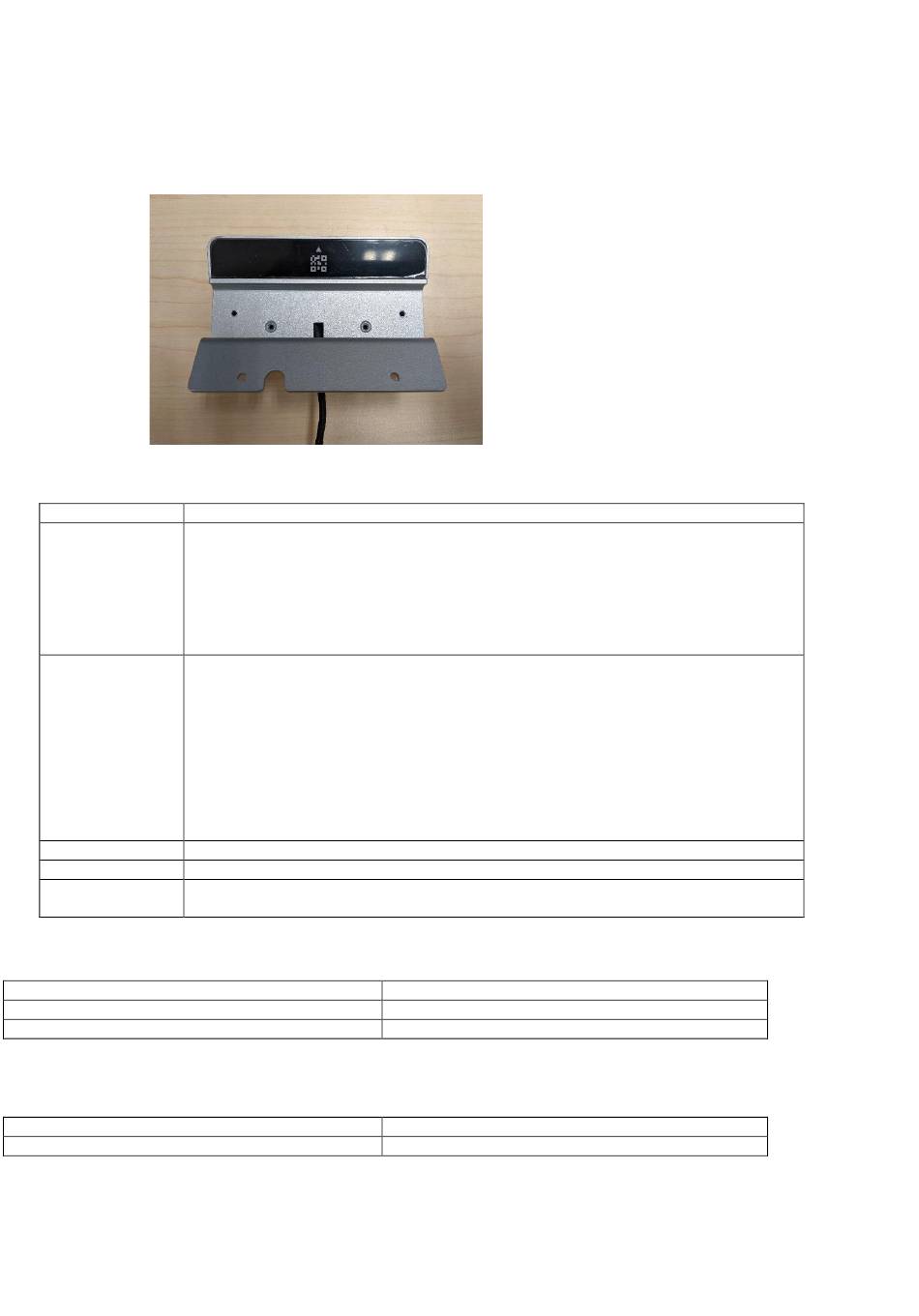

Barcode Reader Unit
Barcode Bracket for UTC-115 long (bottom) side
A.1.3 Ordering information
P/N
UTC-100P-B11E
USB (Cable Length 50cm)
Sensor: CMOS sensor with 640 x 480 pixel resolution
Illumination & Aiming: White LED illumination; Red LED dot aimer
Typical frame rate: 60 frames per second
6 m/s
Motion Tolerance:
Field of View: Horizontal: 40° , Vertical: 30°
Scan Angles: Tilt: 360° , Pitch: ± 50° , Skew: ± 50°
Symbol Contrast: 20% minimum print contrast ratio
SYMBOLOGY / X-DIM TYPICAL RANGE*
13ML UPC
5 MIL CODE 39
20 MIL CODE 39
7 MIL PDF417
10 MIL PDF417
10 MIL QR
20 MIL QR
* Typical performance may be impacted by barcode quality and environmental
conditions
Windows 10 & Android
50.0 x 39.0 x 27.0 mm
-10° C to 40° C
46 mm to 390 mm [1.81 in to 15.35 in]
45 mm to 180 mm [1.77 in to 7.09 in]
71 mm to 747 mm [2.79 in to 29.41 in]
55 mm to 163 mm [2.17 in to 6.42 in]
42 mm to 247 mm [1.65 in to 9.72 in]
40 mm to 182 mm [1.57 in to 7.17 in]
36 mm to 367mm [1.42 in to 14.45 in]
Quantity
1
1
Description
2D Barcode Module for UTC-115/UTC-120
