A.1.4 Installation


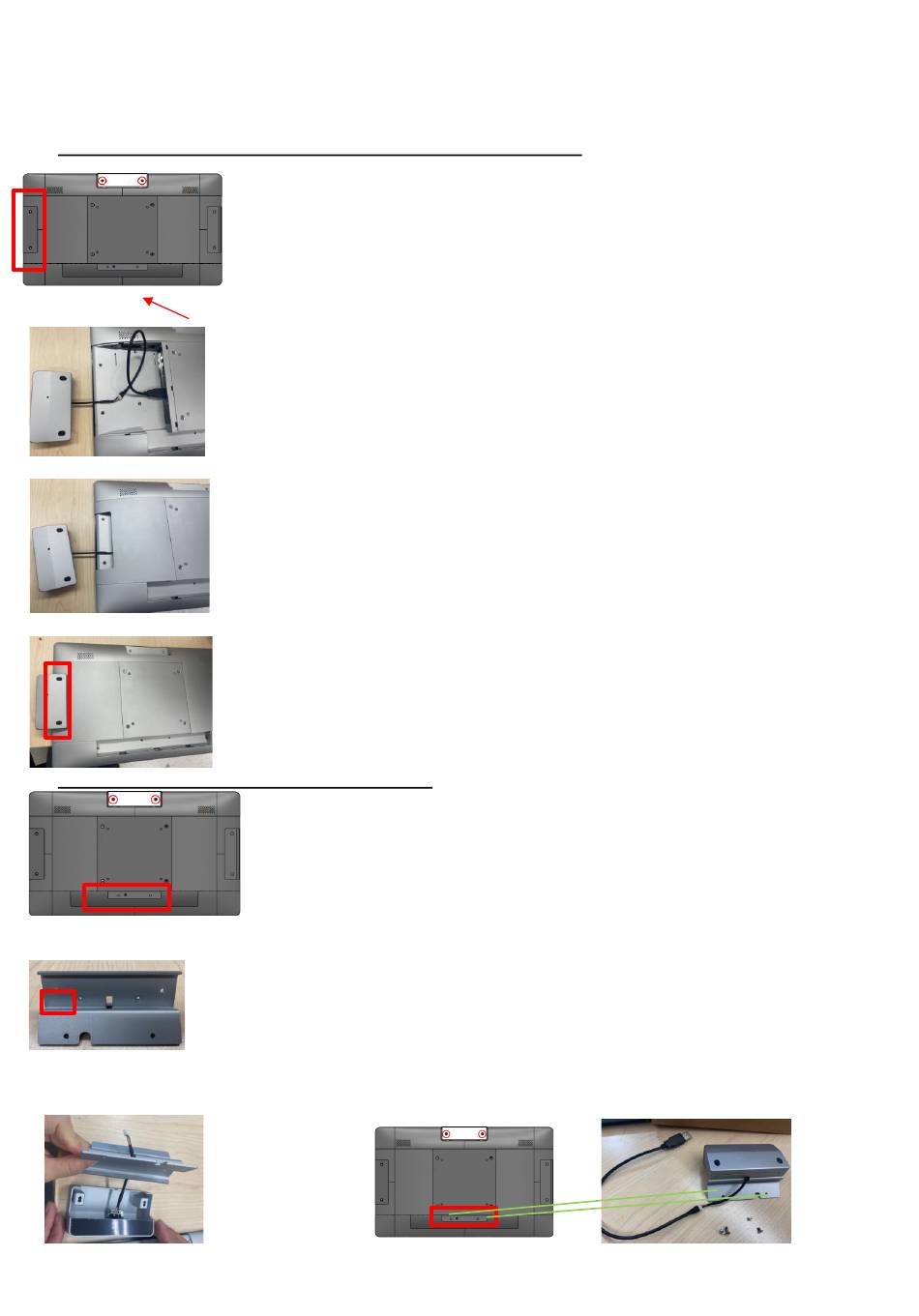

Barcode scanner on UTC-115/120/124 Short side and Long (top) side
5. Put side cover back
6. Lock barcode scanner with two screws on short side

Barcode scanner on UTC-115 Long (bottom) side
1. Remove bottom I/O cover on UTC-115
2.Take out the bracket in the accessory box
3.Thread the cable from the hole
in the middle of bracket (bottom)side
3.4.2.1 Take out the contents from the peripheral package
3.4.2.2 Remove rear bottom I/O cover first
3.4.2.3 Remove side cover.
3.4.2.4 Connect USB cable (in accessory box) with AIO
(rear bottom I/O cover)
4. Lock barcode scanner with 2pcs M3*8L screws on UTC-115 long
