Icom IC-751A Service Manual page 70
Hf all band transceiver general coverage receiver
Hide thumbs
Also See for IC-751A:
- Service manual (151 pages) ,
- Instruction manual (64 pages) ,
- Common questions (7 pages)
Advertisement

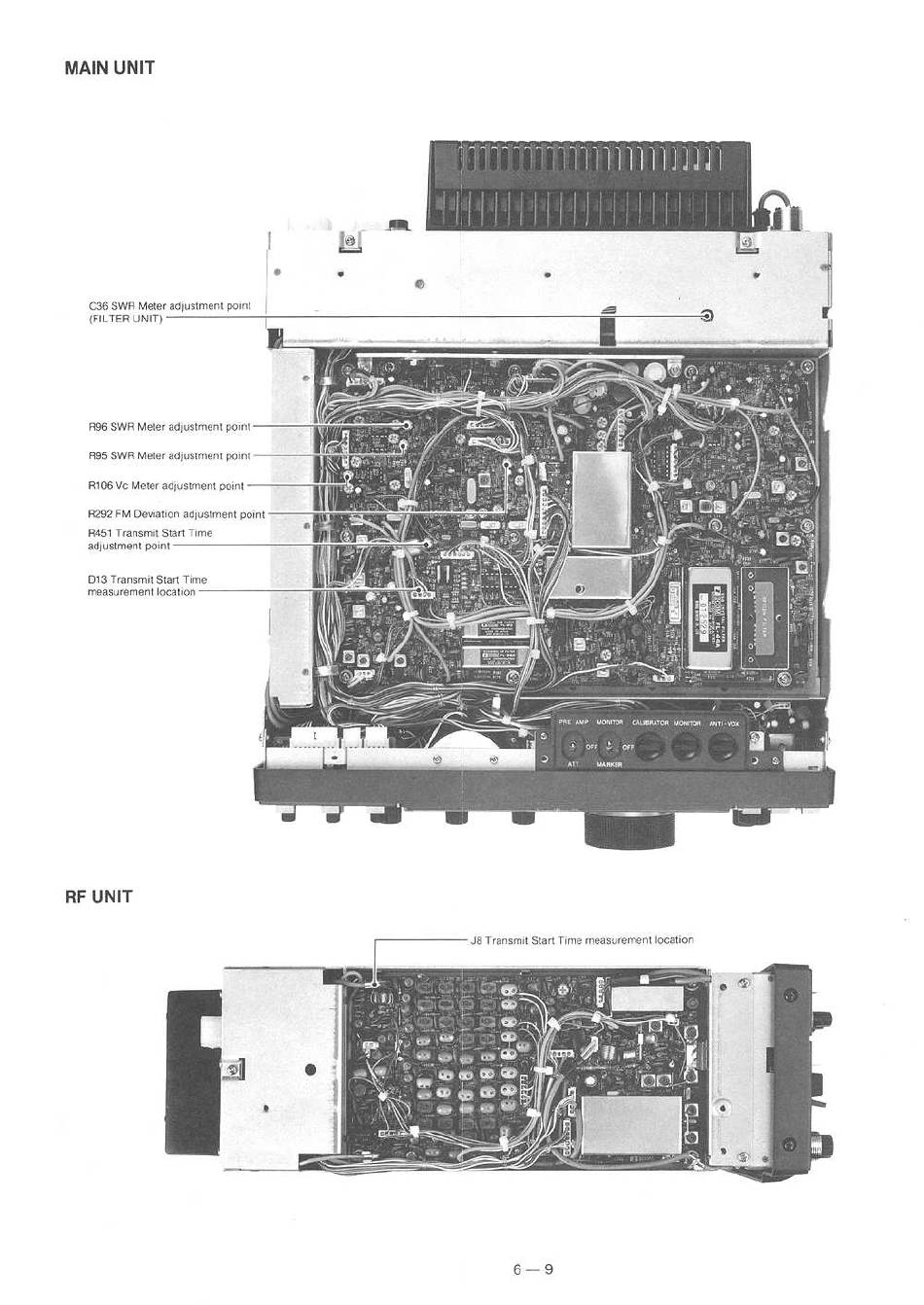

MAIN UNIT
C36 SWR Meter adjustment point
(FILTER UNIT)
R96 SWR Meter adjustment point
R9S SWR Meter adjustment point
R106 Ve Meter adjustment point
R292 FM Doviation agjustment point
451 Transmit Start Time
adjustment point
13 Transmit Start Time
measurement location
RF UNIT
'JB Transmit Start Time measurement location
