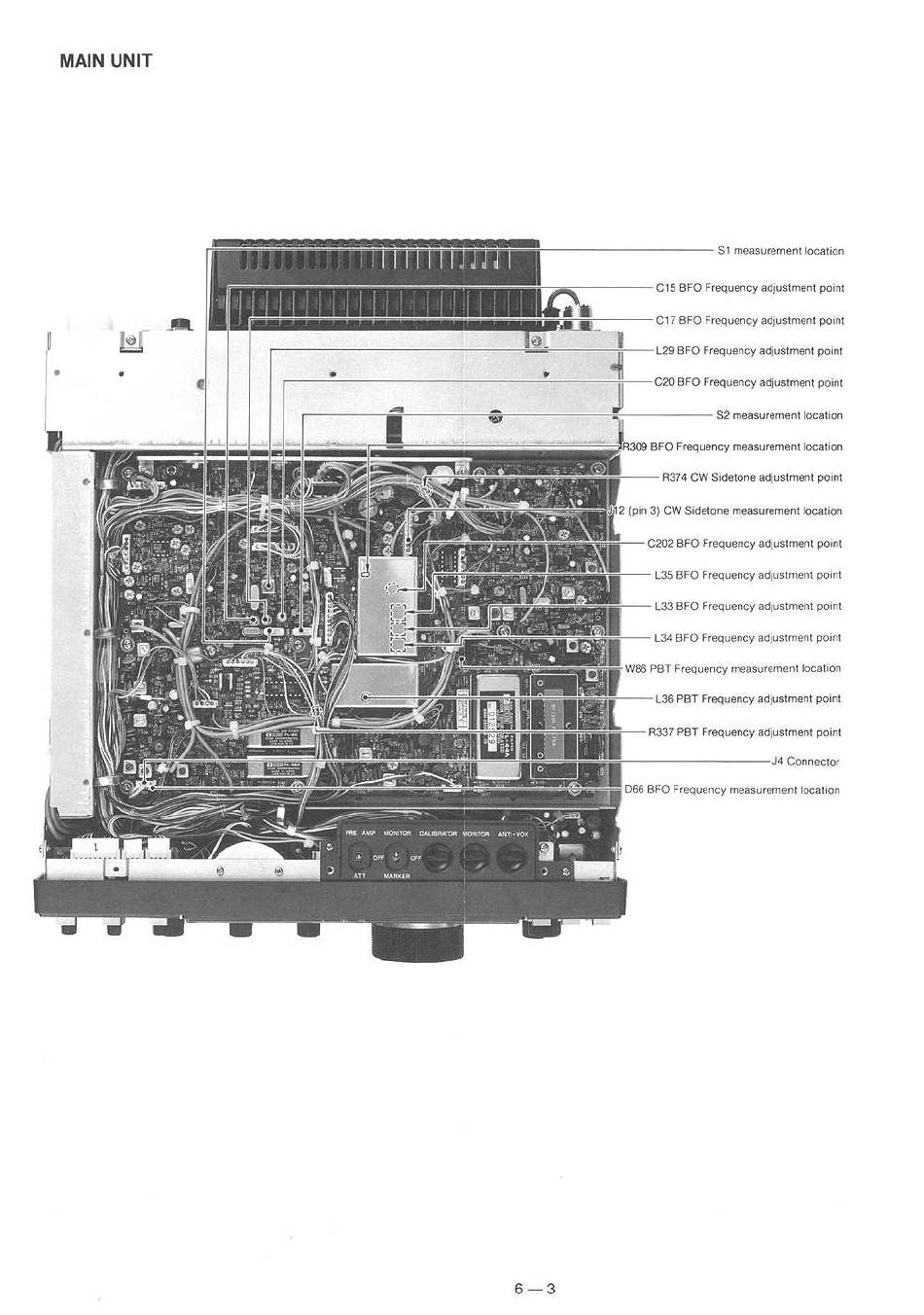

MAIN UNIT
'S1 measurement location
C15 BFO Frequency adjustment point
C17 BFO Frequency adjustment point
1
— L29 BFO Frequency adjustment point
R374 CW Sidetone adjustment point
iFi2 (pin 3) CW Sidetone measurement location
=
C202 BFO Frequency adjustment point
L35 BFO Frequency adjustment point
33 BFO Frequency adjustment point
L34 BFO Frequeney adjustment point
WB6 PET Frequency measurement location
L96 PBT Frequency adjustment point
R937 PBT Frequency adjustment point
4 Connector
