Icom IC-751A Service Manual page 16

Hf all band transceiver general coverage receiver
Hide thumbs Also See for IC-751A:

Advertisement

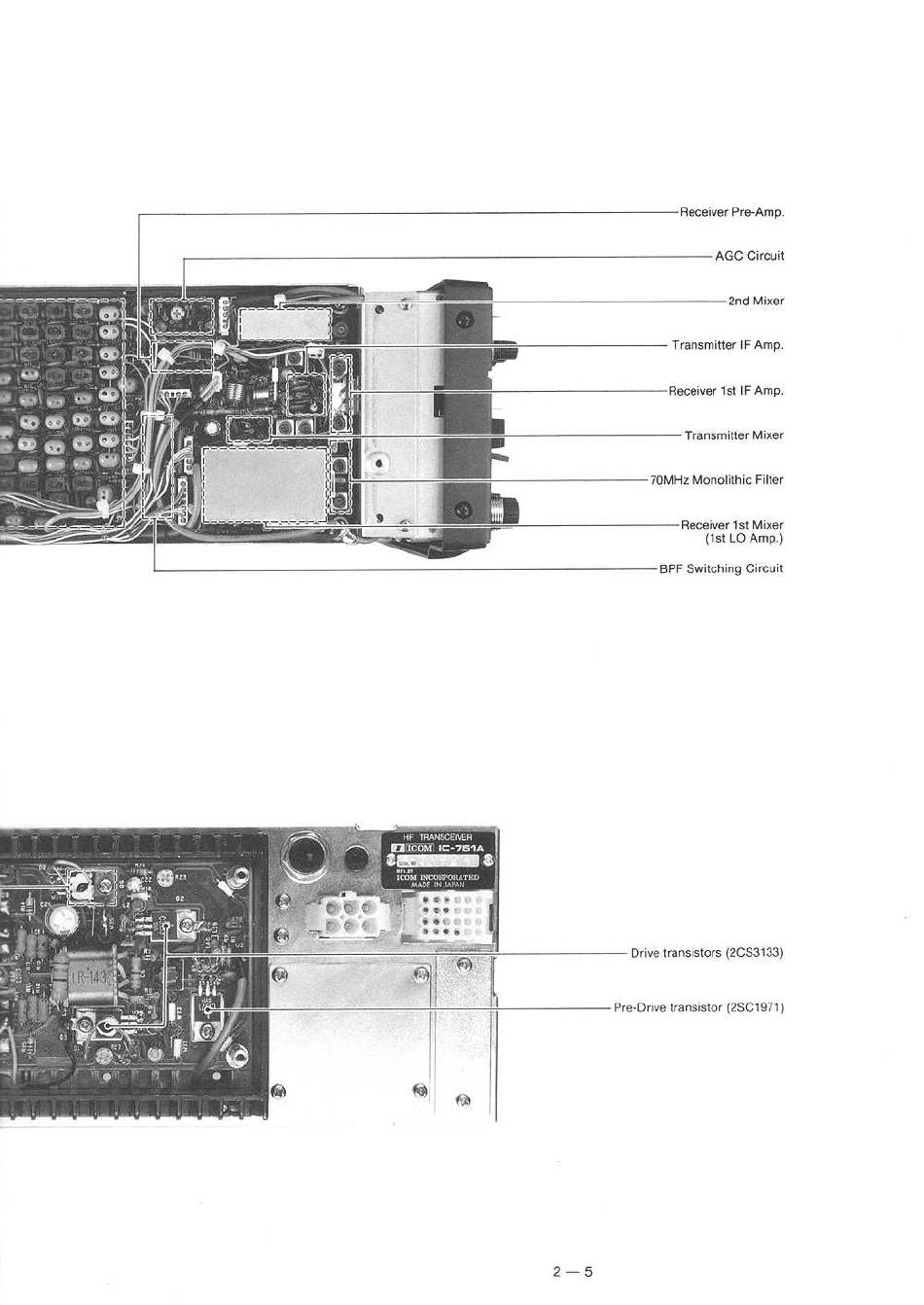

Receiver Pre-Amp.
AGC Circuit
2nd Mixer
Transmitter IF Amp.
Receiver 1st IF Amp.
Transmitter Mixer
7OMHz Monolithic Filter
Receiver 1st Mixer
BPF Switching Circuit
Je Keo ae
Drive transistors (2CS3133)
Pre-Drive transistor (2861971)
