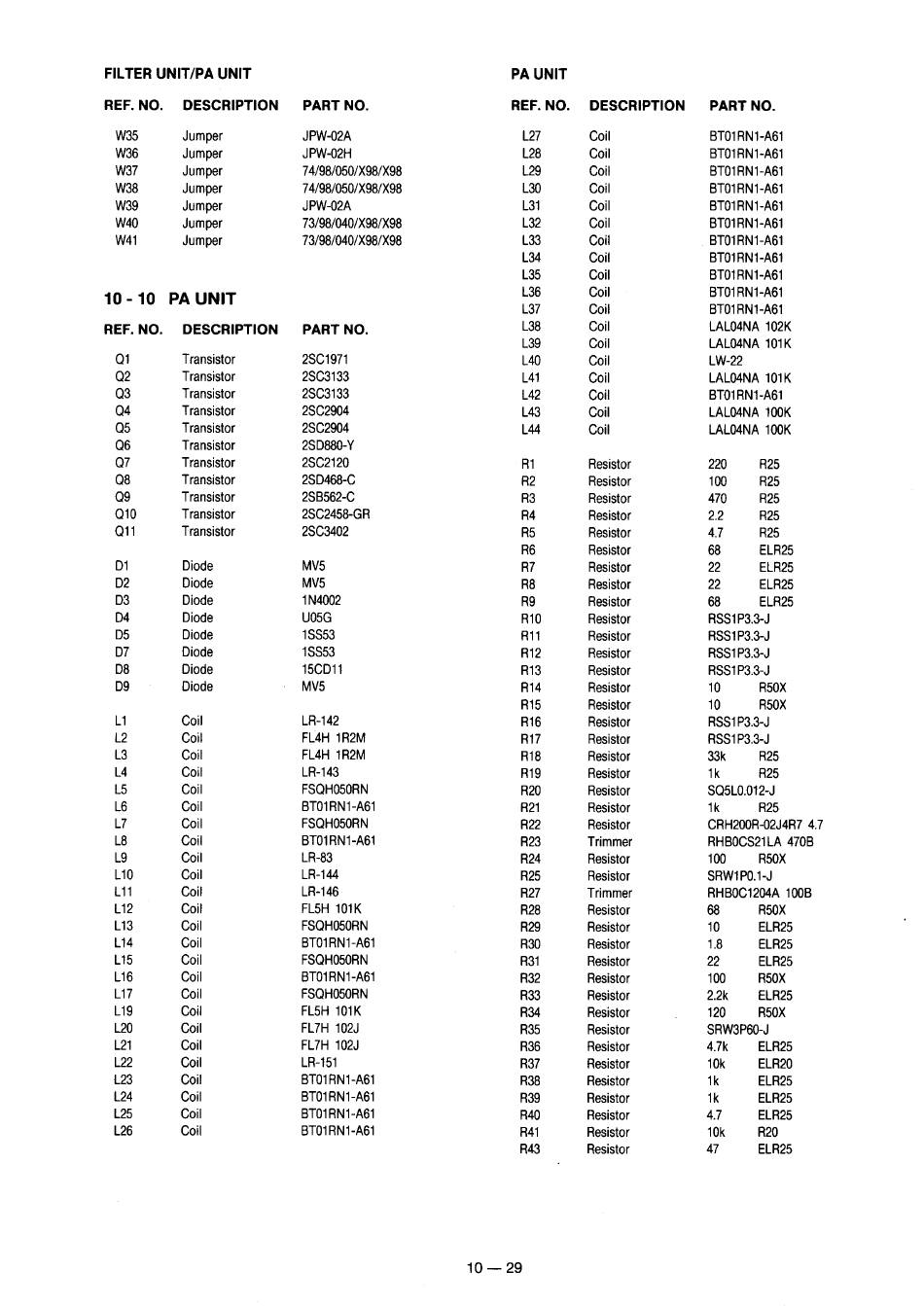

Icom IC-751A Service Manual page 133

FILTER UNIT/PA UNIT PA UNIT
REF.NO. DESCRIPTION PART NO. REF.NO. DESCRIPTION PART NO.
W35 Jumper JPW-02A L27 Coil BTO1RN1-A61
W36 Jumper JPW-02H L28 Coil BTO1RN1-A61
W37 Jumper 74/98/050/X98/X98 L29 Coil BTO1RN1-A61
W38 Jumper 74/98/050/X98/X98 L30 Coil BTO1RN1-A61
Ww39 Jumper JPW-02A L31 Coil BTO1RN1-A61
w40 Jumper 73/98/040/X98/X98 L32 Coil BTO1RN1-A61
wai Jumper 73/98/040/X98/X98 L33 Coil _ BTOIRN1-A61
L34 Coil BTO1RN1-A61
L35 Coil BTO1RN1-A61
L36 Coil BTO1RN1-A61
10-10 PA UNIT L37 Coil BTO1RN1-A61
REF.NO. DESCRIPTION PART NO. 138 Coil LALOANA 102K
L39 Coil LALO4NA 101K
Qi Transistor 28C1971 L40 Coil LW-22
Q2 Transistor 2803133 L41 Coil LALO4NA 101K
Q3 Transistor 2803133 L42 Coil BTO1RN1-A61
Q4 Transistor 2802904 L43 Coil LALO4NA 100K
Q5 Transistor 28C2904 L44 Coil LALO4NA 100K
Q6 Transistor 2SD880-Y
Q7 Transistor 28C2120 R1 Resistor 220 R25
Q8 Transistor 28D468-C R2 Resistor 100 R25
Q9 Transistor 2$B562-C R3 Resistor 470 R25
Q10 Transistor 25C2458-GR R4 Resistor 2.2 R25
Q11 Transistor 28C3402 R5 Resistor 4.7 R25
R6 Resistor 68 ELR25
D1 Diode MV5 R7 Resistor 22 ELR25
D2 Diode MV5 R8 Resistor 22 ELR25
D3 Diode 1N4002 R9 Resistor 68 ELR25
D4 Diode U05G R10 Resistor RSS1P3.3-J
D5 Diode 1$$53 Rit Resistor RSS1P3.3-J
D7 Diode 18853 Ri2 Resistor RSS1P3.3-J
D8 Diode 15CD11 R13 Resistor RSS1P3.3-J
D9 Diode - MV5 R14 Resistor 10 R50X
R15 Resistor 10 R50X
L1 Coil LR-142 Rié6 Resistor RSS1P3,3-J
L2 Coil FL4H 1R2M R17 Resistor RSS1P3.3-J
L3 Coil FL4H 1R2M R18 Resistor 33k R25
L4 Coil LR-143 R19 Resistor 1k R25
L5 Coil FSQHO50RN R20 Resistor $Q5L0.012-J
L6 Coil BTO1RN1-A61 R21 Resistor 1k R25
L7 Coil FSQHOS50RN R22 Resistor CRH200R-02U4R7 4.7
L8 Coil BTO1RN1-A61 R23 Trimmer RHBOCS21LA 470B
L9 Coil LR-83 R24 Resistor 100 R50X
L10 Coil LR-144 R25 Resistor SRW1P0.1-J
L11 Coil LR-146 R27 Trimmer RHB0C1204A 100B
L12 Coil FL5H 101K R28 Resistor 68 R50X
L13 Coil FSQHOS50RN R29 Resistor 10 ELR25
L14 Coil BTOIRN1-A61 R30 Resistor 18 ELR25
L15 Coil FSQHO50RN R31 Resistor 22 ELR25
L16 Coil BTO1RN1-A61 R32 Resistor 100 R50X
L17 Coil FSQHO50RN R33 Resistor 2.2k ELR25
L19 Coil FL5H 101K R34 Resistor . 120 R50X
L20 Coil FL7H 102J R35 Resistor SRW3P60-J
L21 Coil FL7H 102J R36 Resistor 47k ELR25
L22 Coil LR-151 R37 Resistor 10k ELR20
L23 Coil BTO1RN1-A61 R38 Resistor 1k ELR25
L24 Coil BTO1RN1-A61 R39 Resistor 1k ELR25
L25 Coil BTO1RN1-A61 R40 Resistor 47 ELR25
L26 Coil BTO1RN1-A61 R41 Resistor 10k R20
R43 Resistor 47 ELR25
