Icom IC-751A Service Manual page 12

Hf all band transceiver general coverage receiver
Hide thumbs Also See for IC-751A:

Advertisement

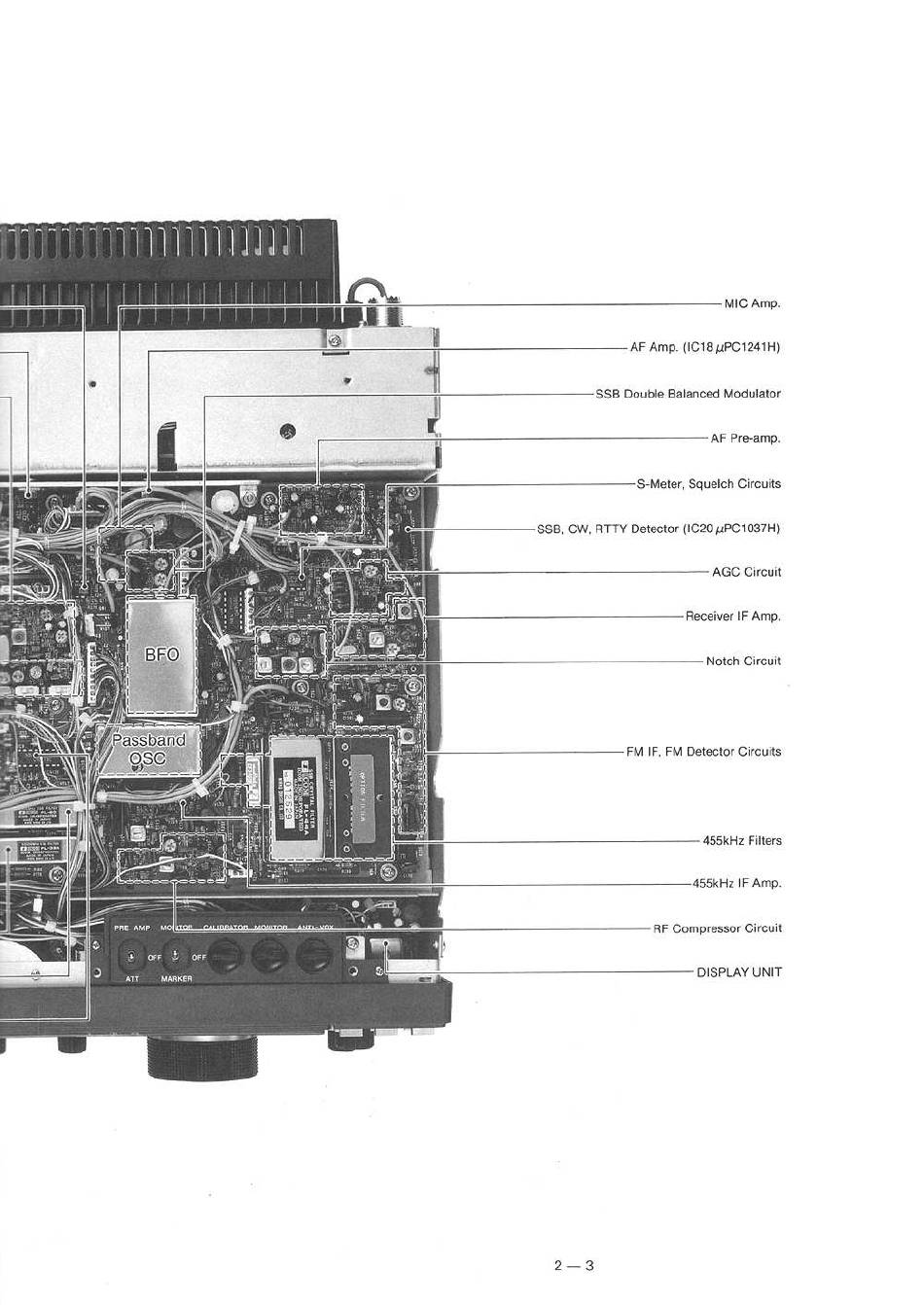

MIC Amp.
AF Amp. (IC18 uPC1241H)
SSB Double Balanced Modulator
AF Pre-amp.
'$-Meter, Squelch Circuits
AGC Circuit
Receiver IF Amp.
Notch Circuit
—_—_—_—FM IF, FM Detector Circuits
455kHz Filters
485kHz IF Amp.
—— RF Compressor Circuit
