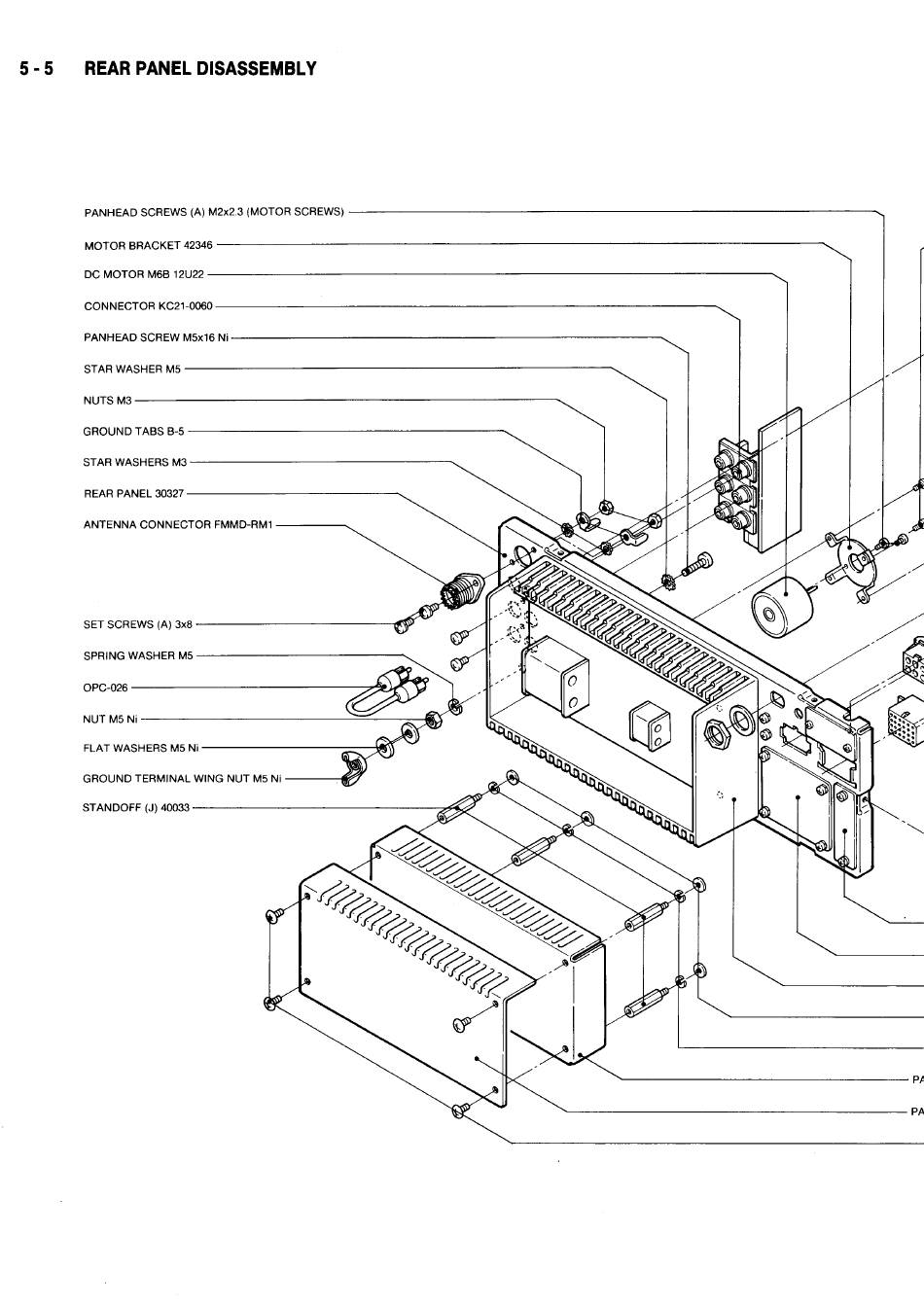

REAR PANEL DISASSEMBLY
PANHEAD SCREWS (A) M2x2.3 (MOTOR SCREWS)
DC MOTOR M6B 12U22
CONNECTOR
KC21-0060
PANHEAD SCREW M65x16 Ni
STAR WASHER M5
NUTS M3
GROUND TABS B-5
STAR WASHERS M3
REAR PANEL 30327
ANTENNA CONNECTOR
FMMD-RM1
SET SCREWS (A) 3x8
SPRING WASHER MS
OPC-026
NUT M5 Ni
FLAT WASHERS M5 Ni
GROUND TERMINAL WING NUT M5 Ni
STANDOFF (J) 40033
