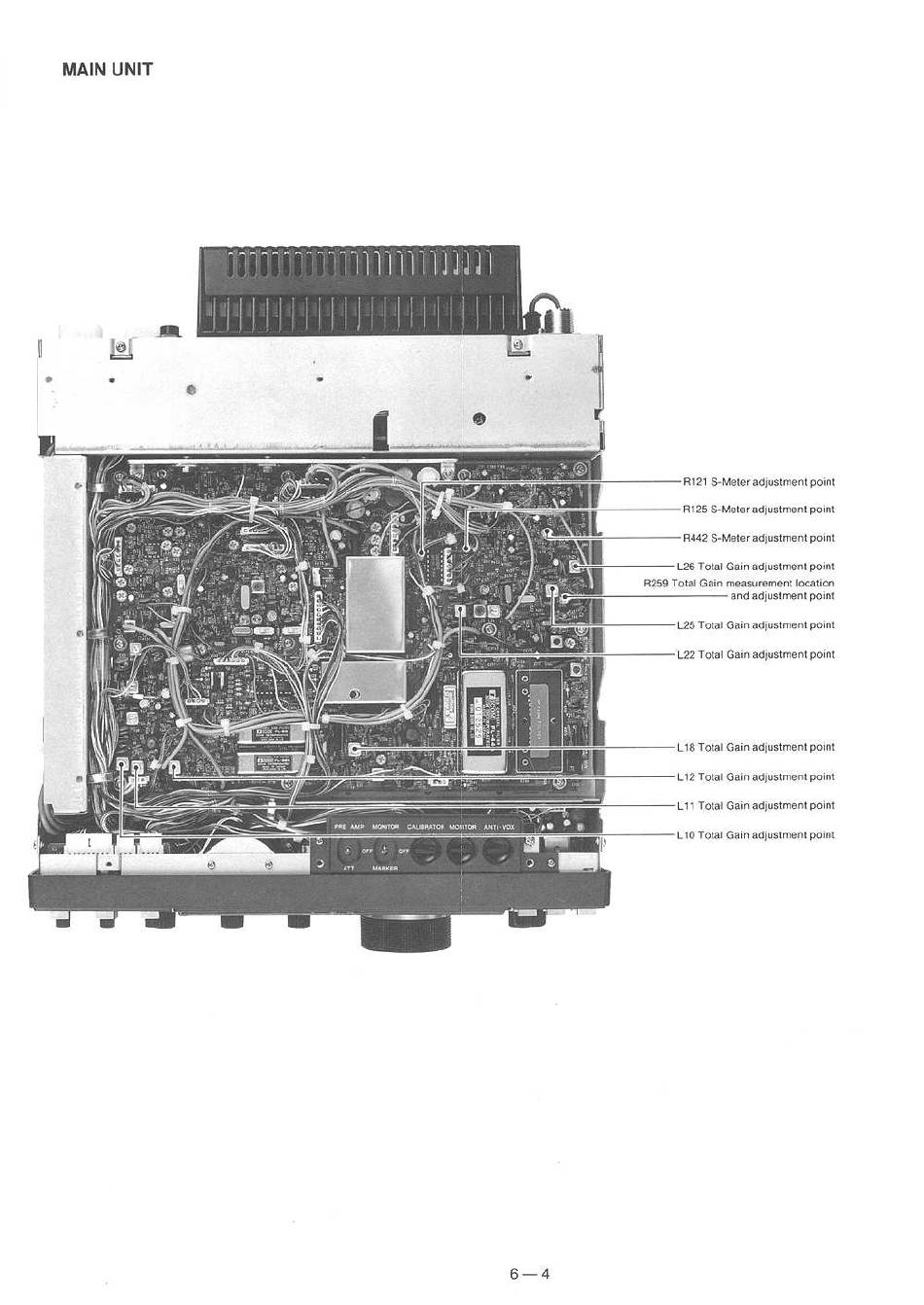

MAIN UNIT
121 S-Meter adjustment point
R125 S-Meter adjustment point
442 S-Meter adjustment point
R259 Total Gain measurement location
and adjustment point
25 Total Gain adjustment point
22 Total Gain adjustment point
L18 Total Gain adjustment point
L12 Total Gain adjustment point
L11 Total Gain adjustment point
L10 Total Gain adjustment point
