SECTION
5
DISASSEMBLY AND ASSEMBLY DIAGRAMS
5-1

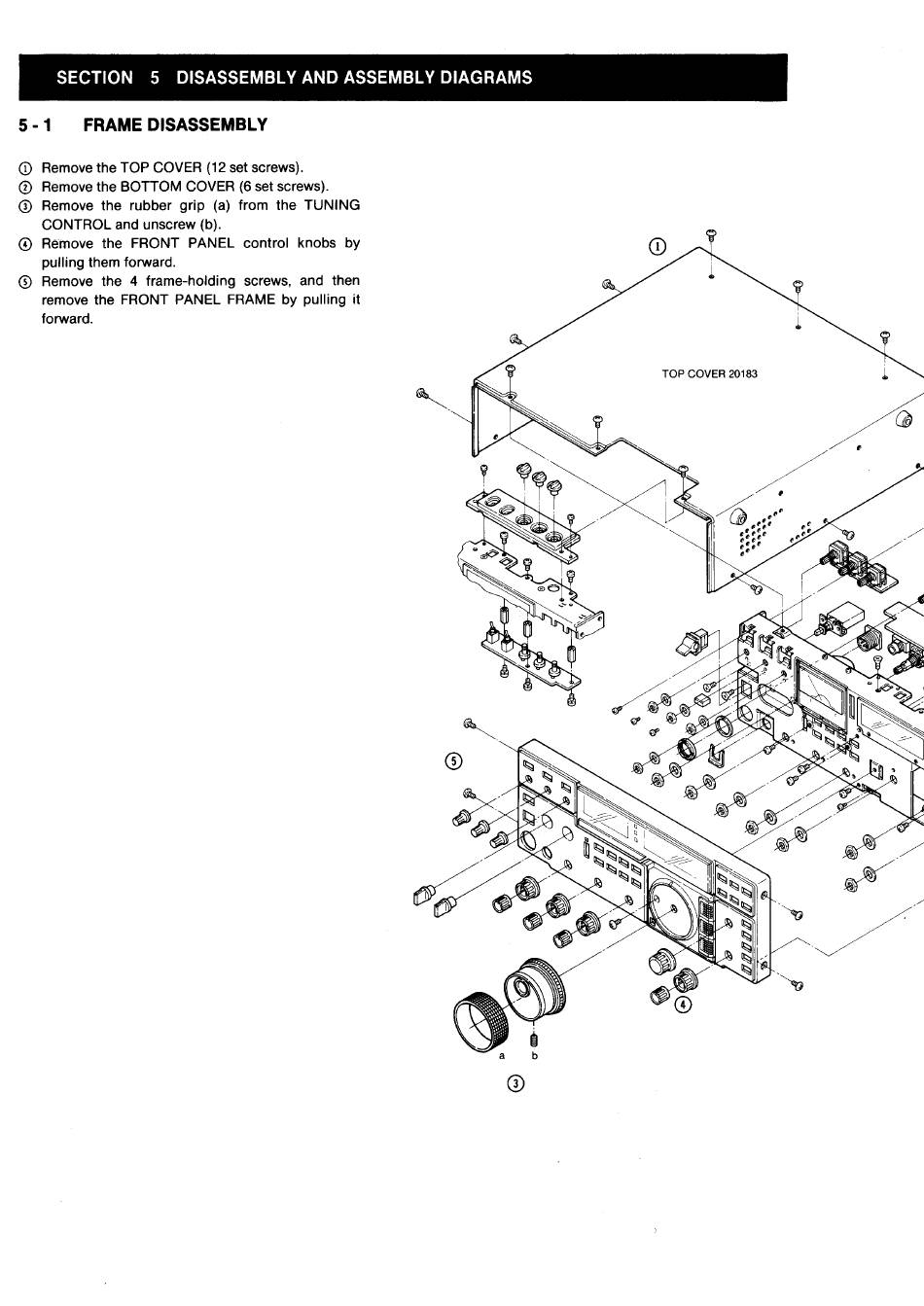

FRAME DISASSEMBLY
Remove the TOP COVER (12 set screws).
Remove the BOTTOM COVER (6 set screws).
Remove
the
rubber
grip
(a)
from
the
TUNING
CONTROL and unscrew (b).
Rémove
the
FRONT
PANEL
control
knobs
by
pulling them forward.
Remove
the
4 frame-holding
screws,
and
then
remove the FRONT
PANEL
FRAME
by pulling it
forward.
TOP COVER 20183
