Icom IC-751A Service Manual page 105

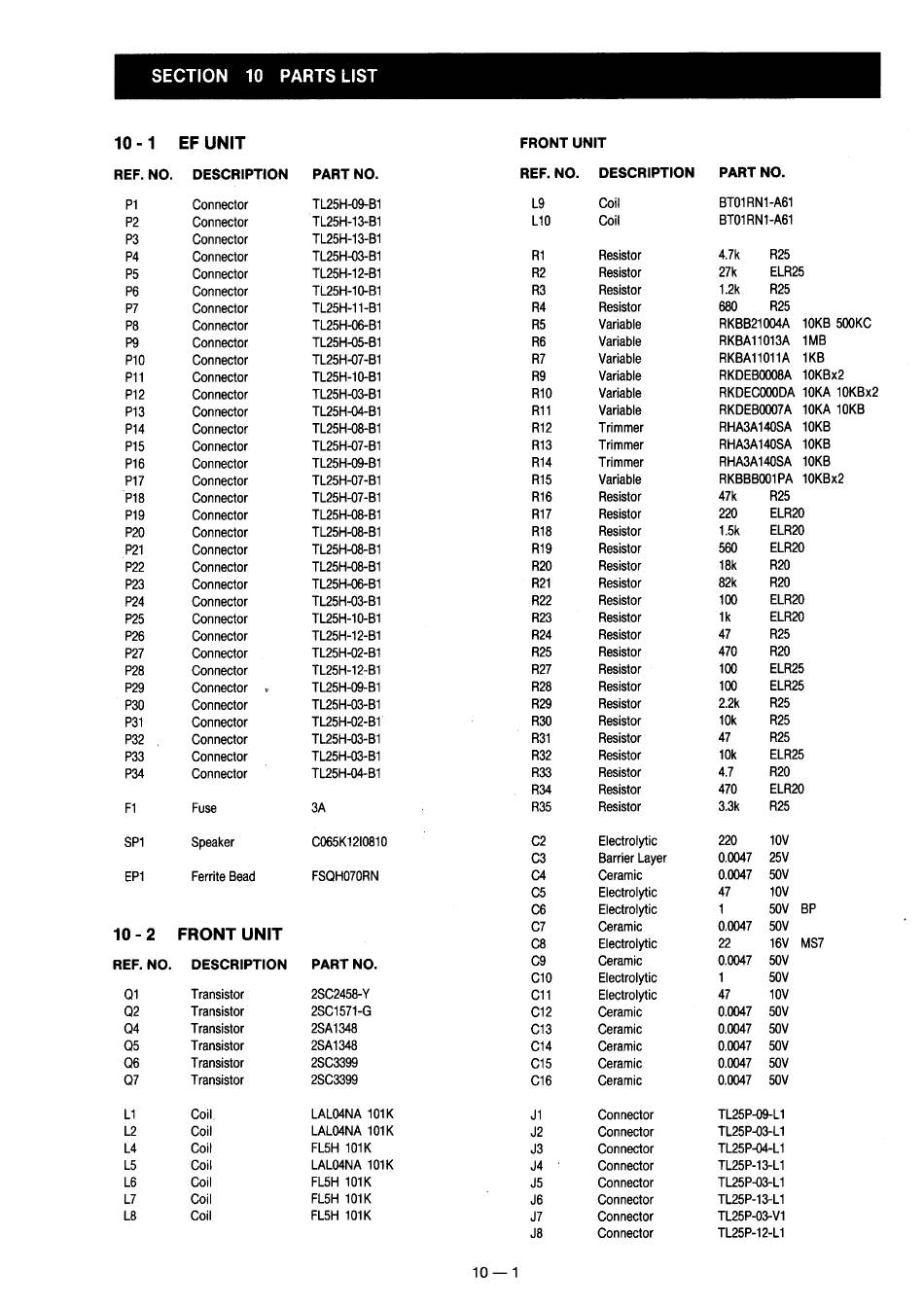

SECTION 10 PARTS LIST
10-1 EF UNIT FRONT UNIT
REF.NO. DESCRIPTION PART NO. REF.NO. DESCRIPTION PART NO.
P1 Connector TL25H-09-B1 L9 Coil BTO1RN1-A61
P2 Connector TL25H-13-B1 L10 Coil BTO1RN1-A61
P3 Connector TL25H-13-B1
P4 Connector TL25H-03-B1 R1 Resistor 4.7k R25
P5 Connector TL25H-12-B1 R2 Resistor 27k ELR25
P6 Connector TL25H-10-B1 R3 Resistor 1.2k R25
P7 Connector TL25H-11-B1 R4 Resistor 680 R25
P8 Connector TL25H-06-B1 R5 Variable RKBB21004A 10KB 500KC
P9 Connector TL25H-05-B1 R6 Variable RKBA11013A 1MB
P10 Connector TL25H-07-B1 R7 Variable RKBA11011A 1KB
P11 Connector TL25H-10-B1 R9 Variable RKDEBO008A 10KBx2
P12 Connector TL25H-03-B1 R10 Variable RKDECOOODA 10KA 10KBx2
P13 Connector TL25H-04-B1 R14 Variable RKDEB0007A 10KA 10KB
P14 Connector TL25H-08-B1 R12 Trimmer RHA3A140SA 10KB
P15 Connector TL25H-07-B1 R13 Trimmer RHA3A140SA 10KB
P16 Connector TL25H-09-B1 R14 Trimmer RHA3A140SA 10KB
P17 Connector TL25H-07-B1 R15 Variable RKBBBOOIPA 10KBx2
P18 Connector TL25H-07-B1 Rié6 Resistor 47k R25
P19 Connector TL25H-08-B1 R17 Resistor 220 ELR20
P20 Connector TL25H-08-B1 R18 Resistor 1.5k ELR20
P21 Connector TL25H-08-B1 R19 Resistor 560 ELR20
P22 Connector TL25H-08-B1 R20 Resistor 18k R20
P23 Connector TL25H-06-B1 R21 Resistor 82k R20
P24 Connector TL25H-03-B1 R22 Resistor 100 ELR20
P25 Connector TL25H-10-B1 R23 Resistor 1k ELR20
P26 Connector TL25H-12-B1 R24 Resistor 47 R25
P27 Connector TL25H-02-B1 R25 Resistor 470 R20
P28 Connector TL25H-12-B1 R27 Resistor 100 ELR25
P29 Connector + TL25H-09-B1 R28 Resistor 100 ELR25
P30 Connector TL25H-03-B1 R29 Resistor 2.2k R25
P31 Connector TL25H-02-B1 : R30 Resistor 10k R25
P32 Connector TL25H-03-B1 ~ R31 Resistor 47 R25
P33 Connector TL25H-03-B1 R32 Resistor 10k ELR25
P34 Connector TL25H-04-B1 R33 Resistor 47 R20
. Rod Resistor 470 ELR20
Fi Fuse 3A . R35 Resistor 3.3k R25
SP1 Speaker C065K 1210810 C2 Electrolytic 220 10V
C3 Barrier Layer 0.0047 25V
EP1 Ferrite Bead FSQH070RN C4 Ceramic 0.0047 50V
C5 Electrolytic 47 10V
C6 Electrolytic 1 50V BP
C7 Ceramic 0.0047 50V
10-2 FRONT UNIT C8 Electrolytic 22 16V MS7
REF.NO. DESCRIPTION PART NO. C9 Ceramic 0.0047 S0V
C10 Electrolytic 1 50V
Qi Transistor 28C2458-Y C11 Electrolytic 47 10V
Q2 Transistor 28C01571-G C12 Ceramic 0.0047 50V
Q4 Transistor 2SA1348 C13 Ceramic 0.0047 50V
Q5 Transistor 28A1348 C14 Ceramic 0.0047 50V
Q6 Transistor 28C3399 C15 Ceramic 0.0047. 50V
Q7 Transistor 28C3399 C16 Ceramic 0.0047 50V
Li Coil. LALO4NA 101K Jt Connector TL25P-09-L1
L2 Coil LALO4NA 101K J2 Connector TL25P-03-L1
L4 Coil FL5H 101K J3 Connector TL25P-04-L1
LS Coil LALO4NA 101K J4 Connector TL25P-13-L1
L6 Coil FL5H 101K J5 Connector TL25P-03-L1
L7 Coil FL5H 101K , J6 Connector TL25P-13-L1
L8 Coil FL5H 101K J7 Connector TL25P-03-V1
J8 Connector TL25P-12-L1
10 —1
