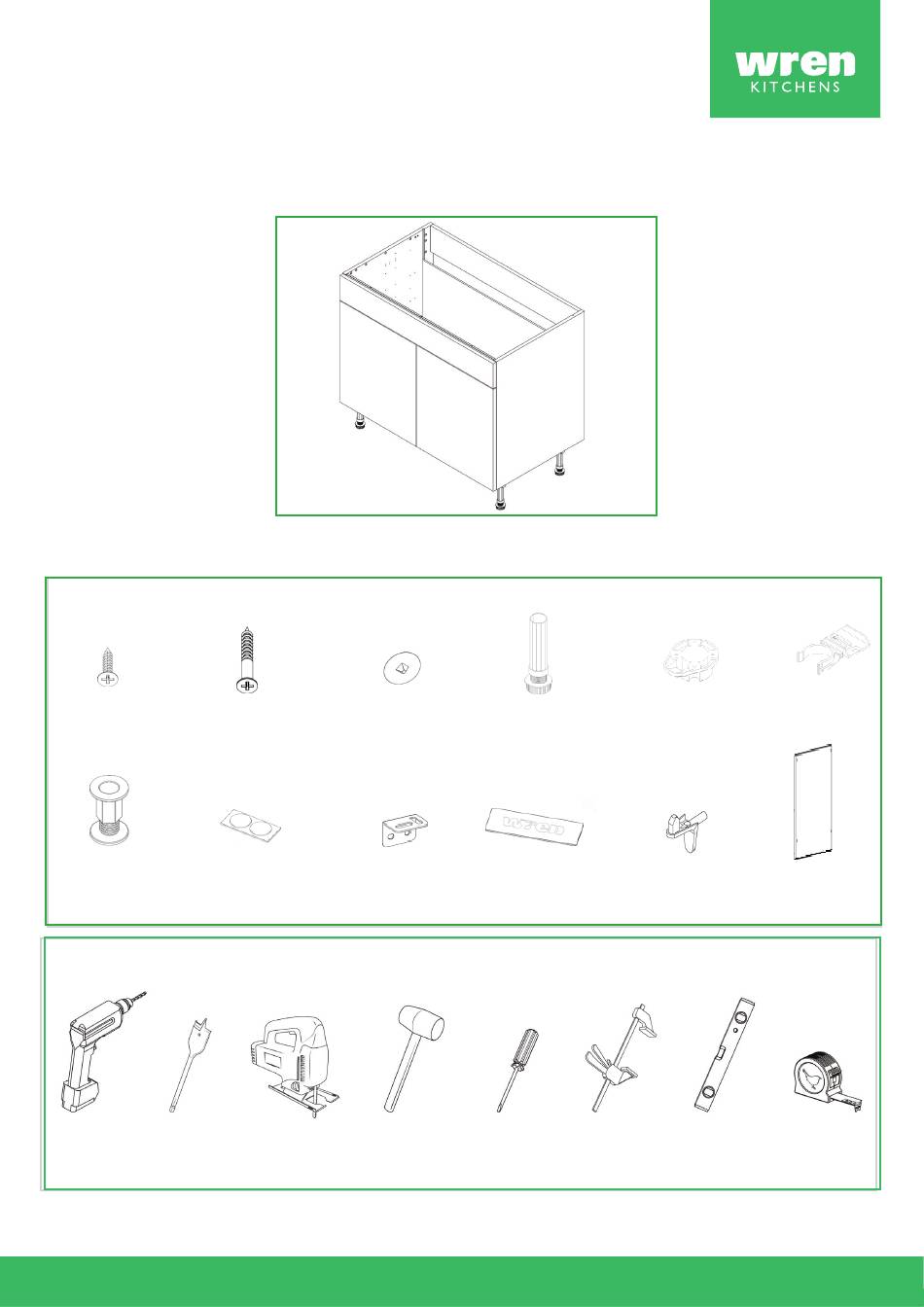

E A S Y - F I T S O F T C L O S E

Base Unit

800 - 1000 Sink Base (Door, Non-Open Drawer, Open Top, 5 Legs) - Fittting

Guide

Units Parts

32x 15mm

6x 30mm

screws

Space Plug

Door Buffer

Tools Required

Drill

Flat Headed

Drill Bit

18x

screws

Cover Caps

L-Brackets

Jigsaw

Mallet

Leg

Drawer Covers

Cap

Screwdriver

Clamp

Plinth Clips

Leg Brackets

1x Shelf

Shelf Pegs

Tape Measure

Spirit Level

Page 1

Need help?

Do you have a question about the Base Unit 800 and is the answer not in the manual?

Questions and answers

Summary of Contents for Wren Kitchens Base Unit 800

Page 1 E A S Y - F I T S O F T C L O S E Base Unit 800 - 1000 Sink Base (Door, Non-Open Drawer, Open Top, 5 Legs) - Fittting Guide Units Parts 32x 15mm 6x 30mm Plinth Clips screws screws...
Page 2 Remember to take care when unpacking. Please keep your workspace clean, clear and tidy when working. This will help keep all items safe from any damages. Any waste cardboard or plastic should be flattened down and placed in the bin. A minimum of two people will be needed to lift the unit.
Page 3 Fixing the leg bases Secure each of the leg brakets into place with 4x15mm screws per bracket. Inserting the legs Push each leg firmly down into the leg bracket. Adjusting each leg to 155mm. Adjust the legs to the correct height by turning clockwise or anti-clockwise.
Page 4 Drilling the unit and wall Drill 2 holes through both the rear top rail and the wall at the marked locations. The size of the holes will be determined by the size of wall fixing required. For guidance on the appropriate wall fixing for each wall type, please consult the “Room Preparation Guide.”...
Page 5 Notching out the end panels (when required) In order to allow for any horizontal pipework running behind the unit, some units will require the back of unit’s side to be notched out. Create a notch for the horizontal pipes at the back of the end panels using a jigsaw.
Page 6 Securing to adjacent units Clamp together the two units, checking the front edges are level and flush. Using the screws provided, 1x30mm screw should be fixed into each corner of the carcase side. The screws can be concealed by placing them behind the shelf or behind the hinge plates.
Page 7 Adding the door buffers Position 1x door buffer at the top and bottom corners of the carcase, as illustrated in the image. Removing the hinge cover cap Use a flathead screwdriver to remove the hinge cover cap by inserting it into the slot of the cover cap and twisting.
Page 8 Cleaning the unit Finally, the unit should be thoroughly cleaned to remove any debris that may have accumulated during the installation. Store the plinth clips and the remaining 15mm screws. These will be used later when attaching the plinth. Store the L-brackets. These will be used later when installing the worktop (laminate or timber).
