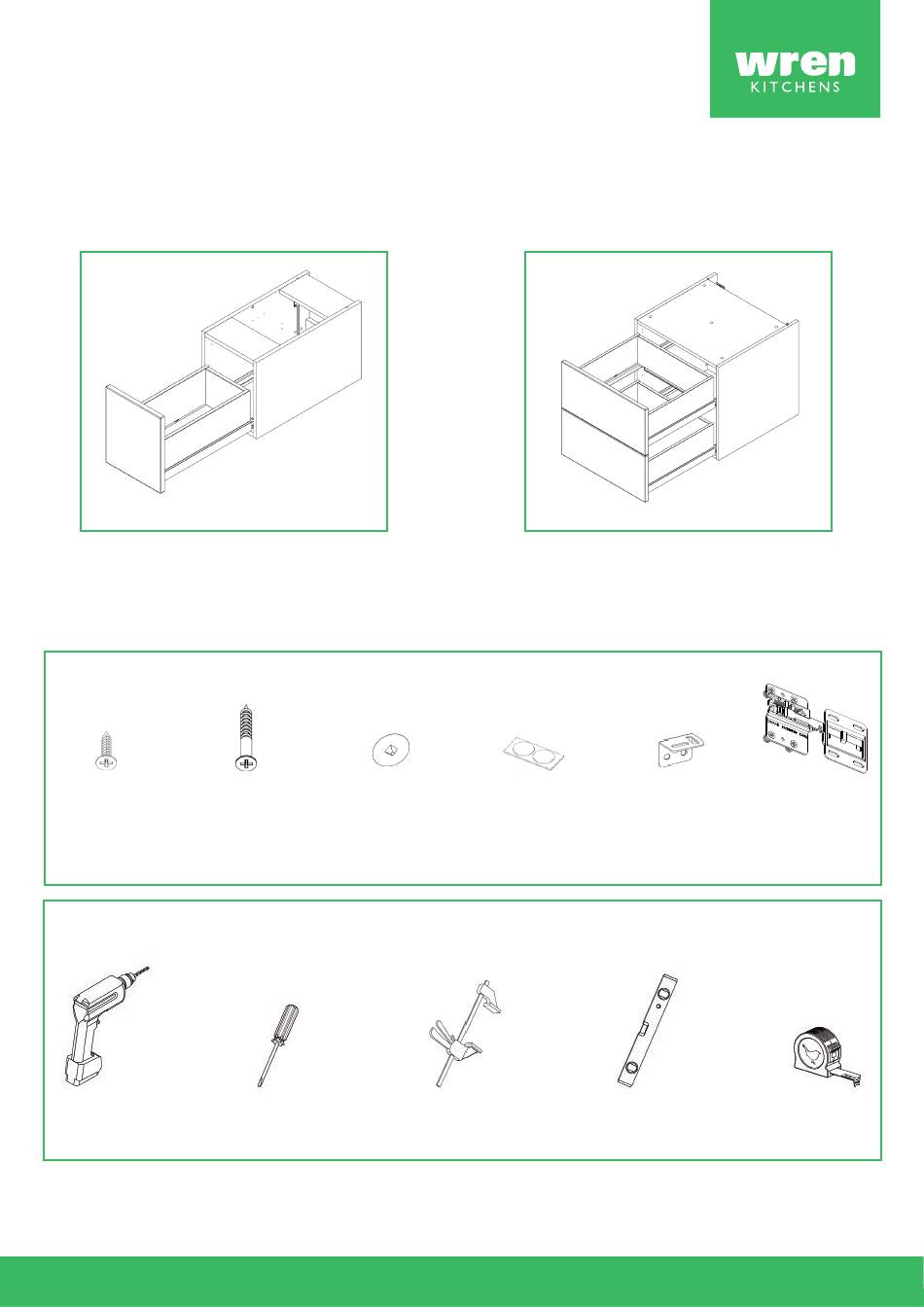

BASE UNIT
1 or 2 Drawer Base Unit (Drawer, Solid Top) Fitting Guide
300 - 1000 1 Drawer
Unit Parts
4x
15mm Screws
30mm Screws
Tools Required
Drill
12x
24x
Cover Caps
Screwdriver
5x
Drawer Buffers
Clamp
Spirit Level
600 2 Drawer
2x
L-Brackets
Camar Antitip
Wall Plates
(RH & LH)
Tape Measure
2x
Page 1
Advertisement
Related Manuals for Wren Kitchens BASE UNIT 300
Summary of Contents for Wren Kitchens BASE UNIT 300
- Page 1 BASE UNIT 1 or 2 Drawer Base Unit (Drawer, Solid Top) Fitting Guide 600 2 Drawer 300 - 1000 1 Drawer Unit Parts 15mm Screws 30mm Screws Cover Caps Drawer Buffers L-Brackets Camar Antitip Wall Plates (RH & LH) Tools Required Drill Screwdriver Clamp...
- Page 2 Remember to take care when unpacking. Please keep your workspace clean, clear and tidy when working. This will help keep all items safe from any damage. Any un-needed cardboard or plastic should be flattened down and placed in the bin. A minimum of two people will be needed to lift the unit.
- Page 3 Finding the fixing point for the brackets Draw a line on the wall 140mm below the top line of the unit (already marked). This is where the bottom of each bracket will sit. Draw a vertical line 20mm inside either side of the pre marked wall unit positions.
- Page 4 Lifting the unit into place Lift the unit against the wall slightly higher than its finished height. Insert the bracket into the brackets to hook the unit and lower the unit down, as illustrated. Before releasing the unit, gently tug it to ensure it is securely supported by the brackets.
- Page 5 Securing to adjacent units Clamp together the two units, checking the front edges are level and flush. Using the screws provided, 1x30mm screw should be fixed into each corner of the carcase side. The screws can be concealed by placing them behind the shelf or behind the hinge plates.
- Page 6 Removing the drawer cover caps (Infinity) Place a flathead screwdriver in the small groove between the cover cap and the drawer side and carefully twist. Keep the cap in a safe place until it is needed again. Adjusting the frontal (Infinity) Adjust the frontal to suit, as shown in the image.
- Page 7 Adjusting the frontal horizontally (Infinity Plus) Use the fixing clips, which are found under the drawer’s front, to adjust the drawers. Step 1 - Press the fixing clips half way to meet the runners on the underside of the drawer. Step 2 - Slide the drawer to the left or right to adjust.
- Page 8 Cleaning the unit Finally, the unit should be thoroughly cleaned to remove any debris that may have accumulated during the installation. Store the L-brackets. These will be used later when installing the countertop (laminate or timber). Page 8...
