6.2 External Control Functions
Start trigger and stop trigger
External signals can be input to start and stop measurement.
Signal Input Method
Connect the terminal and GND to each other.
See: Connecting the External Control Terminals

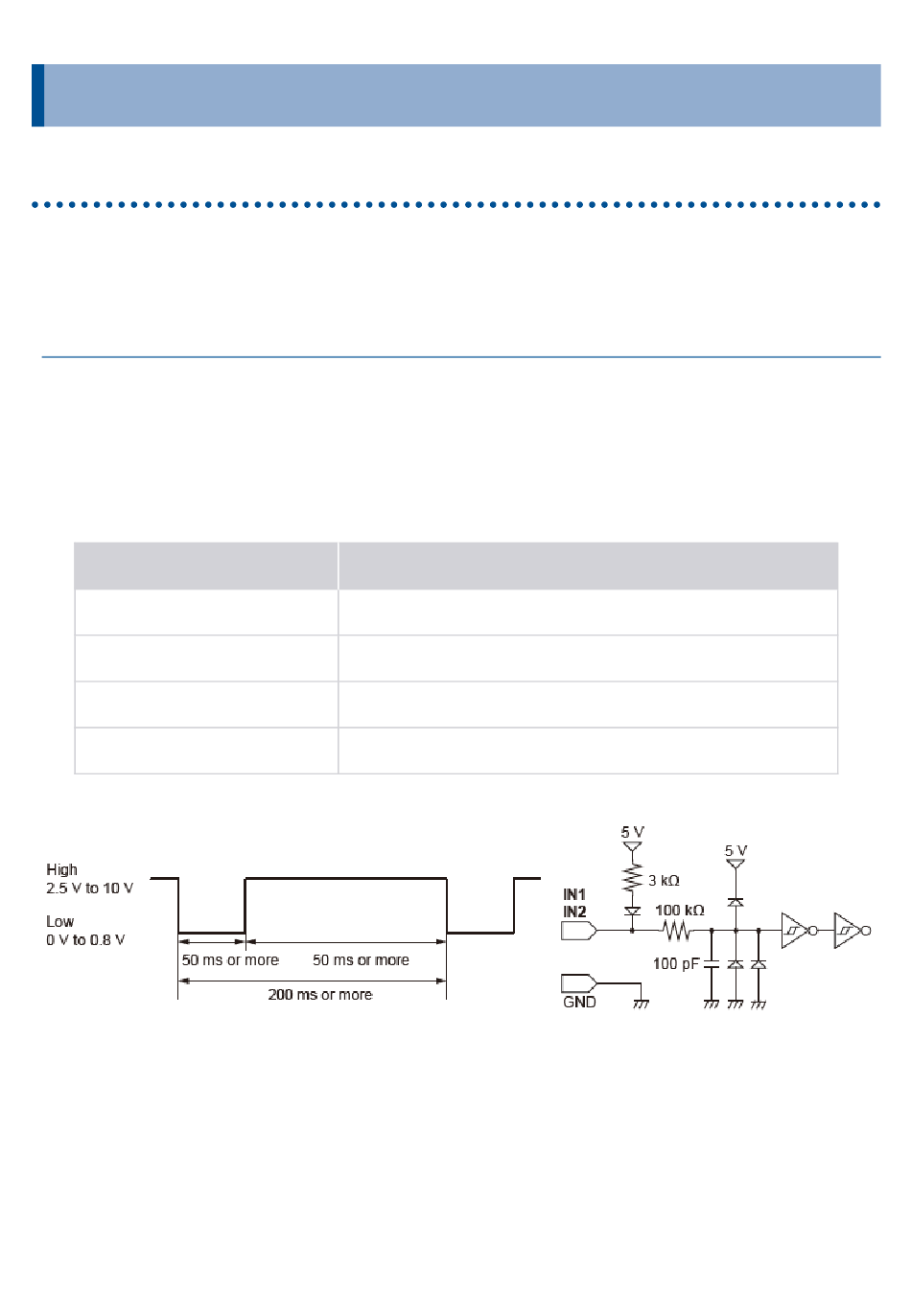

Alternatively, input high-level (2.5 V to 10 V) or low-level (0 V to 0.8 V) pulse waves or a rectangular wave to
the terminal.
The electrical characteristics are as follows.
Item
Working voltage range
Pulse width
Pulse width
Maximum input voltage
High level: 2.5 V to 10 V, Low level: 0 V to 0.8 V
High-level period: 50 ms or more
200 ms or more
10 V DC
