3
Save the update file to the USB flash drive.
Compress the downloaded update file in ZIP format.
Unzip the ZIP file using the Windows Explorer function and save the "update.mrf" file in the root
*1
directory on the USB flash drive.
*1: Indicates the directory at the highest level of the file hierarchy.

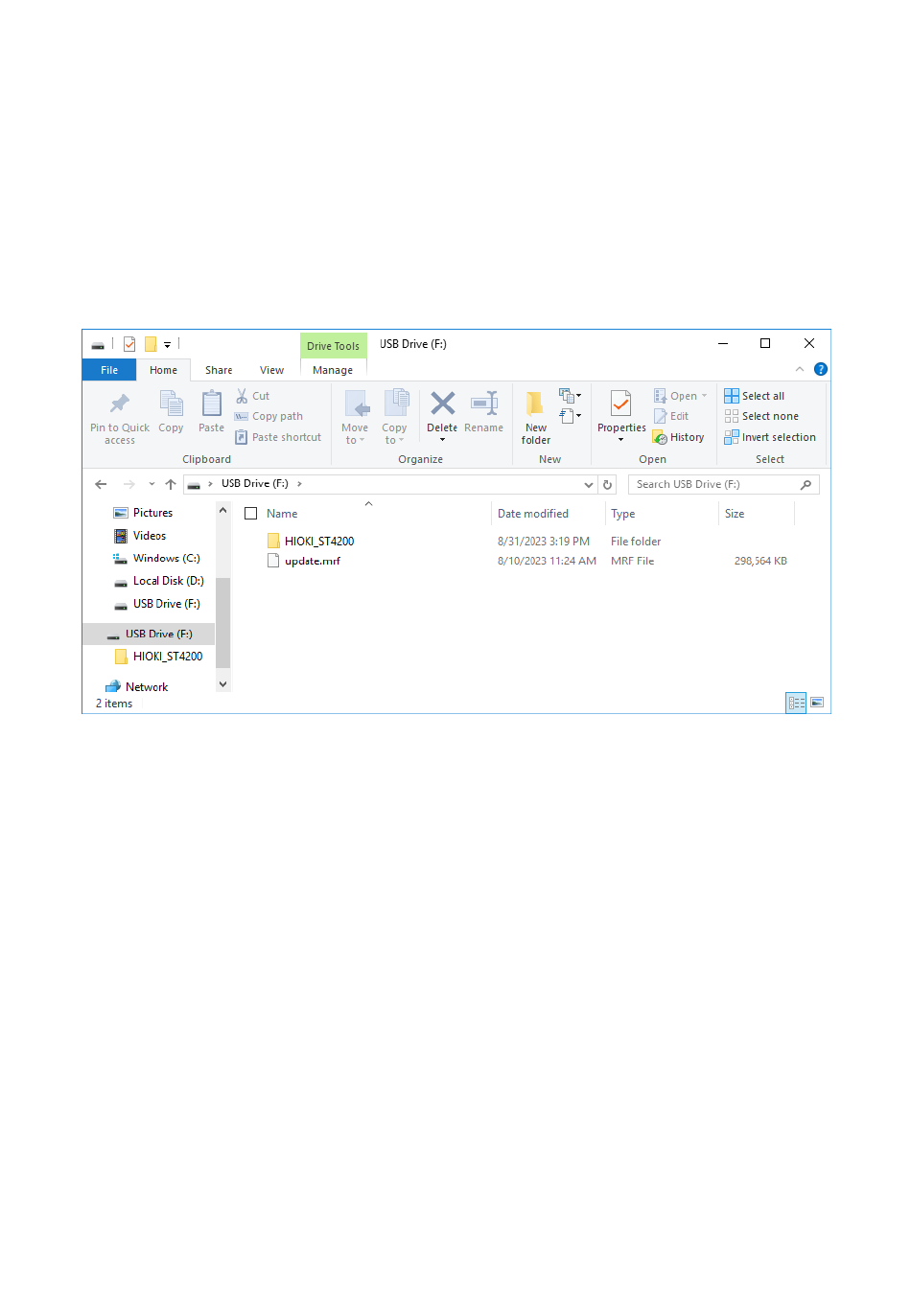

The figure below is an example of saving the file in Windows Explorer in the root directory of the USB
flash drive identified as the F drive.
4
Back up the settings.
The instrument settings may initialize all settings after the update.
Back up the settings as required.
Refer to the update file for the back-up method.
