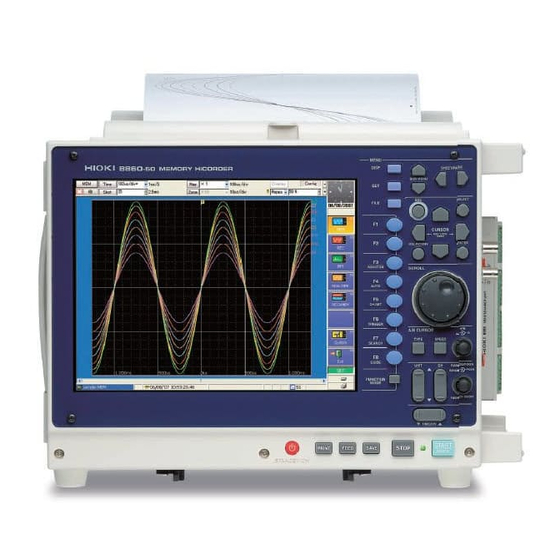

Hioki 8860-50 Manual

Memory hicorder
Hide thumbs Also See for 8860-50:

Advertisement

Quick Links

Download this manual See also: Instruction Manual
MEMORY HiCORDER
8860-50, 8861-50
New REC&MEM Function
New Recording Logger and Oscilloscope
These models feature personal computer-like operability with mouse and key-
board support, accelerated by internal high-speed hardware that provides sim-
pler, faster operation. The Memory function monitors fast waveforms as easily
as an oscilloscope while the Logger function records trend graphs in real time.
Convenience is improved by enhanced control via LAN and USB capabilities.
A broad selection of plug-in front-end modules supports a wide variety of mea-
surement objects. Abnormal phenomena are accurately captured with 20 MS/s
sampling and 16-bit resolution on isolated inputs.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 8860-50 and is the answer not in the manual?

Questions and answers

Related Manuals for Hioki 8860-50

Summary of Contents for Hioki 8860-50

  • Page 1 MEMORY HiCORDER 8860-50, 8861-50 New REC&MEM Function New Recording Logger and Oscilloscope These models feature personal computer-like operability with mouse and key- board support, accelerated by internal high-speed hardware that provides sim- pler, faster operation. The Memory function monitors fast waveforms as easily as an oscilloscope while the Logger function records trend graphs in real time.
  • Page 2 As an Oscilloscope As a Data Logger Record Waveforms in Any Situation Model 8860 /8861 Series Debut!

  • Page 3: Capabilities And Features

    Capabilities and Features 20 MS/s high-speed sampling See page 4 Up to 32 isolated input channels (high-speed signals) Real-time saving to hard disk See page 5 Dual-timebase sampling for simultaneous fast and slow monitoring See page 6 Multi-channel logging on up to 128 channels (low-speed signals) See page 6 Enhancements from Earlier Models 8860 and 8861 l A faster CPU greatly enhances instrument operability and response.
  • Page 4 High-speed sampling, long-term memory recording and input isolation make these observations possible. Various HIOKI non-contact clamp-on sensors capable of measuring up to HF ranges can be used to observe current waveforms.
  • Page 5 Capture High-Speed Signals by Triggering During Slow Recording - New REC&MEM Function and Real-Time Saving - Simultaneous Long-Term Monitoring and Transient Recording (REC&MEM) n Transient waveform recording that is impossible with a pen recorder The new REC&MEM function can record high-speed waveforms such as inter- mittent noise by applying a trigger while recording long-term fluctuations just REC mode recording like a pen recorder.
  • Page 6 Of course all channels are isolated. Cost per channel is thereby remark- ably reduced when compared to systems that include an A/D converter for every input channel. Installing four Scanner Modules in the 8860-50 pro- vides 64 measurement channels, and installing eight Scanner Modules in the First timebase, 50 μsec sampling...
  • Page 7 Accurately capture waveforms with diverse parameters - Advanced trigger function - Trigger during capturing and search after capturing Set multiple triggers on a single channel Unlike with conventional MEMORY HiCORDERs, the 8860 series The trigger function allows you to set diverse parameters to detect a particular waveform anomaly during capturing.
  • Page 8 Model 8855. Frequency domain Simultaneously perform up to 16 calculations Unlike with the conventional HIOKI 8855 and 8841 models that allow for the simultaneous performing of up to two calculations, the 8860 and 8861...
  • Page 9 Specify an analysis point Waveform in the MEM function Perform FFT calculation on the waveform from the MEM function When performing FFT analysis on the data obtained by measurement with the MEM function, you can use the jog shuttle to specify an analysis point and view the calculation results on the same screen.
  • Page 10 To access the shared folder: Enter the host name of the computer on the file screen of the 8860-50, enter the user name and password in the account field, and then select the folder you want to share. USB Mouse and keyboard connectivity...

  • Page 11: Power Requirements

    Maximum Recording Time for the Memory Function (dual timebase) • One Memory Board Model 9715-50 is installed in the 8860-50, and two in the 8861-50, recording length variable, • One Memory Board Model 9715-50 is installed in the 8860-50, and two in the 8861-50, recording length variable, with 32-MWords.

  • Page 12: Memory Functions

    Split screen , Nyquist, logging (1/2/4) (print/display measurement data as Maximum recording length or built-in preset length when using 1 channel (8860-50) or 2 channels printing , frequency axis zoom and left/right scrolling digital values) (8861-50). Memory of 8861-50 is twice that of 8860-50, but recording length is the same.
  • Page 13 Main unit Specifications Additional features Measurement parameter printing, cursor measurement, scaling, current clamp setting, comment input, screen hard copy, list/gauge, start condition hold, auto setup, auto save, remote control (start/stop/ General , auto range, over-range indication, VIEW function, key print control) lock, level monitor, vernier function, offset cancel, event marker Dimensions and mass: approx. 170 (6.69in) W ×...
  • Page 14 (the maximum voltage that can be applied across input pins without damage) Threshold: -10 to +10V (settable in 0.2V steps) Note: When using Model 8936 with serial number earlier than 041018234 on Models 8861-50/8860-50/8861/8860, Full scale: 20DIV, Max. allowable input: 30Vrms or 60V DC (the residual noise will be 850 μVp-p.
  • Page 15 500 kΩ or more (with digital input, +5 to +50V) Pull-up resistance: 2 kΩ (contact input: internally pulled up to +5 V) MEMORY HiVIEWER 9725 Digital input threshold 1.4V/ 2.5V/ 4.0V Compatible devices Memory HiCorder 8860-50, 8861-50, 8860, 8861 1.4 V: 1.5 kΩ or higher and 500 Ω or lower (open) (short) Contact input 2.5 V: 3.5 kΩ or higher and 1.5 kΩ or lower...
  • Page 16 * Only one of either the DC Power Unit 9684 or Probe Power Unit 9687 can be CONNECTION CONVERSION of the cables L9790 installed at any one time. Please contact your Hioki representative if concur- CORD L9217 ADAPTER 9199 rent installation is required.
