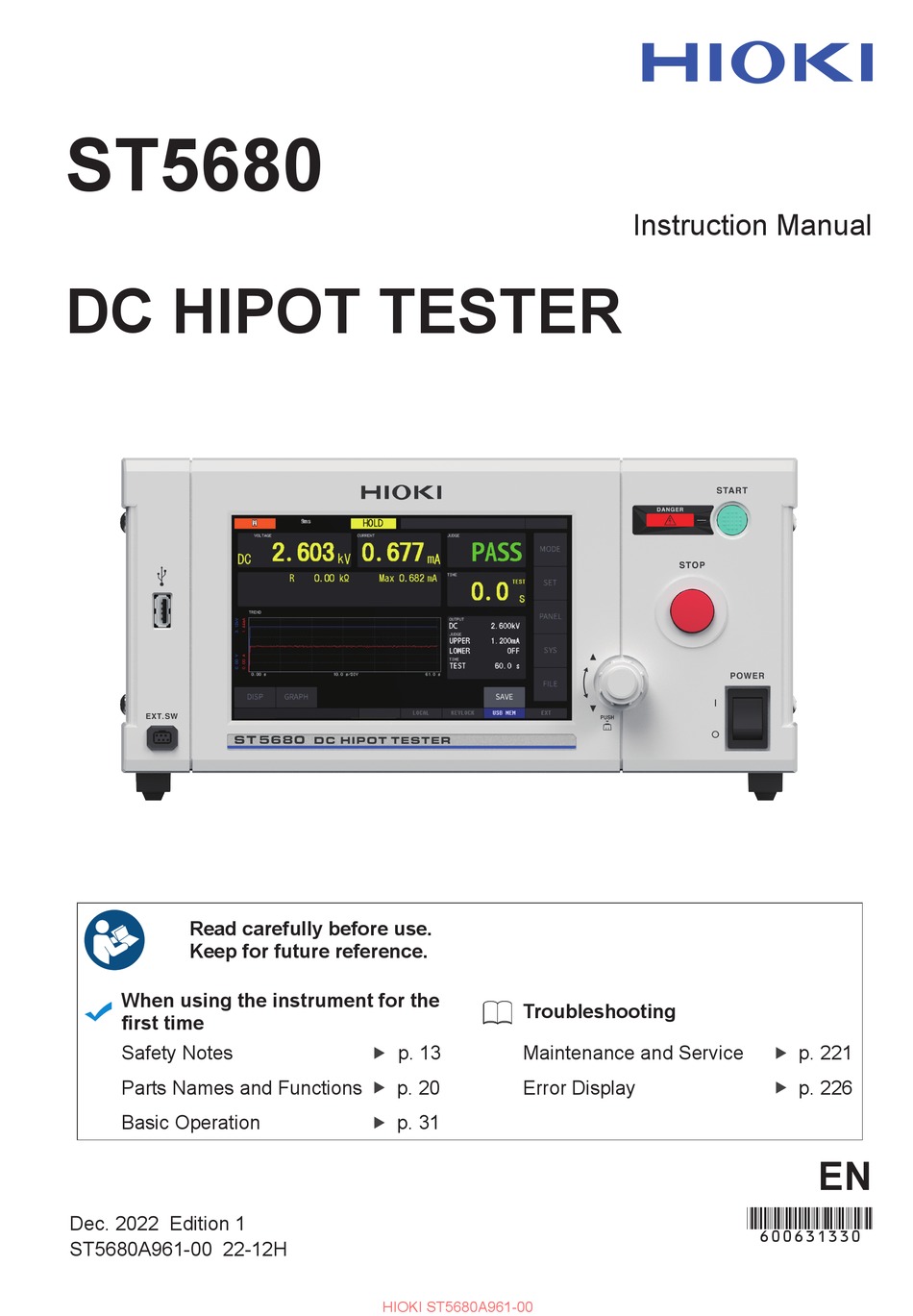

Page 1 ST5680 Instruction Manual DC HIPOT TESTER Read carefully before use. Keep for future reference. When using the instrument for the Troubleshooting first time Safety Notes p. 13 Maintenance and Service p. 221   Parts Names and Functions p. 20 Error Display p.
Page 2 HIOKI ST5680A961-00...
Page 3: Table Of Contents
Program Mode Setting the Limit Voltage Value ..40 Setting the Start Voltage Setting the Test Conditions ....73 (DCW Only) .........42 ....73 Displaying the setting screen Setting the number of steps ....74 ..75 Editing test conditions of each step ST5680A961-00 HIOKI ST5680A961-00...
Page 4 Creating a folder Contact check procedure ......105 ......141 Deleting a file or folder ..106 Acquring the compensation value Change the name of a file or folder ..142 Insulation Resistance Test End .....142 Displaying the information Mode ..........108 Data Memory Function ....109 ....109 Setting the memory function ......110 Saving memory data HIOKI ST5680A961-00...
Page 5 Calling panel memory ......178 Specifications, Measurement ..........178 Interlock Specifications ........202 12.4 Internal Circuit Configuration ..179 14.3 Functional Specifications ....207 ......180 Electrical specifications 14.4 Interface Specifications ....217 ......180 Connection examples 14.5 Option Specifications .......218 ....218 L2260 High Voltage Test Lead L2261 Unterminated Lead Cable ...219 HIOKI ST5680A961-00...
Page 6 Table of Default Settings ....232 16.3 Rackmount ........236 16.4 External View ........238 16.5 Remote Control Box (Option) ..239 9613 Remote Control Box (Single) and 9614 Remote Control Box (Dual) ..........240 (option) Connection method .......241 16.6 Timer Calibration ......242 License Information Index HIOKI ST5680A961-00...
Page 7: Introduction
Introduction Introduction Thank you for purchasing the Hioki ST5680 DC Hipot Tester. To obtain maximum performance from the product, please read the Instruction Manuals first and handle and store them with care. The latest edition of the instruction manuals The contents of this manual are subject to change, for example as a result of product improvements or changes to specifications. The latest edition can be downloaded from Hioki’s website. https://www.hioki.com/global/support/download/ Request for product user registration Please register this product so that important information regarding the product can be received.
Page 8: Confirming Package Contents
Confirming Package Contents Confirming Package Contents When you receive the instrument, inspect it carefully to ensure that no damage occurred during shipping. In particular, check the accessories, keys and switches on the panel, and connectors. If damage is evident, or if it fails to operate according to the specifications, contact your authorized Hioki distributor or reseller. Confirm that these contents are provided. Instrument  ST5680 DC Hipot Tester Accessories  Operating Precautions (0990A903)  Startup Guide  Application disc (CD) • Instruction Manual (this document) • Communication Instruction Manual  Power cord ...
Page 9: Options
Options Options The options listed below are available for the instrument. To order an option, please contact your authorized Hioki distributor or reseller. Options are subject to change. Please check Hioki’s website for the latest information. Measurement leads L2260 High Voltage Test Lead L2261 Unterminated Lead Cable   (1.5 m) (5 m) Interfaces Z3000 GP-IB Interface Z3001 RS-232C Interface ...
Page 10: Measurement Procedure
Selecting the test mode (p. 36) Setting the test conditions (p. 37) Start of measurement Connecting the high-pressure test leads to the test target (p. 26) Starting a test (p. 58) Checking the judgment results (p. 64) Finish Turning off the instrument (p. 25) HIOKI ST5680A961-00...
Page 11: Notations
Indicates the presence of a potential hazard. For more information about locations where this symbol appears on instrument components, see the section “Usage Notes” (p. 15),” warning messages listed at the beginning of operating instructions, and the accompanying document entitled “Operating Precautions.” Indicates a terminal that generates hazardous voltage. Indicates the “on” side of the power switch. Indicates the “off” side of the power switch. Indicates a chassis terminal, connected to the enclosure of the instrument. Indicates DC (Direct Current). Indicates AC (Alternating Current). HIOKI ST5680A961-00...
Page 12 (Set value) instrument. Limit values for setting errors are expressed as a percentage of the setting. Digit Indicates the minimum display unit (in other words, the smallest digit that can have (Resolution) a value of 1) for a digital measuring instrument. Limit values for digit errors are expressed using digits (“dgt”). HIOKI ST5680A961-00...
Page 13: Safety Notes
Be sure to observe the following to avoid fatal electric shock accidents. Be sure to wear high-voltage protective rubber gloves while performing „ procedures. The internal components of the instrument carry high voltages and may become very hot during operation. Touching them could cause burns or electric shock. HIOKI ST5680A961-00...
Page 14 MAINS installation. Example: Measurements on devices installed before the main fuse or circuit breaker in the building installation. Distribution panel Service entrance Interior wiring Service drop CAT II CAT IV CAT III Outlet Power meter Fixed installation HIOKI ST5680A961-00...
Page 15: Usage Notes
Exposed to high quantities of dust particles Doing so could damage the instrument or cause it to malfunction, resulting in bodily injury. CAUTION Do not place the instrument on an unstable stand or angled surface. „ Doing so could cause the instrument to fall or overturn, resulting in bodily injury or damage to the instrument. Do not let the connectors expose to water drops. „ This instrument is not water-proof. When the connectors are exposed to water drops, the instrument could fail. HIOKI ST5680A961-00...
Page 16 The instrument is an EN 61326 Class A product. This instrument may cause interference if used in residential areas. Such use must be avoided unless the user takes special measures to reduce electromagnetic emissions to prevent interference to the reception of radio and television broadcasts. HIOKI ST5680A961-00...
Page 17 Precautions during shipment CAUTION When shipping the instrument, make sure to observe the following items. Remove the recording media, accessories, and options from the instrument. „ Include details of the problem. „ Double-pack the instrument using the original packaging materials. „ Otherwise, the instrument could be damaged during transportation. HIOKI ST5680A961-00...
Page 18 • Exercise care to keep the recorded side of discs free of dirt and scratches. When writing text on a disc’s label, use a pen or marker with a soft tip. • Store discs in protective cases. Avoid exposing the disc to direct sunlight, high temperatures, or high humidity. • Hioki is not liable for any issues your computer system experiences in the course of using this disc. HIOKI ST5680A961-00...
Page 19: Overview
LAN and USB connectors come with the instrument as a standard feature. GP-IB and RS-232C can also be added as options. Color LCD with touch screen The 7-inch color LCD with a touch screen is used for improved visibility and easy operation. HIOKI ST5680A961-00...
Page 20: Parts Names And Functions
• The key lock state will persist even if the instrument is cycled. Handling the touch screen CAUTION Do not press too hard on the touch screen. „ Do not use hard or sharp objects to operate the touch screen. „ Doing so could damage the instrument. HIOKI ST5680A961-00...
Page 21 − month of manufacture. Required for production control. Do not remove it. Ground terminal Used to ground the instrument. HIOKI ST5680A961-00...
Page 22 Parts Names and Functions Right side Bottom Vents Left side Vents Support foot Leave at least 50 mm of space between the installation surface and the instrument vents. (p. 16) HIOKI ST5680A961-00...
Page 23: Preparation
Be sure to wear high-voltage protective rubber gloves while performing „ procedures. The internal components of the instrument carry high voltages and may become very hot during operation. Touching them could cause burns or electric shock. If high-voltage protective rubber gloves are not available, contact your authorized Hioki distributor or reseller. HIOKI ST5680A961-00...
Page 24: Connecting The Power Cord
240 V AC) noted on the back of the instrument. Connect the power cord to the power inlet. Connect the plug of the power cord to an outlet. Set to off (O) To grounded outlet Front Rear IMPORTANT If the power supply is cut off while the main power switch is set to on (by a breaker tripping, etc.), the instrument starts automatically when the power is supplied again. HIOKI ST5680A961-00...
Page 25: Turn On And Off The Instrument
Doing so may cause a malfunction of the instrument. To perform high accuracy measurement, be sure to leave the instrument to warm up for 30 minutes or longer after turning on the instrument. Turned on (|) Turned off (O) Front If an error is displayed, repairs are required. Please contact your authorized Hioki distributor or reseller. See “15.3 Error Display” (p. 226). HIOKI ST5680A961-00...
Page 26: Connecting The High Voltage Test Lead
Before starting a test, make sure that the L2260 High Voltage Test Lead „ is properly connected. Applying a voltage while the L2260 High Voltage Test Lead is not properly connected could result in serious bodily injury. When using the instrument, use the test leads specified by Hioki. „ Using test leads other than those specified could cause bodily injury or short-circuit accidents. HIOKI ST5680A961-00...
Page 27 Insert lead with opens. this side up. Turn lead when it is inserted here. Removing the High Voltage Test Lead Turn off the instrument. Disconnect the red lead from the HIGH side terminal. Turn the black lead counterclockwise. Disconnect the black lead. HIOKI ST5680A961-00...
Page 28: Inspecting The Instrument Before Use
The power cord’s insulation is not worn If you find any damage, do not use the instrument as the damage or no metal is exposed. may result in an electric shock or short circuit. Please contact your authorized Hioki distributor or reseller. There is no damage to the instrument. The insulation of the leads and cords If any damage is found, there is a risk of electric shock. Do not use to be used is not worn or no metal is any damaged part and promptly replace it with the specified one.
Page 29: Startup Check
Connect the High Voltage Test Lead to the prepared resistor. Starting a test (p. 58) Check that the fail judgment is displayed. If the fail judgment is not displayed, the instrument may be damaged. Please contact your authorized Hioki distributor or reseller. Resistance measurement (insulation resistance test mode) Prepare a resistor with a value more than the lower limit for the insulation resistance test and close to the test lower limit.*...
Page 30: Connection To The Test Target
When the test lead comes in contact with the peripherals or the metal portion of a jig, leakage current may increase and a larger measurement error may occur. • Make sure that the test lead and insulators are clean. Errors may occur during an insulation resistance test. HIOKI ST5680A961-00...
Page 31: Basic Operation
Gentle “touching” of the screen is expressed as “pressing” hereafter. CAUTION Do not press too hard on the touch screen. „ Do not use hard or sharp objects to operate the touch screen. „ Doing so could damage the instrument. HIOKI ST5680A961-00...
Page 32: Basic Screen Transition Diagram
Compensation execution screen Screen for executing compensation of offset cancel and contact check System screen Screen for setting and checking the interface, system, etc. Panel screen Screen for saving and importing the instrument settings Graph screen Screen for displaying and operating waveforms and graphs. HIOKI ST5680A961-00...
Page 33: Screen Display
Test end 9 USB Discharge in progress Communication (not Between steps connected) Force stop Communication (connected) Forced discharge stop Memory (unmounted) Error Memory (mounted) Protection 10 LAN 3 Error messages Invalid See “15.3 Error Display” (p. 226). Link Valid HIOKI ST5680A961-00...
Page 34 Screen Display Setting screen Return button Returns to the measurement screen. Switches between the setting screens. Top: Measurement mode Screen description Bottom: Screen name Saves images to a USB flash drive when this button is held down for Save screen a specific time. HIOKI ST5680A961-00...
Page 35: Basic Screen Operation
Moves the cursor to the right. Deletes 1 character. Deletes all. KEY TYPE Switches the keyboard type. A ◄ ► a Switches between upper and lower case. ! ◄ ► a Switches between symbols, numbers, and the alphabet. ENTER Accepts the entered text and closes the window. Cancels text entry and closes the window. HIOKI ST5680A961-00...
Page 36: Selecting The Test Mode
Select the test mode on the mode selection screen. Press [< MEAS]. Returns to the measurement screen. Holding down a test mode button on the mode selection screen opens the setting screen for the selected test mode. HIOKI ST5680A961-00...
Page 37: Withstand Voltage Test/Insulation Resistance Test Mode
Press [< MEAS]. Holding down a test mode button on the mode selection screen opens the setting screen for the selected test mode. Mode selection screen Press [SET]. DCW measurement screen Displays various setting screens. DCW setting screen HIOKI ST5680A961-00...
Page 38: Test Conditions
– p. 54  fluctuation of test voltage. Checks whether the test lead is properly connected Contact check p. 105   to the test target. Measures the current flowing a stray capacitance, such as a test lead and measurement jig, and Offset cancel p. 56   cancels the current according to the measurement result. HIOKI ST5680A961-00...
Page 39: Setting The Test Voltage
[ENTER]. 0.010 kV 8.000 kV Default setting: 0.100 kV IR setting Press [BASIC] > [TEST VOLT] on the setting screen. Change the value using [▲] [▼] and then press [ENTER]. 10 V 2000 V Default setting: 100 V HIOKI ST5680A961-00...
Page 40: Setting The Limit Voltage Value
The upper-limit value for the voltage output from this instrument is set. With the upper-limit value set, accidents due to an incorrect setting, etc. can be prevented. DCW setting Press [COMMON] on the setting screen. Press [DCW]. Change the value using [▲] [▼] and then press [ENTER]. 0.010 kV 8.000 *1. Default setting HIOKI ST5680A961-00...
Page 41 Setting the Limit Voltage Value IR setting Press [COMMON] on the setting screen. Press [IR]. Change the value using [▲] [▼] and then press [ENTER]. 10 V 2000 *1. Default setting HIOKI ST5680A961-00...
Page 42: Setting The Start Voltage (Dcw Only)
100% Start voltage START 0.1 s RISE TIME Ready Rise Test When the start voltage is 50% Press [BASIC] > [START VOLT] on the setting screen. Change the value using [▲] [▼] then press [ENTER]. *1. Default setting HIOKI ST5680A961-00...
Page 43: Setting The Upper-Limit Value For Judgment
[LOWER] < [UPPER] (Only when [STATE] is set to on) IR setting Press [BASIC] > [UPPER] on the setting screen. Switch [ON] [OFF] under [STATE]. Default setting: OFF When [ON] is set, press [LIMIT]. HIOKI ST5680A961-00...
Page 44: Setting The Lower-Limit Value For Judgment
The lower-limit for the current value or resistance value is set as the reference for pass/fail judgment. When the measured current value or resistance value is below the reference value, a fail judgment is determined for the test target. If a pass/fail judgment is not to be performed based on the lower-limit value for a DCW test, the test lower-limit value can be set to off. In case of a DCW test, setting a lower-limit value slightly less than the leakage current specific to the test target can be used as a simplified contact check. It is also useful for detecting disconnected test leads and test target problems. HIOKI ST5680A961-00...
Page 45 [▲] [▼] and then press [ENTER]. Ω Ω 10 k 99.99 G Ω Default setting: 1 M [UPPER] The upper limit is set by (upper-limit value for judgment). [LOWER] < [UPPER] (Only when [STATE] is set to on) HIOKI ST5680A961-00...
Page 46: Setting The Auto-Range Function
OFF* Disables the auto-range function. Enables the auto-range function. *1. Default setting IR setting Press [COMMON] > [IR MODE] on the setting screen. OFF* Disables the auto-range function. Enables the auto-range function. *2. Default setting HIOKI ST5680A961-00...
Page 47: Setting The Data Maintaining Function During Auto-Ranging
• When the data maintaining function during auto-ranging is set to on When the test is completed while the range switches, the pass/fail is judged using the last measured value. Since the measured value (value immediately before a range movement) is displayed, the instrument cannot determine whether a range movement is being performed. For example, even when the insulation resistance value drops due to dielectric breakdown immediately before the test end time during the insulation resistance test, the measured value during dielectric breakdown is not determined if the test ends during the range movement. HIOKI ST5680A961-00...
Page 48: Setting The Test Time
[▲] [▼] and then press [ENTER]. 0.1 s 999 s, CONT Default setting: 1.0 s [RISE TIME] The lower limit is set by (voltage rise time) [DELAY] (judgment wait time). [DELAY] < [RISE TIME] [TEST TIME] (Only when [DELAY] is not set to off) HIOKI ST5680A961-00...
Page 49 [▲] [▼] and then press [ENTER]. 0.1 s 999 s, CONT Default setting: 1.0 s The lower limit is set by [RISE TIME] (voltage rise time) [DELAY] (judgment wait time). [DELAY] < [RISE TIME] [TEST TIME] (Only when [DELAY] is not set to off) HIOKI ST5680A961-00...
Page 50: Setting The Voltage Rise Time
Change the value using [▲] [▼] and then press [ENTER]. 300 s *2. Default setting The lower limit is set by [TEST TIME] (test time) and [DELAY] (judgment wait time). [DELAY] < [RISE TIME] [TEST TIME] (Only when [DELAY] is not set to off) HIOKI ST5680A961-00...
Page 51: Setting The Voltage Drop Time
[▼] and then press [ENTER]. 0.1 s s, OFF* *1. Default setting IR setting Press [BASIC] > [FALL TIME] on the setting screen. Change the value using [▲] [▼] and then press [ENTER]. 0.1 s s, OFF* *2. Default setting HIOKI ST5680A961-00...
Page 52: Setting The Judgment Wait Time (Delay Time)
Change the value using [▲] [▼] and then press [ENTER]. 0.1 s 99.9 s, OFF* *2. Default setting [RISE TIME] The upper limit is set by (voltage rise time) [TEST TIME] (test time). [DELAY] < [RISE TIME] [TEST TIME] (Only when [DELAY] is not set to off) HIOKI ST5680A961-00...
Page 53 Discharge time 0.1 s Delay time Upper-limit value Fail judgment judgment start Lower-limit value judgment start IR test (pass judgment) Test voltage Discharge time Rise time Test time Delay time Pass judgment Upper-limit Lower-limit judgment start judgment start HIOKI ST5680A961-00...
Page 54: Setting The Arc Detection (Dcw Only)
Detects arc and continues the test. STOP Detects arc and stops the test. *1. Default setting When [STATE] is set to [CONT] or [STOP], press [LIMIT]. Change the value using [▲] [▼] and then press [ENTER]. *2. Default setting HIOKI ST5680A961-00...
Page 55 Example of detection of arc (with STOP operation mode) Test conditions Test voltage 1.2 kV Upper judgment reference value 3 mA Arc setting STATE STOP LIMIT Arc detection reslt Arc detected Measurement screen Waveform view If the fluctuation range of the test voltage when discharging occurs exceeds the set limit value, [ARC DET] is displayed, and the test ends. Enlarged view HIOKI ST5680A961-00...
Page 56: Offset Cancel (Open Compensation)
[< MEAS]. Press [ADJ]. The set test conditions are displayed on the compensation execution screen. Preset test conditions • The current compensation values are acquired based on the set test conditions. • In the W-IR/IR-W mode, a compensation cannot be executed. Execute a compensation in the DCW mode and IR mode. HIOKI ST5680A961-00...
Page 57: Acquiring The Compensation Value
• Even if the instrument is turned off, the acquired current compensation values are backed up. IMPORTANT • If the test voltage is changed in DCW or IR mode, the correction value is initialized and the offset cancel function is turned off. If you change the test voltage, acquire the correction value again. • A current of up to 10 mA can be compensated. If a current exceeding the compensation range is detected, a compensation failure error (ADJUST FAILED) occurs. Depending on the test conditions, the test may be interrupted without waiting for the test time to elapse. When the test is interrupted, the correction value cannot be acqired (except when the STOP button is pressed during the test). HIOKI ST5680A961-00...
Page 58: Starting And Ending A Test
2 min. 10 kΩ 1000 V 2000 V 1 kV 2 kV 3 kV 4 kV 5 kV 6 kV 7 kV 8 kV Test voltage Test voltage DC withstand voltage Insulation resistance test mode test mode If a test continues for the maximum test time, leave the instrument for 30 minutes. HIOKI ST5680A961-00...
Page 59: Starting A Test
0.5 sec. button STOP Front Press the START button while [READY] is displayed. DANGER lamp lights up and the instrument is in the TEST mode (p. 61) and ready for starting the test. TEST icon Measured value If the test does not start, see “Frequently Asked Questions” (p. 221). HIOKI ST5680A961-00...
Page 60: Operations During A Test
Test time Discharge time 0.1 s Delay time Upper-limit value Fail judgment judgment start Lower-limit value judgment start IR test (pass judgment) Test voltage Discharge Rise time Test time time 0.1 s Delay time Judgment start Pass judgment HIOKI ST5680A961-00...
Page 61: Screen Display In The Test Mode
Displays the applied voltage waveform of when the test target fails a test. In addition, the measured voltage, current, and resistance values are graph displayed in chronological order. Test conditions Displays the test conditions. [OUTPUT]: DC, test voltage [JUDGE]: Upper- and lower-limit values for judgment [TEST TIME]: Test time [OFFSET]: Compensation value HIOKI ST5680A961-00...
Page 62 External I/O • The TEST signal is turned on at the same time when the [TEST] display lights up. In addition, the H.V.ON signal is also turned on at the same time when the DANGER lamp lights up. • The TEST signal and H.V.ON signal are turned off at the same time when the [TEST] display and the DANGER lamp is turned off. HIOKI ST5680A961-00...
Page 63: Stopping A Test
When the test ends, [TEST] in the display area turns off. When the output terminals are discharged and the residual voltage in the output terminals becomes zero, the DANGER lamp turns off. If the test ends in (1) and (2) above, the judgment result is displayed in the display area. IMPORTANT If the time setting (such as the test time [TEST TIME], voltage rise time [RISE TIME], voltage fall time [FALL TIME], interval time [INTERVAL], delay time [DELAY]) is set to the shortest time, and the test is repeated at the fastest time, the display of the screen may be delayed from the actual measurement. If the screen display is delayed, set a longer time. HIOKI ST5680A961-00...
Page 64: Making A Pass/Fail Judgment
Display [UPPER LOWER FAIL] is displayed on the screen. Buzzer For approx. 1 s. External I/O The U_FAIL, L_FAIL, and The U_FAIL and L_FAIL CONT_ERR signals are signals are output. output. HIOKI ST5680A961-00...
Page 65 (upper judgment limit) < (current measured value) Outside Inside Over upper < (upper judgment limit) accuracy accuracy UPPER LOWER accuracy guarantee guarantee FAIL (upper judgment limit) guarantee limit range range < (current measured value) ≤ (upper judgment limit) HIOKI ST5680A961-00...
Page 66: Automatic Discharge Function
When a withstand voltage test or insulation resistance test is performed for the test target containing capacitive components, these areas remain charged, which could cause serious bodily injury. This instrument releases residual electric charge after each test and discharges Ω these areas (Discharge resistance: 700 k • The DANGER lamp is lit during discharge. • When the voltage between output terminals falls below the safe voltage (approx. 60 V DC), the DANGER lamp turns off. • The larger the capacitance is, the longer the discharge takes. HIOKI ST5680A961-00...
Page 67: W-Ir/Ir-W Test Mode
A withstand voltage test and then an insulation resistance test are performed in that order. Select [W-IR] on the mode screen. Press [< MEAS]. [IR-W] mode An insulation resistance test and then a withstand voltage test are performed in that order. Select [IR-W] on the mode screen. Press [< MEAS]. HIOKI ST5680A961-00...
Page 68: Setting The Test Conditions
For details about the display information and the setting procedure, see “4.1 Setting the Test Conditions” (p. 37). The current test conditions set in the withstand voltage test mode and insulation resistance test mode are displayed. Changing test settings Press one of the buttons to change the setting on the setting screen. HIOKI ST5680A961-00...
Page 69: Setting The Interval Time
[IR INTERVAL] Sets the interval time for an insulation resistance test. Change the value using [▲] [▼] and then press [ENTER]. 100.0 s, TRIG *1. Default setting When [TRIG] is set, the trigger operation is performed. Pressing the START button proceeds to the next step. HIOKI ST5680A961-00...
Page 70: Operations For Fail Judgment
Select the setting. STOP* Ends all tests when a fail judgment is determined for the test target after the first test. CONTINUE Continues the next test even when a fail judgment is determined for the test target after the first test. *1. Default setting HIOKI ST5680A961-00...
Page 71: Starting And Ending A Test
See “Starting a test” (p. 59). Stopping a test See “Stopping a test” (p. 63). Ending a test See “Ending a test” (p. 63). 5.5 Making a pass/fail Judgment Judgment type and operation See “Judgment type and operation” (p. 64). When the test ends, the judgment result is displayed in the display area. HIOKI ST5680A961-00...
Page 72: Automatic Discharge Function
Automatic Discharge Function 5.6 Automatic Discharge Function See “4.17 Automatic Discharge Function” (p. 66). HIOKI ST5680A961-00...
Page 73: Program Mode
The program mode is a function to automatically execute withstand voltage (DCW) and insulation resistance (IR) tests combined. Up to 50 patterns of tests may be combined. 6.1 Setting the Test Conditions Displaying the setting screen Select [PROG] on the mode screen. Press [< MEAS]. Press [SET]. Displays various setting screens. HIOKI ST5680A961-00...
Page 74: Setting The Number Of Steps
The number of tests (number of steps) are set for DCW and IR tests. Press [BASIC] > [END STEP] on the setting screen. Change the value using [▲] [▼] and then press [ENTER]. to 50* *1. Default setting HIOKI ST5680A961-00...
Page 75: Editing Test Conditions Of Each Step
Select the step to be edited, and press [EDIT]. Displays the test conditions of each step. Scroll bar and scroll key Press this button to switch the test mode. The setting screen of the selected step is displayed. For details about the settings of test conditions and the setting procedure, see “4.1 Setting the Test Conditions” (p. 37). HIOKI ST5680A961-00...
Page 76: Editing All Test Conditions Together
Press [APPLY]. The settings with [---] cannot be edited. IMPORTANT Combinations that are generally not set can be set because other setting values are not considered in batch editing. ([LOWER] >= [UPPER] [DELAY] >= [RIST TIME] [TEST TIME]) If a set of steps for a combination that cannot be set, the test cannot be started. HIOKI ST5680A961-00...
Page 77: Inserting A Step
Deleting a step A selected step is deleted. Press [BASIC] on the setting screen. Select the step to be deleted, and press [DELETE]. A confirmation message is displayed. Confirm the step to be deleted, and press [YES]. When the step is deleted, the DCW test default step is added to the existing No. 50 (50th step) setting. HIOKI ST5680A961-00...
Page 78: Copying And Pasting A Step
Select the range of the step or steps to which the new step is pasted. SELECTED STEP Pastes a new step to the selected step. No.1 END STEP Paste a step to the No. 01 step to the final step (END STEP). A confirmation message is displayed. Confirm the range of the step or steps to which the new step is pasted and press [YES]. HIOKI ST5680A961-00...
Page 79: Setting The Interval Time Between Steps
The interval time between steps is set. Press [BASIC] > [EDIT] > [INTERVAL] on the setting screen. Change the value using [▲] [▼] and then press [ENTER]. 100.0 s, TRIG *1. Default setting When [TRIG] is set, TRIG operation is performed. Press START button to proceed to the next step. HIOKI ST5680A961-00...
Page 80: Operations For Fail Judgment
Ends all tests when a fail judgment is determined for the test target in the middle of a test. CONTINUE Continues the next test even when a fail judgment is determined for the test target in the middle of a test. *1. Default setting HIOKI ST5680A961-00...
Page 81: Starting And Ending A Test
See “Starting a test” (p. 59). Stopping a test See “Stopping a test” (p. 63). Ending a test See “Ending a test” (p. 63). 6.5 Making a Pass/Fail Judgment Judgment type and operation See “Judgment type and operation” (p. 64). When the test ends, the judgment result is displayed in the display area. HIOKI ST5680A961-00...
Page 82: Automatic Discharge Function
• A step number larger than the final step (END STEP) cannot be specified. • After the individual execution is completed, the program test is changed back to the normal sequence from No. 01 to the final step. When executing a specific step again, specify a step to be executed. Measurement screen Press the area of [STEP]. Change the value using [▲] or [▼], and then press [SET]. When [ALL] is pressed, the value changes to ALL and the normal program test is performed from the No. 01 step to the final step. When measurement begins, only the test of the specified step is performed. HIOKI ST5680A961-00...
Page 83: Compensation Execution Screen
Individually Executing Specific Steps Compensation execution screen Press the area of [STEP]. Change the value using [▲] or [▼], and then press [SET]. When [ALL] is pressed, the value changes to ALL and the normal program test is performed from the No. 01 step to the final step. When measurement begins, only the test of the specified step is performed. HIOKI ST5680A961-00...
Page 84 Individually Executing Specific Steps HIOKI ST5680A961-00...
Page 85: Dielectric Breakdown
Continuous voltage rise test: Raises the test voltage at a constant rate from the initial voltage. Gradual voltage rise test: Raises the test voltage gradually from the initial voltage. Continuous voltage rise test Gradual voltage rise test Setting details Continuous Initial voltage, end voltage, voltage rise speed, distance between electrodes, number of voltage rise test tests Gradual voltage Initial voltage, voltage holding time at each phase, voltage step, maximum number of steps, rise test distance between electrode, number of tests HIOKI ST5680A961-00...
Page 86 End voltage (V) Vbd: Dielectric breakdown voltage ∆V Voltage rise ∆V/∆t ∆t speed: Continuous voltage rise test Initial voltage End voltage Vbd: Dielectric breakdown voltage Dielectric breakdown ∆V: Voltage steps ∆t: Holding time ∆V ∆t Gradual voltage rise test HIOKI ST5680A961-00...
Page 87: Setting The Test Conditions
Displays various setting screens. IMPORTANT [TOTAL TIME] The time displayed below on the Setup window is the theoretical test time for [TOTAL TIME] one test. The actual test time may be longer than the time displayed below approximately 0.1 s. HIOKI ST5680A961-00...
Page 88: Continuous Voltage Rise Test
7.2 Continuous Voltage Rise Test Setting the test conditions Setting the test method On the setting screen, press [BASIC] > [BDV MODE] to set the test method to [RATE]. (When [BDV MODE] is set to [STEP]) A confirmation message is displayed. Press [YES]. When [RATE] is set, all the output settings are initialized. HIOKI ST5680A961-00...
Page 89 Change the value using [▲] [▼] and then press [ENTER]. 0.011 kV 8.000 kV Default setting: 5.000 kV The lower-limit is automatically set based on the initial voltage value in [START VOLT]. ([START VOLT] < [END VOLT]) HIOKI ST5680A961-00...
Page 90 The thickness of the test piece to be used for calculation of the dielectric breakdown strength or the distance between electrodes is set. Press [BASIC] > [DISTANCE] on the setting screen. Change the value using [▲] [▼] and then press [ENTER]. 0.01 10.00 mm *2. Default setting HIOKI ST5680A961-00...
Page 91 The dielectric breakdown judgment method and reference value are set. There are two judgment methods, judgment by the current upper-limit reference value and the arc discharge detection. (1) Setting the current upper-limit value Press [BASIC] > [UPPER] on the setting screen. Change the value using [▲] [▼] and then press [ENTER]. 0.010 100 mA *2. Default setting HIOKI ST5680A961-00...
Page 92 Does not detect arc. If the test voltage at the time of discharging fluctuates beyond the set ratio, an arc is detected, and the test is stopped. *1. Default setting When [ON] is set, press [LIMIT]. Change the value using [▲] [▼] and then press [ENTER]. *2. Default setting HIOKI ST5680A961-00...
Page 93: Measurement Details
In the NUM display, the test result by the number of tests for the dielectric breakdown voltage and dielectric breakdown strength can be displayed. For information on how to switch the measurement screen, see “8.1 Waveform Graph Display” (p. 101). Starting a test See “Starting a test” (p. 59). Stopping a test See “Stopping a test” (p. 63). Ending a test See “Ending a test” (p. 63). HIOKI ST5680A961-00...
Page 94: Gradual Voltage Rise Test
0.1 seconds. Perform the test according to the set voltage holding time, voltage step, and number of steps. Press [BASIC] > [START VOLT] on the setting screen. Change the value using [▲] [▼] and then press [ENTER]. 0.25 kV, 0.5 kV, 1 kV, 2 kV, any voltage 0.010 7.999 kV Setting range: *1. Default setting HIOKI ST5680A961-00...
Page 95 Press [BASIC] > [STEP VOLT] on the setting screen. Change the value using [▲] [▼] and then press [ENTER]. 10% of the initial voltage* , 0.1 kV, 0.2 kV, any voltage 0.010 kV 5.000 kV Setting range: *1. Default setting HIOKI ST5680A961-00...
Page 96 300 s Setting range: *1. Default setting When [TRIG] is set, TRIG operation is performed. Press START button to proceed to the next step. Dielectric breakdown Initial voltage ∆V End voltage Vbd: Dielectric breakdown voltage ∆V: Voltage steps HOLD START START START START START START HIOKI ST5680A961-00...
Page 97 The thickness of the test piece to be used for calculation of the dielectric breakdown strength or the distance between electrodes is set. Press [BASIC] > [DISTANCE] on the setting screen. Change the value using [▲] [▼] and then press [ENTER]. 0.01 10.00 mm *1. Default setting HIOKI ST5680A961-00...
Page 98 The dielectric breakdown judgment method and reference value are set. There are two judgment methods, judgment by the current upper-limit reference value and the arc discharge detection. (1) Setting the current upper-limit reference value Press [BASIC] > [UPPER] on the setting screen. Change the value using [▲] [▼] and then press [ENTER]. 0.010 100 mA *1. Default setting HIOKI ST5680A961-00...
Page 99 Does not detect arc. If the test voltage at the time of discharging fluctuates beyond the set ratio, an arc is detected, and the test is stopped. *1. Default setting When [ON] is set, press [LIMIT]. Change the value using [▲] [▼] and then press [ENTER]. *2. Default setting HIOKI ST5680A961-00...
Page 100: Measurement Details
For information on how to switch the measurement screen, see “8.1 Waveform Graph Display” (p. 101). IMPORTANT When the voltage hold time of each phase is set to TRIG, the voltage rise timing may be shifted with respect to the measurement timing. Thus, the voltage rise time may appear at 200 ms in the graph display (TREND), but the actual voltage rise time is 100 ms. When you switch to the waveform display (WAVE), you can confirm that the voltage rise time is 100 ms. Starting a test See “Starting a test” (p. 59). Stopping a test See “Stopping a test” (p. 63). Ending a test See “Ending a test” (p. 63). HIOKI ST5680A961-00...
Page 101: Various Functions
Switching the measurement screen Press [DISP] > [NUM + GRAPH], [NUM], or [GRAPH] on the measurement screen. Default setting: NUM NUM + GRAPH (measured value + waveform/graph, small) Measurement screen NUM (measured value only) GRAPH (measured value, small + waveform/graph, large) HIOKI ST5680A961-00...
Page 102 Waveform Graph Display Switching between the graph and waveform displays Press [DISP] > [NUM + GRAPH] [GRAPH] on the measurement screen. Press [GRAPH]. Press [TREND] or [WAVE]. Default setting: TREND TREND (chronological) display WAVE (waveform) display (1) Graph display (TREND) HIOKI ST5680A961-00...
Page 103 Switches the grid line. Touching the area switches the grid line from voltage to current and then resistance. Moving cursor A Moves cursor A to the left end. Moving cursor B Moves cursor B to the right end. HIOKI ST5680A961-00...
Page 104 Moves the cursor to the next (right) page when the display is zoomed in. Zooms in the waveform. Zooms out the waveform. Zooms in the waveform between the cursors. Displays all sets of waveform data in the memory. HIOKI ST5680A961-00...
Page 105: Contact Check
When the contact check setting is changed from [OFF] to [ON], a confirmation message is displayed. Enables the contact check function. OFF* Disables the contact check function. *1. Default setting Press [YES]. When the contact check function is enabled, set the voltage drop time [FALL TIME] to [OFF]. (p. 51) HIOKI ST5680A961-00...
Page 106: Acquring The Compensation Value
See “12.3 Timing Charts” (p. 166). Acquring the compensation value When the contact check function is set to [ON], execute open compensation before testing. Acquire the compensation value in an open state, without a DUT connected, by the same operation as at the usual start of a test. Press [ADJ] on the measurement screen to start a test on the compensation execution screen. HIOKI ST5680A961-00...
Page 107 • The compensation value will not be acquired if the test time is set to [CONT]. To acquire the compensation value, set the test time to a setting other than [CONT]. • Even when the instrument is turned off, the obtained correction value is backed up. • When the contact check function is set to on, compensation cannot be performed if the test voltage [TEST VOLT] is set to less than 100 V. • When the contact check function is set to off, compensation can be performed even when the [TEST VOLT] is set to less than 100 V, but the contact check correction value is not test voltage obtained. IMPORTANT Changing the test voltage initializes the compensation value. When the test voltage is changed, acquire the compensation value again. HIOKI ST5680A961-00...
Page 108: Insulation Resistance Test End Mode
Ends a test at the time of pass judgment within the set duration (excluding the delay time). FAIL Ends a test at the time of fail judgment within the set duration (excluding the delay time). *1. Default setting HIOKI ST5680A961-00...
Page 109: Data Memory Function
• For information using a USB flash drive, see “10.1 Using USB Flash Drive” (p. 124). Setting the memory function Sets whether to enable or disable the memory functions. If enabled, the test results are automatically saved to the internal memory in the instrument when the test finishes. Press [SYSTEM] > [STATE] on the setting screen. The memory function is activated. OFF* Disables the memory function. *1. Default setting HIOKI ST5680A961-00...
Page 110: Saving Memory Data
(up to 32,000). Saving memory data The data in the internal memory is saved to the USB flash drive. The data in the internal memory is automatically deleted after it is saved. Press [SYSTEM] > [SAVE] on the system screen. A confirmation message is displayed. Press [YES]. Enter a name for the saved file and press [ENTER]. HIOKI ST5680A961-00...
Page 111: Clearing Memory Data
Data Memory Function Clearing memory data The data in the internal memory is deleted without saving to the USB flash drive. Press [SYSTEM] > [CLEAR] on the system screen. A confirmation message is displayed. Press [YES]. HIOKI ST5680A961-00...
Page 112: Gfi Function (Dcw Only)
False detection of GFI due to noise When the difference between the two ammeters The output may be cut off by ground fault inside the tester becomes 0.5 mA or more, the tester if the instrument is used in an environment judges it as a ground fault and shuts off the output susceptible to common mode noise. signal. ST5680 ST5680 (a) GFI fault detection principle (b) Ground fault detected by noises HIOKI ST5680A961-00...
Page 113: Adjusting The Buzzer Volume
When a pass or fail judgment is given, the buzzer sounds for approximately 50 ms. Press [SYSTEM] > [BUZZER SET] on the system screen. Change the value using [▲] or [▼], and then press [EXIT]. [PASS VOL]: Buzzer volume for pass judgment [FAIL VOL]: Buzzer volume for fail judgment Default setting: 3 HIOKI ST5680A961-00...
Page 114: Momentary Out
The START button can be enabled on the instrument, as well as using the Remote Control Box and by the external I/O start signal. Press [SYSTEM] > [MOMENTARY] on the system screen. OFF* Disables the momentary out function. Enables the momentary out function. *1. Default setting HIOKI ST5680A961-00...
Page 115: Key Lock
Switch between [ON] [OFF] under [STATE]. OFF* Disables the key lock function. Enables the key lock function. *1. Default setting When the key lock function is set to [ON], the keys are locked when the measurement screen is displayed again. HIOKI ST5680A961-00...
Page 116: Releasing The Key Lock Function
Key Lock Releasing the key lock function Press [UNLOCK]. Enter the pass code using the numeric keypad and then press [ENTER]. The key lock function is released. HIOKI ST5680A961-00...
Page 117: Setting A Passcode
When the key lock state setting is on, press [PASS CODE]. Enter the pass code using the numeric keypad and then press [ENTER]. 9999 Default setting: None Key lock functions are not disabled even if the instrument is turned off. HIOKI ST5680A961-00...
Page 118 Key Lock HIOKI ST5680A961-00...
Page 119: Panel Memory Function
DCW test Test voltage, start voltage, test time, voltage rising/falling times, judgment waiting time, current judgment upper/lower- limit values, arc detection function, offset canceling function/ current compensation value, contact-check threshold value/ compensation value, interval time IR test Test voltage, test time, voltage rising/falling times, judgment waiting time, resistance judgment upper/lower-limit values, offset canceling function/resistance compensation value, contact-check threshold value/compensation value, interval time Program test Test conditions/compensation value of each step, number of test steps BDV measurement Test method, initial voltage, end voltage, voltage rising speed, voltage step, voltage holding time, number of steps, arc detection function, distance between electrodes, upper reference value, number of tests Press [PANEL] on the measurement screen. HIOKI ST5680A961-00...
Page 120: Screen Configuration
Displays the settings descriptions for the panel selected on the screen. LOAD Reads the selected panel. SAVE Saves the test conditions currently displayed on the measurement screen. DELETE Deletes the selected panel. RENAME Changes the name of the selected panel. HIOKI ST5680A961-00...
Page 121: Saving Test Conditions
No. Loading test conditions (panel load function) Select the panel to be loaded and press [LOAD]. A confirmation message is displayed. Press [YES]. Changing the panel name Select the panel to be renamed, and press [RENAME]. The keyboard window is displayed. HIOKI ST5680A961-00...
Page 122: Deleting Panel Data
Enter a new name and press [ENTER]. Deleting panel data Select the panel to be deleted, and press [DELETE]. A confirmation message is displayed. Press [YES]. HIOKI ST5680A961-00...
Page 123: Usb Flash Drive
Test conditions PNL files .PNL −   All settings ALL files .ALL −   The instrument cannot display double-byte characters (Japanese, etc.) Double-byte characters are replaced by “??” Specifications of USB flash drives to be used Connector USB type A connector Electrical specifications USB2.0 Power supply 500 mA max. Number of ports Supported USB flash drives USB Mass Storage Class compatible HIOKI ST5680A961-00...
Page 124: Using Usb Flash Drive
Using USB Flash Drive 10.1 Using USB Flash Drive A USB flash drive and USB communications (function) cannot be used simultaneously for this instrument. When using a USB flash drive, set the USB memory interface. Press [SYS] on the measurement screen. Press [I/F] > [USB] > [MEM] on the system screen. HIOKI ST5680A961-00...
Page 125: Inserting And Removing A Usb Flash Drive
Inserting the USB flash drive Insert the USB flash drive into the USB memory interface on the front of the instrument. • Do not insert anything other than a mass storage class-compatible USB flash drive. • Not all commercially-available USB flash drives are compatible. • If the USB flash drive is not detected, try another USB flash drive. • USB hubs cannot be used. Front • It may take longer to recognize and process a USB flash drive over 100 GB. Removing the USB flash drive Check that the USB flash drive is not being accessed by the device before removing. Instrument removal operations are not required. HIOKI ST5680A961-00...
Page 126: Checking File Contents On A Usb Flash Drive
USB memory icon turns blue. Measurement screen Screens other than measurement screen 10.3 Checking File Contents on a USB Flash Drive Files are displayed for you to check the contents. Press [FILE] on the measurement screen. The file screen is displayed. Up to 127 characters can be recognized for a file name. HIOKI ST5680A961-00...
Page 127: Settings For Saving The Data
Saves the saved items that have been set immediately. *1. Default setting Set the items to be saved. Type Description Saves waveform data in the binary file format. BIN WAVE OFF* Not saved. Saves trend (chronological) waveform data in the binary file format. BIN TREND OFF* Not saved. Saves measurement screen images. SCREEN OFF* Not saved. *1. Default setting HIOKI ST5680A961-00...
Page 128 Saves waveform data in the text format when the [SAVE] setting is on. WAVE OFF* Not saved. Saves trend (chronological) waveform data in the text format when the [SAVE] setting is on. TREND OFF* Not saved. *1. Default setting HIOKI ST5680A961-00...
Page 129: Setting The Text Save Format
DELIM]: Delimiter for date Slash Hyphen Period *2. Default setting [DATE]: Date format YYYYMMDD* , MMDDYYYY, DDMMYYYY, YYMMDD, MMDDYY, DDMMYY *3. Default setting [DECIM CHAR]: Decimal point character Period Comma *4. Default setting [QUOTE]: Quotation for items None " Double quotes Single quotes *5. Default setting HIOKI ST5680A961-00...
Page 130: Setting The File And Folder Names
Folder name Press [FILE] > [SETUP] on the measurement screen. Press [DIRECTORY]. The keyboard window is displayed. Enter a name for the save destination holder and press [ENTER]. Up to 32 characters When the folder name is not to be specified, a name is automatically set (DATA). HIOKI ST5680A961-00...
Page 131: Setting The Screen Save Format
The format and color for when a screen is saved are set. Press [FILE] > [SETUP] on the measurement screen. Press [TYPE&COLOR]. Set the format and color. COLOR* Color BMP format BMP MONO Gray-scale BMP format PNG COLOR Color PNG format PNG MONO Gray-scale PNG format *1. Default setting HIOKI ST5680A961-00...
Page 132: Saving The Test Results
The save operation varies depending on the save method and items to be saved (p. 127). [SAVE] is enabled only when a USB flash drive has been inserted into the instrument. When [DATA SAVE] is set to [SELECT], select the items to be saved and press [SAVE]. HIOKI ST5680A961-00...
Page 133: Checking The Test Results That Have Been Saved
Saving the Test Results Checking the test results that have been saved Saves using DCW mode "HIOKI E.E. CORPORATION","ST5680","Ver.","V1.00" Header "Serial No.","123456789" "DATE","2021/10/25" Save date and time "TIME","12:34:37" "MODE","W" Test conditions "FREQUENCY","DC ","" "TEST VOLTAGE"," 1000","V" "START VOLTAGE"," 0","%" "TEST TIME"," 0.4","s" "RISE TIME"," 0.1","s" "FALL TIME","OFF","" "DELAY TIME","OFF","" "UPPER LIMIT"," 2.000","mA" "LOWER LIMIT","OFF","" "ARC","OFF" "ARC LIMIT"," 1","mA" "OFFSET CANCEL","0"...
Page 134 Saving the Test Results Saves using W-IR mode "HIOKI E.E. CORPORATION","ST5680","Ver.","V1.00" Header "Serial No.","123456789" "DATE","2021/10/25" Save date and time "TIME","20:03:01" "MODE","WIR" Test conditions "MODE","W" "FREQUENCY","DC ","" "TEST VOLTAGE"," 300","V" "START VOLTAGE"," 0","%" "TEST TIME"," 0.4","s" "RISE TIME"," 0.1","s" "FALL TIME","OFF","" "DELAY TIME","OFF","" "UPPER LIMIT"," 2.000","mA" "LOWER LIMIT","OFF","" "ARC","OFF" "ARC LIMIT"," 1","mA" "OFFSET CANCEL","0" "CONTACT CHECK","OFF" "AUTO RANGE","1" "KEEP DATA","0" "MODE","IR" "TEST VOLTAGE"," 1000","V" "TEST TIME"," 0.4","s" "RISE TIME"," 0.1","s"...
Page 135 Saving the Test Results Save in the program mode "HIOKI E.E. CORPORATION","ST5680","Ver.","V1.00" Header "Serial No.","123456789" "DATE","2021/10/25" Save date and time "TIME","20:12:52" "STEP NO."," 1" Test conditions "MODE","W" "FREQUENCY","DC ","" "TEST VOLTAGE"," 500","V" "START VOLTAGE"," 0","%" "TEST TIME"," 0.4","s" "RISE TIME"," 0.1","s" "FALL TIME"," 0.1","s" "DELAY TIME","OFF","" "UPPER LIMIT"," 1.000","mA" "LOWER LIMIT","OFF","" "ARC","OFF" "ARC LIMIT"," 1","mA" "OFFSET CANCEL","0" "CONTACT CHECK","OFF" "AUTO RANGE","1" "KEEP DATA","0" "STEP NO."," 2" "MODE","IR" "TEST VOLTAGE"," 500","V"...
Page 136 Saving the Test Results Saves using BDV mode "HIOKI E.E. CORPORATION","ST5680","Ver.","V1.00" Header "Serial No.","123456789" "DATE","2021/10/25" Save date and time "TIME","19:41:08" "MODE","BDV" Test conditions "METHOD","RATE" "DISTANCE"," 0.01","mm" "FREQUENCY","DC ","" "TEST COUNT"," 1" "START VOLTAGE"," 100","V" "END VOLTAGE"," 1000","V" "RISE RATE"," 200 ","V/s" "UPPER LIMIT"," 1.000","mA" "ARC LIMIT","OFF","" "MODE","BDV" Test results "START TIME","2021/10/25 19:40:35" (JUDGE setting is on) "BREAKDOWN VOLTAGE MEDIAN"," 0","V" "BREAKDOWN VOLTAGE MEAN"," 0","V" "BREAKDOWN VOLTAGE STANDARD"," 0","V"...
Page 137: Saving And Importing The Test Conditions
Press [FILE] > [FILE] on the measurement screen. Press [PAGE] to switch to [PAGE 3/3]. Press [SAVE] [ALL SAVE]. The keyboard window is displayed. Enter a name for the file and press [ENTER]. Up to 31 characters See “3.3 Basic Screen Operation” (p. 35). HIOKI ST5680A961-00...
Page 138: Loading Test Conditions
Saving and Importing the Test Conditions Loading test conditions The following two types of settings files can be imported. • PNL file (test conditions) • ALL file (all settings) Press [FILE] > [FILE] on the measurement screen. Press [PAGE] to switch to [PAGE 1/3]. Select files with a “.PNL” or “.ALL” extension. Press [LOAD]. A confirmation message is displayed. Press [YES]. HIOKI ST5680A961-00...
Page 139: Editing Files And Folders
• Information display (measurement results and measurement screen) (p. 142) Formatting the USB flash drive Format (initialize) the USB flash drive to be used. Insert the USB flash drive to be formatted into the USB memory interface on the front and start formatting. The instrument formats using either FAT32 or FAT16. IMPORTANT • When formatting, all data saved to the USB flash drive will be deleted and cannot be restored. Check the content carefully before implementing. • It is recommended that you make sure to back up all important data saved to the USB flash drive. HIOKI ST5680A961-00...
Page 140 Editing Files and Folders Press [FILE] > [FILE] on the measurement screen. Press [PAGE] to switch to [PAGE 3/3]. Press [FORMAT]. A confirmation message is displayed. Press [YES]. A confirmation message is displayed again. Press [YES]. HIOKI ST5680A961-00...
Page 141: Creating A Folder
Enter a name for the holder and press [ENTER]. Up to 31 characters See “3.3 Basic Screen Operation” (p. 35). Deleting a file or folder Deletes the files or folders that have been saved to the USB flash drive. Press [FILE] > [FILE] on the measurement screen. Press [PAGE] to switch to [PAGE 2/3]. Select the file or folder to be deleted. Press [DELETE]. A confirmation message is displayed. Press [YES]. IMPORTANT Deleted files and folders cannot be restored. Check the content carefully before implementing. HIOKI ST5680A961-00...
Page 142: Change The Name Of A File Or Folder
Change the name of the file or folder and press [ENTER]. See “3.3 Basic Screen Operation” (p. 35). Displaying the information You can use the screen to check the test results files (CSV) that have been saved to the USB flash drive. Press [FILE] > [FILE] on the measurement screen. Press [PAGE] to switch to [PAGE 1/3]. Select the file to be checked. Press [VIEW]. The test result screen is displayed. HIOKI ST5680A961-00...
Page 143: System Settings
This is the name of the optional interface board that is in use. NONE: Interface board not used RS-232C: The Z3001 RS-232C interface is installed. GP-IB: The Z3000 GP-IB interface is installed. EXT. I/O MODE External I/O output mode NPN: Current sink output mode PNP: Current source output mode HIOKI ST5680A961-00...
Page 144: Self-Test Function
If the gray squares do not (Red) turn white when they are pressed a few times, calibrate the touch screen. (p. 145) When the test is finished, press [< SYS]. The system screen is displayed again. IMPORTANT If the gray squares do not turn white when they are pressed after touch screen calibration, the touch screen may be damaged. Please contact your authorized Hioki distributor or reseller. HIOKI ST5680A961-00...
Page 145: Calibrating The Touch Screen
SCREEN CAL] on the measurement screen. Press and hold down the center of the two symbols for approximately for 2 seconds. Green circles appear. When the two symbols change to green circles, [SET] is displayed. Press [SET]. IMPORTANT If [SET] is not displayed, repairs are necessary. Please contact your authorized Hioki distributor or reseller. HIOKI ST5680A961-00...
Page 146: Testing The Instrument Buttons And Rotary Knob
Turn the rotary knob counterclockwise and check that [] is displayed next to [KNOB (DOWN)] in the display area. Rotary knob Display START button STOP button Instrument front side IMPORTANT If the operation of the START button, STOP button, and rotary knob on the instrument cannot be detected properly, repairs are necessary. Please contact your authorized Hioki distributor or reseller. HIOKI ST5680A961-00...
Page 147: Testing The Remote Control Box Switches
[OPERATE (ON)] in the display area. Press the OPERATE switch to turn off the remote control and check that [] displayed next to [OPERATE (OFF)] in the display area. 9613 9614 Instrument display area IMPORTANT START switch, STOP switch, and OPERATE If the operation of the switch on the remote control cannot be detected properly, repairs are necessary. Please contact your authorized Hioki distributor or reseller. HIOKI ST5680A961-00...
Page 148: Testing The Screen Display
Press the screen 5 times. The screen color will toggle in order. DANGER lamp turns off when the DANGER lamp lit original screen is displayed again. DANGER lamp off Green DANGER lamp lit Blue DANGER lamp off Black DANGER lamp lit White IMPORTANT If the full screen is not the same color, repairs are necessary. Please contact your authorized Hioki distributor or reseller. HIOKI ST5680A961-00...
Page 149: Rom/Ram Test
PASS All ROM/RAM memories are normal. FAIL One or more of the ROM/RAM memories is abnormal. IMPORTANT • All operations are disabled during ROM/RAM tests. • If the judgment results display is [FAIL], repairs are necessary. Please contact your authorized Hioki distributor or reseller. HIOKI ST5680A961-00...
Page 150: Full Test
TEST]. A confirmation message is displayed. Press [YES]. The full test starts. When the test has finished, the test results are displayed. PASS All ROM/RAM memories are normal. FAIL One or more of the ROM/RAM memories is abnormal. IMPORTANT If the judgment results display is [FAIL], repairs are necessary. Please contact your authorized Hioki distributor or reseller. HIOKI ST5680A961-00...
Page 151: I/O Hander Test
Perform an input signal test (I/O IN). The signal wire names for signals that are being input (on) from among the input signals will be lit green. Signal wires from which signals are not being input will be grayed out (unavailable). HIOKI ST5680A961-00...
Page 152: Setting The Date And Time
Sets the instrument date and time. You can record and manage data using the set date and time. Press [SYS] > [CLOCK] on the measurement screen. Change the value using [▲] or [▼]. Settings range: f rom 00:00:00 on January 1, 2000 to 23:59:59 on December 31, 2099 Press [SET]. Check the set time. HIOKI ST5680A961-00...
Page 153: Calibration Expiration Check Function
A calibration expiration check is disabled. *1. Default setting When [ON] is set, press [CHECK DATE]. Change the value using [▲] [▼] and then press [ENTER]. Setting range: January 1, 2000 to December 31, 2099 A warning message is displayed when the instrument is turned on after the calibration expiration date. HIOKI ST5680A961-00...
Page 154 Calibration Expiration Check Function HIOKI ST5680A961-00...
Page 155: External Control
EXT I / O Rear All signals are isolated from the measuring circuit and the ground (earth) (the input/output common is shared). The input circuit can be switched for current sink output (NPN) or current source output (PNP). Check the input rating and internal circuit configuration (p. 179), and then understand the safety precautions. After that, connect the control system and use it in a correct manner. HIOKI ST5680A961-00...
Page 156 3. Check that the signal does not exceed the external input and output rating. 4. Properly isolate the instrument and the devices to be connected. Failure to do so could cause the operator to experience an electric shock or damage the instrument. HIOKI ST5680A961-00...
Page 157: Switching The Current Sink (Npn) And Current Source (Pnp)
Use the NPN/PNP switch on the back of the instrument. Current sink Current source (NPN) (PNP) Rear EXT. I/O MODE switch (NPN/PNP) setting Instrument input circuit Compatible with sink output Compatible with source output Instrument output circuit Non-polar Non-polar ISO_5 V output +5 V output −5 V output HIOKI ST5680A961-00...
Page 158: External Input And Output Terminals And Signals
Other equivalent connectors Instrument connector signal arrangement IMPORTANT The connector frame is connected to the instrument case (a metal area) and protective ground terminal of the power inlet. Be aware that it is not isolated from the ground. HIOKI ST5680A961-00...
Page 159 – IR-FAIL On when the instrument give a fail judgment – after an insulation resistance test IR-MODE On during an insulation resistance test – PROG_END On at the end of final step during a program – test OUT0 General purpose output – OUT1 General purpose output – HIOKI ST5680A961-00...
Page 160: Signal Functions
Outputs on when a contact check error occurs. IR-FAIL Outputs on when the instrument fails an insulation resistance test. IR-MODE Outputs on while an insulation resistance test is selected in the test mode. PROG_END Outputs on when one program is completed during a program test. HIOKI ST5680A961-00...
Page 161: Setting The Judgment Signal Output Timing
[JUDGE IR] on the system screen. Select the setting. MEAS END* Turns on the output as soon as the test voltage is turned off when a test is completed. TEST END Turns on the output as soon as a test is completed. *2. Default setting HIOKI ST5680A961-00...
Page 162: Setting The Test Signal Output Timing
Turns on the output during the test time. RISE Turns on the output from the start of a test until the test voltage is reached. MEAS Turns on the output from the start of a test until the end of it. *1. Default setting HIOKI ST5680A961-00...
Page 163 TEST RISE MEAS W-MODE Example 2: Test mode DCW Judgment output timing: TEST END DANGER lamp off DANGER lamp lit DANGER lamp off FALL READY RISE TEST READY START READY HV_ON Output voltage PASS (TEST END) PROBE TEST TEST RISE MEAS W-MODE HIOKI ST5680A961-00...
Page 164: Selecting The Test Conditions Saved Using The Panel Save Function
LOAD7. Turn on the LD_VALID signal with the test stopped. The test conditions selected in are imported. Mode switch bit Memory number switch bit Test mode LOAD7 LOAD6 LOAD5 LOAD4 LOAD3 LOAD2 LOAD1 LOAD0 Invalid Program test Invalid HIOKI ST5680A961-00...
Page 165: Interlock Function
Prepare a box where the DUT will be placed to prevent workers from touching the tester and DUT during high-voltage output. Attach a switch on the cover of the box and link the switch to the interlock function. The interlock is activated when the cover is opened and released when the cover is closed to allow a test to be performed. When the interlock is activated, all the key operations are disabled. HIOKI ST5680A961-00...
Page 166: Timing Charts
5 ms max. (TEST) TEST TEST (RISE) (MEAS) 5 ms max. Test voltage Start voltage Output voltage Rise time Test time Fall time 0.1 s W-MODE 5 ms max. (MEAS_END) PASS (TEST_END) READY 3 ms typ. 3 ms typ. HIOKI ST5680A961-00...
Page 167 DANGER lamp lit (PROBE) 5 ms max. Contact check period (TEST) TEST (RISE) (MEAS) 5 ms max. Discharge Output voltage Rise time Test time time IR-MODE 5 ms max. PASS (MEAS_END) READY 3 ms typ. 3 ms typ. HIOKI ST5680A961-00...
Page 168: Timing Chart For Fail Judgment
(PROBE) (TEST) TEST TEST (RISE) (MEAS) Dielectric breakdown Test voltage Start voltage Output voltage Rise time Test time 0.1 s Discharge time 5 ms max. W-MODE (MEAS_END) U_FAIL L_FAIL (TEST_END) W-FAIL READY 3 ms typ. 3 ms typ. HIOKI ST5680A961-00...
Page 169 Test voltage Start voltage Lower judgment start Upper judgment start Output voltage Discharge Rise time Test time time 0.1 s W-MODE 5 ms max. U_FAIL Delay time (MEAS_END) L_FAIL (MEAS_END) W-FAIL CONT_ERR READY 3 ms typ. 3 ms typ. HIOKI ST5680A961-00...
Page 170 TEST (RISE) (MEAS) 5 ms max. Lower judgment start Upper judgment start Output voltage Rise time Test time Discharge time 5 ms max. IR-MODE Delay time (MEAS_END) U_FAIL L_FAIL (TEST_END) IR-FAIL READY 3 ms typ. 3 ms typ. HIOKI ST5680A961-00...
Page 171 (RISE) (MEAS) 5 ms max. Upper judgment start Lower judgment start Output voltage Discharge Rise time Test time time IR-MODE 5 ms max. Delay time U_FAIL (MEAS_END) L_FAIL (MEAS_END) IR-FAIL CONT_ERR READY 3 ms typ. 3 ms typ. HIOKI ST5680A961-00...
Page 172: Timing Chart For Forced Termination With A Stop Signal
(TEST) 30 ms max. TEST TEST (RISE) (MEAS) Test voltage Start voltage Lower judgment start Upper judgment start Output voltage Rise time Test time 0.1 s Discharge time W-MODE Delay time 5 ms min. STOP Judgment signal READY HIOKI ST5680A961-00...
Page 173 With delay time setting (delay time < rinse time) START HV_ON DANGER lamp lit (PROBE) (TEST) 30 ms max. TEST (RISE) (MEAS) Lower judgment start Output voltage Upper judgment start Test time Rise time Discharge time W-MODE Delay time STOP 5 ms min. Judgment signal READY HIOKI ST5680A961-00...
Page 174: Timing Chart For The Program Test Mode
Timing Charts Timing chart for the program test mode Contact check when pass judgment in the program mode HIOKI ST5680A961-00...
Page 175 Timing Charts Fail judgment in the program mode (continue setting) HIOKI ST5680A961-00...
Page 176 Timing Charts Fail judgment in the program mode (test end setting) HIOKI ST5680A961-00...
Page 177 Timing Charts Fail judgment in the program mode (continue setting, fail judgment in multiple steps) HIOKI ST5680A961-00...
Page 178: Calling Panel Memory
(MEAS) 5 ms max. INTERLOCK 5 ms min. PROTECTION 4 ms max. 4 ms typ. Test voltage Start voltage Output voltage Rise time Discharge time 0.1 s STOP 5 ms min. READY 3 ms typ. 3 ms typ. HIOKI ST5680A961-00...
Page 179: Internal Circuit Configuration
PLC, etc. power supply Input Zener voltage 30 V Common Internal insulation common 30 V max. (It is isolated from the protective ground of the instrument.) Use ISO_COM for the common terminal for both the input and output signals. HIOKI ST5680A961-00...
Page 180: Electrical Specifications
ISO_COM ISO_COM Connection to the switch Connection to the relay Programmable Programmable controller controller Instrument Instrument Output Input Input Output ISO_COM Common ISO_COM Common Programmable controller Programmable controller Connection with (negative common output) Connection with (positive common output) HIOKI ST5680A961-00...
Page 181 Common ISO_COM Connection to programmable controller Connection to programmable controller (positive common inputs) (negative common inputs) Instrument Instrument ISO_5V ISO_5V Output Output ISO_COM ISO_COM Connection to LED (using ISO_5V, NPN setting) Connection to LED (using ISO_5V, PNP setting) HIOKI ST5680A961-00...
Page 182 Internal Circuit Configuration HIOKI ST5680A961-00...
Page 183: Communications (Usb, Lan, Rs-232C, Gp-Ib)
„ factory to secure the interface. If other screws are used to secure the interface, the instrument could be damaged, causing a risk of bodily injury. If you lose or damage the screws, contact your authorized Hioki distributor or reseller. Failure to do so could cause the operator to experience an electric shock. CAUTION Do not unplug the communication cable while the instrument is sending or „...
Page 184: Interface Overview And Features
IEEE-488.2 1997. Multiple interfaces of this instrument can be used simultaneously. You can check the available interfaces and change those settings on the [I/F] screen included in the system screen. For the communications commands, see the Communications Command Instruction Manual in the provided CD. The specifications can also be downloaded from our Internet website. https://www.hioki.com/global/support/download HIOKI ST5680A961-00...
Page 185: Usb
8 bits Parity None Stop bit: Flow control Software (XON/XOFF control) Electrical specifications Input voltage level 5 V to 15 V: on, −15 V to −5 V: off Output voltage level 5 V to 9 V: on, −9 V to −5 V: off Handshaking (Buffer flow control) Control during reception XON/XOFF control • If the data in the reception buffer exceeds 75% of the buffer, XOFF (13H) is sent to notify the controller that there is little space remaining in the buffer. • If data processing in the buffer is proceeding and the data amount is less than 25%, XON (11H) is sent to notify the controller that there is sufficient space in the buffer. Buffer empty Sending XOFF Sending XON HIOKI ST5680A961-00...
Page 186: Gp-Ib
There is no parallel polling function. There is a full range of device clear functions. There is a full range of device trigger functions. There are no controller functions. Code used: ASCII code Total Command system Unique HIOKI SCPI HIOKI ST5680A961-00...
Page 187: Mounting And Removing An Interface
Remove the power cord from the outlet, and remove the interface using the reverse order to the mounting procedure. When not using the interface after its removal Mount the blank panel. The specifications cannot be satisfied if measuring without mounting the blank panel. To purchase an additional blank panel, contact your authorized Hioki distributor or reseller. Mount the blank panel. Firmly tighten the two screws using the Phillips screwdriver to secure the blank panel. × × Screws (M3 6 mm) HIOKI ST5680A961-00...
Page 188: Interface Settings
GP-IB: Can be set only when the optional Z3000 GP-IB interface is mounted to the instrument. Press [SYS] > [I/F] on the measurement screen. Check for any interfaces available for communication. USB, LAN, RS-232C, GP-IB Communication can also be established using interfaces that are not selected. [LAN] When the Z3000 GP-IB and Z3001 RS-232C interfaces are not mounted, only [USB] are displayed. HIOKI ST5680A961-00...
Page 189: Connecting And Setting Usb
Connect the other end of the USB cable to the USB interface on the PC. Type B Rear USB Interface on the PC Instrument settings Press [I/F] on the system screen. Press [USB]. Press [COM]. Select the terminator. CRLF* , CR, *1. Default setting HIOKI ST5680A961-00...
Page 190: Connecting And Setting Lan
When connecting the instrument and hub using a LAN cable, you can control and monitor the instrument from the PC. Connecting a single instrument to multiple PCs Instrument Connecting multiple instruments to a single PC Instrument (2) Connect the instrument and PC for 1-to-1 use. When connecting the instrument and PC using a LAN cable, you can control and monitor the instrument from the PC. Instrument HIOKI ST5680A961-00...
Page 191: Setting Procedure
Example 1: Connecting the instrument to the existing network If connecting the instrument to an existing network, it is necessary to check the network settings beforehand. It is necessary to allocate IP addresses so that they do not overlap with other network devices. Check the following items with the network administrator, and keep a memo. IP address _________._________._________._________ Subnet mask _________._________._________._________ Default gateway _________._________._________._________ HIOKI ST5680A961-00...
Page 192 [SUBNET MASK] and then set the subnet mask. Press [GATEWAY] and then set the gateway. If it is not necessary to set a default gateway, for example if setting the instrument and PC 1-to-1, the gateway may remain off (0.0.0.0). Press [PORT] and then set the port numbers. 65535 Default setting: 6866 Select the terminator. CRLF* , CR, *1. Default setting HIOKI ST5680A961-00...
Page 193: Connecting And Setting Rs-232C (Z3001)
Example: Connecting a PC Specifications: D-sub 9 pin female connector, reverse wiring 1○ ○1 × × BB (R 2○ ○2 BB (R × × BA (T 3○ ○3 BA (T 4○ ○4 AB (GND) 5○ ○5 AB (GND) 6○ ○6 7○ ○7 8○ ○8 9○ ○9 HIOKI ST5680A961-00...
Page 194: Setting Procedure
Baud rate. 9600* , 19200, 38400, 57600 *1. Default setting Press [HANDSHAKE] and then select handshake. OFF* No flow control SOFTWARE Software control (XON/XOFF) *2. Default setting Select the terminator. CRLF* , CR, *3. Default setting HIOKI ST5680A961-00...
Page 195: Connecting And Setting Gp-Ib (Z3000)
Press [GP-IB]. Press [ADDRESS] and then set the GP-IB address. Default setting: 1 Select the terminator. CRLF CR + LF concomitant with EOI CR concomitant with EOI LF concomitant with EOI *1. Default setting HIOKI ST5680A961-00...
Page 196: Control Using Communications Commands
The following operations reset the remote state and allow the instrument to enter the local state that enables touch screen operation. • Press [LOCAL]. • Turn on the instrument again. :SYSTem:LOCal • Send the command to the instrument via a communication interface. • Send the command to the instrument from GP-IB. HIOKI ST5680A961-00...
Page 197: Command Compatibility Function
Using the command compatibility function allows you to set the model with which commands are interchanged. Press [SYS] > [I/F] on the measurement screen. Press [COMPATIBLE]. Select the setting. OFF* The command compatibility function is not used. Standard command setting WT-875x WT-875x command compatibility setting *1. Default setting HIOKI ST5680A961-00...
Page 198: Command Header Function
Using the command header function allows you to specify whether to set a header to response messages. Press [SYS] > [I/F] on the measurement screen. Press [HEADER]. OFF* No header is set to query responses A header is set to query responses *1. Default setting IMPORTANT When the instrument is turned on, the header setting is initialized to off. HIOKI ST5680A961-00...
Page 199: Command Monitor Function
When this function is set to [ON], the communication monitor is displayed on the measurement screen. IMPORTANT • If the communication monitor function is turned on, the communication monitor time is displayed onscreen in addition to the communications sending and receiving time. Due to this, the communication time will be lengthened. This lengthening will be particularly conspicuous if the number of response data characters is great. • When commands are transmitted continuously, the error display position may be misaligned. HIOKI ST5680A961-00...
Page 200: Command Log Screen
[SYS] > [I/F] on the measurement screen. Press [LOG]. The command log screen is displayed. • Communication records are displayed in chronological order. • U p to 10,000 characters of communication records can be saved in the instrument. • I f communication records exceed 10,000 characters, they are deleted in chronological order. IMPORTANT When the instrument is turned on, the records in the command log screen are initialized. HIOKI ST5680A961-00...
Page 201: Specifications
Display Color TFT 7.0″ display with a resistant-film touch screen Interface USB function (standardly equipped) USB flash drive (standardly equipped) LAN (standardly equipped) RS-232C (option, the Z3001 required) GP-IB (option, the Z3000 required) × × × × Dimensions Approx. 305W 142H 430D mm (12.01″W 5.59″H 16.93″D) Weight Approx. 10.0 kg (352.7 oz., without options) Warranty period 3 years Accessories See p. 8. Option See p. 9. HIOKI ST5680A961-00...
Page 202: Input Specifications, Output Specifications, Measurement Specifications
100 mA current Ripple 1.2% (peak) or less ± Voltage fluctuation 1% or less rate (However, when the load changes from maximum rated load to no load, this rate is applied to a voltage of 1 kV or more.) Short-circuit current 200 mA or more (when a voltage of 1 KV or more is output) Time rating See p. 58. HIOKI ST5680A961-00...
Page 203 Voltage drop time Setting range 0.1 s to 300 s, off Set resolution 0.1 s to 99.9 s: 0.1 s, 100 s to 300 s: 1 s Default setting The voltage drop time setting is enabled only for pass judgment. Judgment wait time Operations Since a large charging current may flow when a test setting voltage is applied to a capacitive DUT in DCW mode, the delay time, which begins from applying the test voltage to (delay setting) the start of the upper-limit judgment, can be set. Setting range 0.1 s to 99.9 s, off Default setting HIOKI ST5680A961-00...
Page 204 5 times/sec. or more Test time Setting range 0.1 s to 999 s, test-time off (timer off) function available Set resolution 0.1 s to 99.9 s: 0.1 s, 100 s to 999 s: 1 s ± Accuracy (100 ppm +20 ms) Default setting 1.0 s Voltage rise time Setting range 0.1 s to 300 s Set resolution 0.1 s to 99.9 s: 0.1 s, 100 s to 300 s: 1 s Default setting 0.1 s HIOKI ST5680A961-00...
Page 205 DC withstand voltage test ± Output setting (1.2% of setting +20 V), without load mode accuracy ± Voltmeter accuracy (1% rdg +5 V) ± Ammeter accuracy For 3.00 mA or more: 1.5% rdg ± For less than 3.00 mA: (1.5% rdg +2 µA) HIOKI ST5680A961-00...
Page 206 5 percent points to the measurement accuracy when the test voltage is within the range of 100 V to 999 V. ± *3. Add 2 percent points to the measurement accuracy when the test voltage is within the range of 1000 V to 2000 V. HIOKI ST5680A961-00...
Page 207: Functional Specifications
10 dgt of the set voltage within 5 seconds. Resistance value display Operations The resistance value, calculated by dividing the measured voltage value by measured current value, of the test target during a test is displayed. Maximum current value Operations The maximum value of the measured current value during a display test can be displayed. HIOKI ST5680A961-00...
Page 208 (discharge resistance: 700 k Limit voltage value Operations The upper-limit reference value for the test voltage setting can be set to prevent excessive voltage from being applied to the test target due to operation errors, etc. Setting range 10 V to 2000 V Default setting 2000 V HIOKI ST5680A961-00...
Page 209 The test conditions similar to those for a single test can be set. (The test time cannot be set to off.) Program setting items Step interval time 0.1 s to 100.0 s, TRIG Default setting: 0.1 s When TRIG is set, pressing the START button proceeds to the next step. Operations for fail Test end, test continue judgment Default setting: Test end HIOKI ST5680A961-00...
Page 210 Number of tests Measurement details • Dielectric breakdown voltage (unit: kV) Voltage when a dielectric breakdown occurs in the test piece under the specified test conditions The median, average, and standard deviation are displayed. • Dielectric breakdown strength (unit: kV/mm) Value obtained by dividing the dielectric breakdown voltage by the distance between two electrodes used for a test The median, average, and standard deviation are displayed. HIOKI ST5680A961-00...
Page 211 Value obtained by dividing the dielectric breakdown voltage by the distance between two electrodes used for a test The median, average, and standard deviation are displayed. ± Voltage measurement 5% rdg accuracy Dielectric breakdown Current upper-limit reference value setting, arc discharge detection judgment procedure Graph display The voltage value and measured current value of each test are displayed in chronological order. HIOKI ST5680A961-00...
Page 212 Default setting Contact check: Off Threshold value: 1 nF Offset cancel Operations The current that flows through the test lead or jig in the DCW or IR mode is measured in advance and the measured value is subtracted from the measurement result. Setting value On, off Available test mode DCW, IR, W-IR/IR-W, program mode Default setting HIOKI ST5680A961-00...
Page 213 1 s when a fail judgment is made. Buzzer volume setting range for pass judgment: 0 to 5 (default setting: 3) Buzzer volume setting range for fail judgment: 0 to 5 (default setting: 3) HIOKI ST5680A961-00...
Page 214 Saves the screen that is currently displayed Data format BMP, PNG file format (Color or monochrome) File name Automatically generated from the date and time 3. Saving and importing instrument settings Function Various settings including the test conditions, etc. are saved as a settings file. The saved settings file is imported and the settings are restored. Save items All setting items File name Automatically generated from the date and time HIOKI ST5680A961-00...
Page 215 A relatively longer voltage dip Turn off the instrument. OUTAGE occurs during voltage output when the load is large. OUTPUT TIME LIMIT The test time has exceeded the • Press the STOP button. time rating. • Leave the instrument for 30 minutes. HIOKI ST5680A961-00...
Page 216 Screen display test The display status and LED on/off status are checked. ROM/RAM test The instrument built-in memory (ROM, RAM) is checked. External I/O test The external I/O input and output signals are checked. Command monitor Operations Displays the send and receive status of commands and function queries Operation mode Off, on Default setting HIOKI ST5680A961-00...
Page 217: Interface Specifications
The instrument can be started and stopped remotely with the optional 9613 Remote Control Box (Single) or 9614 Remote Control Box (Dual) connected. Connector Front panel 6-pin micro connector Input signal START, STOP, SW_EN Output signal Signal for lighting up the LED (maximum load current 40 mA) HIOKI ST5680A961-00...
Page 218: Option Specifications
1 A AC peak Operation frequency range DC to 1 kHz Ω Cable coating insulation /m or more resistance Max. number of clip About 500,000 times (when opening and closing approx. 1/2 of the max. fully-open opening and closing times distance) (Reference value) Supported equipment Withstand insulation ST5680 DC Hipot Tester resistance tester HIOKI ST5680A961-00...
Page 219: L2261 Unterminated Lead Cable
5000 V AC rms or 8000 V DC earth (High-side [red] lead) Maximum rated current 1 A AC peak Operation frequency range DC to 1 kHz Ω Cable coating insulation /m or more resistance Supported equipment Withstand insulation ST5680 DC Hipot Tester resistance tester HIOKI ST5680A961-00...
Page 220 Option Specifications HIOKI ST5680A961-00...
Page 221: Maintenance And Service
A voltage over the voltage limit Check the test voltage and voltage value is set. limit value. A test cannot start if the test voltage is set outside the voltage limit value. See “4.3 Setting the Limit Voltage Value” (p. 40). HIOKI ST5680A961-00...
Page 222 An execution error has If command strings are correct, but unable occurred. to be implemented, try using modes that can implement each command. See Communication Command Instruction Manual in the provided CD. The send and receive Check the command send and receive command details are not details using the communication monitoring correct. function. HIOKI ST5680A961-00...
Page 223 See “I/O hander test” (p. 151). The I/O signal control timings do Check the I/O signal control timings not match. using the timing charts. See “12.2 External Input and Output Terminals and Signals” (p. 158). HIOKI ST5680A961-00...
Page 224: Repairs, Inspections, And Cleaning
15.2 Repairs, Inspections, and Cleaning Repairs and inspections If damage is suspected, read “15.1 Troubleshooting” (p. 221) to remedy the issue. If the issue cannot be resolved, contact your authorized Hioki distributor or reseller. In the following cases, stop using the instrument and disconnect the power cord before contacting your authorized Hioki distributor or reseller. WARNING Do not attempt to modify, disassemble, or repair the instrument yourself. „ The internal components of the instrument may carry high voltages. Attempting the above may cause bodily injury or fire.
Page 225 The calibration interval depends on factors such as the operating conditions and environment. Please determine the appropriate calibration interval based on your operating conditions and environment and have Hioki calibrate the instrument accordingly on a regular basis. Replaceable parts and operating lifetimes The characteristics of some of the parts used in the product may deteriorate with extended use.
Page 226: Error Display
Error Display 15.3 Error Display When an error is displayed in the LCD display area, the instrument requires a check or repair. Please contact your authorized Hioki distributor or reseller. Errors by the protection function Error display Description Ext. I/O output Solution POWER SUPPLY ERROR An error in the power supply PROTECTION The instrument is malfunctioning. Turn circuit has been detected.
Page 227 Change the setting so that the product of the test voltage and the test upper-limit value is equal to or more than the rated load capacity (500 W). HIOKI ST5680A961-00...
Page 228 The current may be over the current − compensation) has failed. range that can be compensated. Check the connection and execute the offset cancel again. (p. 57) HARDWARE ERROR An error in the internal circuit The instrument is malfunctioning. Turn − has been detected. off the instrument and make a repair (at start up) request. HIOKI ST5680A961-00...
Page 229: Disposal Of The Instrument (How To Remove The Lithium Battery)
Do not short-circuit the battery. „ Do not charge the battery. „ Do not disassemble the battery. „ Do not throw the battery in the fire or heat the battery. „ Doing so can cause the battery to explode, resulting in bodily injury. Keep the removed battery out of reach of children. „ CALIFORNIA, USA ONLY Perchlorate Material - special handling may apply. www.dtsc.ca.gov/hazardouswaste/perchlorate HIOKI ST5680A961-00...
Page 230 Sever the positive-pole terminal of the battery mounted to the internal plate using the nippers. Lift up the battery using tweezers and use the nippers to sever the negative- pole terminal under the battery, and remove the battery. − HIOKI ST5680A961-00...
Page 231: Appendix
(B). • A measurement signal is converted to a digital value by the high-speed and high-resolution A/D converter through the voltage and current detection circuit and stable measured values and waveform display that is very close to the actual waveform can be achieved (C, D). • The voltage detection circuit also fulfills the role of protection impedance. To satisfy the IEC 61010 safety standard, the accessible parts (i.e., interface and case) and high-voltage circuits are isolated. HIOKI ST5680A961-00...
Page 232: Table Of Default Settings
Ω Upper-limit reference value UPPER LIMIT 100 M Ω Lower-limit reference value LOWER LIMIT Offset cancel function OFFSET CANCEL Contact check threshold C.CHECK THRESHOLD 1.0 nF Ω Offset cancel resistance OFFSET RESISTANCE 0.000 compensation value Contact check compensation value CAPACITANCE 0.0 nF HIOKI ST5680A961-00...
Page 233 Insulation resistance test end mode IR END TIME Contact check function STATE Auto-range function in the DC W MODE withstand voltage test Auto-range function in the insulation IR MODE resistance test Data display function during auto- KEEP DATA range HIOKI ST5680A961-00...
Page 234 LAN message terminator TERM CRLF RS-232C communication speed SPEED 9600bps RS-232C handshake HANDSHAKE RS-232C message terminator TERM CRLF GP-IB address ADDRESS GP-IB message terminator TERM Command compatibility mode COMPATIBLE Presence of a header for response HEADER messages Command monitor MONITOR HIOKI ST5680A961-00...
Page 235 Name of saved file FILE NAME “” Saving destination folder DIRECTORY “” Image format TYPE&COLOR BMP COLOR Item delineators ITEM DELIM Date delineators DATE DELIM Date format DATE YYYYMMDD Decimal point character DECIM CHAR Quotation marks QUOTE " HIOKI ST5680A961-00...
Page 236: Rackmount
Rackmount 16.3 Rackmount Rackmount fittings or the like can be attached to this instrument after removing the screws from the bottom. WARNING When the rackmount fittings are reattached after removal from the „ × instrument, reuse the screws that were initially used (M3 6 mm for support feet). If a fitting is attached with other screws, the instrument may be damaged, causing a risk of bodily injury. If you lose or damage the screws, contact your authorized Hioki distributor or reseller. Rackmount fitting reference drawing and attachment procedure Rackmount fitting (EIA) Rackmount fitting (JIS) HIOKI ST5680A961-00...
Page 237 • Support the instrument in the rack with commercially available support angles because the instrument is heavy. • Install the instrument more than the specified distance from the surroundings to prevent it from rising in temperature. Bottom surface: At least 15 mm (the height of the support legs) from the ground surface Other than the bottom surface: 30 mm or more from the periphery HIOKI ST5680A961-00...
Page 238: External View
External View 16.4 External View Unit: mm HIOKI ST5680A961-00...
Page 239: Remote Control Box (Option)
Do not remove the Remote Control Box after turning on the instrument. „ Failure to do so could damage the instrument or cause them to malfunction. Be sure to turn off the instrument once when removing the Remote Control „ Box. Failure to do so could damage the instrument or cause them to malfunction. HIOKI ST5680A961-00...
Page 240: 9613 Remote Control Box (Single) And 9614 Remote Control Box (Dual) (Option)
32D mm Approx. 270W 32D mm × × × × (7.60″W 1.97″H 1.26″D, (10.63″W 1.97″H 1.26″D, excluding protruding parts) excluding protruding parts) Weight Approx. 360 g (12.7 oz.) Approx. 470 g (16.6 oz.) Cord length Approx. 1.5 m HIOKI ST5680A961-00...
Page 241: Connection Method
Make sure that the instrument power switch and remote control OPERATE switch are set to Off. Connect the remote control connection plug to the external switch terminal on the instrument. Set the OPERATE switch on the remote control to on. The setting can be changed between on and off after the instrument is turned on. Off (O) Remote control connection plug 9613 9614 HIOKI ST5680A961-00...
Page 242: Timer Calibration
Use the TEST signal (19 pin) in the external I/O terminal. External I/O terminal 19 TEST Input ST5680 Keysight 8 ISO_5 V 53220A ST5680 settings Test mode DCW or IR Test time 5.0 s Output voltage 1.000 kV Load not connected (open)
Page 243: License Information
2. R edistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. 3. The name of the author may not be used to endorse or promote products derived from this software without specific prior written permission. HIOKI ST5680A961-00...
Page 244 The FreeType Project is distributed in several archive packages; some of them may contain, in addition to the FreeType font engine, various tools and contributions which rely on, or relate to, the FreeType Project. This license applies to all files found in such packages, and which do not fall under their own explicit license. The license affects thus the FreeType font engine, the test programs, documentation and makefiles, at the very least. This license was inspired by the BSD, Artistic, and IJG (Independent JPEG Group) licenses, which all encourage inclusion and use of free software in commercial and freeware products alike. As a consequence, its main points are that: • We don’t promise that this software works. However, we will be interested in any kind of bug reports. (`as is’ distribution) HIOKI ST5680A961-00...
Page 245 `program’ or `executable’. This program is referred to as `a program using the FreeType engine’. This license applies to all files distributed in the original FreeType Project, including all source code, binaries and documentation, unless otherwise stated in the file in its original, unmodified form as distributed in the original archive. If you are unsure whether or not a particular file is covered by this license, you must contact us to verify this. The FreeType Project is copyright (C) 1996-2000 by David Turner, Robert Wilhelm, and Werner Lemberg. All rights reserved except as specified below. HIOKI ST5680A961-00...
Page 246 3. Advertising -------------- Neither the FreeType authors and contributors nor you shall use the name of the other for commercial, advertising, or promotional purposes without specific prior written permission. We suggest, but do not require, that you use one or more of the following phrases to refer to this software in your documentation or advertising materials: `FreeType Project’, `FreeType Engine’, `FreeType library’, or `FreeType Distribution’. As you have not signed this license, you are not required to accept it. However, as the FreeType Project is copyrighted material, only this license, or another one contracted with the authors, grants you the right to use, distribute, and modify it. Therefore, by using, distributing, or modifying the FreeType Project, you indicate that you understand and accept all the terms of this license. HIOKI ST5680A961-00...
Page 247 PREAMBLE The goals of the Open Font License (OFL) are to stimulate worldwide development of collaborative font projects, to support the font creation efforts of academic and linguistic communities, and to provide a free and open framework in which fonts may be shared and improved in partnership with others. The OFL allows the licensed fonts to be used, studied, modified and redistributed freely as long as they are not sold by themselves. The fonts, including any derivative works, can be bundled, embedded, redistributed and/or sold with any software provided that any reserved HIOKI ST5680A961-00...
Page 248 4) The name(s) of the Copyright Holder(s) or the Author(s) of the Font Software shall not be used to promote, endorse or advertise any Modified Version, except to acknowledge the contribution(s) of the Copyright Holder(s) and the Author(s) or with their explicit written permission. 5) The Font Software, modified or unmodified, in part or in whole, must be distributed entirely under this license, and must not be distributed under any other license. The requirement for fonts to remain under this license does not apply to any document created using the Font Software. HIOKI ST5680A961-00...
Page 249 TERMINATION This license becomes null and void if any of the above conditions are not met. DISCLAIMER THE FONT SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF COPYRIGHT, PATENT, TRADEMARK, OR OTHER RIGHT. IN NO EVENT SHALL THE COPYRIGHT HOLDER BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, INCLUDING ANY GENERAL, SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF THE USE OR INABILITY TO USE THE FONT SOFTWARE OR FROM OTHER DEALINGS IN THE FONT SOFTWARE. HIOKI ST5680A961-00...
Page 250 HIOKI ST5680A961-00...
Page 251: Index
Self-test function ............. 144 Specifications ............201 Start voltage ............. 42 Insulation resistance test end mode ....... 108 Interface..............188 Interlock function ............ 165 TCP/IP ..............191 Internal circuit configuration........179 Test conditions ............37 IR-W test mode............67 Test mode ..............36 HIOKI ST5680A961-00...
Page 252 Index Test voltage .............. 39 Timer calibration ............. 242 Timing chart ............166 Turning on/off the instrument ........25 USB ............ 123, 188, 189 W-IR test mode ............67 HIOKI ST5680A961-00...
Page 253 HIOKI ST5680A961-00...

Hioki ST5680 Instruction Manual

Quick Links

Need help?

Questions and answers

Related Manuals for Hioki ST5680

Summary of Contents for Hioki ST5680
