Remote Operation Manual
SS7012
DC SIGNAL SOURCE
March 2010 Revised edition 1 SS7012A983-01 10-03H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SS7012 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hioki SS7012

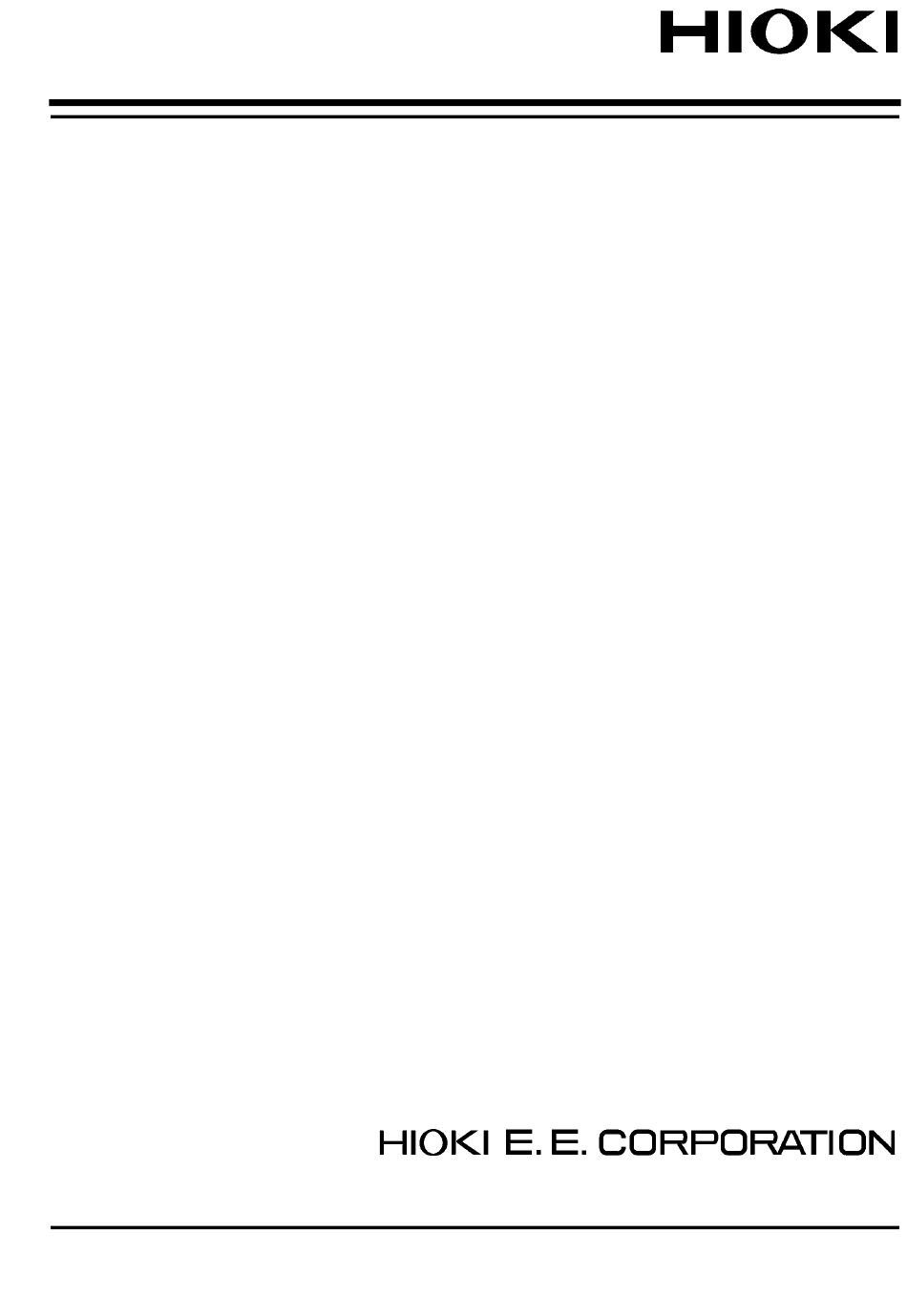

  • Page 1 Remote Operation Manual SS7012 DC SIGNAL SOURCE March 2010 Revised edition 1 SS7012A983-01 10-03H...
  • Page 3: Table Of Contents

    Contents Contents Introduction.................1 Safety Information ..............1 SS7012 Remote Interface Overview ..........2 Connect a USB cable ..............3 Setting Remote Interface Parameters ........3 Enabling key operation...............3 Commands Summary..............4 Response Messages..............5 Command Message List.............6 Examples of sending commands ..........12...
  • Page 4 Contents...
  • Page 5: Introduction

    Introduction Introduction This manual details the methods to operate the SS7012 DC Signal Source using communication functions, as well as all the commands used by the SS7012. When the communication function is used, the SS7012 can be manually oper- ated using communication terminal software. Furthermore, application software to automatically control the SS7012 can be run.
  • Page 6: Ss7012 Remote Interface Overview

    It is necessary to issue RS-232 commands via the virtual COM port. When RS-232 commands are issued to the virtual COM port, commands are sent to the SS7012 in the following order. (For the receipt of data, the order is reversed.)
  • Page 7: Connect A Usb Cable

    For installation instructions, please refer to the instruction manual of the SS9000 Communication Package. After installing the USB driver, connect the personal computer and SS7012 as shown in Figure 2. The virtual RS-232 COM port will be automatically assigned to the USB port.
  • Page 8: Commands Summary

    Commands Summary Commands Summary Overview of Command Type and Format All commands can be entered in upper and lowercase. Command Format and Query Format The commands control instrument functions. The following example shows a command and its associated query: Example 1: CVV 1.0000<CR><LF>...
  • Page 9: Response Messages

    This numeric rep- +13.234, 400.0, etc. resentation has an explicit radix point. ASCII ASCII string XXXXXXXXXXXX (device ID etc.) When key operation is used with the SS7012 and memory write mode or mem- clear mode enabled, commands disabled “ ERR<CR><LF>...
  • Page 10: Command Message List

    Command Message List Command Message List 1. Sourcing 1-1. Normal source Command Description Formats Set the source function. [Format] The setting value will be 0, the output will be "OFF." FCC d1 d1 (Setting of source function: 0 to 4) d1: NR1 format 0: CV:2.5V 1: CV:25V...
  • Page 11 Command Message List Command Description Formats Set the source current value [Format] This command is valid only in CC:25mA. CCA d1 d1 (Source current value: unit; mA) d1: NR2 format -25.000 to 25.000 [Response] OK or CMD ERR Query the source current value [Format] CCA? CCA?
  • Page 12 Command Message List 1-2. Output monitor Command Description Formats Set the monitor ON or OFF [Format] d1 (Setting of monitor: 0 to 1) MON d1 0: Monitor OFF d1: NR1 format 1: Monitor ON [Response] OK or CMD ERR Query the setting of monitor [Format] MON? The contents of responses are the same as the settings.
  • Page 13 Command Message List 1-3. Memory source Command Description Formats Set the source mode. [Format] d1 (Setting of source mode: 0 to 2) MMD d1 0: Normal source mode d1: NR1 format 1: Recall source mode 2: Scan source mode [Response] OK or CMD ERR Query the setting of source mode.
  • Page 14 Command Message List Command Description Formats Set the address for recall sourcing [Format] This command is valid only in recall source mode. RCL d1 d1 (Address: 01 to 20) d1: NR1 format [Response] OK or CMD ERR Set the start address for sourcing and sourcing time interval [Format] for scan sourcing (Refer to the caution on p.11) SCN d1, d2...
  • Page 15 ASCII format HIOKI,SS7012, Ver 1.01 Do not turn off the power switch of SS7012 while executing MEM, MRM or SCN command. Do not execute these commands while Battery low warning indicator flashing. These may damage SS7012 and cause the internal error.
  • Page 16: Examples Of Sending Commands

    Examples of sending commands Examples of sending commands 1. Sourcing 1-1. Normal sourcing When sourcing 4 mA Command Description FCC 2<CR><LF> Sets [CC:25mA]. CCA 4<CR><LF> Sets the setting value to 4 mA. OUT 1<CR><LF> Sets output to ON. OUT 0<CR><LF> Sets output to OFF.
  • Page 17 MEMO...
