Q7-EL User's Guide
Q7-EL

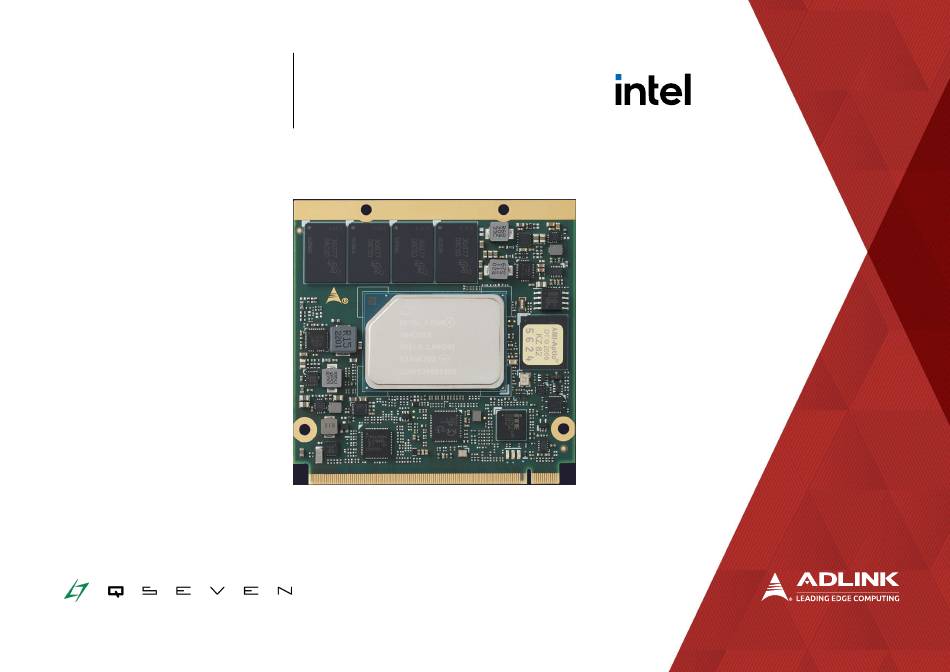

Page 1
User's Guide
Revision:
Rev. 1.0
Date:
2024-09-02
Part Number:
50M-76005-1000
Copyright © 2024 ADLINK Technology, Inc.
SGET Q7 R2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Intel Q7-EL and is the answer not in the manual?

Questions and answers

Related Manuals for ADLINK Technology Intel Q7-EL

Summary of Contents for ADLINK Technology Intel Q7-EL

  • Page 1 Q7-EL User’s Guide SGET Q7 R2.0 Q7-EL User’s Guide Revision: Rev. 1.0 Date: 2024-09-02 Part Number: 50M-76005-1000 Page 1 Copyright © 2024 ADLINK Technology, Inc.

  • Page 2: Revision History

    Q7-EL User’s Guide SGET Q7 R2.0 Revision History Revision Description Date Author Initial release 2024-09-02 Page 2 Copyright © 2024 ADLINK Technology, Inc.

  • Page 3: Preface

    Product names mentioned herein are used for identification purposes only and may be trademarks / registered trademarks of respective companies. Copyright © 2024 ADLINK Technology Incorporated This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
  • Page 4 Caution: This information indicates the possibility of minor physical injury, component damage, data loss, and/or program corruption. Warning: This information warns of possible serious physical injury, component damage, data loss, and/or program corruption. Page 4 Copyright © 2024 ADLINK Technology, Inc.
  • Page 5 ADLINK Technology GmbH Hans-Thoma-Strasse 11, D-68163 Mannheim, Germany Tel: +49-621-43214-0 Fax: +49-621 43214-30 Email: emea@adlinktech.com Please visit the Contact page at www.adlinktech.com for information on how to contact the ADLINK regional office nearest you. Page 5 Copyright © 2024 ADLINK Technology, Inc.

  • Page 6: Table Of Contents

    5. Additional Features ..........................................................29 5.1. LED Status Indicator ..............................................................29 5.1.1 Power LED（Green LED） ..........................................................29 5.1.2 Status LED（Blue LED） ..........................................................29 5.1.3 WDT LED（Red LED） ........................................................... 29 6. Mechanical ..............................................................30 Page 6 Copyright © 2024 ADLINK Technology, Inc.
  • Page 7 Q7-EL User’s Guide SGET Q7 R2.0 6.1. Module Dimensions (preliminary) ......................................................... 30 7. Thermal Solutions ............................................................ 32 7.1. Heat spreader ................................................................32 7.2. Low Profile Heatsink ..............................................................32 Page 7 Copyright © 2024 ADLINK Technology, Inc.

  • Page 8: List Of Figures

    Q7-EL User’s Guide SGET Q7 R2.0 List of Figures Figure 1 – Module function diagram ...................................................... 18 Figure 2 – Module dimensions (top) ...................................................... 30 Figure 3 – Module dimensions (bottom ....................................................31 Page 8 Copyright © 2024 ADLINK Technology, Inc.

  • Page 9: Introduction

    PCI Express, USB2.0, USB3.0, 2.5 Gigabit Ethernet, SATA etc. It also features Audio, HDMI, LVDS,on board EMMC, SATA SSD, and more. In addition, an optional fail-safe BIOS implemented to enable the user to start the module even if the original BIOS is corrupted. Page 9 Copyright © 2024 ADLINK Technology, Inc.

  • Page 10: Specifications

    The design supports following memory configuarations: 2 GByte: 2x 8Gbit (single channel) 4 GByte: 2x 16Gbit (single channel) 4 GByte: 4x 8Gbit (dual channel) 8 GByte: 4x 16Gbit (four channel) 16 GByte: 4x 32Gbit (four channel) Page 10 Copyright © 2024 ADLINK Technology, Inc.

  • Page 11: Display Interface Support

    LVDS BOM option: Primary Display 1x single or dual channel LVDS, 18/24 bit resolutions up to 1920x1080 (convert eDP with NXP transceiver PTN3460IBS) Secondary Display 1x DisplayPort Tertiary Display 1x DisplayPort or 1x HDMI Page 11 Copyright © 2024 ADLINK Technology, Inc.

  • Page 12: Display Port

    CODECs over the Intel® HD Audio serial link. The link can only operate at 3.3 V. With the support of multi-channel audio stream, 32-bit sample depth, and sample rate of up to 192 kHz, the Intel HD Audio controller provides audio quality that can deliver CE levels of audio experience. 1x High-Definition Audio (HDA) Page 12 Copyright © 2024 ADLINK Technology, Inc.

  • Page 13: Expansion Busses

    IEEE 802.3az Energy Efficient Ethernet  IEEE 1588/802.1AS precision time synchronization  IEEE 802.3Qav traffic shaper  Interrupt moderation, VLAN support, IP checksum offload  PCIe OBFF (Optimized Buffer Flush/Fill) for improved system power management  Page 13 Copyright © 2024 ADLINK Technology, Inc.

  • Page 14: Multi I/O And Storage

    The Q7-EL support six USB2.0 ports and two USB3.0 ports. USB2.0 port can be used to connect to high-speed, full-speed, and low-speed USB devices via xHCI controller. USB3.0 port has an xHCI controller and xDCI controller implemented in it. SATA Page 14 Copyright © 2024 ADLINK Technology, Inc.
  • Page 15 The SPI flash controller supports up to two SPI Flash devices using two separate chip select pins, with each SPI Flash device can be up to 16 MB. 1x SPI to MXM connector 1x I2C to MXM UART 1x UART, two with 2 wire handshake Page 15 Copyright © 2024 ADLINK Technology, Inc.

  • Page 16: Bios

    Power States: Supporting C1-C2, S0, S3, S4/S5 (both shutdown by SoC) Wake S4/S5 is not supported • Wake S3 by USB / WOL / WAKE signal • ATX and AT mode and ECO mode are supported. Page 16 Copyright © 2024 ADLINK Technology, Inc.

  • Page 17: Mechanical And Environmental

    MIL-STD-202F, Method 214A, Table 214-I, Condition D. If HALT testing shows equal or better performance, a separate vibration test report is not necessary. MTBF 250,000 hrs. commercial 40°C ambient (according MIL calculation) based on actual calculated de-rating Page 17 Copyright © 2024 ADLINK Technology, Inc.

  • Page 18: Block Diagram

    HDA Audio Q7 2.1 16/32/64GB SDIO SDIO 4bit UART UART TPM 2.0 FSPI LPC bridge eSPI ECE1200-I/LD SPI bios eSPI Boot select FAN control BMC/EC 8xGPIO Figure 1 – Module function diagram Page 18 Copyright © 2024 ADLINK Technology, Inc.

  • Page 19: Pinout And Signal Descriptions

    S0 power P_+1V05_S0 tolerant P_+3V3_S0 S0 power P_+3V3_S0 tolerant P_+1V8_S0 S0 power P_+1V8_S0 tolerant Power Input/Output Reference voltage output ADLINK implemented pull-up resistor on module ADLINK implemented pull-down resistor on module P_+VQ7 Module power input Page 19 Copyright © 2024 ADLINK Technology, Inc.

  • Page 20: Signal Description By Function

    LPC frame indicates the LPC_FRAME-L start of a new cycle or the termination of a broken cycle. GPIO6 / Bi -Dir Output CMOS 3.3V GPIO6 Serialized Interrupt. LPC_SERIRQ GPIO7 Bi -Dir Output CMOS 3.3V GPIO7 Page 20 Copyright © 2024 ADLINK Technology, Inc.

  • Page 21: Board To Board Connector

    SUS_S5# WAKE# SUS_S3# GPO0 PWRBTN# SLP_BTN# / GPII1 LID_BTN# / GPII0 PWGIN BATLOW# RSTBTN# SATA0_TX+ SATA1_TX+ SATA0_TX- SATA1_TX+ SATA_ACT# SATA0_RX+ SATA1_RX+ SATA0_RX- SATA1_RX- SDIO_CLK# OS_DISABLE#/BOO T_ALT# SDIO_CD# SDIO_LED SDIO_CMD SDIO_WP SDIO_PWR# SDIO_DAT1 Page 21 Copyright © 2024 ADLINK Technology, Inc.
  • Page 22 WDTRIG# THRMTRIP# WDOUT USB_P7- USB_P6- /USB_SSTX0- /USB_SSRX0- USB_P7+ USB_P6+/USB_SSRX /USB_SSTX0+ USB_6_7_OC# USB_4_5_OC# USB_P5- / USB_P4- / USB_SSTX1- USB_SSRX1- USB_P5+ / USB_P4+ / USB_SSTX1+ USB_SSRX1+ USB_2_3_OC# USB_0_1_OC# USB_P3- USB_P2- USB_P3+ USB_P2+ USB_CC USB_ID Page 22 Copyright © 2024 ADLINK Technology, Inc.
  • Page 23 PU, 470k, V1P8S LVDS_A3- LVDS_B3- eDP0_AUX+ / eDP1_AUX+ / LVDS_A_CLK+ LVDS_B_CLK+ eDP0_AUX- / eDP1_AUX- / LVDS_A_CLK- LVDS_B_CLK- LVDS_BLT_CTRL/GP GP_1-Wire_Bus/ _PWM_OUT0 HDMI_CEC GP2_I2C_DAT / eDP0_HPD# / LVDS_DID_DAT LVDS_BLC_DAT GP2_I2C_CLK / eDP1_HPD# / LVDS_DID_CLK LVDS_BLC_CLK Page 23 Copyright © 2024 ADLINK Technology, Inc.
  • Page 24 DP_LANE2+ / USB_SSRX1- TMDS_LANE0+ DP_LANE2- / USB_SSRX1+ TMDS_LANE0- DP_LANE0+ / HDMI_CTRL_DAT TMDS_LANE2+ DP_LANE0- / HDMI_CTRL_CLK TMDS_LANE2- DP_HDMI_HPD# DP_HDP# PCIE_CLK_REF+ PCIE_WAKE# PCIE_CLK_REF- PCIE_RST# PCIE3_TX+ PCIE3_RX+ PCIE3_TX- PCIE3_RX- PCIE2_TX+ PCIE2_RX+ PCIE2_TX- PCIE2_RX- UART0_TX UART0_RTS# Page 24 Copyright © 2024 ADLINK Technology, Inc.
  • Page 25 LPC_AD4 / GPIO4 GPIO5 SERIRQ / GPIO6 LPC_LDRQ# / GPIO7 SPKR / VCC_RTC GP_PWM_OUT2 FAN_TACHOIN / FAN_PWMOUT / GP_TIMER_IN GP_PWM_OUT1 SPI_MOSI SPI_CS0# SPI_MISO SPI_CS1# SPI_SCK MFG_NC4 VCC_5V_SB VCC_5V_SB MFG_NC0 MFG_NC2 MFG_NC1 MFG_NC3 Page 25 Copyright © 2024 ADLINK Technology, Inc.

  • Page 26: Debug Card Connector (Db40)

    P.S. HW need add MOS FET to switch SPI power for SPI ROM. SPI_BIOS_CS0# SPI_BIOS_CS1# SPI_BIOS_MISO SPI_BIOS_MOSI SPI_BIOS_CLK LPC Debug card Interface System power 3.3V provide from COM 3V3_LPC module BIOS_DIS0 RST# CLK33_LPC LPC_FRAME# Page 26 Copyright © 2024 ADLINK Technology, Inc.
  • Page 27 OCD0A OCD0A via 1K0 pull-up to 3.3V_SMC include a jumper to connect OCD0B OCD0B via 1K0 pull-down to GND Test point PWRBTN# SYS_RESET# CB_RESET# CB_PWROK SUS_S3# SUS_S4# SUS_S5# Page 27 Copyright © 2024 ADLINK Technology, Inc.
  • Page 28 Q7-EL User’s Guide SGET Q7 R2.0 For SMC Debug POSTWDT_DIS# Connect to Jumper for Debug SEL_BIOS Connect to Jumper for Debug BIOS_MODE Connect to Jumper for Debug SMC_STATUS Connect to LED RESVD Page 28 Copyright © 2024 ADLINK Technology, Inc.

  • Page 29: Additional Features

    WDT LED（Red LED） The WDT LED is driven by SEMA and will light when a watchdog timeout occurs. It stays on as long till it is cleared by software or by reset button. Page 29 Copyright © 2024 ADLINK Technology, Inc.

  • Page 30: Mechanical

    Q7-EL User’s Guide SGET Q7 R2.0 6. Mechanical 6.1. Module Dimensions Figure 4 – Placement Area and Cut-out Area – Size (l) Figure 2 – Module dimensions (top) Page 30 Copyright © 2024 ADLINK Technology, Inc.
  • Page 31 Q7-EL User’s Guide SGET Q7 R2.0 Figure 3 – Module dimensions (bottom Page 31 Copyright © 2024 ADLINK Technology, Inc.

  • Page 32: Thermal Solutions

    7. Thermal Solutions 7.1. Heat spreader One design / Dual Core / Low Power Quad Core 7.2. Low Profile Heatsink Dual Core / Quad Core u pro 12W power dissipation（Top mounting with springs） Page 32 Copyright © 2024 ADLINK Technology, Inc.
