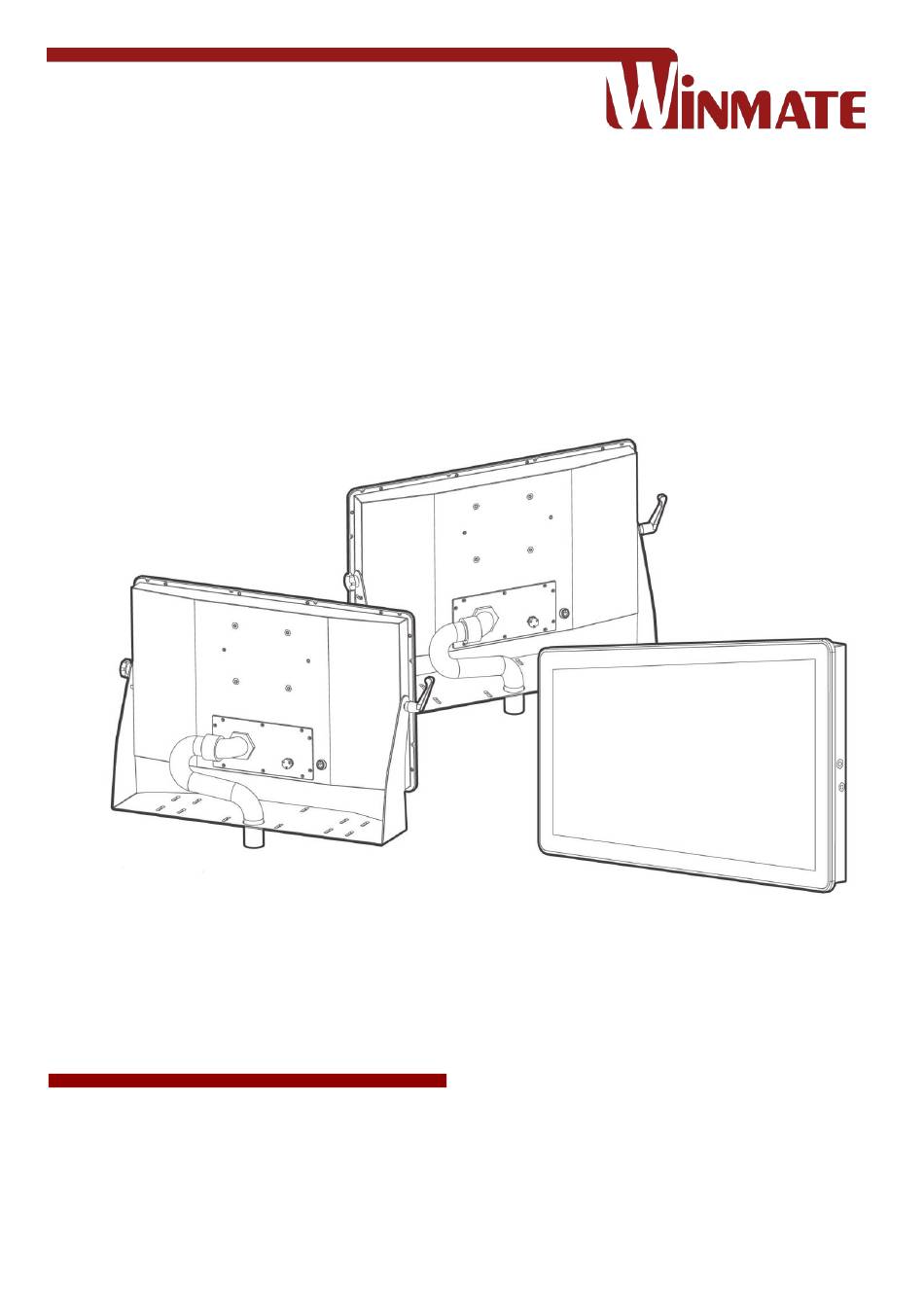

IP69K Stainless P-Series

Panel PC with Conduit Pipe

Intel® Core™ i5-7200U Kaby Lake, 2.5 GHz

Document Version 1.2

Please read this instructions before operating the device and retain them for future reference.

User Manual

15"/ 19"/ 21.5"/ 23.8"

Model No. R15IK3S-SPC369-P

R19IK3S-SPM169-P

W22IK3S-SPA369-P

W24IK3S-SPA269-P

Table of Contents

Need help?

Do you have a question about the P Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Winmate P Series

Page 1 IP69K Stainless P-Series Panel PC with Conduit Pipe Intel® Core™ i5-7200U Kaby Lake, 2.5 GHz 15”/ 19”/ 21.5”/ 23.8” Model No. R15IK3S-SPC369-P R19IK3S-SPM169-P W22IK3S-SPA369-P W24IK3S-SPA269-P User Manual Document Version 1.2 Please read this instructions before operating the device and retain them for future reference.
Page 2: Table Of Contents
IP69K Stainless P-Series Panel PC User Manual Contents Preface About This User Manual Chapter 1: Introduction 1.1 Overview 1.2 Features 1.3 Package Content 1.4 Product Overview 1.5 Physical Buttons 1.6 Air Vent Valve 1.7 Wi-Fi Antenna 1.8 Connector Description Chapter 2: Installation 2.1 Mounting 2.1.1 VESA Mount 2.1.2 Yoke Mount...
Page 3 5.5 Ethernet Driver 5.6 Watchdog Driver Installation Chapter 6: Maintenance and Troubleshooting 6.1 Cleaning the Monitor 6.2 Basic Troubleshooting Appendix Appendix A: Hardware Specifications Appendix B: Winmate Software Development Kit Appendix C: Yoke Mount Stand Kit Dimensions Appendix D: Accessories...
Page 4: Preface
IP69K Stainless P-Series Panel PC User Manual Preface FCC Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference.  This device must accept any interference received ...
Page 5: Trademark Acknowledgement
Warranty Winmate Inc. warranty guarantees that each of its products will be free from material and workmanship defects for a period of one year from the invoice date. If the customer discovers a defect, we will, at his/her option, repair or replace the defective product at no charge to the customer, provide it is returned during the warranty period of one year, with transportation charges prepaid.
Page 6: Advisory Conventions
IP69K Stainless P-Series Panel PC User Manual Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory. Note: A note is used to emphasize helpful information Important:...
Page 7: About This User Manual
About This User Manual About This User Manual This User Manual provides information about using the Winmate® IP69K Stainless P-Series with Conduit Pipe with Intel® Core™ i5-7200U Kaby Lake processor. This User Manual applies to the IP69K Stainless P-Series with Conduit Pipe – R15IK3S-SPC369-P, R19IK3S- SPM169-P, W22IK3S-SPA369-P, and W24IK3S-SPA269-P.
Page 8: Chapter 1: Introduction
1.1 Overview Congratulations on purchasing Winmate® IP69K Stainless P-Series Panel PC. Winmate P-Series Panel PC features with a waterproof conduit pipe for added cable protection. The IP69K series is built to withstand extensive wash downs with corrosion resistance against cleaning agents, especially against close-range high-pressure, high temperature wash downs.
Page 9: Package Content
Chapter 1: Introduction 1.3 Package Content Carefully remove the box and unpack your device. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. Factory shipment list: ...
Page 10: Product Overview
IP69K Stainless P-Series Panel PC User Manual 1.4 Product Overview This section contains mechanical drawing of the IP69K Stainless P-Series Panel PC. Notice that this is a simplified drawing and some components are not marked in detail. Note 1: Yoke mount stand kit is an optional accessory. Note 2: Wi-Fi antenna is an optional feature.
Page 11 Chapter 1: Introduction 21.5”, W22IK3S-SPA369-P Unit: mm Dimensions: 531 x 322 x 56 mm 23.8”, W24IK3S-SPA269-P Unit: mm Dimensions: 600 x 369 x 56 mm...
Page 12: Physical Buttons
IP69K Stainless P-Series Panel PC User Manual 1.5 Physical Buttons The P-Series Panel PC has one Power physical button located on the rear side. Press the Power button to power on or power off the device. 1.6 Air Vent Valve The P-Series Panel PC has an air vent valve that has an automatic mechanical system that controls and maintains pressure without the assistance of an operator.
Page 13: Wi-Fi Antenna
Chapter 1: Introduction 1.7 Wi-Fi Antenna The panel PC has Wi-Fi antennas located on the top. Note: Notice that Wi-Fi antennas is an optional feature based on your order.
Page 14: Connector Description
IP69K Stainless P-Series Panel PC User Manual 1.8 Connector Description Terminal interfaces are located under the protection cover on rear side of the panel PC. To access the I/O connectors, please open the protection cover first. Note: Notice that input and output connectors vary by product size and specifications. Connector description: Item Description...
Page 15: Chapter 2: Installation
2.1.1 VESA Mount The panel PC has VESA mount holes on the rear side. Follow instructions below to mount the unit with VESA Mount bracket (not supplied by Winmate). Size VESA Plate Dimensions Screw Hole Diameter 15”, 19”...
Page 16: Yoke Mount
2. Secure screws to fix the device upon the bracket stand. 3. Firmly secure the locking handle to the panel PC. Yoke Mount Stand Kit is available for order from Winmate. Please check mechanical drawing of this user’s manual. Appendix C For 15"...
Page 17: I/O Cover And Conduit Pipe Installation
Chapter 2: Installation Installation instruction ❶ Make a cutout on the fixture (ex. cabinet) ❷ Based on the drawing mark screw holes according to the cutout dimension of the panel on a rear side of the fixture. Place the panel PC.
Page 18 IP69K Stainless P-Series Panel PC User Manual Caution The I/O cover and waterproof conduit pipe required to maintain enclosure protection rating. Attention Le couvercle et le tuyau de conduit imperméable requis pour maintenir le degré de protection du boîtier. Conduit Pipe Components Before you start installing the pipe, be sure that you have the following components: Item Description...
Page 19: Conduit Pipe Removal
Chapter 2: Installation To install I/O cover and Conduit Pipe 1. Connect cables to connectors. Conduit assembly may include all possible cables that might be needed. If not all cables are needed, they may be cut and removed from the conduit before installation.
Page 20: Wiring Diagram
IP69K Stainless P-Series Panel PC User Manual 2.5 Wiring Diagram This P-Series Panel PC has waterproof conduit pipe and I/O cover to ensure protection rating. Please connect cables first, and then install I/O cover and conduit pipe. Wiring Diagram Note: Please use RJ45 to D-Sub9 Adapter to connect Serial Interfaces cable to P-Series Panel...
Page 21: Connector Pin Assignments
Chapter 2: Installation 2.6 Connector Pin Assignments This P-Series Panel PC is equipped with power connector, HDMI connector and USB connector for touch. The pin assignments of the connectors are described in this section. 2.6.1 Power Connector By default the P-Series Display has one 3-pin terminal block connector (phoenix type) power connector that accepts 12V DC or 9~36V DC power input based on your order.
Page 22: Rj45 Connector
IP69K Stainless P-Series Panel PC User Manual 2.6.3 RJ45 Connector The panel PC has two RJ45 connectors that support 10/100/1000 Mbps Ethernet interface for connecting to the internet. Pin assignment and signal names of Ethernet connector Pin № Pin № Signal Name Signal Name TX1+...
Page 23: Chapter 3: Getting Started
Chapter 3: Getting Started Chapter 3: Getting Started 3.1 Connecting to Power Source By default the P-Series Panel PC has one 3-pin terminal block connector (phoenix type) power connector that accepts 12V DC or 9~36V DC power input based on your order. Check your order specifications before connecting to power source.
Page 24: Connecting To Dc Power Source (Optional)
IP69K Stainless P-Series Panel PC User Manual 3.1.2 Connecting to DC Power Source (Optional) Follow the following steps to power on your device: 1. Connect the 3-pin terminal block. 2. Screw the Terminal block to fix the cable. 3. Connect terminal block to the display. + Connect to power supply until 0V -Connect to power supply until it get +9~36V DC 4.
Page 25: How To Enable Watchdog
3.3 How to Enable Watchdog To enable Watchdog, you need to download Winmate Watchdog utility. Find more information on Watchdog in “Watchdog Guide” that you can download from Winmate Download Center or File Share. Refer to the User Manual for more details.
Page 26: Chapter 4: Insyde Bios Setup
IP69K Stainless P-Series Panel PC User Manual Chapter 4: Insyde BIOS Setup BIOS Setup Utility is a program for configuration basic Input / Output system settings of the computer for optimum use. This chapter provides information on how to use BIOS setup, its functions and menu.
Page 27: Bios Functions
Chapter 4: Insyde BIOS Setup Note: You can press the F1, F2, F3, F4, –/+, and Esc keys by connecting a USB keyboard to your computer. For items marked ► press <Enter> for more options. 4.2 BIOS Functions 4.2.1 Main Menu The Main menu displays the basic information about yoursystem including BIOS version, processor RC version, system language, time, and date.
Page 28: Advanced
IP69K Stainless P-Series Panel PC User Manual 4.2.2 Advanced Select the Advanced Tab from the setup menu to enter the advanced BIOS setup screen. You can select any of the items on the left frame of the screen to go to the sub menu for the item, such as CPU Configuration.
Page 29 Chapter 4: Insyde BIOS Setup 4.2.2.1 CPU Configuration BIOS Setting Description Setting Option Effect Intel (VMM) Enable or disable Intel Enable/Disable When enabled, a VMM Virtualization Virtualization can utilize the Technology Technology. additional hardware capabilities provided by Vanderpool Technology. Active Processor Number of core to enable AII / 1 / 2/ 3 Select number of core...
Page 30 IP69K Stainless P-Series Panel PC User Manual 4.2.2.2 F81886A Configuration 4.2.2.3 GPIO Configuration...
Page 31 Chapter 4: Insyde BIOS Setup 4.2.2.4 Hardware Monitor...
Page 32 IP69K Stainless P-Series Panel PC User Manual 4.2.2.5 PCH-IO Configuration BIOS Setting Description Setting Option Effect PCI Express PCI Express clock gating Enter Opens sub-menu Configuration enable/disable for each root port. SATA And RST Enable/ Disable SATA device Enter Opens sub-menu Configuratuion Selectively enable/ disable Enter...
Page 33 Chapter 4: Insyde BIOS Setup 4.2.2.6 PCI Express Configuration...
Page 34 IP69K Stainless P-Series Panel PC User Manual 4.2.2.7 SATA and RST Configuration 4.2.2.8 USB Configuration...
Page 35 Chapter 4: Insyde BIOS Setup 4.2.2.9 ME Firmware Configuration...
Page 36 IP69K Stainless P-Series Panel PC User Manual...
Page 37 Chapter 4: Insyde BIOS Setup 4.2.2.10 Power & Performance BIOS Setting Description Setting Option Effect CPU – Power Configure CPU – Enter Opens sub-menu Management Power Management Control parameters...
Page 38 IP69K Stainless P-Series Panel PC User Manual BIOS Setting Description Setting Option Effect Boot Configure Boot -Max non-turbo Select the performance Performance Performance Mode performance state that the BIOS will set Mode parameters -Max battery starting from reset vector -Turbo Performance Intel SpeedStep Configure Intel...
Page 39 Chapter 4: Insyde BIOS Setup -Turbo Mode Enable or disable Turbo Enabled/ Enable/ Disable processor Mode Disabled Turbo Mode (requires EMTTM enabled too). Auto means enabled, unless max turbo ratio is bigger than 16 – SKL AO W/A C states Enable or disable Enabled/ Enable/ Disable CPU Power...
Page 40 IP69K Stainless P-Series Panel PC User Manual BIOS Setting Description Setting Option Effect Graphics Configure Graphics Enter Opens sub-menu Configuration Configuration parameters Vt-d Intel® Virtualization Enabled Vt-d capability Technology for Disabled Directed I/O 4.2.2.11.1 Graphics Configuration...
Page 41 Chapter 4: Insyde BIOS Setup BIOS Setting Description Setting Option Effect Internal Graphics Internal Graphics Auto Keep IGFX enabled based on settings Enabled the setup options Disabled Aperture Size Select the aperture 128MB Select the aperture size size 256MB Note: Above 4MB MMIO BIOS 512MB assignment is automatically 1024MB...
Page 42: Boot
IP69K Stainless P-Series Panel PC User Manual BIOS Setting Description Setting Option Effect Vt-d Intel® Virtualization Enabled Vt-d capability Technology for Disabled Directed I/O 4.2.3 Boot BIOS Setting Description Setting Option Effect Boot Type Boot Type UEFI Boot Type Select boot type to Dual type, configuration Legacy type or UEFI type Quick Boot...
Page 43 Chapter 4: Insyde BIOS Setup 4.2.3.1 Boot Type Order BIOS Setting Description Setting Option Effect Hard Disk Type Hard Disk Type Enter Opens Sub-menu configuration Others Other configuration Enter Opens Sub-menu 4.2.3.1.1 Hard Disk Type...
Page 44: Security
IP69K Stainless P-Series Panel PC User Manual 4.2.3.1.2 Others 4.2.4 Security BIOS Setting Description Setting Option Effect...
Page 45: Power
Chapter 4: Insyde BIOS Setup TrEE Protocol Choose TrEE TrEE Protovol Version Protocol Version Version: 1.0 or 1.1 When hidden don’t TPM Availability TPM Availability Available configuration Hidden exposes TPM to 0 TPM Operation TPM Operation Select one of the configuration supported operation to change TPM2state...
Page 46: Exit
IP69K Stainless P-Series Panel PC User Manual 4.2.6 Exit...
Page 47: Using Recovery Wizard To Restore Computer
Chapter 4: Insyde BIOS Setup 4.3 Using Recovery Wizard to Restore Computer Note: Before starting the recovery process, make sure to backup all user data. The data will be lost after the recovery process. Important: Before starting the recovery process, remove the PCI/ PCIe card and CFast card.
Page 48: Chapter 5: Driver Installation
IP69K Stainless P-Series Panel PC User Manual Chapter 5: Driver Installation This chapter provides guideline to driver installation. 5.1 Chipset Driver Follow instructions below to install Chipset driver. 1. Open the Driver CD (included in the package) and select Chipset driver. 2.
Page 49 Chapter 5: Driver Installation 3. Select Accept to agree with the terms of license agreement. 4. Check the ReadMe file information, select Install to continue.
Page 50: Graphic Driver
IP69K Stainless P-Series Panel PC User Manual 5. Wait for the driver to be installed. When installation completed, select Restart Now to restart your computer. 5.2 Graphic Driver Follow instructions below to install Graphic driver. 1. Open the Driver CD (included in the package) and select Graphic driver.
Page 51 Chapter 5: Driver Installation 2. Installation window will pop up, select Next. 3. Select Accept to agree with the terms of license agreement.
Page 52 IP69K Stainless P-Series Panel PC User Manual 4. Check the ReadMe file information, select Next to continue.
Page 53 Chapter 5: Driver Installation 5. Wait for the driver to be installed. 6. Select Next to continue.
Page 54: Management Engine (Me)
IP69K Stainless P-Series Panel PC User Manual 7. After installation is completed, select “Yes, I want to restart this computer now”, and click Finish. 5.3 Management Engine (ME) Follow instructions below to install Management Engine (ME) . 1. Open the Driver CD (included in the package) and select ME driver.
Page 55 Chapter 5: Driver Installation 2. Select Next to start the installation. 3. Select Next to agree with the terms of license agreement.
Page 56 IP69K Stainless P-Series Panel PC User Manual 4. Wait for the driver to be installed. 5. When installation completed, select Finish complete installation.
Page 57: Audio Driver
Chapter 5: Driver Installation 5.4 Audio Driver Follow instructions below to install Audio driver. 1. Open the Driver CD (included in the package) and select Audio driver. 2. Select Next to continue.
Page 58: Ethernet Driver
IP69K Stainless P-Series Panel PC User Manual 3. When installation completed, select Finish complete installation. 5.5 Ethernet Driver Follow instructions below to install LAN driver. 1. Open the Driver CD (included in the package) and select LAN driver.
Page 59 Chapter 5: Driver Installation 2. When compression is complete, select Next. 3. Read the license agreement, and then select Next.
Page 60 IP69K Stainless P-Series Panel PC User Manual 4. System displays the installed packages, select Next. 5. Confirm the installation, select Install to start the installation.
Page 61: Watchdog Driver Installation
Chapter 5: Driver Installation 6. When installation is completed, select Finish to close the window. 5.6 Watchdog Driver Installation For more details about Winmate Watchdog, please download Watchdog Guide from Winmate Downloads Center: http://dc.winmate.com.tw/_downloadCenter/2017/Embedded%20Computing/Watchdog%20Guide_ IB_IH_IV_IK.pdf Follow instructions below to install Watchdog driver.
Page 62 IP69K Stainless P-Series Panel PC User Manual 4. When Windows Security dialog appear, select install to continue the Installation. 5. Wait for installation to complete. When installation is complete, press any key to close.
Page 63 Chapter 5: Driver Installation 6. Open the Driver CD (included in the package) and select Watchdog AP. 7. Select Next.
Page 64 IP69K Stainless P-Series Panel PC User Manual 8. The installed storage location is displayed, select Next to continue. 9. Select Next to start the installation.
Page 65 Chapter 5: Driver Installation 10. When installation is completed, select Finish to close the window.
Page 66: Chapter 6: Maintenance And Troubleshooting
IP69K Stainless P-Series Panel PC User Manual Chapter 6: Maintenance and Troubleshooting 6.1 Cleaning the Monitor Note: The IP69K Stainless Panel PC withstands regular intense cleaning and could hold up against steam and high-pressure water. The devices are able to sustain water temperatures up to 80°C and a water jets.
Page 67: Appendix
Appendix Appendix Appendix A: Hardware Specifications Model Name R15IK3S-SPC369-P R19IK3S -SPM169-P W22IK3S -SPA369-P W24IK3S -SPA269-P Display 15” 19” 21.5” 23.8” Size Resolution 1024 x 768 1280 x 1024 1920 x 1080 1920 x 1080 Brightness 250 nits (typ.) 250 nits 250 nits (typ.) 250 nits (typ.) Contrast Ratio...
Page 68 IP69K Stainless P-Series Panel PC User Manual Model Name R15IK3S-SPC369-P R19IK3S -SPM169-P W22IK3S -SPA369-P W24IK3S -SPA269-P Environmental Consideration Operating 0 ºC to 45 ºC 0 ºC to 45 ºC 0 ºC to 45 ºC 0 ºC to 45 ºC Temperature Storage Temperature -10 ºC to 60 ºC -10 ºC to 60 ºC...
Page 69: Appendix B: Winmate Software Development Kit
Appendix Appendix B: Winmate Software Development Kit Winmate provides the following SDK and Utilities for the IP69K Stainless P-Series Panel PC. Item File Type Description Watchdog SDK Utility Watchdog Utility To find the Drivers and SDK, please refer to the Driver CD that comes in the package or contact us.
Page 70 IP69K Stainless P-Series Panel PC User Manual 21.5”, W22IK3S-SPA369-P Unit: mm Part No. 98K021A00001 23.8”, W24IK3S-SPA269-P Unit: mm Part No. 98K023A00001...
Page 71: Appendix D: Accessories
Appendix Appendix D: Accessories Waterproof Conduit Dimensions Unit: mm Elbow for Connect to Conduit Dimensions Unit: mm Open wire cable for phoenix connector (Default for 9~36V DC input SKU)
