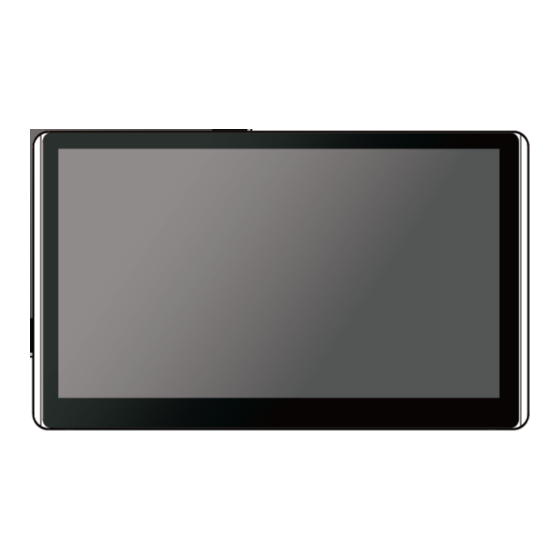

Winmate R15IE3S-PTC3 User Manual

Multi-touch chassis hmi
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PT Series Multi-Touch
Intel® Celeron® N6211 (1.5M Cache, up to 3.0GHz)
Part No. 91521110110N
Document Version 1.0
Please read these instructions carefully before using this product, and save this manual for future use
Chassis HMI
User Guide
Model No. R15IE3S-PTC3
W15IE3S-PTA3
W22IE3S-PTA3
W24IE3S-PTA2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R15IE3S-PTC3 and is the answer not in the manual?

Questions and answers

Related Manuals for Winmate R15IE3S-PTC3

Summary of Contents for Winmate R15IE3S-PTC3

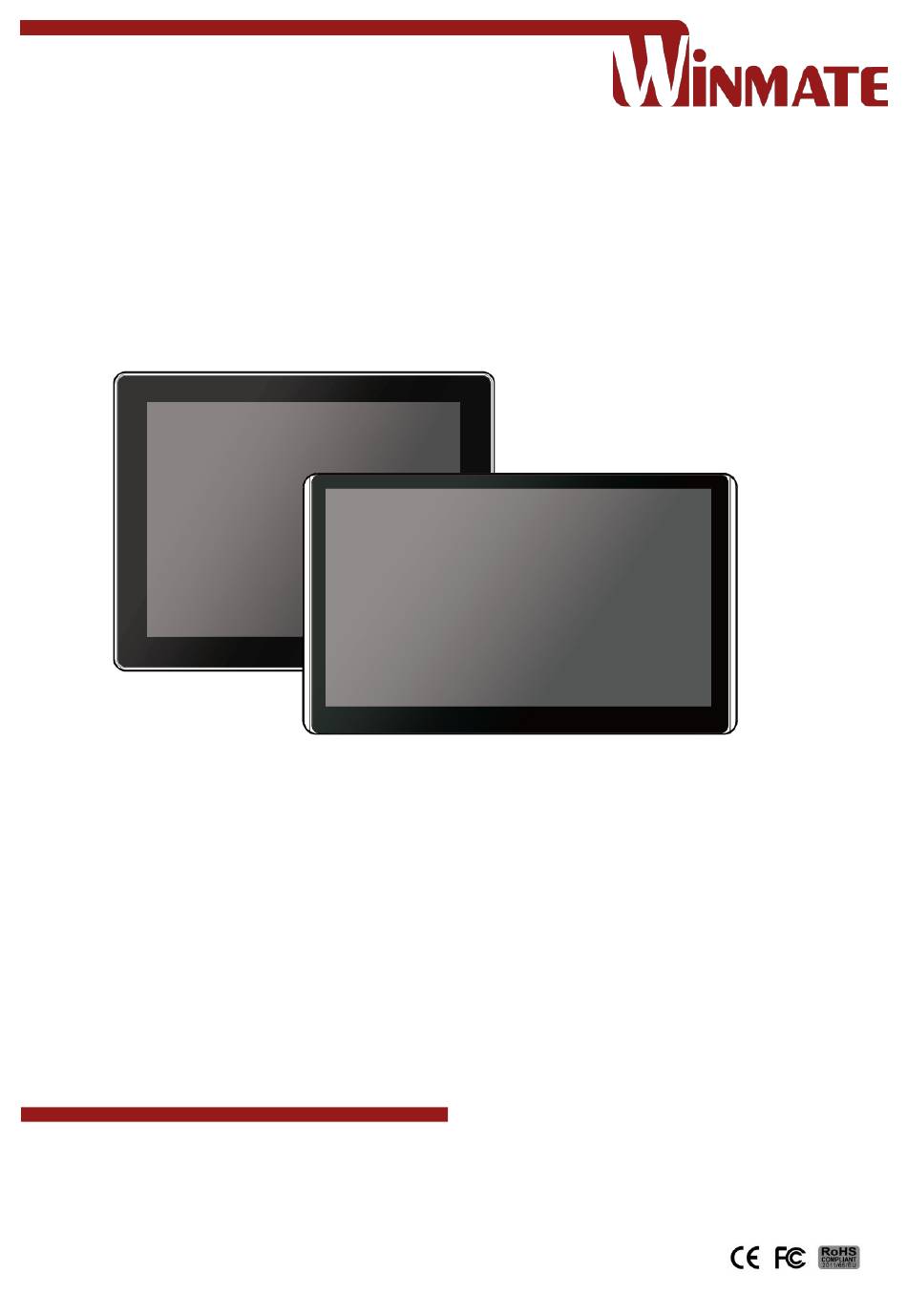

  • Page 1 PT Series Multi-Touch Chassis HMI Intel® Celeron® N6211 (1.5M Cache, up to 3.0GHz) Model No. R15IE3S-PTC3 W15IE3S-PTA3 W22IE3S-PTA3 W24IE3S-PTA2 User Guide Part No. 91521110110N Document Version 1.0 Please read these instructions carefully before using this product, and save this manual for future use...

  • Page 2: Table Of Contents

    PT Series Windows HMI User Guide Preface ........................3 Chapter 1: Introduction ..................7 1.1 Features ............................... 7 1.2 Package Contents ..........................7 1.3 Mechanical Dimensions ........................8 1.4 Connector Description ........................10 1.5 Physical Buttons and LED Indicators ....................10 Chapter 2: Installation ..................

  • Page 3: Preface

    Chapter 1: Introduction Preface FCC Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful  interference. This device must accept any interference  received including interference that may cause undesired operation.
  • Page 4 PT Series Windows HMI User Guide Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners.
  • Page 5 Chapter 1: Introduction Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory.
  • Page 6 According to the European Union issued Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS 2.0). Winmate Inc.’s guaranty is able to meet the current regulations and customer requirements in respect of the application of cadium, lead, mercury,...

  • Page 7: Chapter 1: Introduction

    Chapter 1: Introduction Chapter 1: Introduction The PT Series HMI runs on low power consuming Intel® Celeron® N2930 processor. Multiple I/O interface includes USB 2.0, one LAN port, serial interface RS-232/422/485 for machine-to-machine communications, USB 2.0 and USB 3.0 for data transfer. Chassis housing is protected with IP65 standard against water and dust from the front.

  • Page 8: Mechanical Dimensions

    PT Series Windows HMI User Guide 1.3 Mechanical Dimensions 15-inch, R15IE3S-PTC3 Unit: mm Dimensions: 352.5x276.7x45 15.6-inch, W15IE3S-PTC3 Unit: mm Dimensions: 352.5x276.7x45...
  • Page 9 Chapter 1: Introduction 21.5-inch W22IE3S-PTA3 Unit: mm Dimensions: 530 x 322 x 56 23.8- inch W24IE3S-PTA2 Unit: mm Dimensions: 588 x 358 x 60...

  • Page 10: Connector Description

    RJ45 – Connects HMI device to Ethernet network. 1.5 Physical Buttons and LED Indicators PT Series HMI has Power and Reset physical buttons located on the back side. R15IE3S-PTC3, W15IE3S-PTA3 Item Description Power Button – Press to turn on/ off the device.
  • Page 11 Chapter 1: Introduction Physical buttons and LED indicators located on the rear side of the Panel PC. For W22IE3S-PTA3, W24IE3S-PTA2 Physical Buttons Icon Button Description Reset Press to reset the system. Press to power on or power off the Power On/ Off device.

  • Page 12: Chapter 2: Installation

    PT Series Windows HMI User Guide Chapter 2: Installation 2.1 Wiring Requirements The following common safety precautions should be observed before installing any electronic device:  Strive to use separate, non-intersecting paths to route power and networking wires. If power wiring and device wiring paths must cross make sure the wires are perpendicular at the intersection point.

  • Page 13: Vesa Mounting

    M3 x 5 23.8” 100x100mm Installation Instruction Use Philips M4x5 screws to fix the desk stand to VESA holes on the back cover of the device. *The picture is for demonstration purposes only. VESA mount accessories are not supplied by Winmate.

  • Page 14: Turning On

    PT Series Windows HMI User Guide 2.3 Turning On Follow the following steps to turn on your device: 1. Connect AC adapter to DC jack connector of the HMI. 2. Connect the power cord to AC adapter. 3. Plug the power cord to the AC outlet. 4.

  • Page 15: Connecting Peripherals

    Chapter 2: Installation 2.4 Connecting Peripherals This section lists HMI connectors and pin assignment. 2.4.1 Power Connector DC power source input is a DC-in power jack connector that accepts 12V DC power input. Pin assignment and signal names of power input connector Pin №...

  • Page 16: Serial Port Connector

    PT Series Windows HMI User Guide 2.4.3 Serial Port Connector Use COM1 serial port connector to connect your HMI to external devices such as mouse, modem or printer. You can configure serial port settings via jumpers located on the motherboard. Pin assignment and signal names of serial port connector Pin №...

  • Page 17: Hdmi Connector

    Chapter 2: Installation 2.4.5 HDMI Connector The HMI has one HDMI1.4a connector. Pin assignment and signal name of HDMI connector Pin No. Signal Name Pin No. Signal Name HDMI_DET HDMI_D2P HDMI_D2M HDMI_D1P HDMI_D1M HDMI_D0P HDMI_D0M HDMI_CLKP HDMI_CLKM HDMI_CEC_OUT DDC_CLOCK DDC_DATA...

  • Page 18: Speaker

    PT Series Windows HMI User Guide 2.5 Speaker Speaker is located on the rear side of the HMI. Electrical Specifications Rated impedance 6±15% ohms@2KHz, 1 Vrms input Power Rating 0.67 W Short Term Max Power 1.3W Acoustical Specifications Sound Pressure Level 75±3dB/40cm@1kHz...

  • Page 19: Chapter 3: Operating The Device

    Chapter 3: Operating the Device Chapter 3: Operating the Device 3.1 Introduction Your HMI supports several versions of Windows OS:  Windows 10 IoT  Windows Embedded 8.1 Industry Pro  Windows Embedded 7 Standard Important: The device is shipped with the OS System according to your order. Contact us if you have any questions regarding OS settings.

  • Page 20: How To Enable Watchdog

    PT Series Windows HMI User Guide 3.2 How to Enable Watchdog To enable Watchdog, you need to download Winmate Watchdog utility. Find more information on Watchdog in “Watchdog Guide” that you can download from Winmate Download Center. To enable watchdog in Watchdog AP follow the instructions below: 1.

  • Page 21: Using Recovery Wizard To Restore Computer

    Chapter 3: Operating the Device 3.3 Using Recovery Wizard to Restore Computer Note: Before starting the recovery process, make sure to backup all user data. The data will be lost after the recovery process. To enable quick one-key recovery procedure: 1.

  • Page 22: Chapter 4: Bios Setup

    PT Series Windows HMI User Guide Chapter 4: BIOS Setup This chapter describes the different settings available in the INSYDE BIOS that comes with the board. This chapter offers information on the Award BIOS installation utility. 4.1 How and When to Use BIOS Setup 4.2 BIOS Functions 4.1 How and When to Use BIOS Setup To enter the BIOS setup, you need to connect an external USB keyboard, external...
  • Page 23 Chapter 4: BIOS Setup The following Keys can be used after entering the BIOS Setup. Function General Help Previous Values Optimized Defaults Save & Exit Exit Change Opt. Enter Select or execute command Cursor ↑ Moves to the previous item Cursor ↓...

  • Page 24: Bios Functions

    PT Series Windows HMI User Guide 4.2 BIOS Functions 4.2.1 Main Menu The Main menu displays the basic information about yoursystem including BIOS version, processor RC version, system language, time, and date. When you enter BIOS setup, the first menu that appears on the screen is the main menu.It contains the system information including BIOS version, processor RC version, system language, time, and date.

  • Page 25: Advanced Settings

    Chapter 4: BIOS Setup 4.2.2 Advanced Settings Select the Advanced Tab from the setup menu to enter the advanced BIOS setup screen. You can select any of the items on the left frame of the screen to go to the sub menu for the item, such as CPU Configuration.
  • Page 26 PT Series Windows HMI User Guide 4.2.2.1 Super I/O Configuration Serial Port 1 Configuration Serial Port This item enables or disables Serial Port (COM). Options: Enabled (Default) / Disabled Change Settings This item allows you to select an optimal setting for Super IO device. Options: Auto (Default) / IO=3F8h;...
  • Page 27 Chapter 4: BIOS Setup 4.2.2.2 Hardware Monitor 4.2.2.3 CPU Configuration Active Processor Cores This item sets number of cores to enable in each processor package Options: All (Default) / 1 Limit CPUID Maximum When the computer is booted up, the operating system executes the CPUID instruction to identify the processor and its capabilities.
  • Page 28 PT Series Windows HMI User Guide Options: Disabled (Default) / Enabled Execute-Disable Bit XD can prevent certain classes of malicious buffer overflow attacks when combined with a supporting OS (Windows Server 2003 SP1, Windows XP SP2, SuSE Linux 9.2, RedHat Enterprise 3 Update 3.). Options: Enabled (Default) / Disabled Hardware Prefetcher The processor has a hardware prefetcher that automatically analyzes its...
  • Page 29 Chapter 4: BIOS Setup Package C state limit This item enables or disables package C state limit Options: No Limit (Default) / CO / C1 / C3 / C6 / C7 4.2.2.4 PPM Configuration EIST This item enables or disables Intel SpeedSteps. Options: Enabled (Default) / Disabled CPU C state Report This item enables or disables CPU C state report to OS.
  • Page 30 PT Series Windows HMI User Guide 4.2.2.5 SATA Configuration Serial-ATA (SATA) This item enables/disables Serial ATA Device. Options: Enabled (Default) / Disabled SATA ODD Port This item selects SATA ODD Port Options: No ODD (Default) / Port0 ODD / Port1 ODD SATA Mode This item determines how SATA controller(s) operate.
  • Page 31 Chapter 4: BIOS Setup 4.2.2.6 Network Stack Configuration Network Stack This item enables or disables UEFI network stack Options: Disabled (Default) / Enabled Note: The following items appear only when you set the Network Stack function to [Enabled] IPv4 PXE Support This item enables or disables IPv4 PXE Boot Support.
  • Page 32 PT Series Windows HMI User Guide 4.2.2.7 CSM Configuration CSM Support This item enables or disables CSM Support Options: Disabled (Default) / Enabled Note: The following items appear only when you set the CSM Support to [Enabled] GateA20 Active Upon Request – FA20 can be disabled using BIOS services. Always – do not allow disabling GA20;...
  • Page 33 Chapter 4: BIOS Setup Storage This option controls the execution of UEFI and Legacy Storage OpROM Options: Legacy only (Default) / Do not launch / UEFI only / Legacy first / UEFI first Video This option controls the execution of UEFI and Legacy Video OpROM Options: Legacy only (Default) / Do not launch / UEFI only / Legacy first / UEFI first Other PCI devices...
  • Page 34 PT Series Windows HMI User Guide Legacy USB Support This item determines if the BIOS should provide legacy support for USB devices like the keyboard, mouse, and USB drive. This is a useful feature when using such USB devices with operating systems that do not natively support USB (e.g. Microsoft DOS or Windows NT).

  • Page 35: Chipset Menu

    Chapter 4: BIOS Setup 4.2.3 Chipset Menu This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system which allows I/O devices to operate at speeds nearing the speed of the CPU itself uses when communicating with its own special components.
  • Page 36 PT Series Windows HMI User Guide 4.2.3.1 North Bridge Intel IGD Configuration Integrated Graphics Device Enable: Enable Integrated Graphics Device (IGD) when selected as the Primary Video Apaptor. Disable: Always disable IGD. Options: Enabled (Default) / Disabled IGD Turbo Enable Enable: Enable IGD Turbo Enable.
  • Page 37 Chapter 4: BIOS Setup Options: Enabled (Default) / Disabled LCD Control Boot Display Device This item allows you to select the display device. Options: Auto (Default) Max TOLUD This item sets maxium value of TOLUD. Options: Dynamic (Default) / 1GB / 1.25GB / 1.5GB / 1.75GB / 2GB / 2.25GB / 2.5GB / 2.75GB / 3GB 4.2.3.2 South Bridge Azalia HD Audio...
  • Page 38 PT Series Windows HMI User Guide Options: 11dB (Default) / 14dB / 19dB / 25dB USB Configuration XHCI Mode The item selects Mode of operation of xHCI controller. Options: Smart Auto (Default) / Auto / Enabled / Disabled USB 2.0(EHCI) Support This item controls the USB EHCI (USB 2.0) functions.

  • Page 39: Security Menu

    Chapter 4: BIOS Setup 4.2.4 Security Menu This section allows to configure and improve system, and set up some system features according to your preferences. Administrator Password This item sets Administrator Password. User Password This item sets User Password. Secure Boot Secure Boot can be enabled if 1.
  • Page 40 PT Series Windows HMI User Guide Key Management Enroll All Factory Default Keys It allows you to immediately load/clear the default Security Boot keys, Platform key (PK), Key-exchange Key (KEK), Signature database (db), and Revoked Signatures (dbx). The Platform Key (PK) state will change from Unloaded mode to Loaded mode.

  • Page 41: Boot Menu

    Chapter 4: BIOS Setup 4.2.5 Boot Menu Setup Prompt Timeout This item sets number of seconds to wait for setup activation key. Options: 2 (Default) Bootup NumLock State This item selects the keyboard NumLock state. Options: On (Default) / Off Full Screen Logo Display This item allows you to enable/disable Full Screen Logo Show function.

  • Page 42: Exit Menu

    PT Series Windows HMI User Guide 4.2.6 Exit Menu This menu allows you to load the optimal default settings, and save or discard the changes to the BIOS items. Discard Changes and Exit Abandon all changes made during the current session and exit setup. Save Changes and Reset Reset the system after saving the changes.

  • Page 43: Appendix

    Appendix Appendix Appendix A: Product Specifications Model Name R15IE3S-PTC3 W15IE3S-PTA3 Display 15” 15.6” Size Resolution 1024 x 768 1920 x 1080 Panel Brightness Contrast Ratio 800:1 (typ.) 800:1 (typ.) View Angles ~80~80 (H); ~70~80 (V) -85~85(H);-85~85(V) Projected Capacitive Multi Touch Screen...
  • Page 44 PT Series Windows HMI User Guide Linux 4.1.15 QT 5.5 (Optional) (Optional) Linux Ubuntu 22.04 (Optional) WLAN Support (Optional) Support (Optional) Environment Operating Humidity 10% to 90% RH, Non-Condensing Operating 0°C to 50°C Temperature Storage -10°C to 60°C Temperature IP rating Front IP65 Control 1 x Power Button...
  • Page 45 Appendix M.2 2242 B-key SSD up to 512GB (Optional) 1 x SATA III for 2.5" SSD/HDD up to 1TB (Optional) Ethernet controller 2 x Intel® Ethernet Controller Security TPM 2.0 Windows 11 IoT Enterprise SAC (64 bit) (Optional) Operating System Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) Environment...

  • Page 46: Appendix B: Cleaning The Lcd Monitor

     Don not use water or oil directly on the display screen. If droplets are allowed to drop on the screen, permanent staining or discoloration may occur. Appendix C: Technical Support Winmate provides the following Drivers, SDK and Update Guide: Item Driver Description Utility...
  • Page 47 Notes ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________...
  • Page 48 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © Winmate Inc. All rights reserved.
