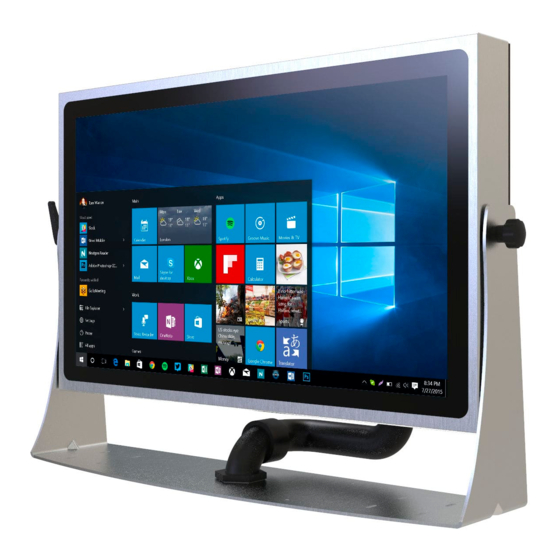

Panel pc with conduit pipe. ip69k, stainless.
Hide thumbs
Also See for P Series:
- Quick start manual (28 pages) ,
- Quick start manual (28 pages) ,
- User manual (72 pages)
Table of Contents
Advertisement
Quick Links
IP69K Stainless P-Series
Panel PC with Conduit Pipe
Intel® Core™ i5-7200U Kaby Lake, 2.5 GHz
Quick Start Guide
Document Version 1.0
Document Part No. 91521110104R
Please read this instructions before operating the device and retain them for future reference.
15"/ 19"/ 21.5"/ 23.8"
Model No. R15IK3S-SPC369-P
R19IK3S-SPM169-P
W22IK3S-SPA369-P
W24IK3S-SPA269-P
Advertisement
Table of Contents
Related Manuals for Winmate P Series
Summary of Contents for Winmate P Series
- Page 1 IP69K Stainless P-Series Panel PC with Conduit Pipe Intel® Core™ i5-7200U Kaby Lake, 2.5 GHz 15”/ 19”/ 21.5”/ 23.8” Model No. R15IK3S-SPC369-P R19IK3S-SPM169-P W22IK3S-SPA369-P W24IK3S-SPA269-P Quick Start Guide Document Version 1.0 Document Part No. 91521110104R Please read this instructions before operating the device and retain them for future reference.
-
Page 2: Table Of Contents
3.2 Turning On/ Off the Device 3.3 How to Enable Watchdog Chapter 4: Maintenance and Troubleshooting 4.1 Cleaning the Monitor 4.2 Basic Troubleshooting Appendix Appendix A: Hardware Specifications Appendix B: Winmate Software Development Kit Appendix C: Yoke Mount Stand Kit Dimensions... - Page 3 Chapter 1: Introduction FCC Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received including interference that cause undesired operation.
- Page 4 Warranty Winmate Inc. warranty guarantees that each of its products will be free from material and workmanship defects for a period of one year from the invoice date. If the customer discovers a defect, we will, at his/her option, repair or replace the defective product at no charge to the customer, provide it is returned during the warranty period of one year, with transportation charges prepaid.
- Page 5 Chapter 1: Introduction Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory. Note: A note is used to emphasize helpful information Important:...
-
Page 6: Chapter 1: Introduction
1.1 Overview Congratulations on purchasing Winmate® IP69K Stainless P-Series Panel PC. Winmate P-Series Panel PC features with a waterproof conduit pipe for added cable protection. The IP69K series is built to withstand extensive wash downs with corrosion resistance against cleaning agents, especially against close-range high-pressure, high temperature wash downs. -
Page 7: Package Content
Chapter 1: Introduction 1.3 Package Content Carefully remove the box and unpack your device. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. Factory shipment list: ... -
Page 8: Product Overview
IP69K Stainless P-Series Panel PC Quick Start Guide 1.4 Product Overview This section contains mechanical drawing of the IP69K Stainless P-Series Panel PC. Notice that this is a simplified drawing and some components are not marked in detail. Note 1: Yoke mount stand kit is an optional accessory. Note 2: Wi-Fi antenna is an optional feature 15”, R15IK3S-SPC369-P Unit: mm... - Page 9 Chapter 1: Introduction 21.5”, W22IK3S-SPA369-P Unit: mm Dimensions: 531 x 322 x 56 mm 23.8”, W24IK3S-SPA269-P Unit: mm Dimensions: 600 x 369 x 56 mm...
-
Page 10: Physical Buttons
IP69K Stainless P-Series Panel PC Quick Start Guide 1.5 Physical Buttons The P-Series Panel PC has one Power physical button located on the rear side. Press the Power button to power on or power off the device. 1.6 Air Vent Valve The P-Series Panel PC has an air vent valve that has an automatic mechanical system that controls and maintains pressure without the assistance of an operator. -
Page 11: Wi-Fi Antenna
Chapter 1: Introduction 1.7 Wi-Fi Antenna The panel PC has Wi-Fi antennas located on the top. Note: Notice that Wi-Fi antennas is an optional feature based on your order. -
Page 12: Connector Description
IP69K Stainless P-Series Panel PC Quick Start Guide 1.8 Connector Description Terminal interfaces are located under the protection cover on rear side of the panel PC. To access the I/O connectors, please open the protection cover first. Note: Notice that input and output connectors vary by product size and specifications. Connector description: Item Description... -
Page 13: Chapter 2: Installation
2.1.1 VESA Mount The panel PC has VESA mount holes on the rear side. Follow instructions below to mount the unit with VESA Mount bracket (not supplied by Winmate). Size VESA Plate Dimensions Screw Hole Diameter 15”, 19”... -
Page 14: Yoke Mount
2. Secure screws to fix the device upon the bracket stand. 3. Firmly secure the locking handle to the panel PC. Yoke Mount Stand Kit is available for order from Winmate. Please check mechanical drawing Appendix C of this quick start guide. -
Page 15: I/O Cover And Conduit Pipe Installation
Chapter 2: Installation Installation instruction ❶ Make a cutout on the fixture (ex. cabinet) ❷ Based on the drawing mark screw holes according to the cutout dimension of the panel on a rear side of the fixture. Place the panel PC. - Page 16 IP69K Stainless P-Series Panel PC Quick Start Guide Caution The I/O cover and waterproof conduit pipe required to maintain enclosure protection rating. Attention Le couvercle et le tuyau de conduit imperméable requis pour maintenir le degré de protection du boîtier. Conduit Pipe Components Before you start installing the pipe, be sure that you have the following components: Item...
-
Page 17: Conduit Pipe Removal
Chapter 2: Installation To install I/O cover and Conduit Pipe 1. Connect cables to connectors. Conduit assembly may include all possible cables that might be needed. If not all cables are needed, they may be cut and removed from the conduit before installation. -
Page 18: Wiring Diagram
IP69K Stainless P-Series Panel PC Quick Start Guide 2.5 Wiring Diagram This P-Series Panel PC has waterproof conduit pipe and I/O cover to ensure protection rating. Please connect cables first, and then install I/O cover and conduit pipe. Wiring Diagram Note: Please use RJ45 to D-Sub9 Adapter to connect Serial Interfaces cable to P-Series Panel... -
Page 19: Connector Pin Assignments
Chapter 2: Installation 2.6 Connector Pin Assignments This P-Series Panel PC is equipped with power connector, HDMI connector and USB connector for touch. The pin assignments of the connectors are described in this section. 2.6.1 Power Connector By default the P-Series Display has one 3-pin terminal block connector (phoenix type) power connector that accepts 12V DC or 9~36V DC power input based on your order. -
Page 20: Rj45 Connector
IP69K Stainless P-Series Panel PC Quick Start Guide 2.6.3 RJ45 Connector The panel PC has two RJ45 connectors that support 10/100/1000 Mbps Ethernet interface for connecting to the internet. Pin assignment and signal names of Ethernet connector Pin № Pin № Signal Name Signal Name TX1+... -
Page 21: Chapter 3: Getting Started
Chapter 3: Getting Started Chapter 3: Getting Started 3.1 Connecting to Power Source By default the P-Series Panel PC has one 3-pin terminal block connector (phoenix type) power connector that accepts 12V DC or 9~36V DC power input based on your order. Check your order specifications before connecting to power source 3.1.1 Connecting to AC Power Source Follow the following steps to power on your device:... -
Page 22: Connecting To Dc Power Source (Optional)
IP69K Stainless P-Series Panel PC Quick Start Guide 3.1.2 Connecting to DC Power Source (Optional) Follow the following steps to power on your device: 1. Connect the 3-pin terminal block. 2. Screw the Terminal block to fix the cable. 3. Connect terminal block to the display. + Connect to power supply until 0V -Connect to power supply until it get +9~36V DC 4. -
Page 23: How To Enable Watchdog
3.3 How to Enable Watchdog To enable Watchdog, you need to download Winmate Watchdog utility. Find more information on Watchdog in “Watchdog Guide” that you can download from Winmate Download Center or File Share. Refer to the User Manual for more details. -
Page 24: Chapter 4: Maintenance And Troubleshooting
IP69K Stainless P-Series Panel PC Quick Start Guide Chapter 4: Maintenance and Troubleshooting 4.1 Cleaning the Monitor Note: The IP69K Stainless Panel PC withstands regular intense cleaning and could hold up against steam and high-pressure water. The devices are able to sustain water temperatures up to 80°C and a water jets. -
Page 25: Appendix
Appendix Appendix Appendix A: Hardware Specifications Model Name R15IK3S-SPC369-P R19IK3S -SPM169-P W22IK3S -SPA369-P W24IK3S -SPA269-P Display 15” 19” 21.5” 23.8” Size Resolution 1024 x 768 1280 x 1024 1920 x 1080 1920 x 1080 Brightness 250 nits (typ.) 250 nits 250 nits (typ.) 250 nits (typ.) Contrast Ratio... -
Page 26: Appendix B: Winmate Software Development Kit
Standards and Certification Certification CE, FCC CE, FCC CE, FCC CE, FCC Appendix B: Winmate Software Development Kit Winmate provides the following SDK and Utilities for the IP69K Stainless P-Series Panel PC. Item File Type Description Watchdog SDK Utility Watchdog Utility To find the Drivers and SDK, please refer to the Driver CD that comes in the package or contact us. - Page 27 Appendix 19”, R19IK3S-SPM169-P Unit: mm Part No. 98K019A00002 21.5”, W22IK3S-SPA369-P Unit: mm Part No. 98K021A00001 23.8”, W24IK3S-SPA269-P Unit: mm Part No. 98K023A00001...
- Page 28 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © Winmate Inc. All rights reserved.
