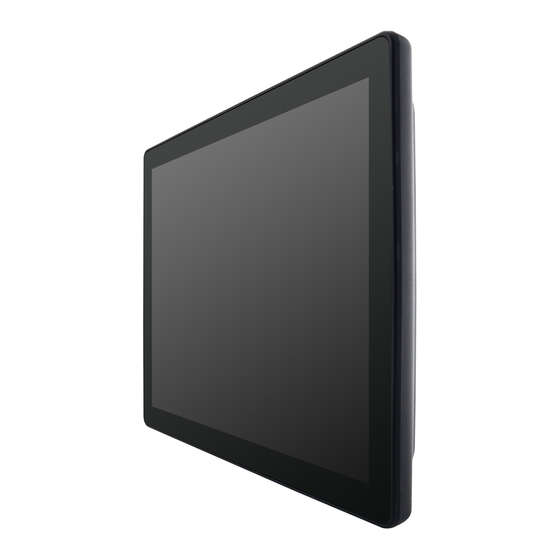

Winmate PT Series User Manual
Multi-touch chassis hmi arm dual-core cortex-a72 + quad-core cortex-a53
Hide thumbs
Also See for PT Series:
- User manual (64 pages) ,
- Quick start manual (24 pages) ,
- User manual (28 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
User Manual
Advertisement
Table of Contents
Related Manuals for Winmate PT Series
Summary of Contents for Winmate PT Series

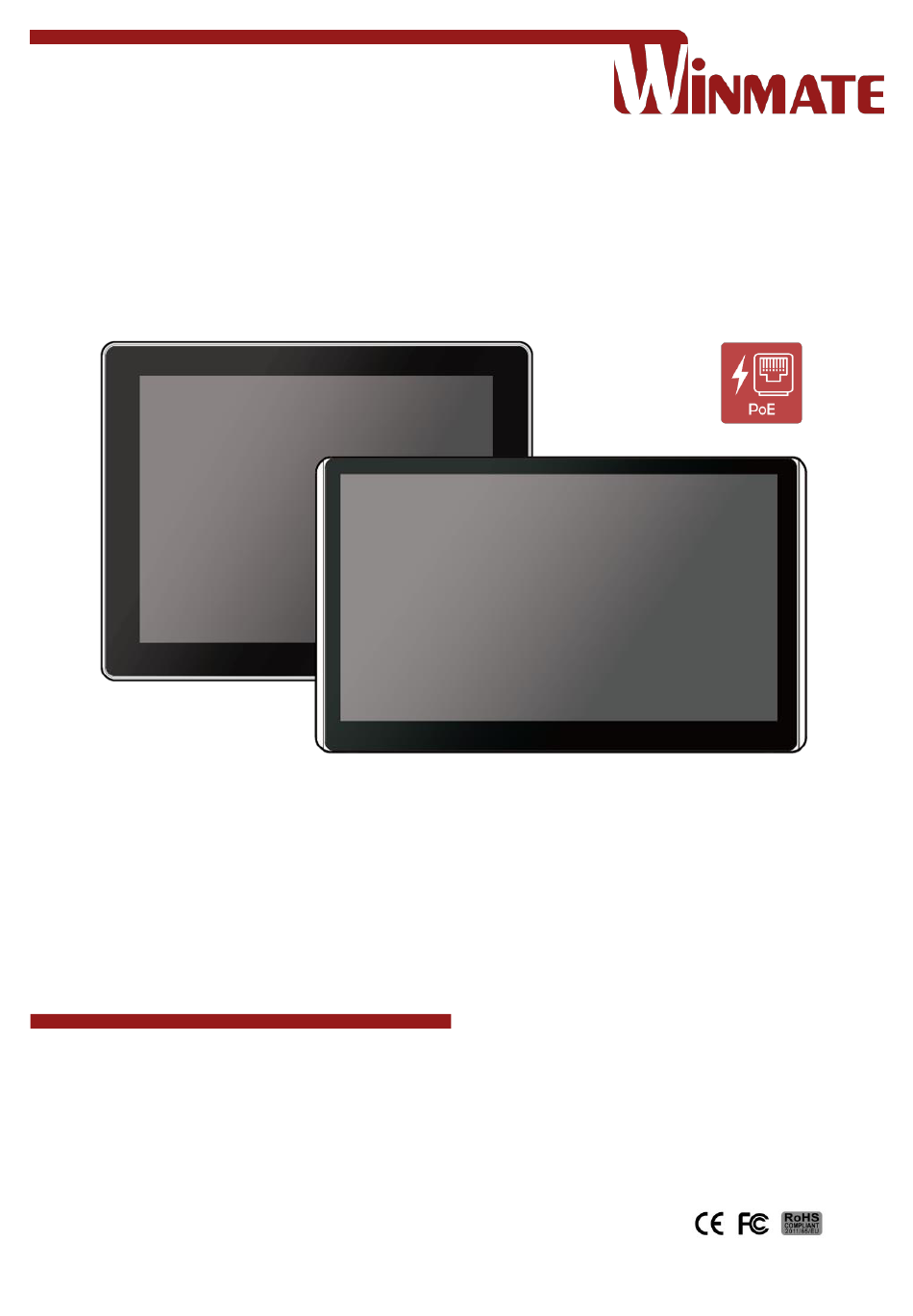

- Page 1 PT Series Multi-Touch Chassis HMI Arm Dual-core Cortex-A72 + Quad-core Cortex-A53 Model No. R15RK3S-PTC3 W15RK3S-PTA3 User Manual Part No. 91711110101F Version 1.0 Please read these instructions carefully before using this product, and save this manual for future use...
-
Page 2: Table Of Contents
PT Series Android HMI User Manual Contents Preface About This User Manual Chapter 1: Introduction 1.1 Features 1.2 Package Contents 1.3 Appearance and Mechanical Dimensions 1.4 Connector Description 1.5 Physical Buttons and LED Indicators 1.6 Speaker Chapter 2: Installation 2.1 Wiring Requirements 2.2 VESA Mounting... - Page 3 Preface 4.5 OS Image Update Guide Appendix Appendix A: Product Specifications Appendix B: Cleaning the LCD Monitor Appendix C: Technical Support...
-
Page 4: Preface
PT Series Android HMI User Manual Preface FCC Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received including ... - Page 5 Preface Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners. Disclaimer We reserve the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance.
- Page 6 According to the European Union issued Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS 2.0). Winmate Inc.’s guaranty is able to meet the current regulations and customer requirements in respect of the...
-
Page 7: About This User Manual
About This User Manual About This User Manual This User Manual provides information about using the Winmate® PT-Series HMI. This User Manual applies to the PT-Series HMI - R15RK3S-PTC3, W15RK3S-PTA3. The documentation set for the PT-Series HMI with Arm Cortex® A72 + Quad-core Cortex®- A53 processor provides information for specific user needs, and includes: ... -
Page 8: Chapter 1: Introduction
PT Series Android HMI User Manual Chapter 1: Introduction The PT Series Ideal for various industrial or enterprise scenarios, the PT series Chassis HMI comes to satisfy those who are in need for a high performance HMI Panel PC in a slim, sleek design. -
Page 9: Appearance And Mechanical Dimensions
Chapter 1: Introduction 1.3 Appearance and Mechanical Dimensions 15-inch, R15RK3S-PTC3 Unit: mm Dimensions:352.50 x 276.70 x 45 ❶ ❻ RJ45/ PoE Micro SD Card Slot ❷ Terminal Block 12V DC In ❼ Micro HDMI ❸ RS-232/422/485 ❽ Power & Reset Button ❹... - Page 10 PT Series Android HMI User Manual 15.6-inch, W15RK3S-PTA3 Unit: mm Dimensions:388 x 233 x 40 ❶ ❻ RJ45/ PoE Micro SD Card Slot ❷ Terminal Block 12V DC In ❼ Micro HDMI ❸ RS-232/422/485 ❽ Power & Reset Button ❹...
-
Page 11: Connector Description
USB OTG – Connect to PC for client use and update OS Image. MicroSD Card Slot – Insert microSD card to expand the storage. 1.5 Physical Buttons and LED Indicators PT Series HMI has Power and Reset physical buttons located on the back side. Item Description Power Button –... -
Page 12: Speaker
PT Series Android HMI User Manual 1.6 Speaker Speaker is located on the rear side of the display. Electrical Specifications Rated impedance 6±15% ohms@2KHz, 1 Vrms input Power Rating 0.67 W Short Term Max Power 1.3W Acoustical Specifications Sound Pressure Level... -
Page 13: Chapter 2: Installation
Chapter 2: Installation Chapter 2: Installation 2.1 Wiring Requirements The following common safety precautions should be observed before installing any electronic device: Caution Strive to use separate, non-intersecting paths to route power and networking wires. If power wiring and device wiring paths must cross make sure the wires are perpendicular at the intersection point. -
Page 14: Vesa Mounting
PT Series Android HMI User Manual 2.2 VESA Mounting This device supports VESA Mounting and provides various types of mounting options to fit any industrial use. Size VESA Plate Screw Size 15” 75x75 mm, 100x100 mm M4 x 5 M4 x 8 15.6”... -
Page 15: Turning On And Off
Chapter 2: Installation 2.3 Turning On and Off Follow the following steps to turn on your device: 1. Connect one side of 3-pin terminal block to DC jack connector to the HMI. Connect the other side to the AC adapter. 2. -
Page 16: Ethernet Connector
PT Series Android HMI User Manual 2.4.2 Ethernet Connector The HMI device supports one RJ45 10/100/1000 Mbps Ethernet interface for connecting to the internet. Pin assignment and connector description of RJ45 connector. Pin № Pin № Signal Name Signal Name... -
Page 17: Micro Hdmi Connector
Chapter 2: Installation 2.4.5 Micro HDMI Connector The HMI device has one micro HDMI connector. Use micro HDMI cable to connect your HMI device to external monitor or other peripheral. Pin assignment and connector description of micro HDMI connector. Pin № Pin №... -
Page 18: Chapter 3: Operating The Device
PT Series Android HMI User Manual Chapter 3: Operating the Device The PT Series HMI runs on Android 7.1 operating system (Default). 3.1 Home Screen Your device runs on Android 7.1 operating system (Default). Back Opens the previous screen you were working in, even if it was in a different app. -
Page 19: Quick Settings
Chapter 3: Operating the Device Many screens in apps and Settings include a menu icon at the top right of the screen. Touch it to explore additional options, including Help & feedback. To add an app to a Home screen: 1. -
Page 20: Configuring Serial Port Settings
Open the main Settings menu by touching Settings at the top right. 3.3 Configuring Serial Port Settings Serial COM Port can be configured for RS-232, RS-422 or RS-485. Winmate provide COM port settings application for Android OS. To configure serial port settings: 1. - Page 21 Chapter 3: Operating the Device 3. Comport-Setting > Comport 1/ Comport 2/ Comport 3 * Select Comport 1/ Comport 2/ Comport 3 that you want to configure.
-
Page 22: Brightness Adjustment
PT Series Android HMI User Manual 4. Comport 1 > RS232/RS422/RS485 * Configure Comport 1 settings 3.4 Brightness Adjustment Use can adjust the screen brightness in Android settings. Pull down from the top of the screen to get the notifications area. You can also access display settings in the settings menu. -
Page 23: Ethernet
Chapter 3: Operating the Device Tap the cursor to the left to reduce the screen brightness. Tap the cursor to the right to increase the screen brightness. 3.5 Ethernet 1. Connect Ethernet Cable to the HMI. 2. Touch All APPS icon, and the open Ethernet application. -
Page 24: Configuring Ethernet Settings
PT Series Android HMI User Manual 3.5.1 Configuring Ethernet Settings Go to All Apps > Ethernet > Configure Ethernet *Ethernet OFF is set by default. Swipe Ethernet ON to activate Ethernet connection. Connection Type Setting Description DHCP The device automatically capture IP-address from the router... -
Page 25: Configuring Ethernet
Chapter 3: Operating the Device 3.5.2 Configuring Ethernet To check Ethernet settings: Go to All Apps > Ethernet > Check Ethernet Ethernet settings menu appears on the top right side of the desktop. -
Page 26: Winmate® Home Manager (Whm)
PT Series Android HMI User Manual 3.6 Winmate® Home Manager (WHM) Winmate® HMI running on Android OS comes with preinstalled APP named Winmate® Home Manager (WHM) which let the device manager to lock the launcher then the user can only use one application assigned by the device manager. - Page 27 Chapter 3: Operating the Device Menu Description Set which app you want to run up automatically after Home Manager booting Password Manager Set the WHM password (Default password is “0000”). About Displays information about Home Manager 2. Go to “Application Selector”, and choose the app which you want to run up automatically after booting.
- Page 28 PT Series Android HMI User Manual 3. Go back to “Home Selector” and press “Clear and Reset Default Home”. 4. Select “Restrict Home” and “Always”, and then restart the computer to enable these settings. The system will automatically start the application which you selected and lock it. Any time user presses home key or back key;...
-
Page 29: How To Unlock Applications
Chapter 3: Operating the Device 3.6.2 How to Unlock Applications Follow the instruction below to reset Home Manager. 1. If you want to reset the home manager, pull down the left side to open the status bar and open HomeManager. 2. -
Page 30: How To Change Password
PT Series Android HMI User Manual 3. Restart the system and you will go back to the normal Launcher. 3.6.3 How to Change Password To change the password: 1. Go to Password Manager and set your own password for this APP. -
Page 31: Chapter 4: Software Installation
Chapter 4: Software Installation Chapter 4: Software Installation This chapter contains software installation and updates guide. All the programming guides can be found in the driver CD included in the package. 4.1 Android Debug Bridge Driver Installation Important: If your computer is running on Windows 10, Windows Embedded 8 Standard or Windows 8.1 Industry Pro OS system, you need to disable driver signature. -
Page 32: Disabling Driver Signature On Windows 8
PT Series Android HMI User Manual 4.1.1 Disabling Driver Signature on Windows 8 1. Hold down the Windows key on your keyboard and press the letter C to open the Charm menu, and then click the gear icon (Settings). 2. Click Change PC Settings. - Page 33 Chapter 4: Software Installation 3. Click General. 4. Under Advanced Startup, click Restart Now. NOTE: In Windows 8.1, the ‘Restart Now’ button has moved to ‘PC Setting -> Update & Recovery -> Recovery.’ 5. After restarting, click Troubleshoot.
- Page 34 PT Series Android HMI User Manual 6. Click Advanced Options. 7. Click Windows Startup Settings.
- Page 35 Chapter 4: Software Installation 8. Click Restart. 9. After restarting your computer a second time, choose Disable driver signature enforcement from the list by typing the number 7 on your keyboard. Your computer will restart automatically. 10. After restarting, you will be able to install the ADB drivers normally; however, Windows will display a warning message.
-
Page 36: Adb Driver Installation
PT Series Android HMI User Manual Note: The next time you restart your computer, driver signature enforcement will be in effect again. You will have to repeat this process for any new boards. If you have multiple boards to use with the same computer, we recommend installing the drivers for each one before you shut down or restart your computer. - Page 37 Chapter 4: Software Installation 2. In the Update Driver Software window choose Browse my computer for driver software. 3. Select Let me pick from a list of device drivers on my computer. Click Next. 4. Select from your computer 5. In the Update driver software window, click show All Devices and then click Next.
- Page 38 PT Series Android HMI User Manual 6. The system is looking for the driver folder. Click Browse. 7. Select the driver for your OS system. Click Open.
- Page 39 Chapter 4: Software Installation 8. Windows Security window will pop up. This message is used to confirm whether the user wants to install the driver. Select Install this driver software anyway to continue. 9. When the installation is successfully completed you will see Android ADB Interface driver in the Update Driver Software window.
-
Page 40: Installing Android Debug Bridge (Adb)
PT Series Android HMI User Manual 4.2 Installing Android Debug Bridge (ADB) For detailed Android Debug Bridge (ADB) information refer to Android Developers Platform: http://developer.android.com/tools/help/adb.html 1. Decompress adb.zip. Open ADB terminal and move into the adb archive. ADB Terminal window 2. -
Page 41: Downloading Image Tool
Chapter 4: Software Installation 4.3 Downloading Image Tool Download OS Image Tool update guide from Winmate Download Center: 4.4 OTA Update Guide OTA is a tool which can help you to update OS image. To receive Android OS image file contact our sales representatives. - Page 42 PT Series Android HMI User Manual System shows OTA firmware related information. 3. Click Auto-check Update. The system is checking OTA File. It may take some time.
- Page 43 Chapter 4: Software Installation 4. Tap Update Image 5. Make sure the file founded by the system is image update file. Tap OK.
- Page 44 PT Series Android HMI User Manual 6. Make sure the battery level is at least 50%. Tap OK. 7. Tap OK. Important: Do not disconnect the power source! Do not remove the battery!
- Page 45 Chapter 4: Software Installation 8. After update the system will automatically restart. 4.5 OS Image Update Guide Download OS Image update guide from Winmate Download Center...
- Page 46 PT Series Android HMI User Manual Appendix Appendix A: Product Specifications Model Name R15RK3S-PTC3 W15RK3S-PTA3 Display 15” TFT 15.6” TFT (Widescreen) Size Resolution 1024 x 768 1920 x 1080 Brightness Contrast Ratio 700:1 (typ.) 800:1 (typ.) Viewing Angle ~80~80 (H); ~80~80 (V) -85~85(H);-85~85(V)
- Page 47 Android Driver USB OTG Driver Android SDK Guide Download OS Image Tool To find the Drivers and SDK, please refer to the Driver CD that comes in the package or contact us. Also, you can download drivers from Winmate Download Center.
- Page 48 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © Winmate Inc. All rights reserved.
