IP69K Stainless P Series
Panel PC with Conduit Pipe
Intel® Core™ i5 -8265U (6M Cache, 1.6 GHz up to 3.9 GHz)
Quick Start Guide
Document Version 1.3
Document Part No. 91521110107P
Please read this instructions before operating the device and retain them for future reference.
15"/ 19"/ 21.5"/ 23.8"
Model No. R15IW3S-SPC369-P1
R19IW3S-SPM169-P1
W22IW3S-SPA369-P1
W24IW3S-SPA269-P1
Advertisement
Table of Contents
Related Manuals for Winmate P Series
Summary of Contents for Winmate P Series
- Page 1 IP69K Stainless P Series Panel PC with Conduit Pipe Intel® Core™ i5 -8265U (6M Cache, 1.6 GHz up to 3.9 GHz) 15”/ 19”/ 21.5”/ 23.8” Model No. R15IW3S-SPC369-P1 R19IW3S-SPM169-P1 W22IW3S-SPA369-P1 W24IW3S-SPA269-P1 Quick Start Guide Document Version 1.3 Document Part No. 91521110107P...
-
Page 2: Table Of Contents
IP69K Stainless P Series Panel PC Quick Start Guide Contents Preface Chapter 1: Introduction 1.1 Overview 1.2 Features 1.3 Package Content 1.4 Product Overview 1.5 Physical Buttons 1.6 Air Vent Valve 1.7 Connector Description Chapter 2: Installation 2.1 Mounting 2.1.1 VESA Mount 2.1.2 Yoke Mount... -
Page 3: Preface
Preface Preface FCC Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. ⚫ This device must accept any interference received including ⚫ interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class "B"... - Page 4 Warranty Winmate Inc. warranty guarantees that each of its products will be free from material and workmanship defects for a period of one year from the invoice date. If the customer discovers a defect, we will, at his/her option, repair or replace the defective product at no charge to the customer, provide it is returned during the warranty period of one year, with transportation charges prepaid.
- Page 5 Preface Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory. Note: A note is used to emphasize helpful information Important:...
-
Page 6: Chapter 1: Introduction

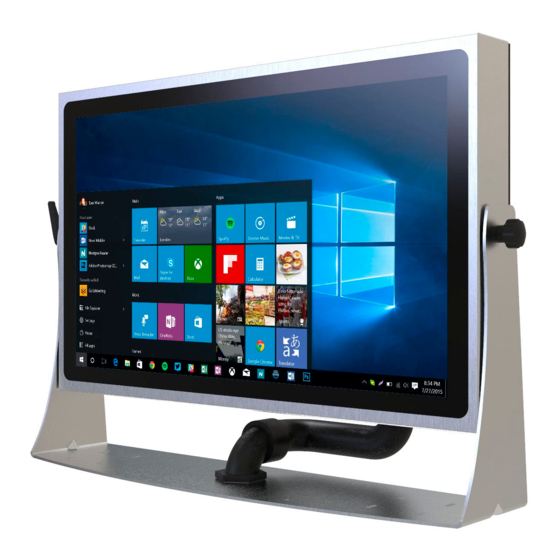

1.1 Overview Congratulations on purchasing Winmate® IP69K Stainless P Series Panel PC. Winmate P Series Panel PC features with a waterproof conduit pipe for added cable protection. The IP69K series is built to withstand extensive wash downs with corrosion resistance against cleaning agents, especially against close-range high-pressure, high temperature wash downs. -
Page 7: Package Content
Chapter 1: Introduction 1.3 Package Content Carefully remove the box and unpack your device. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. Factory shipment list: •... -
Page 8: Product Overview
IP69K Stainless P Series Panel PC Quick Start Guide 1.4 Product Overview This section contains mechanical drawing of the IP69K Stainless P Series Panel PC. Notice that this is a simplified drawing and some components are not marked in detail. - Page 9 Chapter 1: Introduction 21.5”, W22IW3S-SPA369-P1 Unit: mm 23.8”, W24IW3S-SPA269-P1 Unit: mm...
-
Page 10: Physical Buttons
IP69K Stainless P Series Panel PC Quick Start Guide 1.5 Physical Buttons The P Series Panel PC has one Power physical button located on the rear side. Press the Power button to power on or power off the device. 1.6 Air Vent Valve The P Series Panel PC has an air vent valve that has an automatic mechanical system that controls and maintains pressure without the assistance of an operator. -
Page 11: Connector Description
Chapter 1: Introduction 1.7 Connector Description Terminal interfaces are located under the protection cover on rear side of the panel PC. To access the I/O connectors, please open the protection cover first. Note: Notice that input and output connectors vary by product size and specifications. Connector description: Item Description... -
Page 12: Chapter 2: Installation
5. To ensure enclosure rating protection make sure the conduit pipe is firmly fixed and tightened. 2.1 Mounting The IP69K Stainless P Series Panel PC devices come with different mounting options suitable for most of the industrial and commercial applications. 2.1.1 VESA Mount The panel PC has VESA mount holes on the rear side. -
Page 13: Yoke Mount
2.1.2 Yoke Mount Yoke Mount solution allows installing the panel PC on the bracket. Notice that Yoke Mount Stand is an optional accessory available for order from Winmate. Installation instruction 1. Place the panel PC on the bracket stand, aiming screw holes for each other. - Page 14 IP69K Stainless P Series Panel PC Quick Start Guide Conduit Pipe Components Before you start installing the pipe, be sure that you have the following components: Item Description Slip Nut To secure “L” fitting adaptors. O-Ring Rubber / Gasket To maintain the IP Rating between equipment and cable.
-
Page 15: Conduit Pipe Removal
Chapter 2: Installation The EVA Foam usage Create an incision lengthwise on the EVA foam to pass through the cables. 2.3 Conduit Pipe Removal Removal Instructions 1. Firmly hold the elbow twist grip with one hand. 2. Twist the elbow counterclockwise. 3. -
Page 16: Wiring Diagram
IP69K Stainless P Series Panel PC Quick Start Guide 2.5 Wiring Diagram This P Series Panel PC has waterproof conduit pipe and I/O cover to ensure protection rating. Please connect cables first, and then install I/O cover and conduit pipe. -
Page 17: Connector Pin Assignments
Voltage 2.6.2 HDMI Connector The P Series Panel PC has one HDMI1.4a connector for video and audio. Plug HDMI signal cable to the HDMI connector on the rear side of PC system, and plug the other end to the monitor. -
Page 18: Lan Connector
IP69K Stainless P Series Panel PC Quick Start Guide 2.6.3 LAN Connector The panel PC has two RJ45 connectors that support 10/100/1000 Mbps Ethernet interface for connecting to the internet. Pin assignment and signal names of LAN connector Pin №... -
Page 19: Chapter 3: Getting Started
Chapter 3: Getting Started 3.1 Connecting to Power Source The P Series Panel PC has either one 3-pin terminal block connector (phoenix type) power connector that accepts 12 V DC or 9~36 V DC or one power jack connector that accepts 12 V DC power input power based on your order. -
Page 20: Connecting To Dc Power Source (Optional)
IP69K Stainless P Series Panel PC Quick Start Guide 3.1.2 Connecting to DC Power Source (Optional) Follow the following steps to power on your device: 1. Connect the 3-pin terminal block. 2. Screw the Terminal block to fix the cable. -
Page 21: How To Enable Watchdog
3.3 How to Enable Watchdog To enable Watchdog, you need to download Winmate Watchdog utility. Find more information on Watchdog in “Watchdog Guide” that you can download from Winmate Download Center or File Share. Refer to the User Manual for more details. -
Page 22: Chapter 4: Maintenance And Troubleshooting
IP69K Stainless P Series Panel PC Quick Start Guide Chapter 4: Maintenance and Troubleshooting 4.1 Cleaning the Monitor Note: The IP69K Stainless Panel PC withstands regular intense cleaning and could hold up against steam and high-pressure water. The devices are able to sustain water temperatures up to 80°C and a water jets. -
Page 23: Appendix
Appendix Appendix Appendix A: Hardware Specifications Model Name R15IW3S-SPC369-P1 R19IW3S-SPM169-P1 W22IW3S-SPA369-P1 W24IW3S-SPA269-P1 Display 15” 19” 21.5” 23.8” Size Resolution 1024 x 768 1280 x 1024 1920 x 1080 1920 x 1080 Brightness 300 nits (typ.) 250 nits 250 nits (typ.) 250 nits (typ.) Contrast Ratio 2000:1 (typ.) - Page 24 IP69K Stainless P Series Panel PC Quick Start Guide Model Name R15IW3S-SPC369-P1 R19IW3S-SPM169-P1 W22IW3S-SPA369-P1 W24IW3S-SPA269-P1 Mechanical Specification 478 x 395 x 57 mm 551 x 337 x 56.2 mm 630 x 390 x 56 mm Dimensions 388 x 301 x 56.2 mm...
-
Page 25: Appendix B: Winmate Software Development Kit
Appendix Appendix B: Winmate Software Development Kit Winmate provides the following SDK and Utilities for the IP69K Stainless P Series Panel PC. Item File Type Description Watchdog SDK Utility Watchdog Utility To find the Drivers and SDK, please refer to the Driver CD that comes in the package or contact us. - Page 26 Notes ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________...
- Page 27 Notes ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________...
- Page 28 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © Winmate Inc. All rights reserved.
