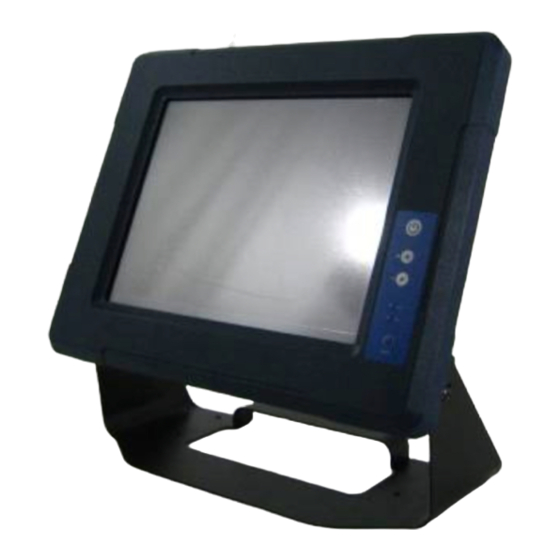

- Page 1 G-WIN AMD Rugged Series Panel PC AMD Geode LX800 3.5” SBC, Ultra Low Power, Fanless Design with CPU, TFT LCD and 10/100/1000 base-T Ethernet. User Guide Version 1.1...
-
Page 2: Fcc Statement
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. G-WIN AMD Rugged Series Panel PC User Guide... -
Page 3: Copyright Notice
If the customer discovers a defect, Winmate will, at its option, repair or replace the defective product at no charge to the customer, provided it is returned during the warranty period of one year, with transportation charges prepaid. - Page 4 Customer Service We provide service guide for any problem as follow steps：First, visit the website at http://www.winmate.com to find the update information about the product. Second, contact with your distributor, sales representative, or our customer service center for technical support if you need additional assistance.
-
Page 5: Safety Precautions
As a safety precaution, use a grounding wrist strap at all times. Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. G-WIN AMD Rugged Series Panel PC User Guide... -
Page 6: Safety And Warranty
F. The equipment has obvious signs of breakage. 15. Do not leave this equipment in an uncontrolled environment where the storage temperature is below -20° C (-4° F) or above 60° C (140° F). It may damage the equipment. G-WIN AMD Rugged Series Panel PC User Guide... - Page 7 Revision History Version Date Note Author 2008.01.25 First Version Martin Chen 2008.07.15 Second Version Sarah Su G-WIN AMD Rugged Series Panel PC User Guide...
-
Page 8: Table Of Contents
Contents CHAPTER 1 GENERAL INFORMATION ............1 1-1 Introduction ....................1 1-2 G-WIN RUGGED Series Panel PC System Mother-Board Specifications . 2 1-3 Panel PC Selection Guide ................3 CHAPTER 2 GETTING STARTED ..............4 2-1 Input / Output Devices ................... 4 2-1-1 8.4-Inch Input / Output Devices ..........4 2-1-2 10.4-Inch Input / Output Devices ..........5 2-2 Starting the Panel PC&... -
Page 9: Chapter 1 General Information
Both of great mobility and robust design are fitting the demands for every harsh environment applications such as logistics, transportation/ fleet management, heavy vehicles, utility and also outdoor usage. G-WIN AMD Rugged Series Panel PC User Guide... -
Page 10: G-Win Rugged Series Panel Pc System Mother-Board Specifications
4G Compact Flash Card 2.5” 40G HDD 2.5” Flash Disk(SSD) （Optional） Industrial Compact Flash Card Compact Flash Card Industrial Compact Flash Card O/S(Optional) Windows XP Embedded / Windows XP Professional Embedded/ WinCE5.0 / Linux 2.6.11 G-WIN AMD Rugged Series Panel PC User Guide... -
Page 11: Panel Pc Selection Guide
262,144 (6bit/colors) R08A83S-VMU2 800 × 600 262,144 (6bit/colors) R10A83S–VMM2DL 800 × 600 262,144 (6bit/colors) R10A83S–VMM3DL 1024 × 768 16.2M (6bit+FRC) 10.4” R10A83S–VMP1DL 800 × 600 262,144 (6bit/colors) R10A83S–VMP3DL 640 × 480 262,144 (6bit/colors) G-WIN AMD Rugged Series Panel PC User Guide... -
Page 12: Chapter 2 Getting Started
RJ-45 port and get connection to the Local Area Network (LAN). 10/100 Mbps (Optional Giga LAN), connect a network LAN2 cable to the standard RJ-45 port and get connection to the Local Area Network (LAN). G-WIN AMD Rugged Series Panel PC User Guide... -
Page 13: Inch Input / Output Devices
RJ-45 port and get connection to the Local Area Network (LAN). 10/100 Mbps (Optional Giga LAN), connect a network LAN2 cable to the standard RJ-45 port and get connection to the Local Area Network (LAN). G-WIN AMD Rugged Series Panel PC User Guide... -
Page 14: Starting The Panel Pc& O/S Installation
Manual Chapter 4, 5, 6, 7) include: Graphic, Chipset, VGA, Audio, SATA (if necessary) and Ethernet. 2. Following the step by step to install the Touch screen if necessary (Please refer G-WIN RUGGED series PPC User Guide Chapter 3). G-WIN AMD Rugged Series Panel PC User Guide... -
Page 15: Chapter 3 Touch Driver Installation
Touched with a finger, gloved hand, fingernail, or stylus, it delivers a fast, accurate response every time. G-WIN AMD Rugged Series Panel PC User Guide... -
Page 16: The Elo Accutouch/ Carrolltouch Infrared Driver Installation
DOS, OS/2 Warp, and Apple Macintosh. Just follow the step by step to install the driver. Choose “Auto-detect ELO devices” in the first step. If not, the following step will need users choose COM3 port for detecting the devices. G-WIN AMD Rugged Series Panel PC User Guide... -
Page 17: Configuration Utility
After finishing the installation, please follow the steps to test the configuration utility. Step.1 Enter “My Computer”, click the “ELO Touch Screen” shortcut function. Step.2 Click “Align” function key to go to next step. G-WIN AMD Rugged Series Panel PC User Guide... - Page 18 Step.3 Correct 4 point locations on screen with the Panel PC. Screen display as follows. Step.4 Touch the “yes” function if the cursor follows your finger and finish the utility test. G-WIN AMD Rugged Series Panel PC User Guide...
-
Page 19: The Premier Touch Driver Installation
Step.4 Click Next to continue installation. And it will auto-detect touch devices in COM3 port at your Panel PC. Following step by step to finish the driver installation. Step.5 G-WIN AMD Rugged Series Panel PC User Guide... -
Page 20: Configuration Utility
Click the “Touch-Kit” shortcut function in the desktop. Step.2 Enter “General” function and choose the language you need. Then Enter “Tool” function alignments to match the display. And go to next step. G-WIN AMD Rugged Series Panel PC User Guide... - Page 21 Step.3 Correct 4 point locations on screen with the Panel. Screen display as following. Step.4 Play “Yes” to continue if 4 points calibration test is fine and finish the testing. G-WIN AMD Rugged Series Panel PC User Guide...
-
Page 22: Chapter 4 G-Win Rugged Series Panel Pc Mounting Guide
Panel PC. As the pictures guided: Application 1 VEHICLE MOUNTING Mount with Vehicle mount kits and then mounted into mounting bracket. Application 2 WALL MOUNTING Mount with VESA mount kits and then mounted into wall G-WIN AMD Rugged Series Panel PC User Guide... -
Page 23: Vehicle Mounting
Three M5x10 screws with washer One “Locking handle” adjustment tool with metal washer SOP for Bracket Stand Assembly 1. Put the Rugged Panel PC on the bracket stand, aim to the screw hole for each other. G-WIN AMD Rugged Series Panel PC User Guide... - Page 24 4. Loose the hand-screw adjustment tool, then you can adjust product angle on the stand. Then screw the product tight again to fix. Adjust the product angle Loose Locking handle Lock Locking handle G-WIN AMD Rugged Series Panel PC User Guide...
-
Page 25: Vesa Mounting
Fix the Panel PC with four screws (standard VESA), and fasten on the wall with other four screws. 75 mm x 75 mm Touch VESA mount Holes 3mm~6mm VESA mount holes Panel 75 mm G-WIN AMD Rugged Series Panel PC User Guide... -
Page 26: Known Issues
3. If customers need to use USB-HDD or USB-CDROM for booting an operating system at start-up time, and we recommend to disable the “Quick Power On Self Test” function in CMOS setting G-WIN AMD Rugged Series Panel PC User Guide... -
Page 27: Notices
” type Compact Flash Card instead of removable disk mode. NOT A PLUG & PLAY DEVICE 4. The internal Compact Flash socket is POWER-OFF you may remove the CF card only at status. G-WIN AMD Rugged Series Panel PC User Guide...
