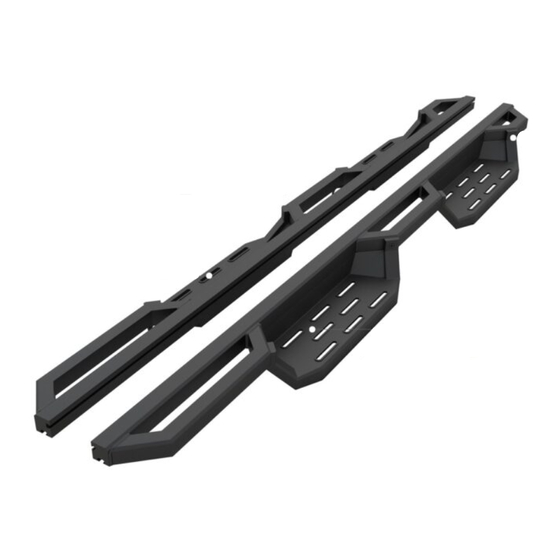

IARMOR EDGE™
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOM-
MENDED. THANK YOU FOR CHOOSING OUR PRODUCT!
*ROCKER PANEL MOUNT
*DRILLING MAYBE REQUIRED

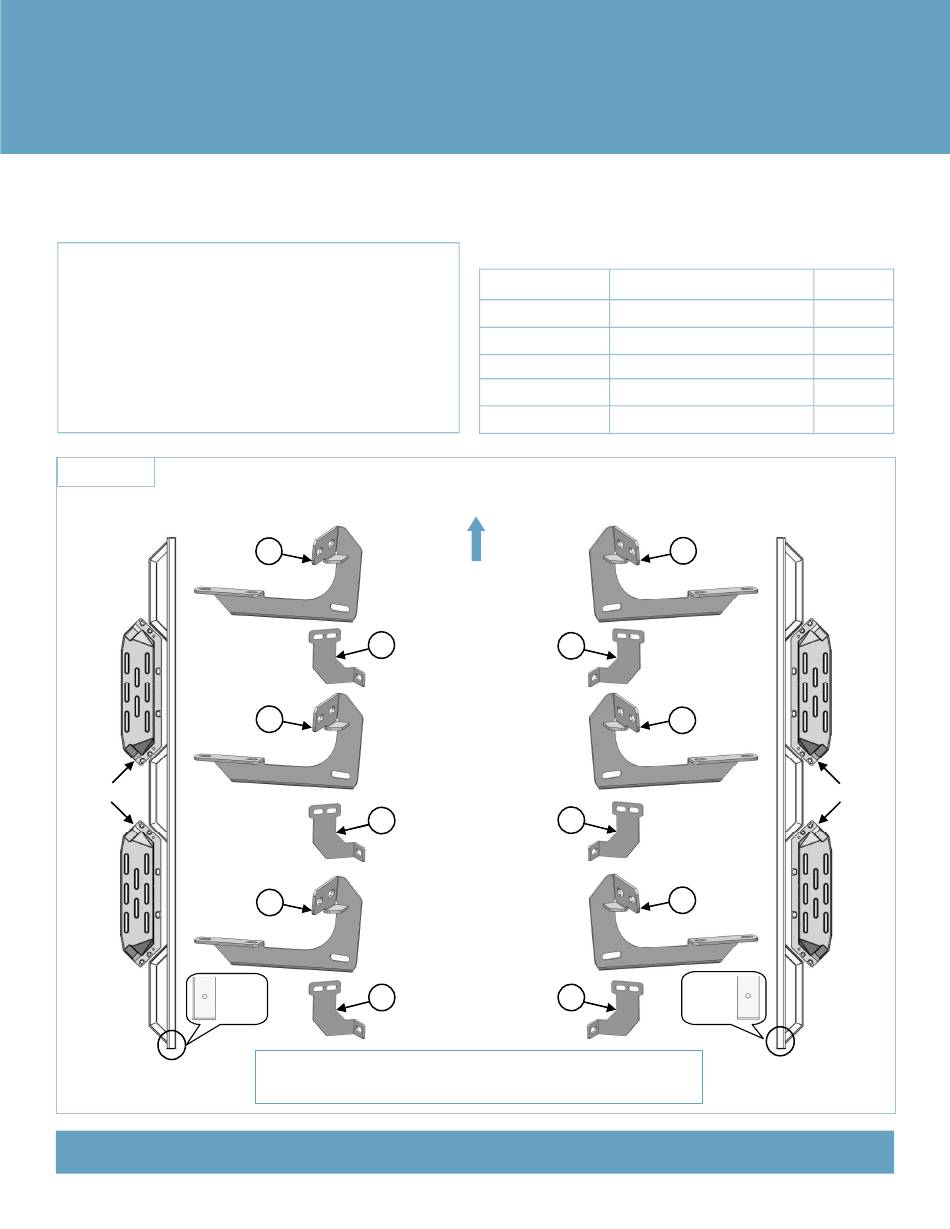

PART LIST
Driver Side Step Bar
Pedal
Drain
Hole at
Bottom
iArmor
1#
4#
1#
4#
1#
4#
Note:
Step bars are NOT interchangeable. Make sure drain holes at the
bottom will be located at the rear direction of the step bars.
Customer Support: info@iarmorauto.com
Torque Value
Fastener Size
6mm
8mm
10mm
12mm
14mm
Front
3#
3#
3#
1
®
PART#: IA-N179H
Tightening Torque (ft-lbs)
6-7
16-18
31-32
56-58
92-94
Passenger Side Step Bar
2#
2#
2#
Drain
Hole at
Bottom
Rev. 20221201
Required
√
√
X
X
X
Pedal
Advertisement
Related Manuals for iArmor EDGE IA-N179H
Summary of Contents for iArmor EDGE IA-N179H
- Page 1 ® PART#: IA-N179H IARMOR EDGE™ Torque Value BEFORE INSTALLATION Fastener Size Tightening Torque (ft-lbs) Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE √ STARTING INSTALLATION. ASSISTANCE IS RECOM- 16-18 √ MENDED. THANK YOU FOR CHOOSING OUR PRODUCT!
- Page 2 ® Hardware Package A (For Brackets & Bars Installation) Item Description Item Description Driver Side Mounting Brackets M8 Lock Washers Passenger Side Mounting Brackets M8 Nylon Lock Nuts Passenger Side Support Brackets M8 Hex Nuts Driver Side Support Brackets...
- Page 3 ® The instruction here is for your reference only. We strongly recommend the professional installer for best result. We are not responsible for any damage caused by the installation. STEP 1 Front Install (4) Pedals onto the step bars with (24) M8X1.25-25mm Hex Bolts, (24) M8 Large Flat Washers and (24) M8 Lock Washers.
- Page 4 ® b. Select (1) Driver Front Mounting Bracket. Attach the mount- Flush ing bracket to the welded bolt end of the M8 Bolt/Nut Plate with (1) M8 Large Flat Washer, (1) M8 Lock Washer and (1) M8X1.25 Hex Nut, (Fig 6A). Do not fully tighten at this time.
- Page 5 ® STEP 4 Models with factory threaded inserts: Attach Driver Front Mounting Bracket to the threaded inserts with (2) M8X1.25-30mm Hex Bolts, (2) M8 Lock Washers and (2) M8 Large Flat Washers, (Figs 7 & 8). Do not fully tighten Attach the Driver Front Support Bracket to the Driver Front hardware at this time.
- Page 6 ® Rear (Fig 12) Driver Side Rear Mounting Location (2) M6X1-25 Hex Bolts (4) M6 Large Flat Washers STEP 6 (2) M6X1 Nylon Lock Nuts (Fig 10) Attach Driver Front Support Bracket to back of pinch Once all (3) brackets have been installed, select (6) M8X1.25-...
- Page 7 ® STEP 9 Level and adjust the assembled Step Bar properly and tighten all hardware. Insert the T-bolt Thread down the M8 with M8 Plastic Move to the other side of the vehicle. Repeat Steps 2-8 for the Plastic Washer Washer in the other side step bar installation.
- Page 8 ® (Fig 15) Driver Side Step Bar Installation (6) M8 Plastic Washers (6) M8X1.25-20mm T-Bolts (6) M8 Large Flat Washers (6) M8 Nylon Lock Nuts Bottom View Front Customer Support: info@iarmorauto.com Rev. 20221201...
