• DATALOG2 and PDetect can also work standalone,
saving all the sensor data at the highest possible rate
onto the SD card.

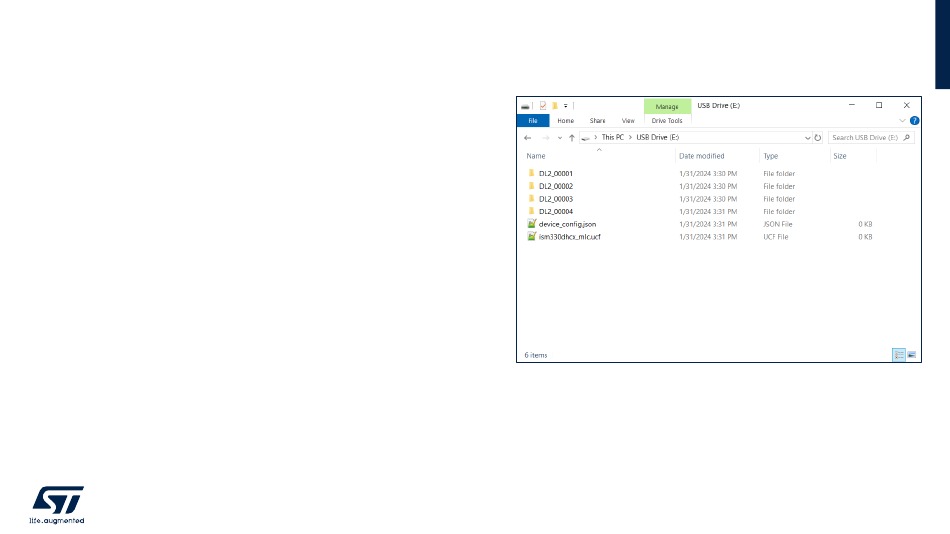

• DATALOG2 and PDetect can read a custom sensor
configuration from the SD card root folder. To do so, you
can simply save a JSON configuration file in the root
folder of the SD card (same as described in 2.1.1).
• In the same way, you can configure the MLC by saving
the proper UCF in the root folder. Start an acquisition in
standalone mode
• Once the firmware is flashed on the board:
•
Insert the SD card
•
If the board is battery-powered and switched off, press the PWR button to switch on the board. Press the
RESET button.
•
If the SD card is not inserted properly, the orange LED will be switched off. Otherwise, the orange LED will be
switched on.
•
If a JSON configuration file is present in the root folder of the SD card, the custom sensor configuration is
loaded from the file itself.
•
Press the USR button to start saving data. During the datalog stage, you will see the green LED blinking at 4
Hz.
•
To stop the data acquisition, press the USR button again. During the idle stage, you will see the green LED
blinking at 1 Hz.
Start an acquisition in standalone mode
