Getting started with the STEVAL-C34KAT1 vibrometer and temperature sensor
Introduction
The
STEVAL-C34KAT1
is a multisensing expansion kit that includes the STEVAL-C34AT01 expansion board and a flex cable.
The small form factor and the accurate design allow a precise measurement of vibrations up to the sensor bandwidth (6 kHz) as
well as of the temperature.
The
IIS3DWB
vibration sensor is soldered at the center of the small 25 x 25 mm board. The
placed on the PCB side and is thermally coupled to the PCB bottom exposed pad through vias.
The expansion board can be mounted on the equipment for the vibration analysis using the four holes or the double-sided
adhesive tape. This board is compatible with the STWIN.box kit (STEVAL-STWINBX1).
UM3021 - Rev 2 - February 2023
For further information contact your local STMicroelectronics sales office.

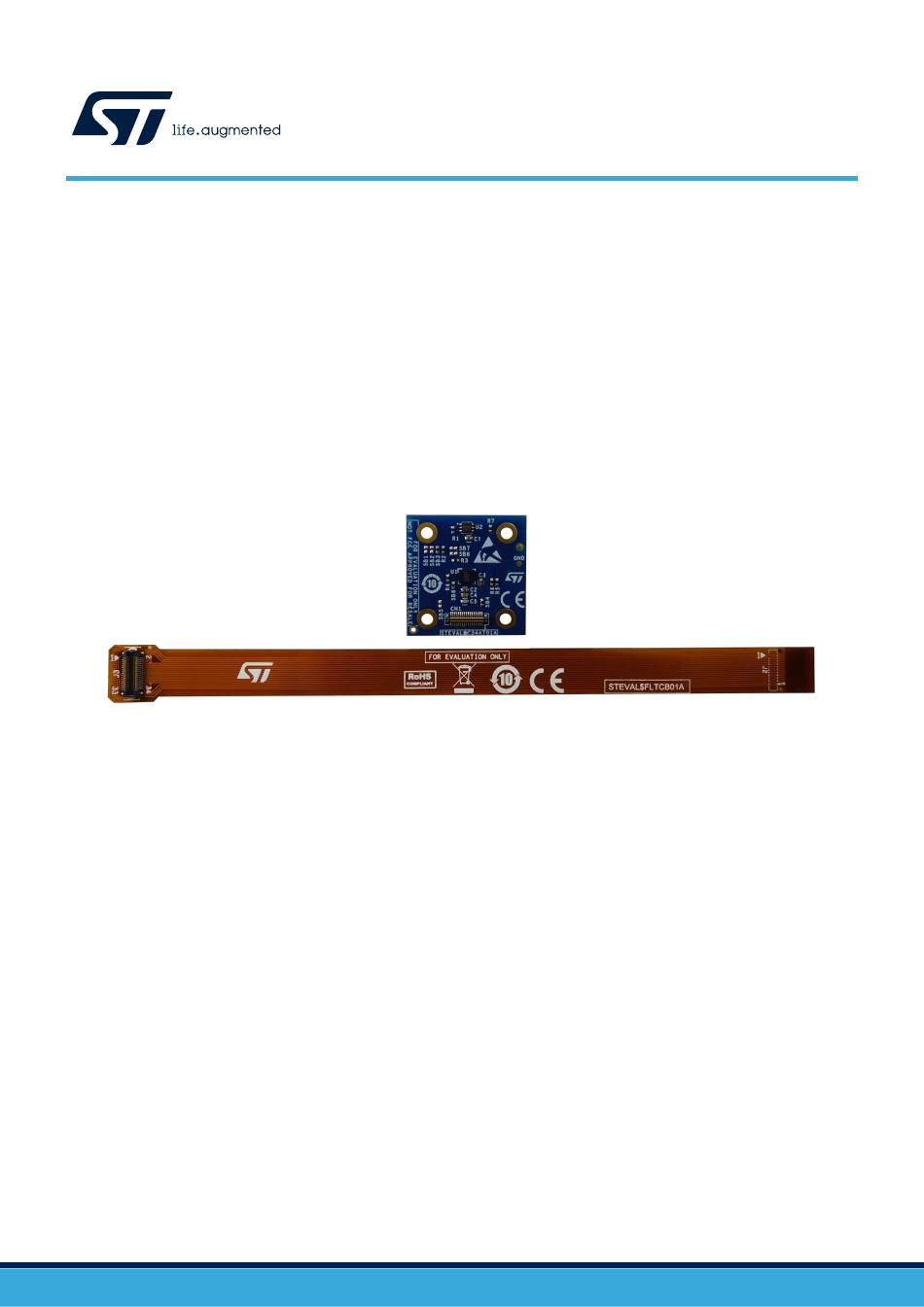

Figure 1.
