Getting started with the X-NUCLEO-IKS02A1 industrial motion MEMS sensor
Introduction
The
X-NUCLEO-IKS02A1
industrial motion MEMS sensor expansion board is compatible with the Arduino UNO R3 connector
layout.
It embeds the
ISM330DHCX
axis accelerometer, the
IMP34DT05
The
X-NUCLEO-IKS02A1
interfaces with the STM32 microcontroller via I²C pin, with the possibility of changing the default I²C
port.
UM2633 - Rev 1 - November 2019
For further information contact your local STMicroelectronics sales office.
3-axis accelerometer and 3-axis gyroscope, the
digital microphone.

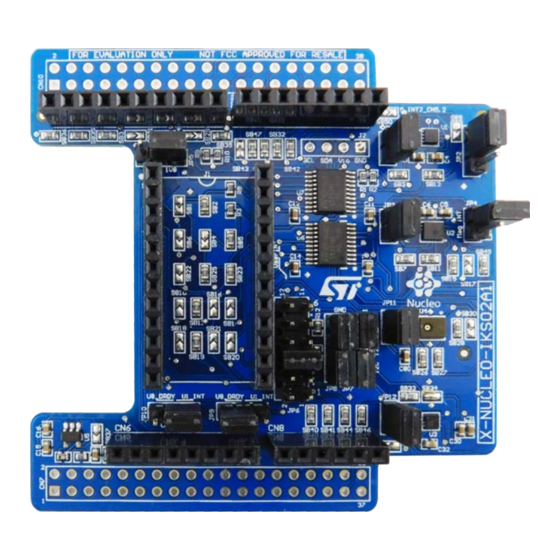

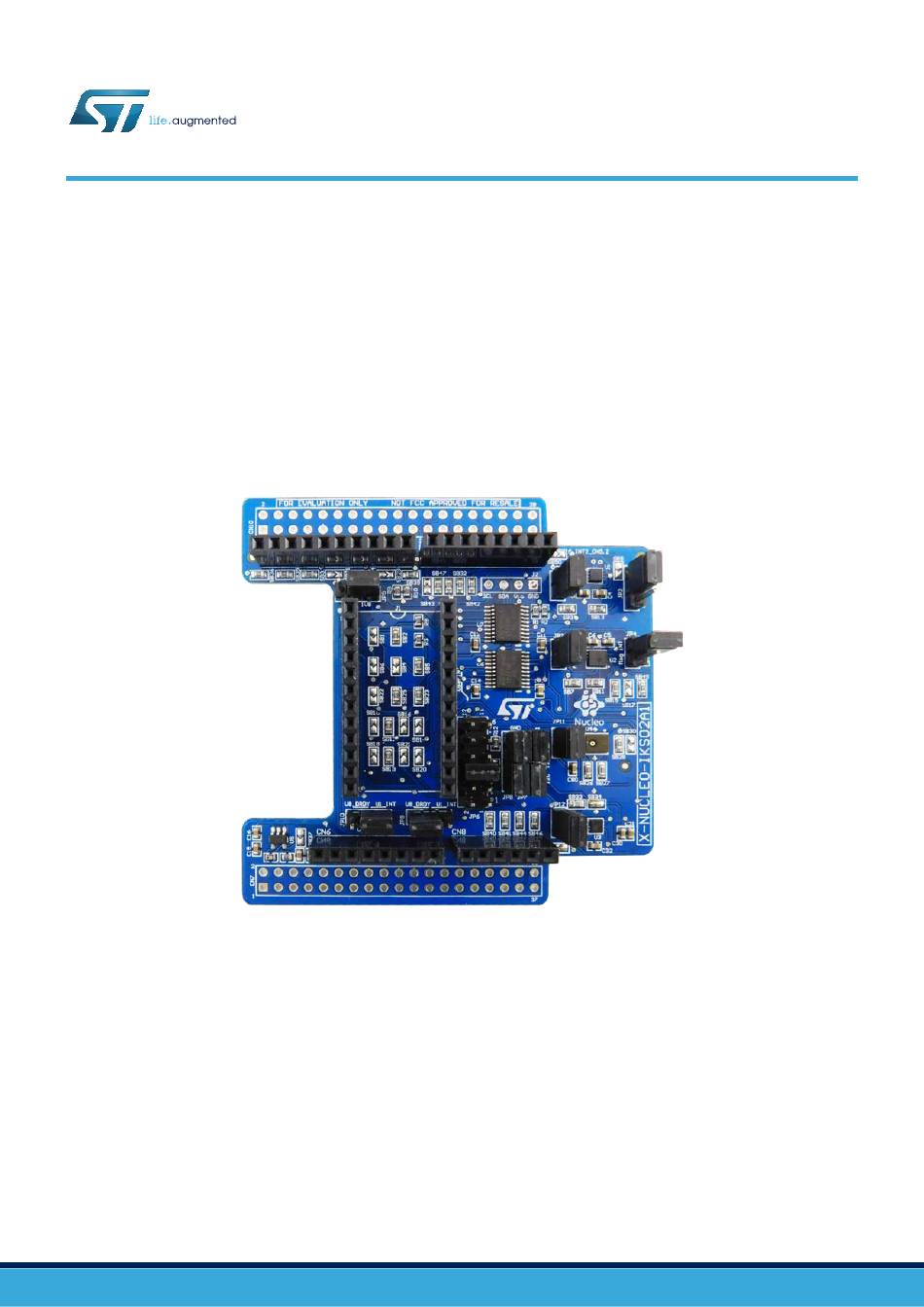

Figure 1.
X-NUCLEO-IKS02A1 expansion board
expansion board for STM32 Nucleo
IIS2MDC
3-axis magnetometer, the
UM2633
User manual
IIS2DLPC
3-
www.st.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-NUCLEO-IKS02A1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ST X-NUCLEO-IKS02A1

  • Page 1 UM2633 User manual Getting started with the X-NUCLEO-IKS02A1 industrial motion MEMS sensor expansion board for STM32 Nucleo Introduction X-NUCLEO-IKS02A1 industrial motion MEMS sensor expansion board is compatible with the Arduino UNO R3 connector layout. It embeds the ISM330DHCX 3-axis accelerometer and 3-axis gyroscope, the...
  • Page 2: Getting Started

    Arduino UNO R3 connector. The expansion board must be plugged on the matching pins of the development board connector. Figure 2. X-NUCLEO-IKS02A1 plugged on an STM32 Nucleo board Note: X-NUCLEO-IKS02A1 components are ESD sensitive: since the board has male/female pass through connectors, it is important to handle it with care to avoid bending or damaging the pins.
  • Page 3: Hardware Description

    UM2633 Hardware description Hardware description X-NUCLEO-IKS02A1 allows functionality testing of the motion MEMS accelerometer, gyroscope, magnetometer and environmental sensors for humidity, temperature and pressure through I²C communication bus. It also allows all the ISM330DHCX sensor hub function testing. The board features: •...
  • Page 4 In standard I²C mode, all devices are connected to an external main board via the same I²C bus. The board configuration is: • JP7: 1-2 3-4 (I²C1 = I²C2, I²Cx=GND) • JP8: 1-2 3-4 (I²C1 = I²C2, I²Cx=GND) Figure 3. X-NUCLEO-IKS02A1 standard I²C I²C2 ISM330DHCX STM32 Nucleo board Arduino UNO R3 IIS2DMC ST morpho...
  • Page 5 JP8: 2-3 (I²C1 = I²Cx) • DIL24 adapter (to I²C2): SB16, SB21 • Not mounted: SB6, SB10, SB12, SB14, SB18, SB19, SB20, SB22 Figure 5. X-NUCLEO-IKS02A1 DIL 24, ISM330DHCX I²C sensor hub (all sensors) I²C2aux (sensor hub) I²C2 ISM330DHCX STM32 Nucleo board...
  • Page 6 UM2633 Sensor I²C address selection Figure 6. X-NUCLEO-IKS02A1 ISM330DHCX, DIL 24, I²C sensor hub (all sensors) I²C2 I²C2aux ISM330DHCX (sensor hub) STM32 Nucleo board DIL 24 IIS2DMC I²C1 Arduino UNO R3 IIS2DLPC ST morpho Mode 5: ISM330DHCX plus I²C sensor hub DIL24 In sensor hub I²C mode, the...
  • Page 7 UM2633 Sensor current consumption measurement Sensor current consumption measurement X-NUCLEO-IKS02A1 expansion board is equipped with jumpers which allow separate current consumption measurement of each sensor. To measure current consumption, connect an ammeter to the appropriate jumper. As the sensors have very low current consumption, you should set a suitable range and use an ammeter with low burden voltage.
  • Page 8 UM2633 Connectors Connectors Table 6. X-NUCLEO-IKS02A1 connectors Connector Signal I²C SDA I²C SCL IIS2DLPS_INT2 MIC_DAT MIC_CLK 3.3 V IIS2DMC DRDY / IIS2DLPC INT IIS2DMC DRDY / IIS2DLPC INT IIS2DLPC INT2 INT1 (DIL24) USER INT MIC_CLK MIC_DATA ISM330DHCX INT2 ISM330DHCX INT1 1.
  • Page 9 UM2633 Connectors Table 7. ST morpho connectors Connector Signal 3.3 V 3.3 V IIS2DMC DRDY/ IIS2DLPC_INT IIS2DMC DRDY/ IIS2DLPC_INT MIC_CLK IIS2DLPC_INT2 INT1 (DIL24) I²C SCL I²C SDA MIC_CLK MIC_DATA IIS2DLPC_INT2 ISM330DHCX INT1 CN10 MIC_DATA ISM330DHCX INT2 MIC_DATA MIC_DATA MIC_CLK MIC_CLK USER INT 1.
  • Page 10 Schematic diagram Figure 9. X-NUCLEO-IKS02A1 circuit schematic DIL24 Socket for Adapter Board IIS2DLPC accelerometer ISM330DHCX accelerometer and gyroscope Trigger from DRDY MAG in SensorHub Mode IIS2DLPC Acc_ULP ISM330DHC_INT2 100nF 10µF I2C2_SDA M_INT_Pin24 SDA/SDI/SDO M_SA0/DEN M_SA0/DRDY SDO/SA0 I2C ADDw = 30h...
  • Page 11: Bill Of Materials

    UM2633 Bill of materials Bill of materials Table 8. X-NUCLEO-IKS02A1 bill of materials Item Q.ty Ref. Part/value Description Manufacturer Order code C3, C6, C15, 10 µF C0603 Capacitors Multicomp MC0603X106M6R3CT C4, C5, C11, C12, C13, 100 nF C0603 Capacitors Multicomp...
  • Page 12 UM2633 Bill of materials Item Q.ty Ref. Part/value Description Manufacturer Order code MEMS digital output motion sensor: high- IIS2DLPC LGA performance ultra-low- IIS2DLPC 2x2 12L 05P power 3-axis accelerometer for industrial applications iNEMO inertial module: always-on 3D ISM330DHCX accelerometer and 3D ISM330DHCX LGA 2.5x3.0 14L gyroscope with digital...
  • Page 13: Revision History

    UM2633 Revision history Table 9. Document revision history Date Version Changes 11-Nov-2019 Initial release. UM2633 - Rev 1 page 13/14...
  • Page 14 ST’s terms and conditions of sale in place at the time of order acknowledgement. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of Purchasers’...
