STWIN.box Modular platform expansion - STEVAL-PDETECT1

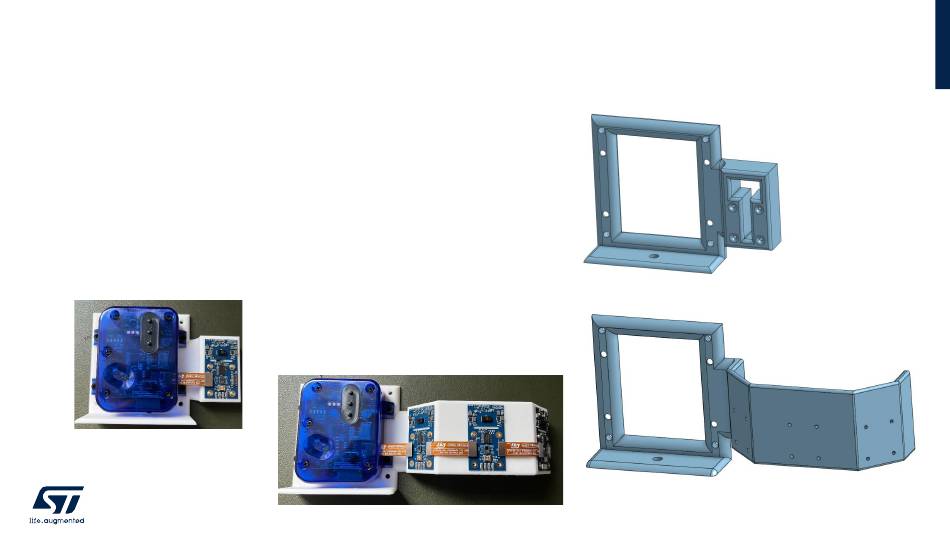

• Example 3D CAD Holders are available on st.com- STEVAL-

PDETECT1 page under CAD Resources

• Holder examples available for mounting either 1 STEVAL-PDETECT1

board or 3 STEVAL-PDETECT1 boards along with the STEVAL-

STWINBX1

• You can use the holder to mount the sensors onto various positions,

such as on the wall, ceiling, desk, and tripod directly for application

evaluation + testing

Optional Mounting Holders
