RIUKOE MD-B250 User Manual

250w beam moving head
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

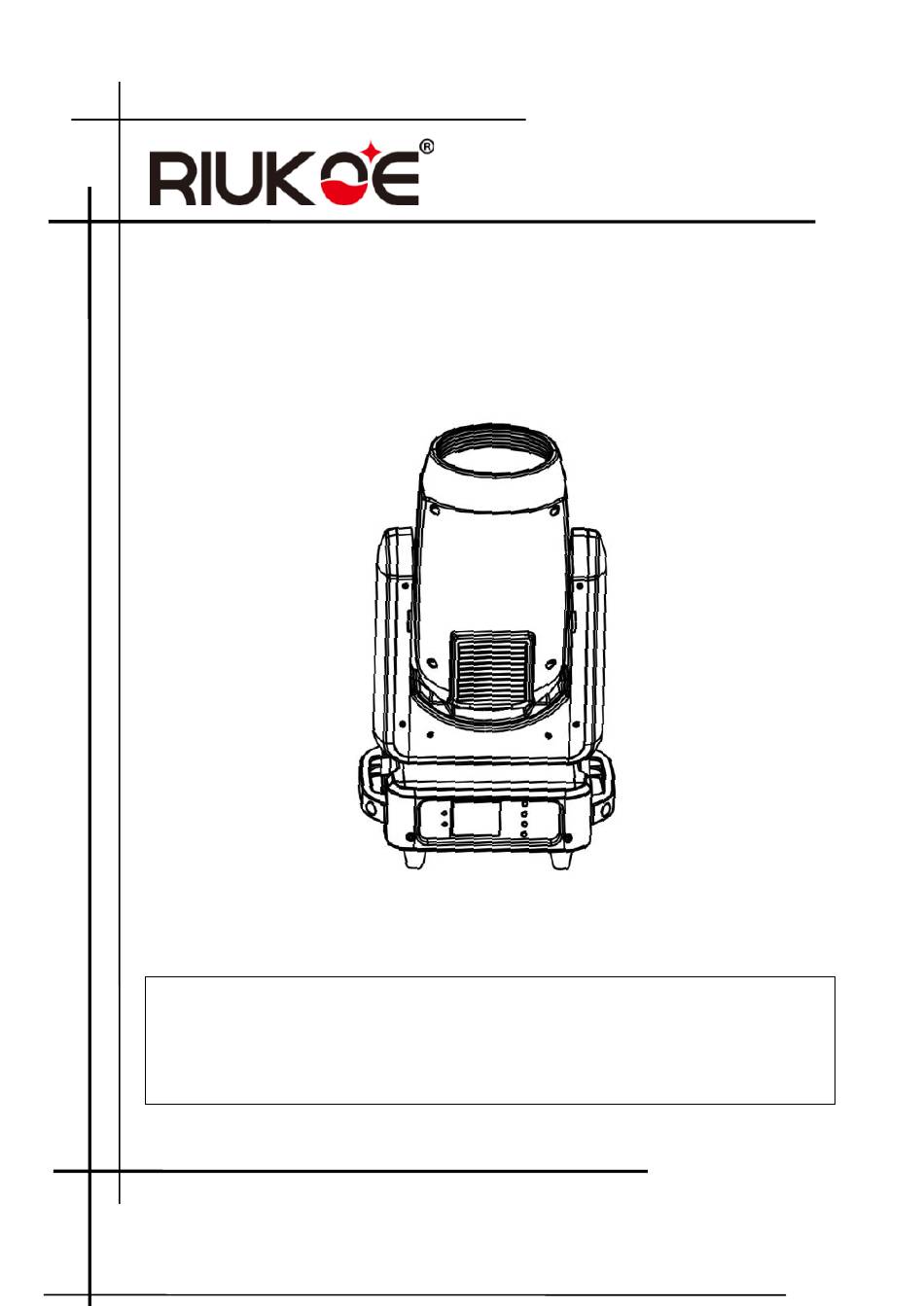

250W Beam Moving Head
This product manual contains important information about the safe installation and
use of this projector. Please read and follow these instructions carefully and keep
this manual in a safe place for future reference.
User manual
Please read the instructions carefully before use
(MD-B250)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MD-B250 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RIUKOE MD-B250

Summary of Contents for RIUKOE MD-B250

  • Page 1 250W Beam Moving Head (MD-B250) This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. User manual...

  • Page 2: Table Of Contents

    INDEX ..................... 2 1.STATEMENT ..................2 2.ACCESSORIES INSTRUCTION................2 3.SAFETY ..................4 4.INSTALLATION SPECIFICATION..............7 5.TECHNICAL ................ 10 6.HOW TO SET THE UNIT ..........12 7.CHANNEL DESCRIPTION (16/20CHS) 8. TROUBLE SHOOTING ................17 ............18 9.LEANING AND MAINTENANCE...

  • Page 3: Statement

    1.STATEMENT product well capability intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also cannot be responsible for any malfunction & problem owing to ignore the manual.

  • Page 4: Preventing Electric Shock

    Review the following safety precautions carefully before installing or operating the fixture. This fixture must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the fixture and the hazards involved. Preventing electric shock WARNING! Risk of electric shock.

  • Page 5: Avoid Personal Injury

    Avoid personal injury WARNING! Take measure to prevent personal injury. Do not look directly at the light source from close range. ⚫ Take precautions to prevent injury due to falls when working at height. ⚫ For permanent installation, ensure that the fixture is securely fastened to ⚫...

  • Page 6: Dmx-512 Control Connection

    mounting this fixture to truss be sure to sere to secure an appropriately rated clamp to the included Omega Bracket using a M10 screw fitted through the center hole of the ‘omega bracket’. As an added safety measure be sure to attached at least one properly rated Safety Cable to the fixture using one of the safety cable rigging point integrated in the base assembly.

  • Page 7: Dmx-512 Connection With Dmx Terminator

    DMX-512 connection with DMX terminator: For installations where the DMX cable has to run a long distance or is in an electrically noisy environment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing corruption of the digital control signal by electrical noise. The DMX terminator is simply an XLR plug with a 120 resistor connected between pins 2 and 3,which is then plugged into the output XLR socket of the last fixture in the chain.

  • Page 8: Dmx Address Setting

    DMX Address Setting: By using a universal DMX controller to control the units, you will need to set DMX address from 1 to 512 so that the units can receive DMX signal. Press the MENU button up to when the DMX Address is showing on the display. Pressing the ENTER button and the display will blink.
  • Page 9 Protocols - Control mode: DMX512, master-slave operation, sound control - Channel mode: 16CH/ 20CH - Support RDM function, DMX software upgrade function - Optional network function support: artnet, klingnet, sacn, network protocol Display/Case/Base - Display mode: LCD display, lamp temperature display, Chinese and English display, reverse display - High temperature resistant engineering plastic case + aluminum base Color Wheel...
  • Page 10 Dimmer/Strobe - Dimming level: 0-100% perfect linear dimming system - Strobe: 1-25 Hz Synchronous pulse strobe, random pulse strobe IP Rated - IP20, indoor only Weigh & Size - Net weight: 12kg - Product size: 295 * 165 * 500 - Package size:560 * 410* 410 Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice.

  • Page 11: How To Set The Unit

    6.HOW TO SET THE UNIT 6.1 Control Panel 1. Display: To show the various menus and the selected functions 2. Button: 6.2 Color/Gobo Wheel...
  • Page 12 6.3 Main Function To select any of the given functions, press the MENU button until the required function is showing on the display. Select the function by pressing the ENTER button and the display will blink. Use the DOWN/UP buttons to change the mode. Once the required mode has been selected, press the ENTER button to setup, to go back to the functions without any change press the MENU button again.

  • Page 13: Channel Description (16/20Chs)

    Linear Color OFF/ON LOAD Default 0 - 255 Pan Fine 0 - 255 Tilt 0 - 255 Tilt Fine 0 - 255 PT Speed 0 - 255 Color 0 - 255 Gobo 0 - 255 Prism1 0 - 255 Manual Prism1Rot 0 - 255 Prism2...
  • Page 14 X Fine X Fine Y Fine Y Fine XY Speed XY Speed Color Wheel Color Wheel Gobo Wheel Gobo Wheel Prism 1 Prism 1 Prism Rotating Prism Rotating Prism 2 Prism 2 Frost Frost Rainbow Effect Rainbow Effect Focus Focus Shutter/Strobe Shutter/Strobe Dimmer...
  • Page 15 009-012. Color 1 013-016. Color 1 plus color 2 017-021. 2 colors 022-025. Color 2 plus color 3 026-029. The color of 3 030-034. Color 3 plus color 4 035-038. 4 color 039-042. Color 4 plus color 5 043-046. Color 5 047-051.
  • Page 16 Gobo 000-004. Gobo 1 Wheel 005-009. Gobo 2 010-014. Gobo 3 015-019. Gobo 4 020-024. Gobo 5 025-029. Gobo 6 030-034. Gobo 7 035-039. Gobo 8 040-044. Gobo 9 045-049. Gobo 10 050-054. Gobo 11. 055-059. Gobo 12 060-064. Gobo 13 065-069.
  • Page 17 Prism 1 000-127. Prism 1 Off 128-255. Prism 1 On Prism 000-127. Prism Angle adjustment rotating 128-187. Forward rotation (from fast to slow) 188-195. Stop 196-255. Reverse rotation (from slow to fast) Prism 2 000-127. Prism 2 Off 128-255. Prism 2 On Frost 000-127.

  • Page 18: Trouble Shooting

    speed Dimmer/ Prism/ Frost speed Gobo speed 8. TROUBLE SHOOTING Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1.

  • Page 19: Leaning And Maintenance

    is broken. 2. The motor’s drive IC on the PCB might be out of condition. D. The lamp is cutting out intermittently 1. The lamp is not working well. Check the mains voltage either too high or too low. 2. Internal temperature may be too high. Check if replacement of fan is needed on the head.
  • Page 20 environment in which the fixture operates: damp, smoky or particularly dirty environments can cause greater accumulation of dirt on the fixture’s optics. Clean the external lens surface at least every 20 days with a soft cloth • to avoid dirt/debris accumulation. Never use alcohol, solvents, or ammonia based cleaners.
  • Page 21 Factory: No.31 Zhongxing Road Baiyun District Guangzhou,China +86-20-2904 6476 info@ricostagelight.com www.riukoe.com Facebook YouTube...
